Purpose

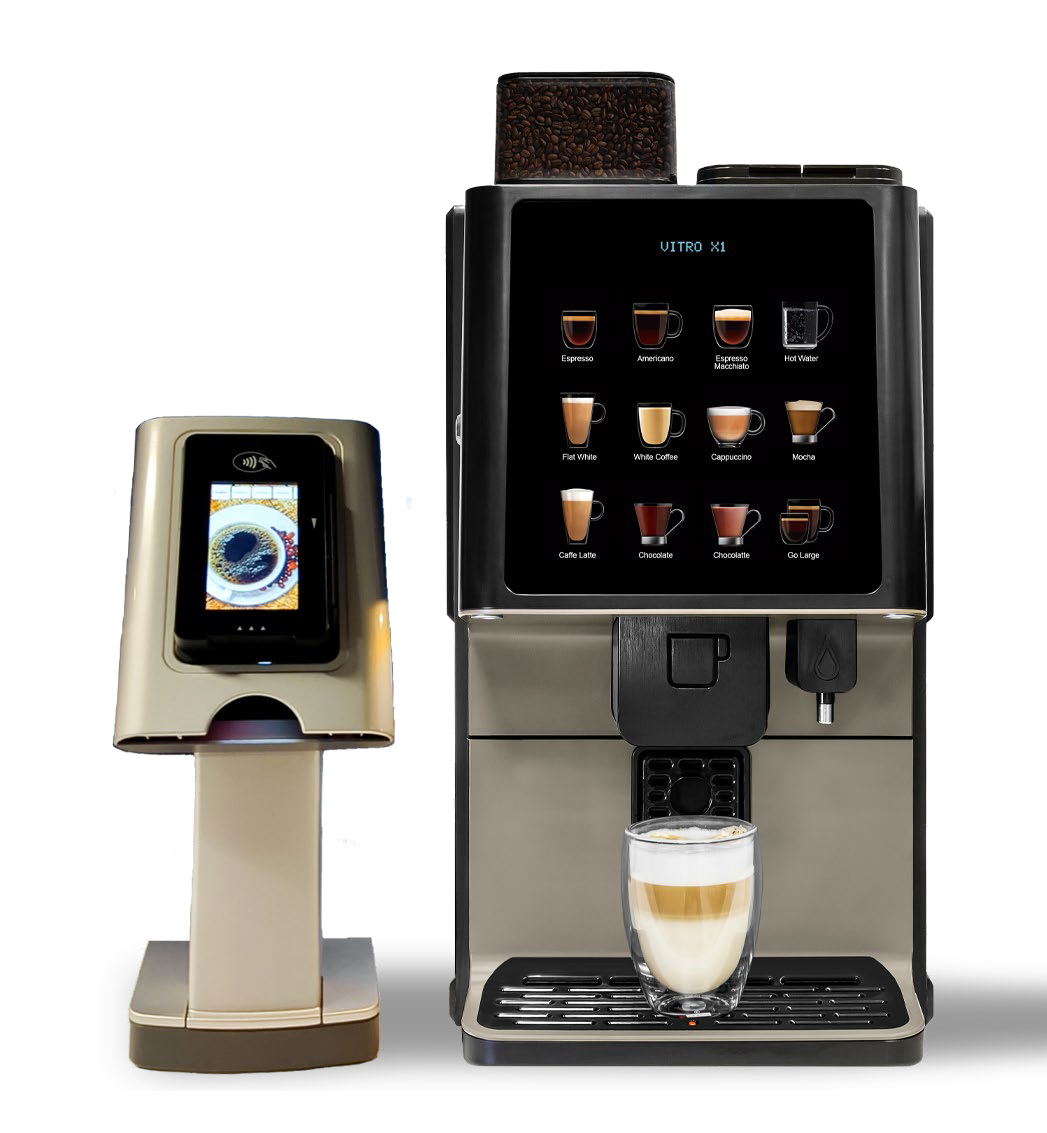

The PicoCoffee and PicoCoffee+ provide a first to market, MDB enabled coffee payment terminal with micro-market kiosk functionality.
Key Features
- Industrial design with custom prebuilt stand
- Customizable terminal via branding
- Industry standard MDB compatibility
- Embedded payment solution
- Integrated into the 365 Connected Campus via the 365Pay App and Global Market Account (GMA), for a one-stop solution beyond Coffee
- Device management in ADM, 365's back-office software
- IoT device management
- Upgrade any time to PicoCoffee+: the optional Scan&Pay Add-On for purchase of snacks and other items
Hardware Setup
The hardware setup process is the same for both the PicoCoffee and the PicoCoffee+.
What's in the Box
In the packaging for this device, you will receive:
- PicoCoffee device with custom stand, with preinstalled SIM Card
- PicoCoffee Power cable
- MDB Extension cable
- Cellular Antenna
- SMA Antenna Tool
- Mounting hardware, for mounting the stand to a countertop or other location
- Advertising header (optional)
Process
- Remove the PicoCoffee device from the packaging. The device is shipped to you already attached to its custom stand.
- Place the PicoCoffee in its intended location. If desired, you may mount the PicoCoffee stand to the countertop with the provided hardware. Use the Drill template guide included in the packaging to facilitate this process. The drill template guide can also be found in the attachments of this article.
- Determine the connectivity type that the PicoCoffee will use. The options are cellular, ethernet, or Wi-Fi, and are described below.
-

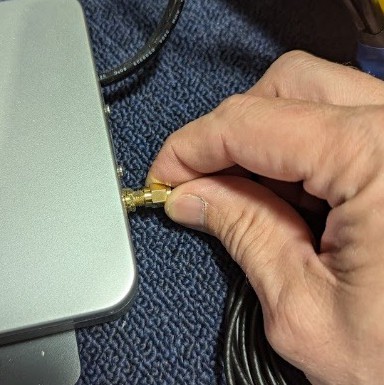

Cellular connection - connect the cellular antenna to the aerial port on the rear of the stand. This will be used in conjunction with the SIM Card that is preinstalled in the device.
-

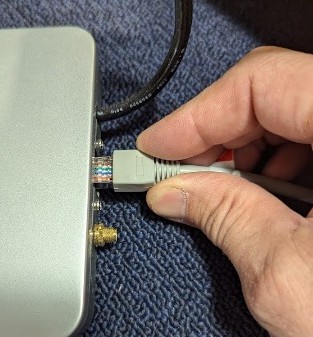

Ethernet connection - connect the ethernet cord to the ethernet port on the rear of the stand
- Wi-Fi connection - no additional hardware setup is needed for this option
-
Cellular connection - connect the cellular antenna to the aerial port on the rear of the stand. This will be used in conjunction with the SIM Card that is preinstalled in the device.

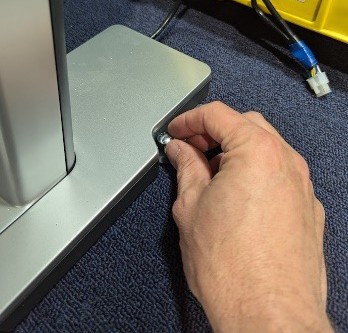

- Plug the power brick into the female end of the cable at the base of the stand. Plug the power brick into a wall outlet.
- If desired, install the advertising header using the 3 screws provided.
Connectivity Setup
- On the device's touchscreen, tap 5 times in the upper left-hand corner. This will bring up the Driver Menu, where you will be able to input your Driver PIN.
Click here to view all International Support Phone Numbers
+44 800 145 6152 - UK Support
+39 028 295 2763 - Italy Support
+353 1800 851 269 - Ireland Support
+61 1800 931 693 - Australia Support
+41 80-000-14-44 - Switzerland Support
+31 8003510060 - Netherlands Support
+34 900 933 294 - Spain Support
+33 801840539 - France Support
+49 911 98 10 40 00 - Germany Support
+32 80015450 - Belgium Support
+352 80081189 - Luxembourg Support
+45 8800413856 - Denmark Support
+358 800413856 - Finland Support
+43 800232935 - Austria Support
- The home screen of the Driver Menu will now appear. From this screen, select the Setup Network button at the bottom of the page
- Next, select the connection type you are using:
- Cellular - when selected, the device will display the SIM tray selection. Select the Next button here, and the cellular connection will be established.
- Wi-Fi - when this option is chosen, enter the credentials for your SSID/Network
-
Ethernet - when selected, ensure you enable the connection type by toggling the switch on screen
ADM Setup
Vending Coffee with ADM
On setup, the PicoCoffee automatically creates an item named "coffee" in ADM, with the scan code set to "PicoCoffee". The price of this item listed in ADM is 0.00, though the actual price that the customer pays is set on the OEM coffee machine itself.
The ADM scan code and price cannot be modified by the Operator. However, other elements of the product summary can be edited.
- Log into ADM
- Ensure that you have the correct org/location selected

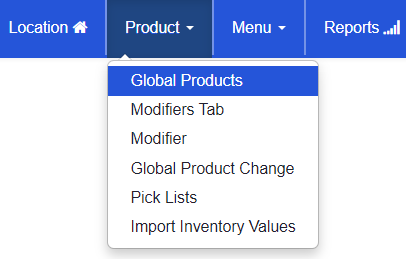

- Select Product from the main menu, then select Global Products from the resulting drop-down menu.

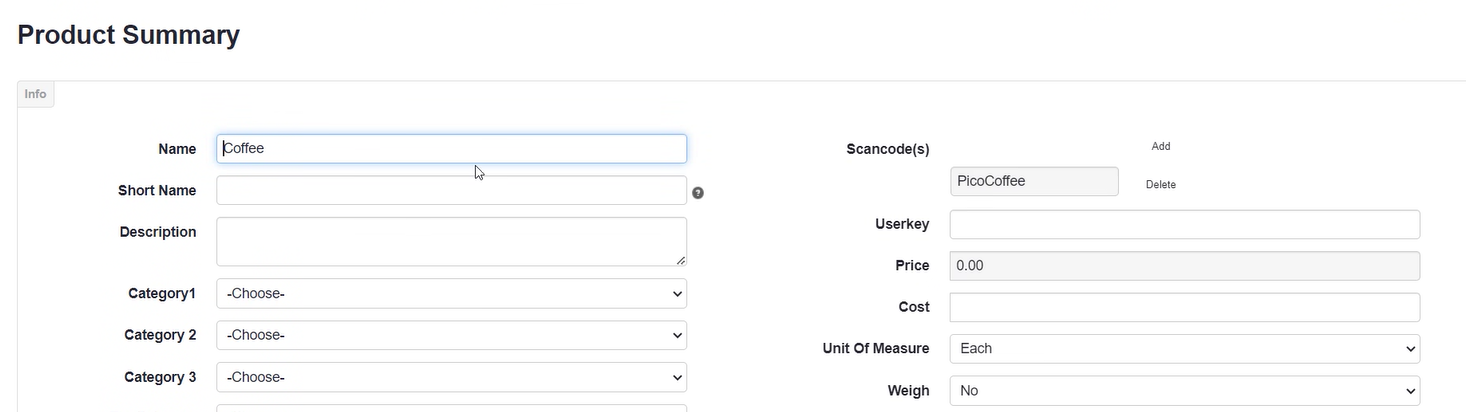

- Select the item listed as "coffee". This will bring you to the Product Summary of the coffee, where you can edit the name of the vending item. For example, instead of listing it as "coffee," you may decide to list the item as "hot brew" or something similar.
- When you have completed your changes, select the Save button at the bottom of the page.
Vending Coffee with the PicoCoffee+
In ADM, the PicoCoffee+ uses the same coffee vending parameters as PicoCoffee. However, for all other market items and products, this device functions like a standard micromarket device. Operators will list items in ADM, set scan codes, prices and other details in the same way as other 365 micro market devices. This means customers can check out from the PicoCoffee+ with additional items as desired.
To learn more about the process of using ADM, please see the articles found in the ADM section of the 365 Help Center.
Customer Experience
Learn how the customer uses this product by reading the article PicoCoffee - Customer / End User Guide.
FAQ
Please see the article PicoCoffee/ PicoCoffee+: Frequently Asked Questions.
