MM6 Mini - Spec Sheets and Hardware Components
Updated
Print
Scroll to Top
Table of Contents
Attachments

Purpose

The MM6 Mini is an ideal solution for high-touch, high-traffic locations.
This device is packed with features that will make your breakroom experience better than ever.

Different types of software can be used by this device:

  • The MM6 Mini RT uses ReadyTouch for Dining.
  • The MM6 Mini Market uses V5 software.

This article will cover the hardware and specs of this device, noting any differences between versions.

For information on the standard size of this device, please see MM6 - Spec Sheets and Hardware Information.

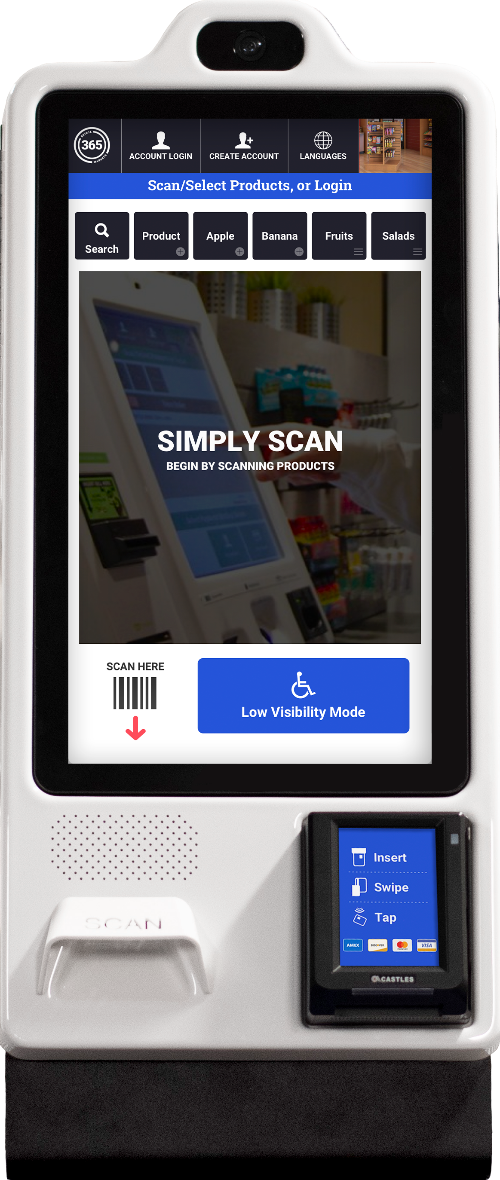

The MM6 Mini Kiosk

The MM6Mini

General Information

  • Housing: Scratch-resistant ABS with UV cap and metal shell
  • Communication: Ethernet RJ45
  • Internal Access Method:  Easy-open chassis leads to faster servicing
  • Dimensions: 24.5” H x 10.5” W x 10” D
  • Power: 120V AC 3-prong grounded outlet (15 amp service)
  • Weight: 30 lbs unboxed (35 lbs boxed)
  • Mounting options: Counter top or Wall mounting (wall mount sold separately)


Key Components

The MM6 Mini hardware is made of the following primary components:

Purpose Component Description
Data Processing Actineon Silent 11M PC High-speed, lightweight, ultra-quiet industrial PC
Input 15.6” MicroTouch touchscreen Mounted in portrait format; features an anti-glare coating
Scanner Zebra barcode scanner High-volume scanner capable of reading most barcodes, including 1D, 2D, QR, and direct part marks; reads barcodes presented on any surface.
Security Camera Fisheye webcam Able to capture a wide range of the surroundings. Not available for the MM6 Mini-RT.
Connectivity 365RM Connect All-in-one Ethernet, cellular, and failover hardware firewall; 1 WAN and 3 LAN ports
Scanner Zebra barcode scanner High-volume scanner capable of reading most barcodes, including 1D, 2D, QR, and direct part marks; reads barcodes presented on any surface.
Credit Card Reader iUC 285 For use with ReadyTouch MM6 Minis
Self/3000 For use with ReadyTouch MM6 Minis

 (Can swap from an iUC 285 reader to a Self/3000 via the Operator Guide - iUC 285 to Self/3000 Credit Card Reader Swap on MM6 and MM6 Mini Kiosks)
Castle UPT1000F For use with MM6 Markets


Optional Hardware Components

The MM6 Mini has 4 USB ports, allowing for optional hardware components. Below are the optional components that can be ordered in addition to your MM6. Please note that the cash drawer is not an optional component for any MM6 Mini.

XP6 Expansion Unit

The MM6 Mini XP6 expansion unit is an optional peripheral device, which allows it to accept cash.

  • XP Unit Dimensions: 20" H x 6.25" W x 11.5" D
  • Total Dimensions (MM6 Mini + XP unit): 24.5" H x 16.5" W x 12" D
  • XP Weight: 17.5 lbs unboxed (20 lbs boxed)
  • Total Weight (MM6 Mini + XP unit): 47.5 lbs unboxed (55 lbs boxed)

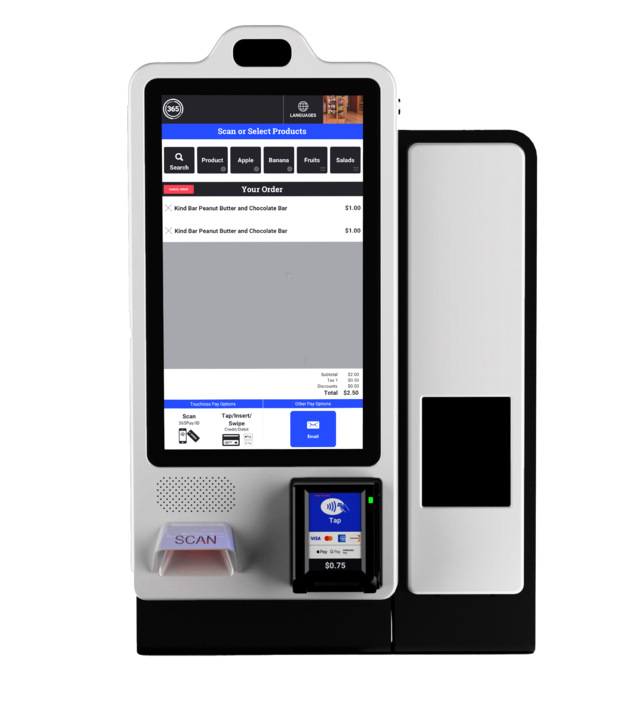

MM6 Mini with XP Unit.png

The XP6 expansion unit includes:

Purpose Component Description
Up-Stacker/ bill validator Innovative Tech NV-9 Vertical 600-note cassette; accepts $1, $2, $5, $10, and $20 bills


Other Optional Components

  • a USB Hub may be needed based on the number of peripherals.

  • the 365Beacon
  • a Network Router
  • a Food Scale:
    • Mettler Toledo Ariva-S Mini

  • the Kitchen Display System (KDS), which can also include:
    • the Bump Bar
    • The Now Serving Screen and AOpen PC
    • Bixolon SRP-S300 Label Printer
  • a Chit Printer:
    • Epson Impact Chit Printer
    • IP Impact Printer

  • Alta Monnit Temperature Sensor
