Purpose

The purpose of this document is to provide instructions for the setup and configuration of an Ariva-S Mini Scale. Although the food scale is a common item, it is not a part of every installation. It can be added to a setup after it has gone live. If the consumers are using a food scale, any food item that needs to be weighed needs to be marked as such in the product catalog.

See ADM How to Add a Scale Item for more information.

Setup

Remove the scale from the box.

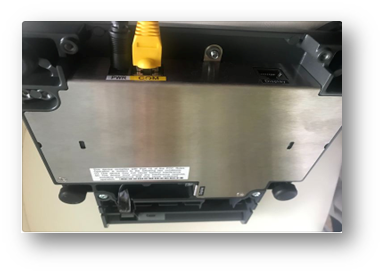

Connect the yellow Ethernet cable to the “COM” port on the scale.
Connect the Power adapter.
The display is already connected – leave the back Disp port empty.
Place the scale on a flat surface near the cash drawers.

ADM Settings

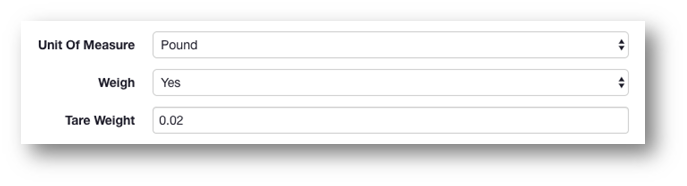

Products must have the Unit Of Measure, Weigh and Tare Weight values set. The Tare Weight will vary depending on the size of the container.

See ADM - How to Add a Scale Item for more information.

Configuration

Mini scales can be configured with either a COM to Serial or COM to USB connection. Whether the customer receives a COM to Serial or COM to USB depends on their preference (if any) when ordering.

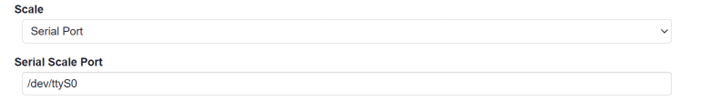

The scale must also be properly configured in the Device Summary page of the associated kiosk in ADM.

Please note: Steps 3-6 will use different values for COM to Serial and COM to USB connections.

Button functionality:

COM to Serial

Power on the scale by plugging in the power cord.
Once the scale is fully powered on press and hold the ->T<- button for 8 seconds. This will take the scale into user mode. The “CONF” prompt should show up on the display.
Cycle through the options using the ->T<- button. Cycle until you see “GRP 3” on the display.
Select the “GRP 3” menu using the ->0<- button.
- The display should now show "31 1".
Press the ->T<- button until you see the 1 change into a 0. If it's on a different number other than 1, cycle until you see the number 0.
Once the display shows “31 0” press the ->0<- button.
Press the ->0<- button until you show GRP 4.
Cycle the display using the ->T<- button until you see "EJlt". Press the ->0<- button.
The display will show a “SAVE” prompt. If it doesn’t, then cycle using the ->T< button until it does. Once the “SAVE” screen is displayed, press the ->0<- button.
The scale will reboot once it is saved and return to the original screen.

COM to USB

Power on the scale by plugging in the power cord or ‘COM to USB’ cable (don’t plug in both).
Once the scale is fully powered on press and hold the ->T<- button for 8 seconds. This will take the scale into user mode. The “CONF” prompt should show up on the display.
Cycle through the options using the ->T<- button. Cycle until you see “GRP 3” on the display.
Select the “GRP 3” menu using the ->0<- button.
- The display should now show “31 0”.
Press the ->T<- button until you see the 0 change into a 1. If its on a different number other than 1 then cycle until you see the number 1.
Once the display shows “31 1” press the ->0<- button.
The display will next show “36 3”. Press the ->0<- button again.
The display should now show “GRP 4”. Cycle using the ->T<- button until you see “EJIt”. Press the ->0<- button.
The display will show a “SAVE” prompt. If it doesn’t, then cycle using the ->T< button until it does. Once the “SAVE” screen is displayed, press the ->0<- button.
The scale will reboot once it is saved and return to the original screen.
