Purpose

The Driver Menu, sometimes referred to as the Exit Menu or Exist Screen, is used by Operators, Drivers, Restockers, and others to control the settings of many Pico-based devices.

This article describes how to access and use the Driver Menu on multiple Pico devices.

Process

Log into the Driver Menu

1. Tap the logo in the upper-left corner of the screen five times.
   1. If the Pico is on the idle screen, first tap anywhere on the screen to take it to the Point of Sale where the logo will display.

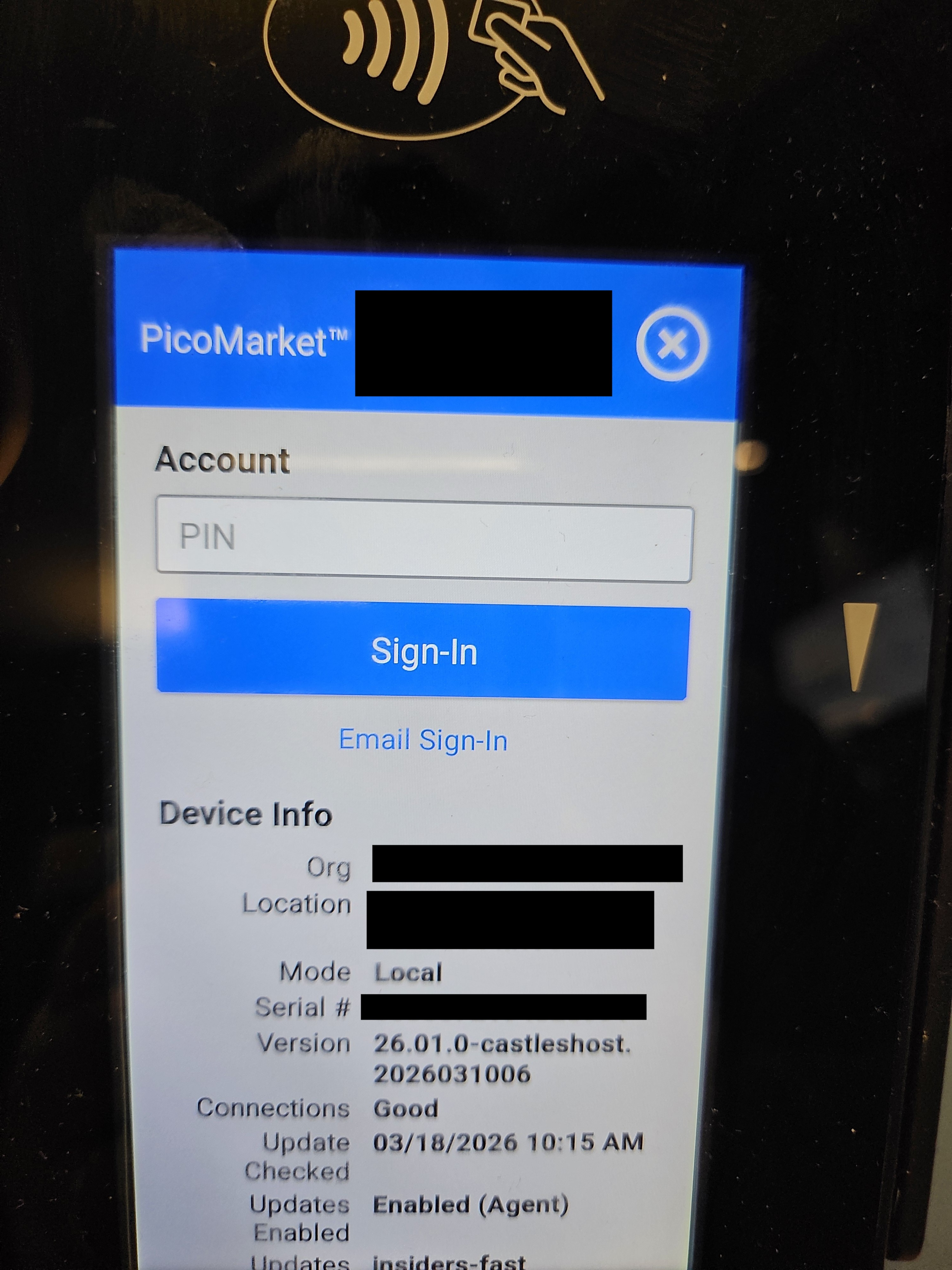

2. A prompt will display, requesting a PIN. Enter the Driver PIN for the account, and tap Sign-In.

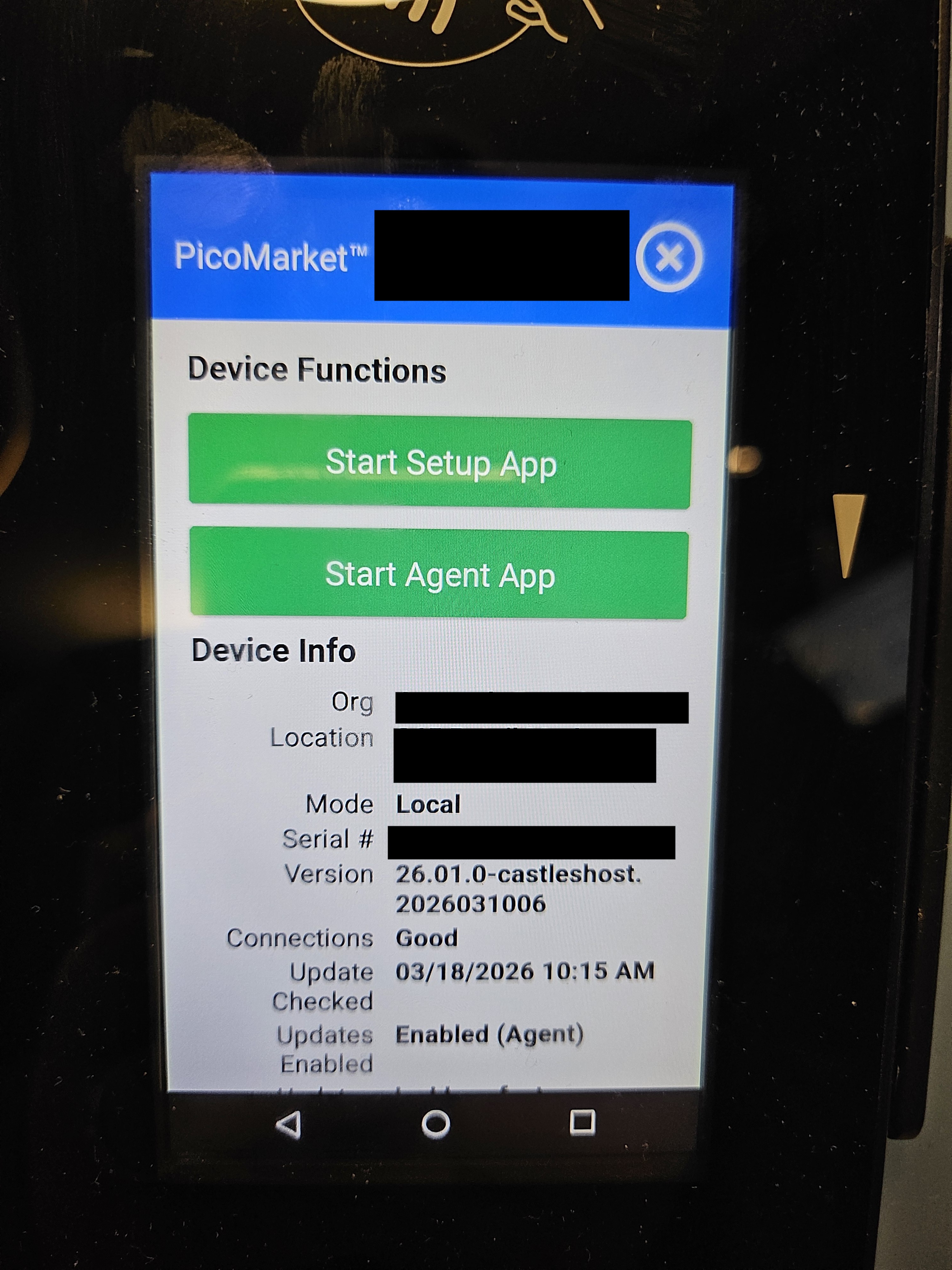

3. Two options will appear: Start Setup App and Start Agent App.

   1. Tap Start Setup App to setup and test the Pico, and view relevant information.

   2. Tap Start Agent App to view and update the software.

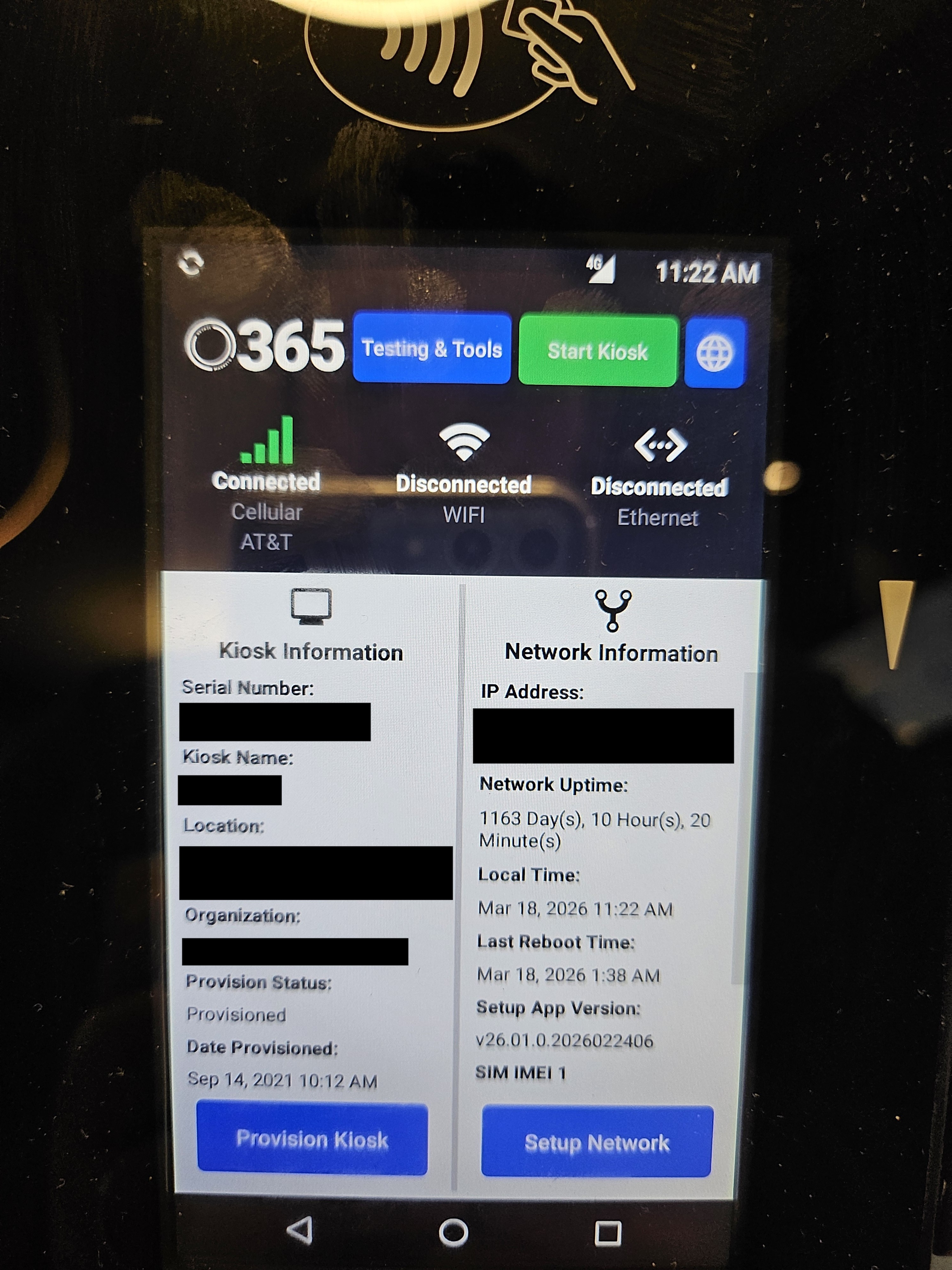

Setup App

The Setup App provides relevant information about the Pico (ie. serial #, location, connection type, last reboot time, etc.) as well as the ability to provision the kiosk, setup the network, test peripherals, and test the network connection.

• To provision/re-provision the kiosk, tap Provision Kiosk in the bottom-left. (Please see the US/Canada Self-Provisioning Guide or Mexico Self-Provisioning Guide for more information.)

• To setup or change the network connection, tap Setup Network in the bottom-right. (For more details, see the Setup Network section below.)

• To test the network connection or test peripherals, tap Testing & Tools in the upper-middle area of the screen. (For more details, see the Testing & Tools section below.)

• Tap Start Kiosk in the upper-right area to return to the point of sale.

• Tap the globe icon in the upper-right to change the language.

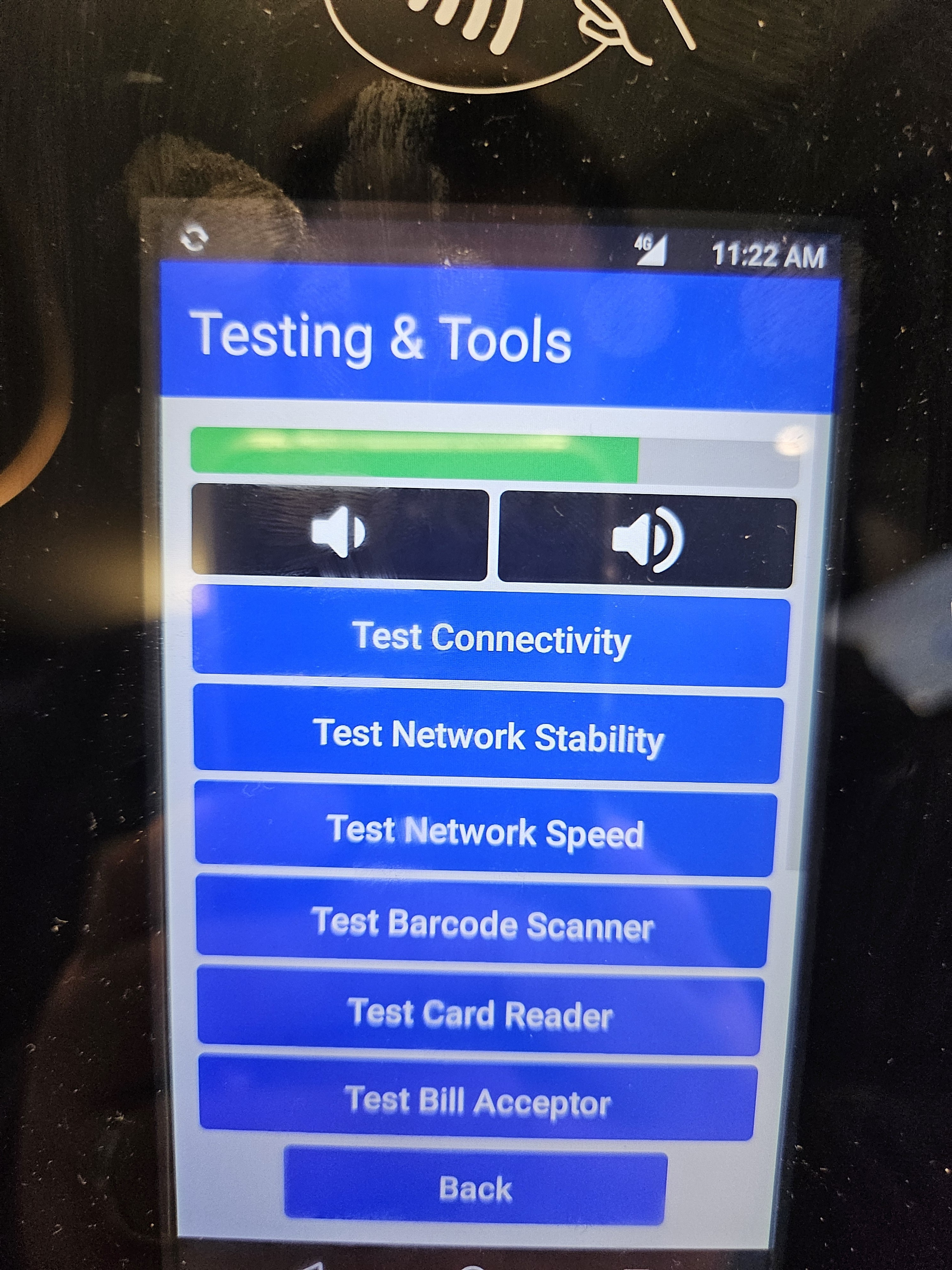

Testing & Tools

Under Testing and Tools, there is the ability to test peripherals, and test the network connection.

Test Peripherals

Tap on any of the following options to test the peripherals:

• Test Barcode Scanner: Scan a valid barcode to test the barcode scanner.
• Test Card Reader: Swipe a credit or debit card to test the card reader.
• Speaker icons: Tap the left speaker icon to turn the volume down, or the right speaker icon to turn the volume up.

Note: If the PicoMarket does not have a bill acceptor, Test Bill Acceptor is not relevant.

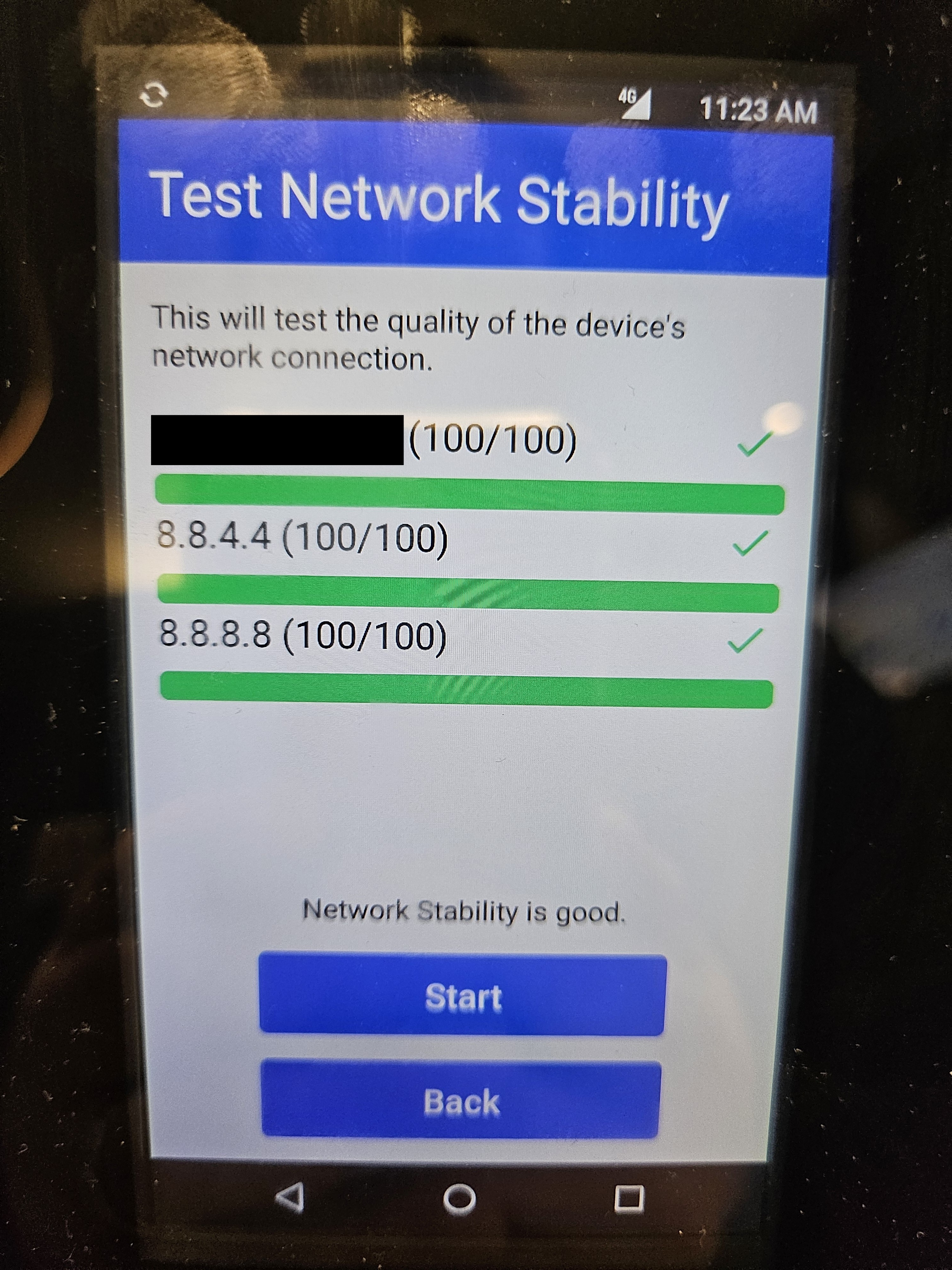

Test the Network Connection

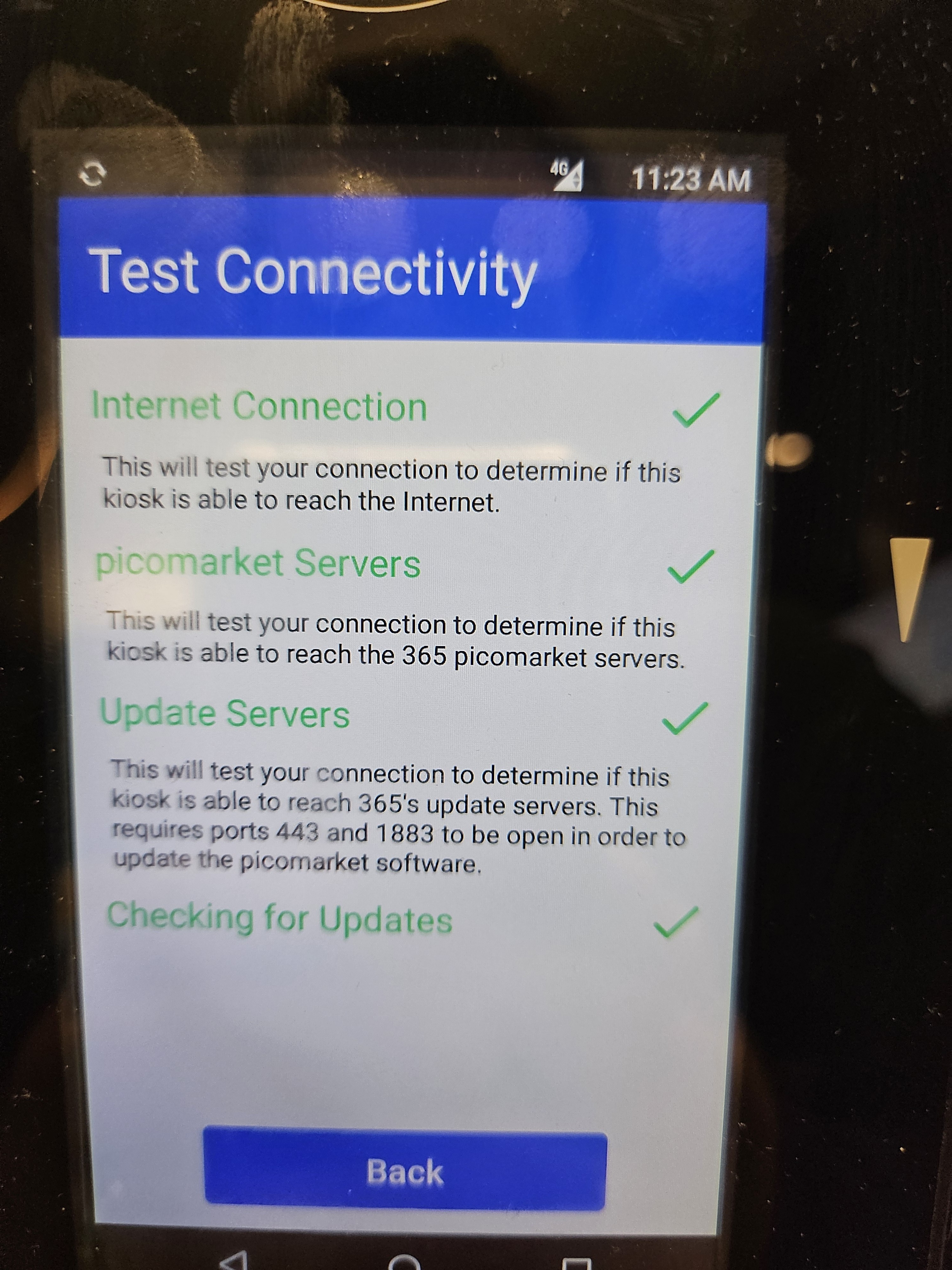

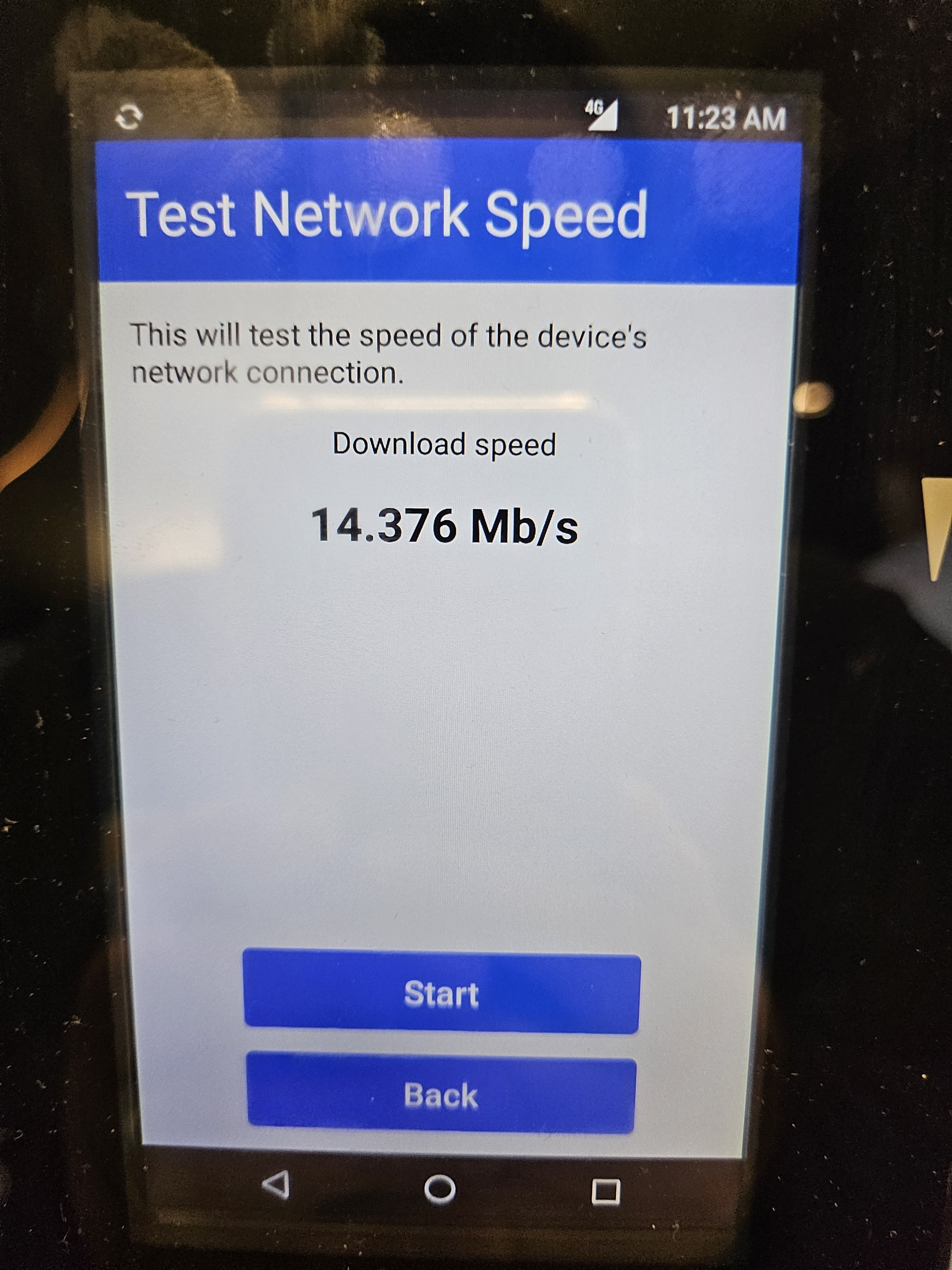

Here there are 3 tests, which give the Operator more information on what it's showing for the network connection - Test Connectivity, Test Network Stability, and Test Network Speed. Tap the button(s) for the applicable test(s) accordingly to test the network.

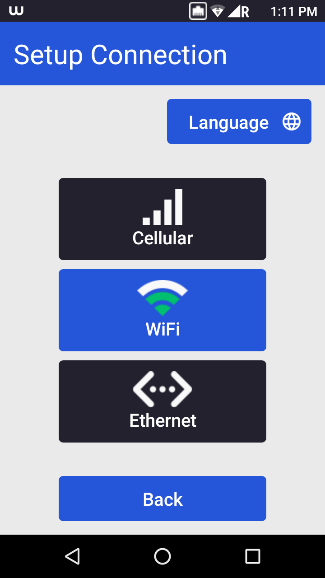

Setup Network

Under Setup Network, there are 3 connection types to choose from: Cellular, WiFi, and Ethernet. Simply tap the applicable option to setup the connection for that type.

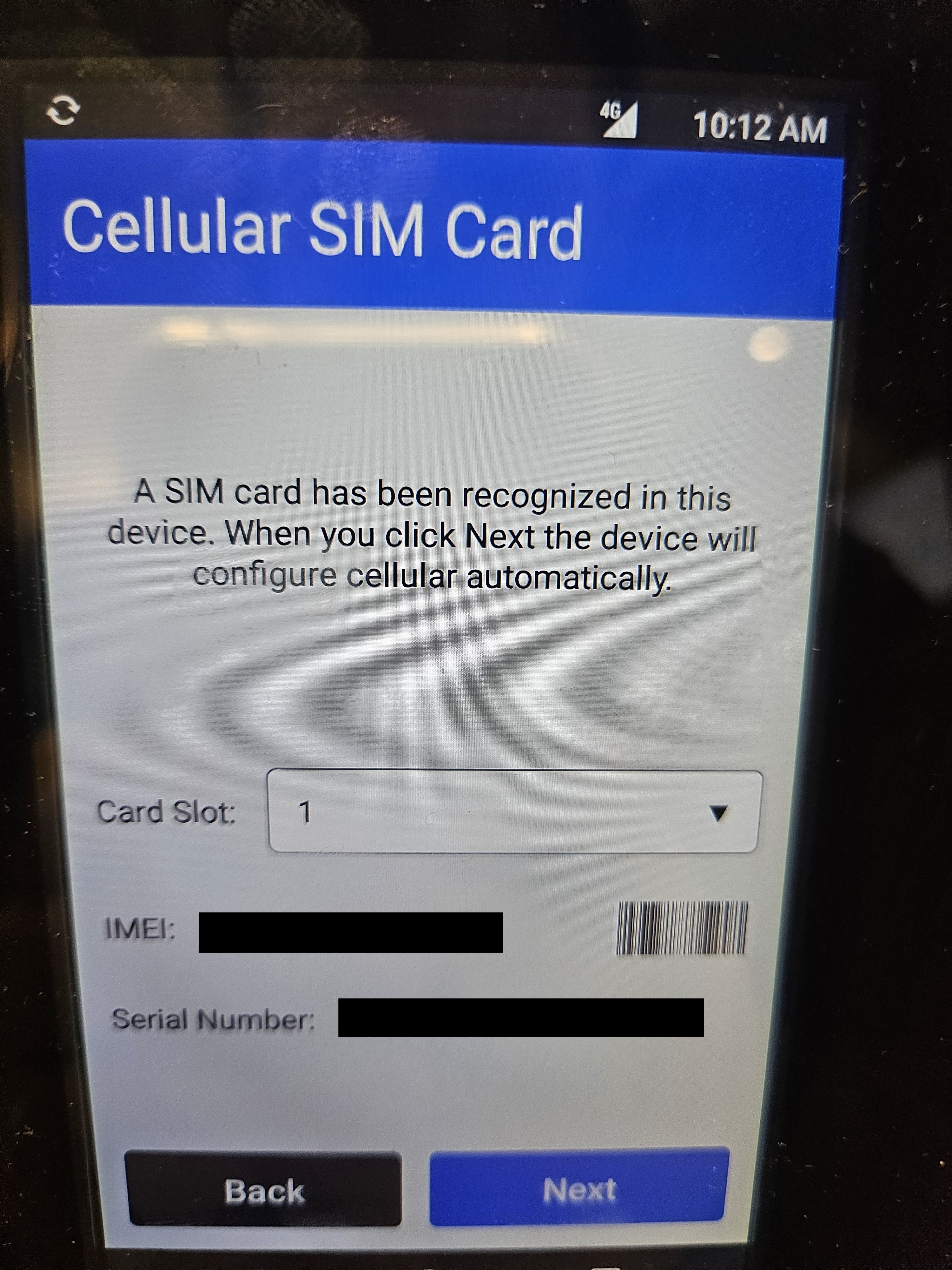

• Cellular: This connection type uses the Pico's SIM card to connect cellularly.

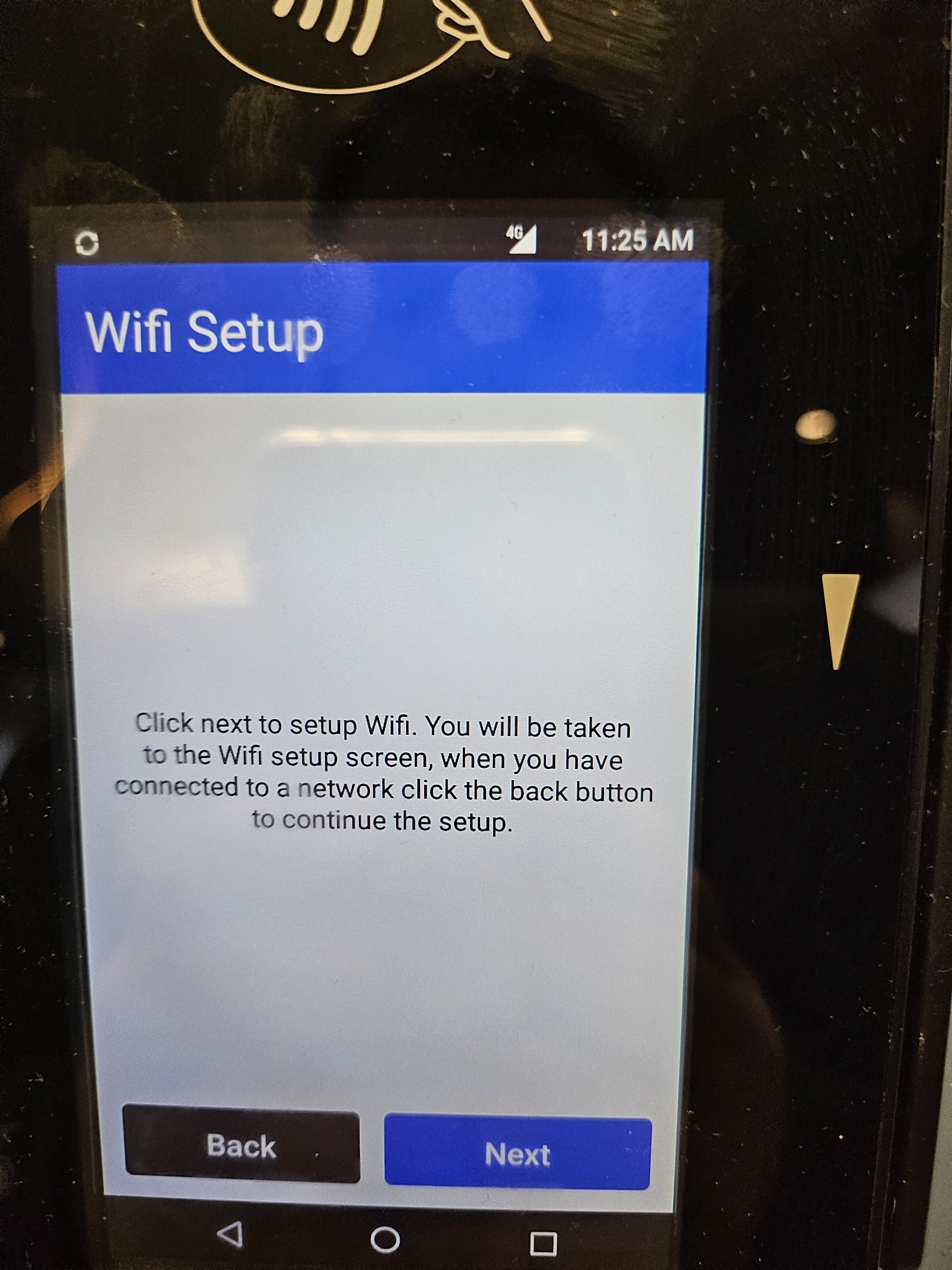

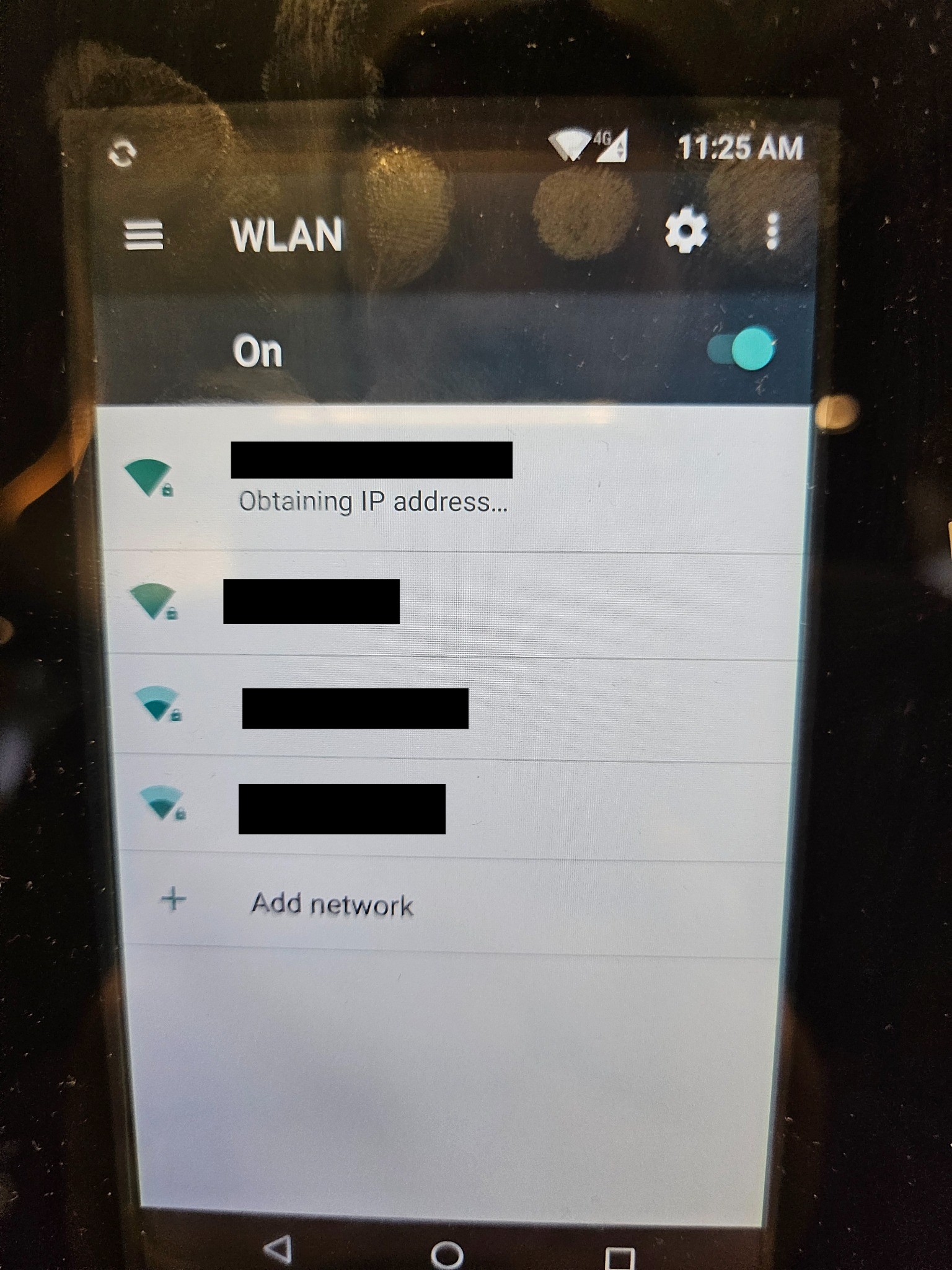

• WiFi: This connection type connects to an applicable WiFi network. Captive portals and guest networks do not work with the Pico. (Please see the Network Requirements Guide for more information.)

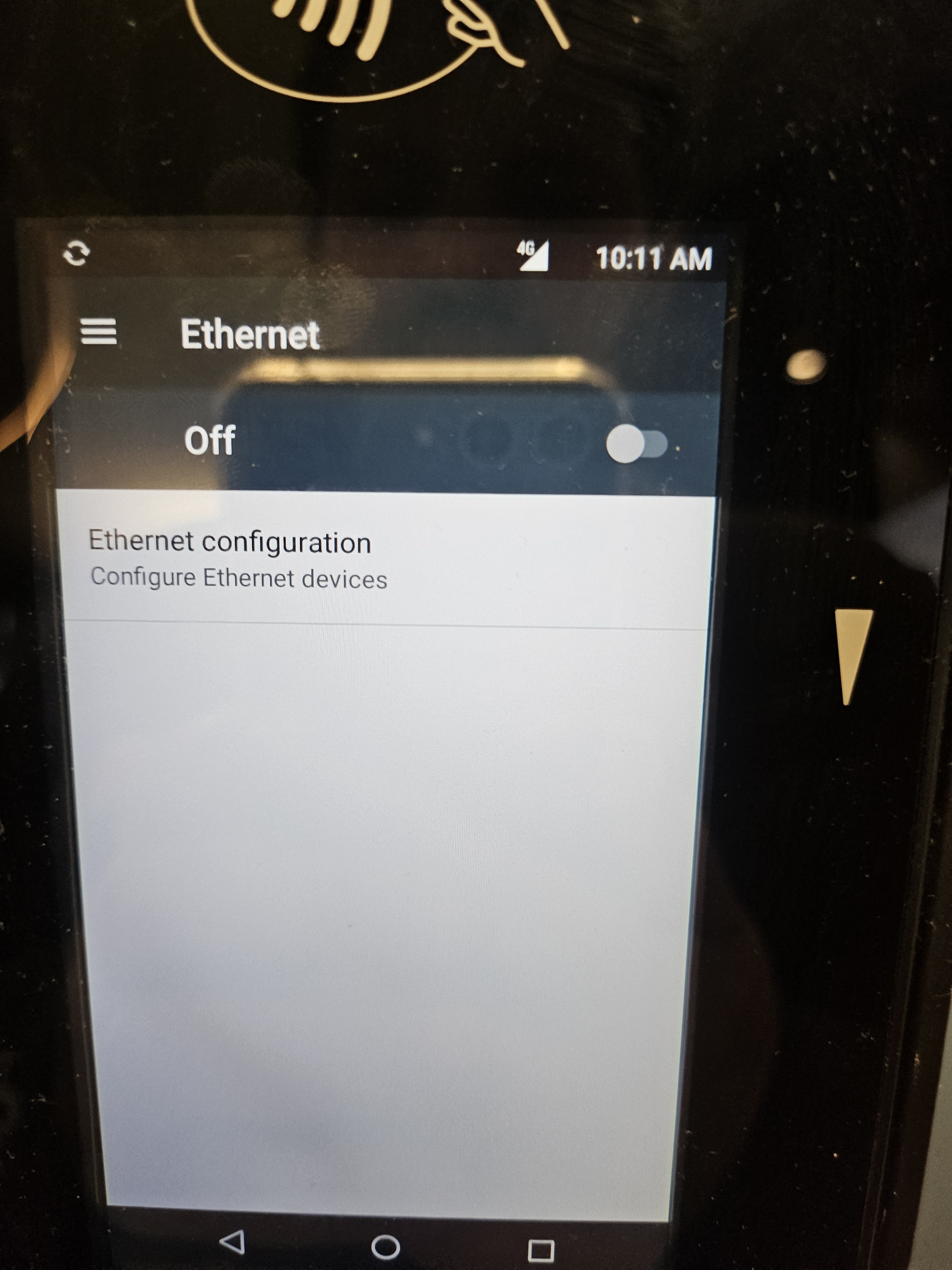

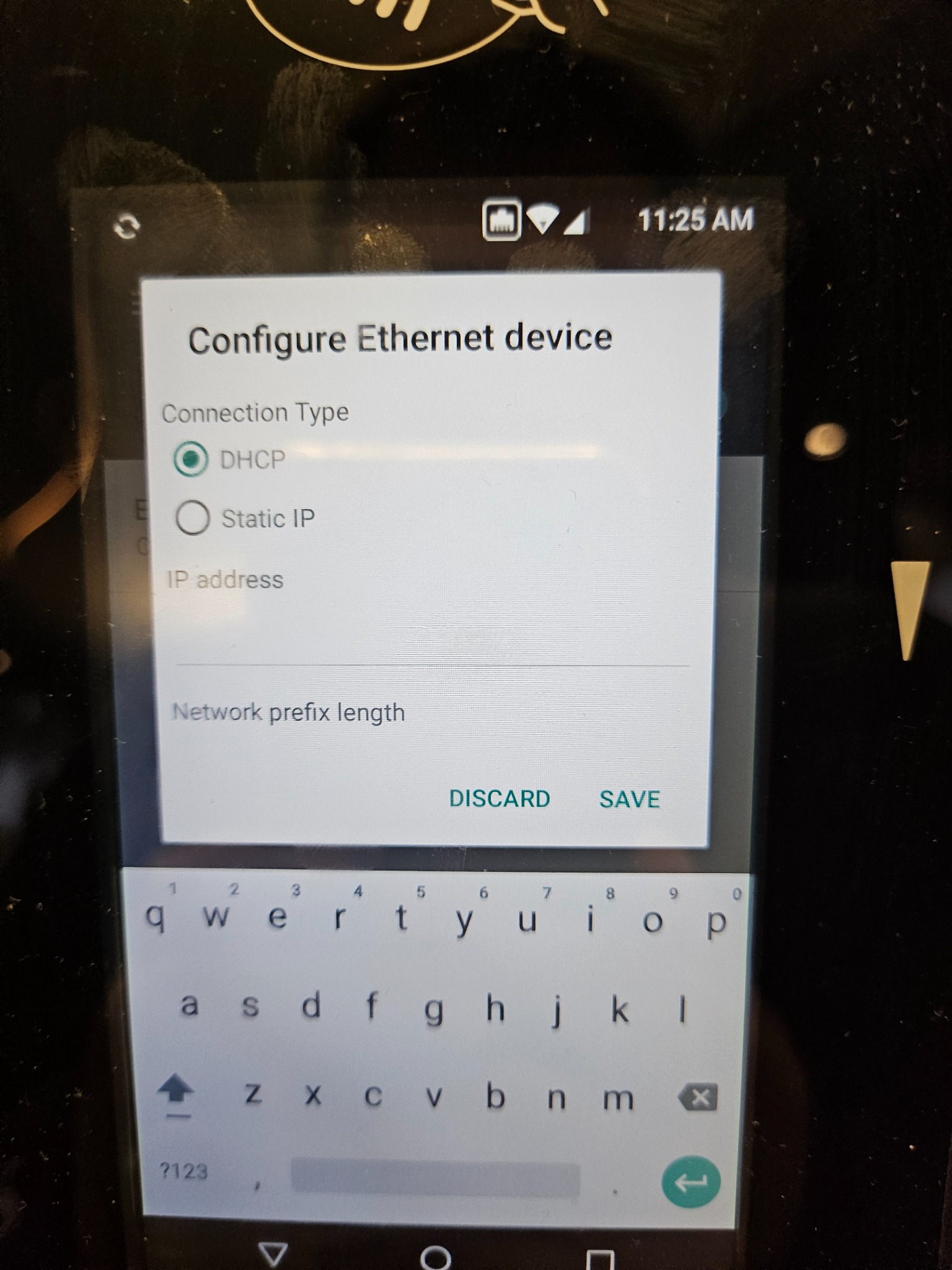

• Ethernet: This connection type uses an ethernet cable to connect to the network. Make sure Ethernet is toggled on, and select the applicable settings under Ethernet configuration.

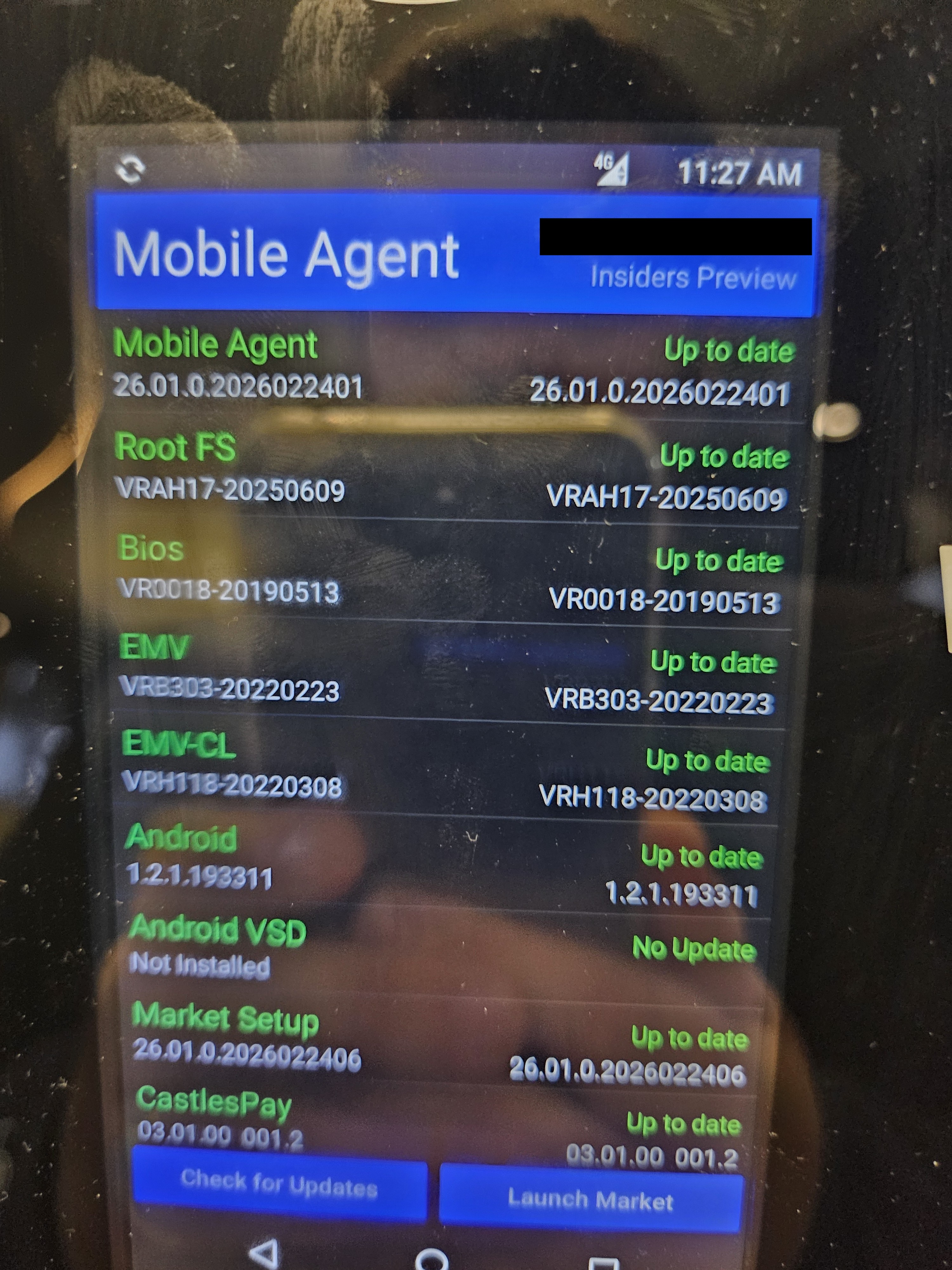

Agent App

The Agent App shows software versions, and whether or not the software is up to date.

Updates on the Pico will occur automatically, but can be done manually if needed. Tap the Check for Updates button to manually check for updates. Once finished, tap Launch Market to take the pico back to the point of sale, or the back arrow icon at the bottom of the screen to go back to the previous screen.

Lock and Unlock the Cooler

The below functionality are for PicoCoolers only. Picomarkets will not show a Lock or Unlock button.

Locked Pico

The Driver Menu gives the ability to lock or unlock the cooler. However, these will not work when the cooler is over the designated temperature. Please see the PicoCooler Health Safety Timer Lockout & Override article if the lockout is caused by the cooler being over temp.

Unlocked Pico

The unlocked Pico will not have lock/unlock buttons. It will remain unlocked unless it goes out of its designated temp range. In the case that it is out of its temp range, refer to the PicoCooler Health Safety Timer Lockout & Override article.
