Purpose
This article explains how to install the cooler of the PicoCooler. Cooler types described by this guide include Due North (formerly known as MinusForty), Imbera, and True.
Please note, if you are setting up a PicoCooler Breeze, see the PicoCooler Breeze - Operator Guide for complete instructions. If you need to troubleshoot your PicoCooler Breeze, please see the article PicoCooler Breeze - Troubleshooting Guide.
For information concerning unlocking your cooler, please see Due North (MinusForty) - Unlocking Coolers using the Temperature Controller.
Other Cooler Installations
If installing a cooler for other 365 Products, please see the following articles:
Tools Needed
- 4 foot ladder – to be used to place antenna and as an assistance to hold the device while installing
- #1 Phillips Head Screw Driver – magnetic suggested

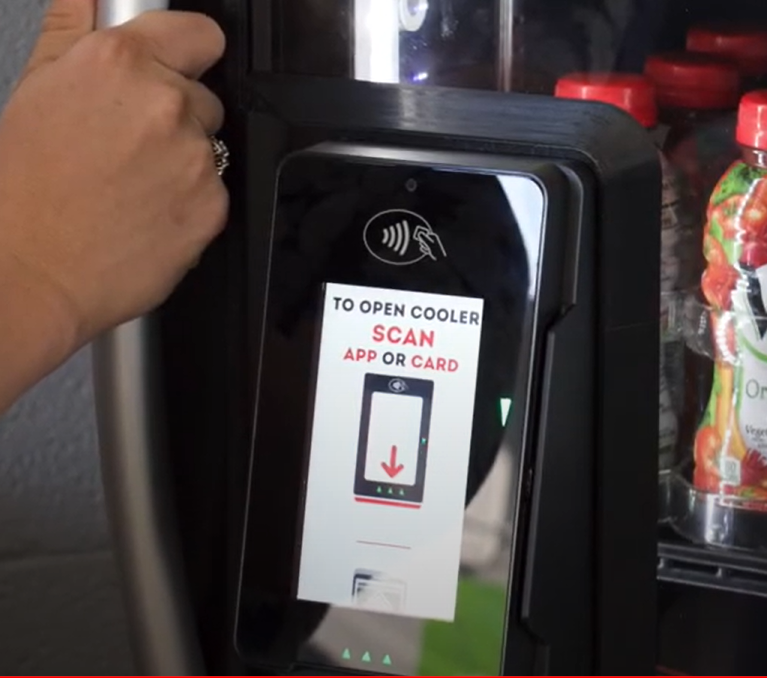

Installation Video
Process

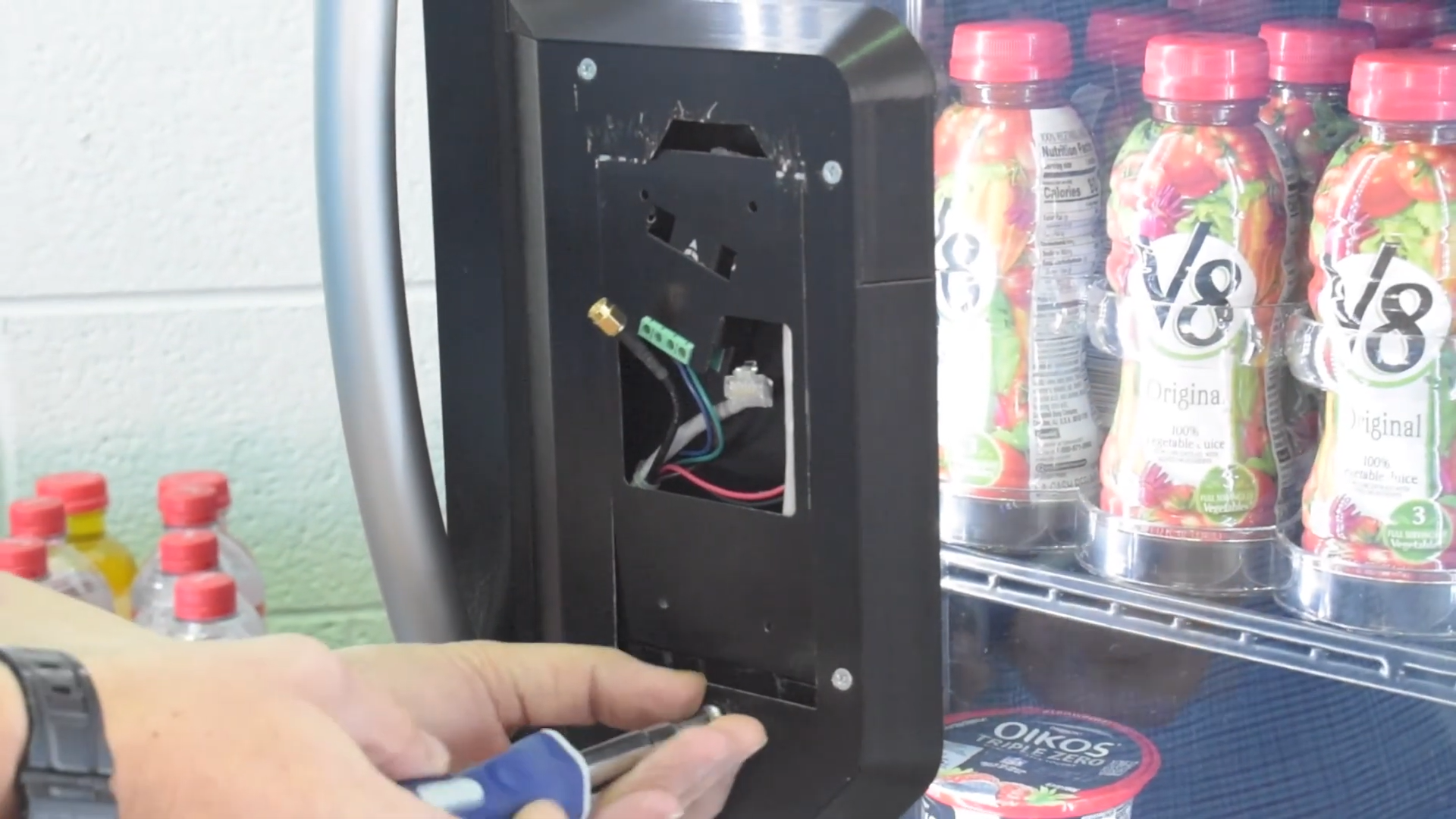

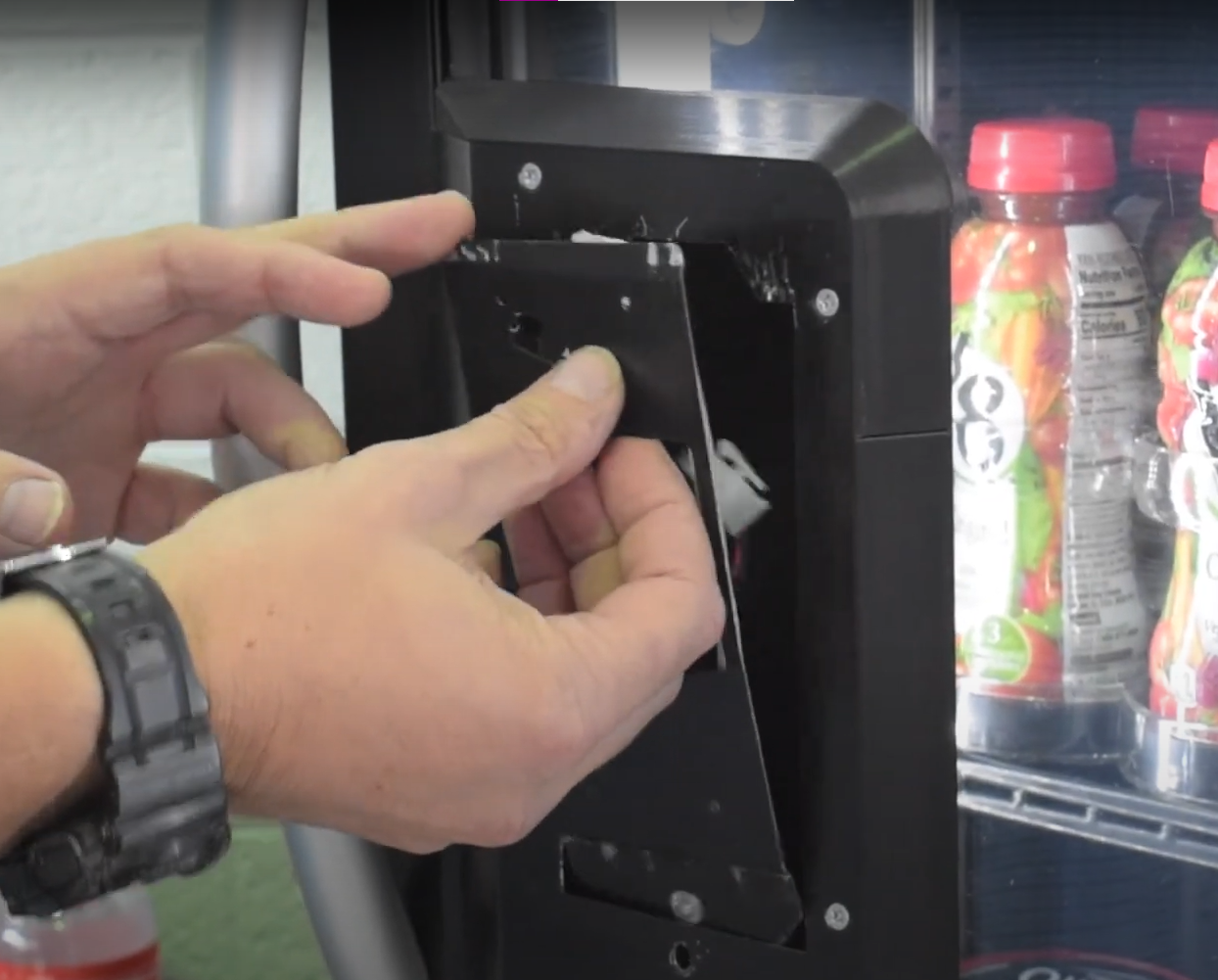

- Remove the plate from the cooler.

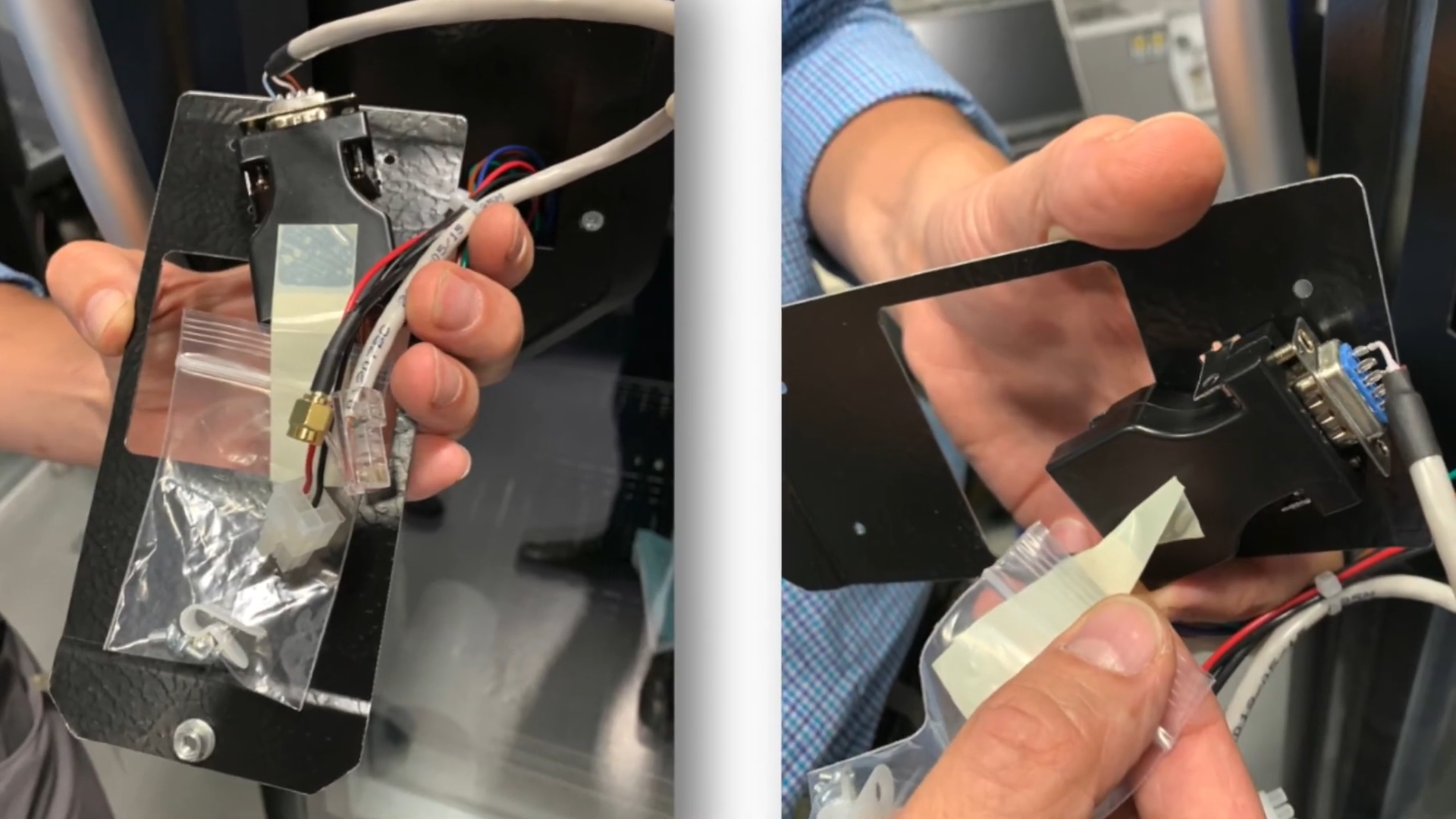

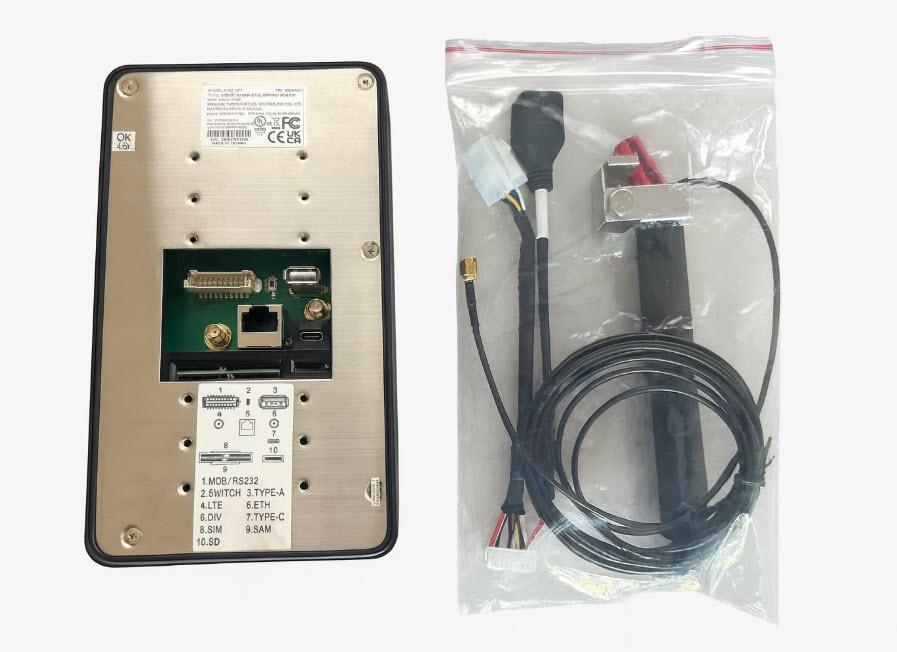

- Attached to the plate, you will find a plastic bag containing small screws. Remove this bag: you will use these screws to attach the Pico device to the cooler.

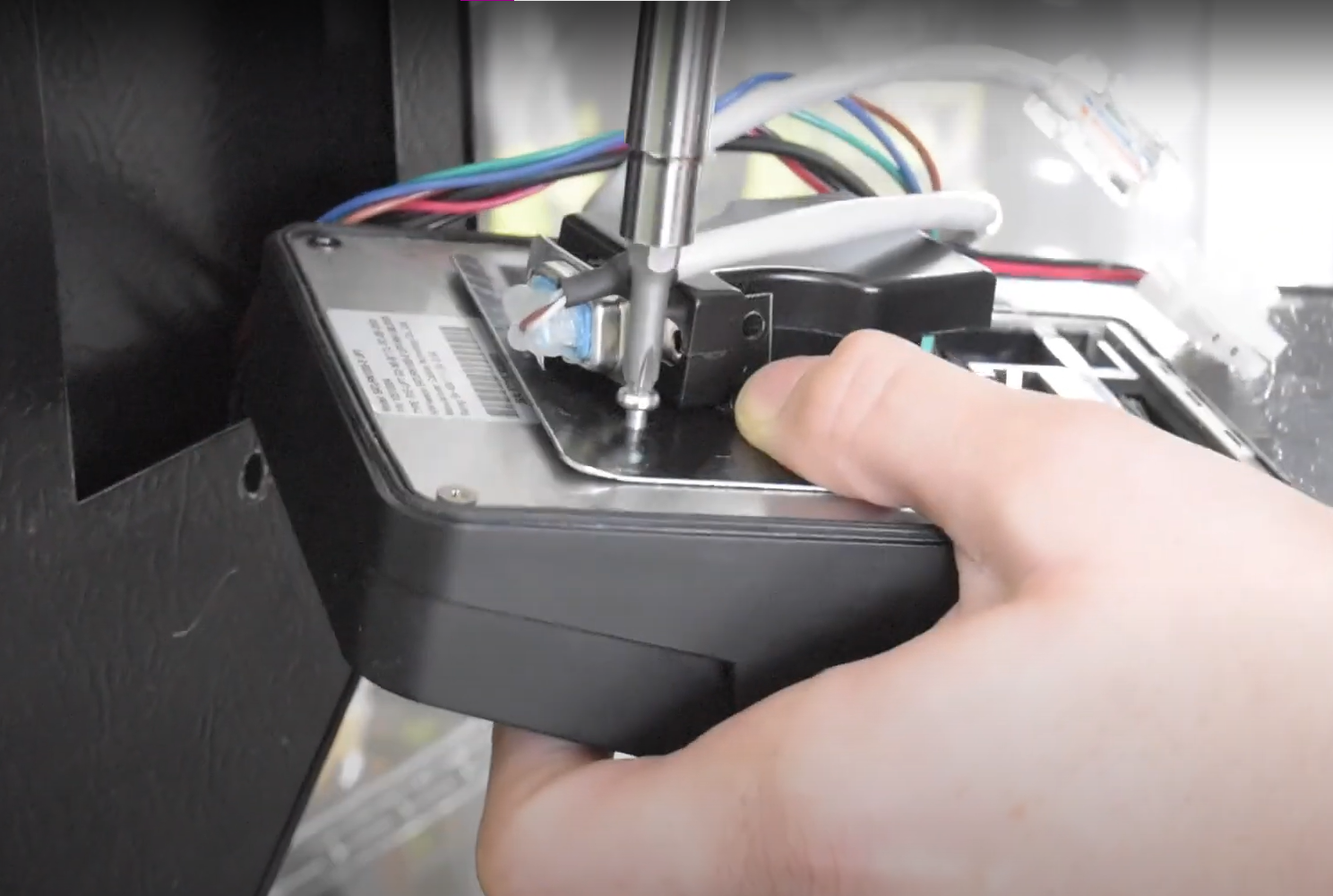

- Secure the plate to the PicoCooler unit using the screws provided.

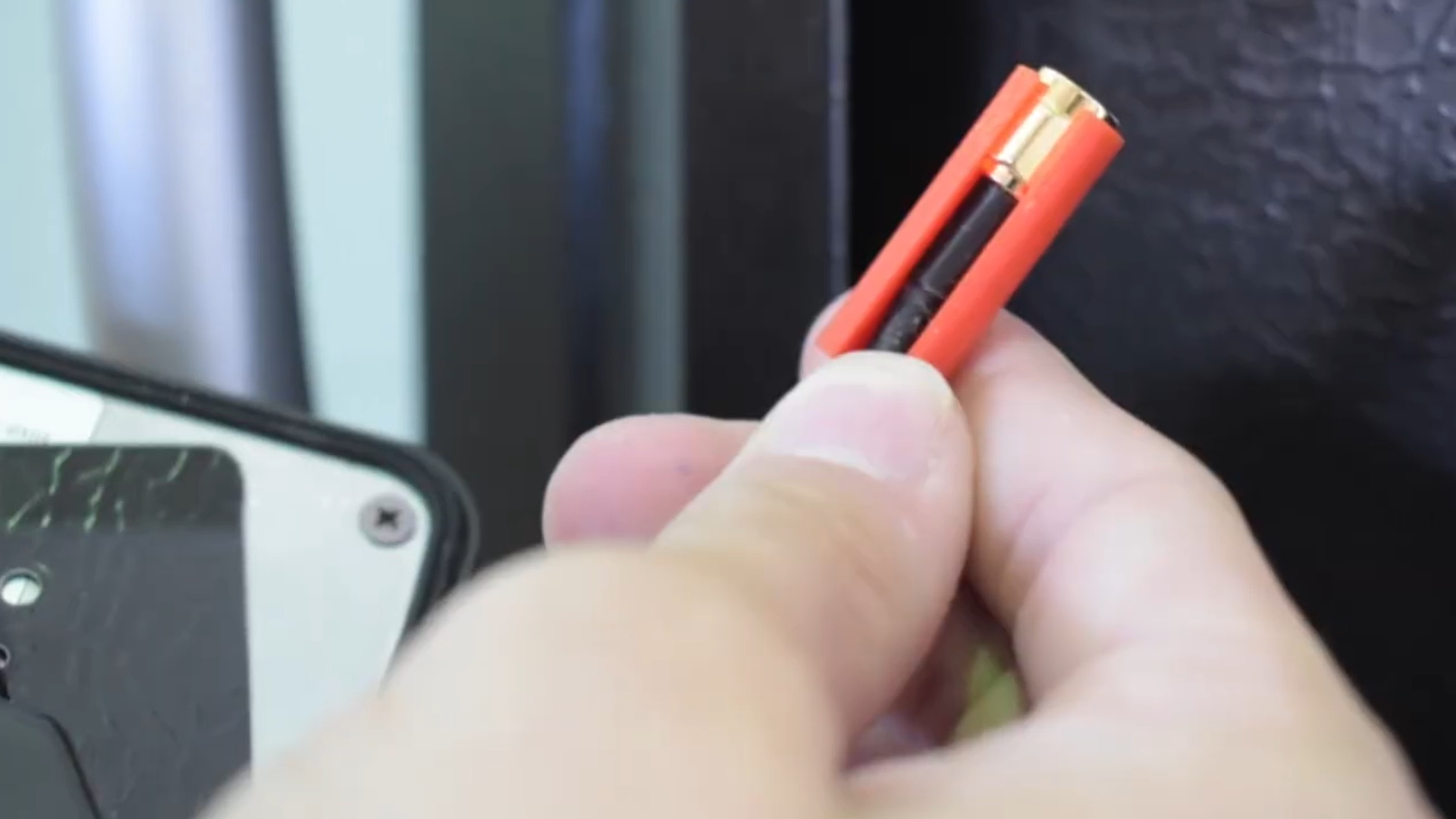

- Pivot the plate to the right by 45 degrees. This will allow room to connect the SMA Cellular Antenna to the bottom connector (see diagram). Use the included SMA tool to connect the Cellular Antenna. When it is connected, remove the SMA Tool and pivot the plate back into place.

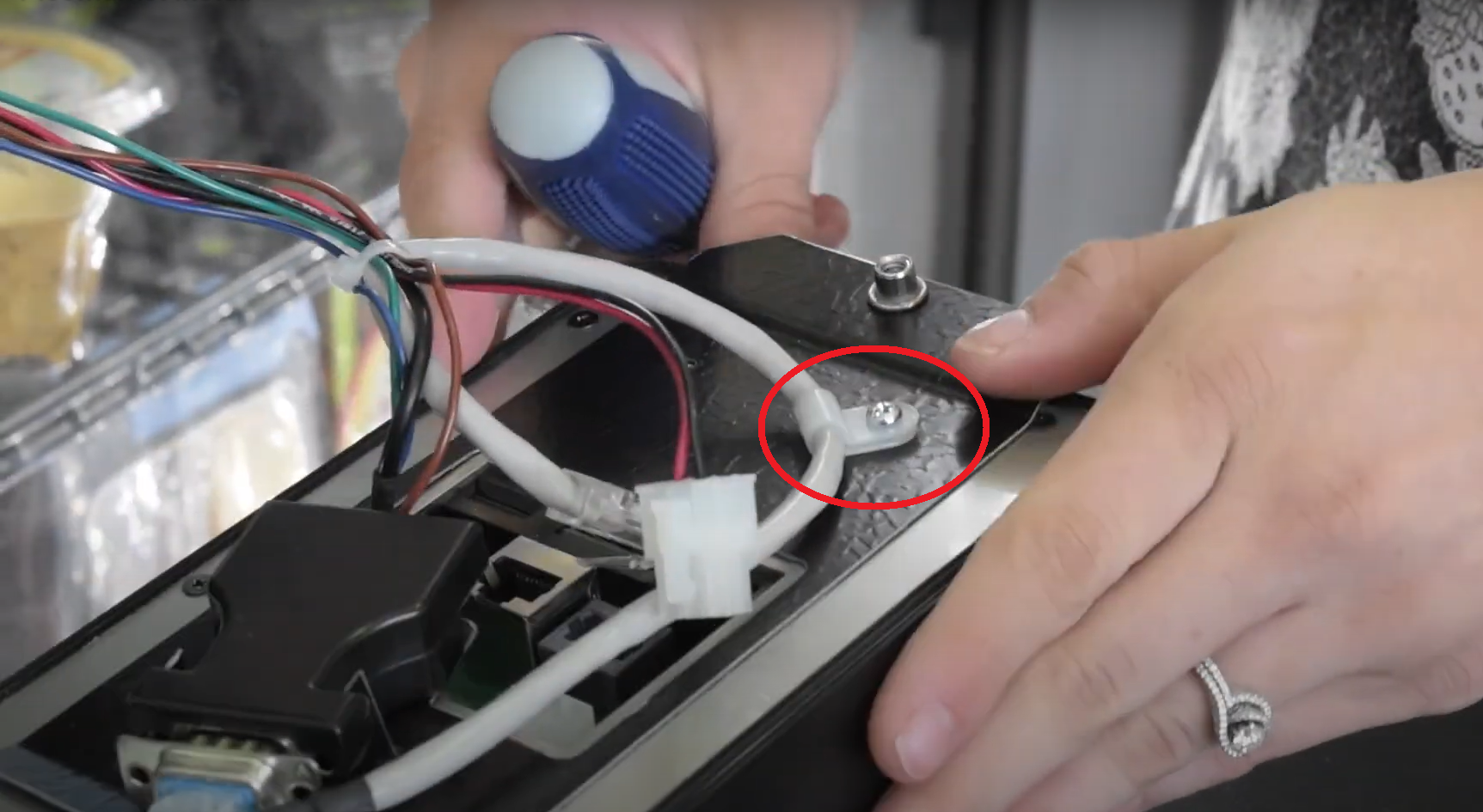

- Finish securing the plate to the PicoCooler device. The bottom left screw should go through the cable clip and into the unit.

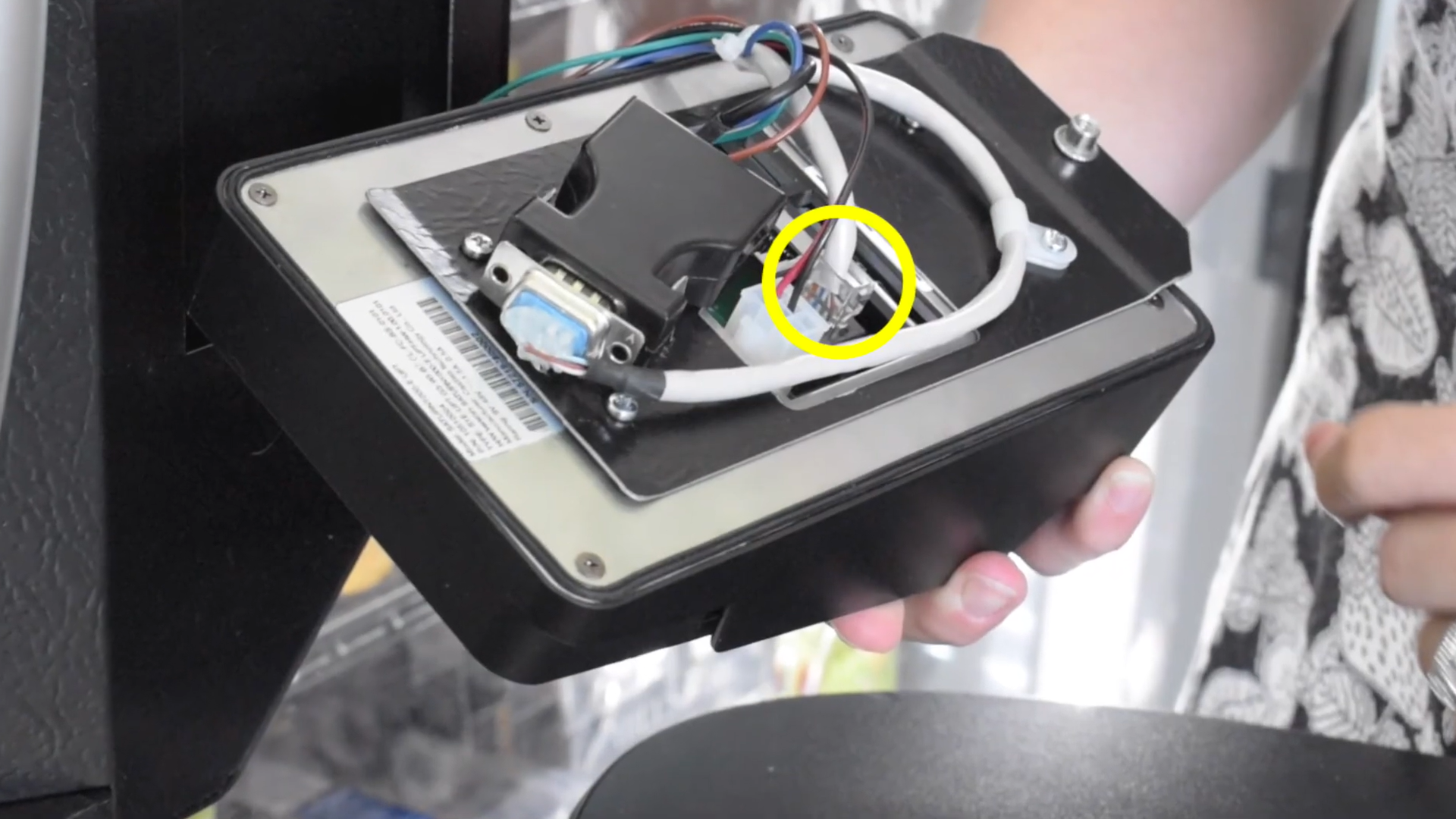

- Connect the Molex Power Connector and the RJ45 Controller (Yellow Circle) to their respective ports.
-
Optional - If you are utilizing the cellular connection on your PicoCooler, insert the SIM card into SIM slot 1 (See Diagram) until you feel a slight click.

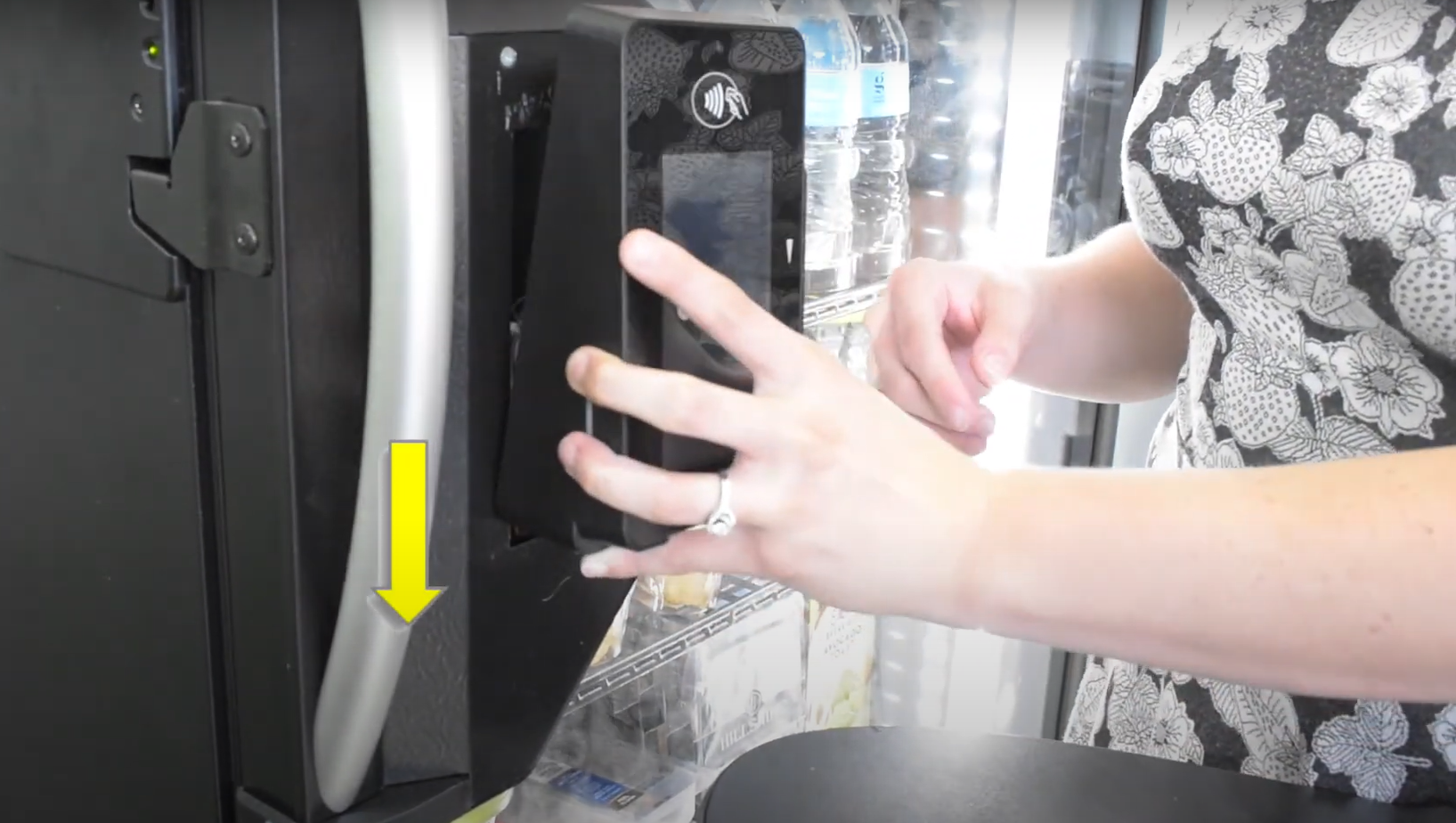

- With the back plate now attached, place the Pico onto the mount, then slide it down into place. The bottom edge of the back plate should slot into the mount during this process.

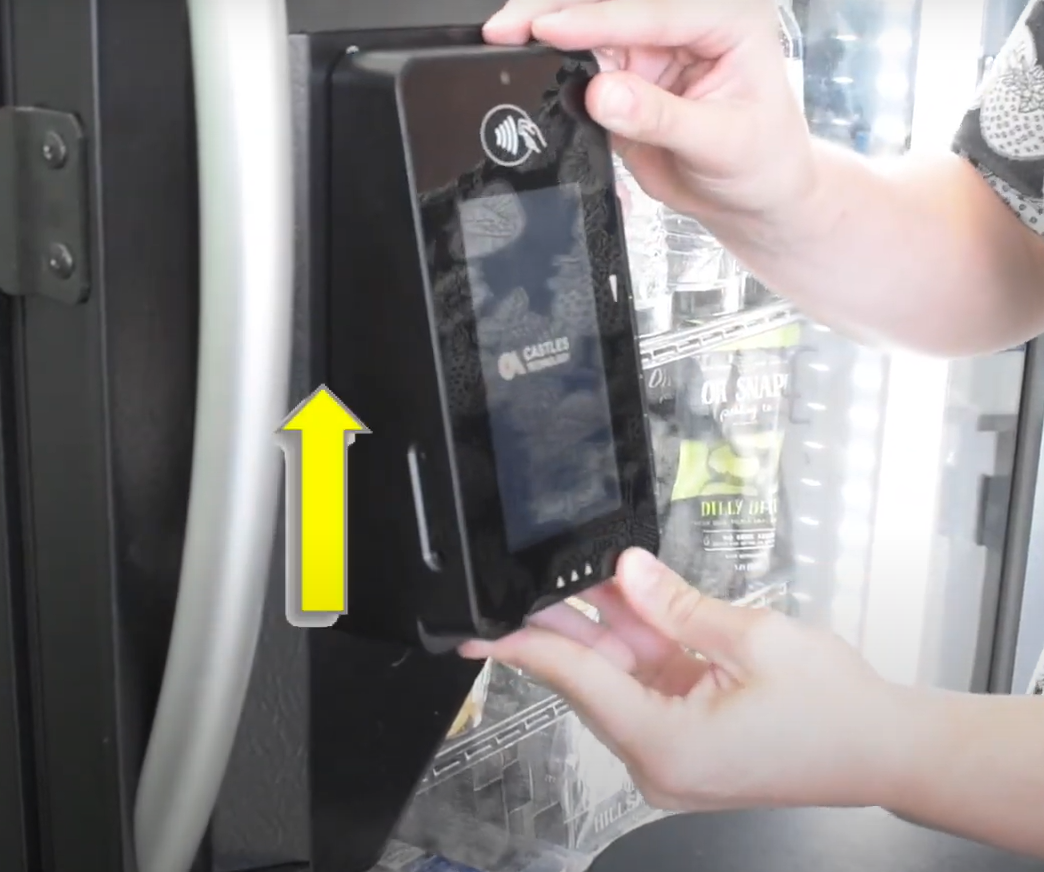

- Press gently on the top of the unit until it is flat against the mount. Slide the device up until the screw hole at the bottom of the unit lines up with the threaded hole.
*Note: This may require pressure to adjust the device, as the back plate is designed to fit snuggly into the mount.

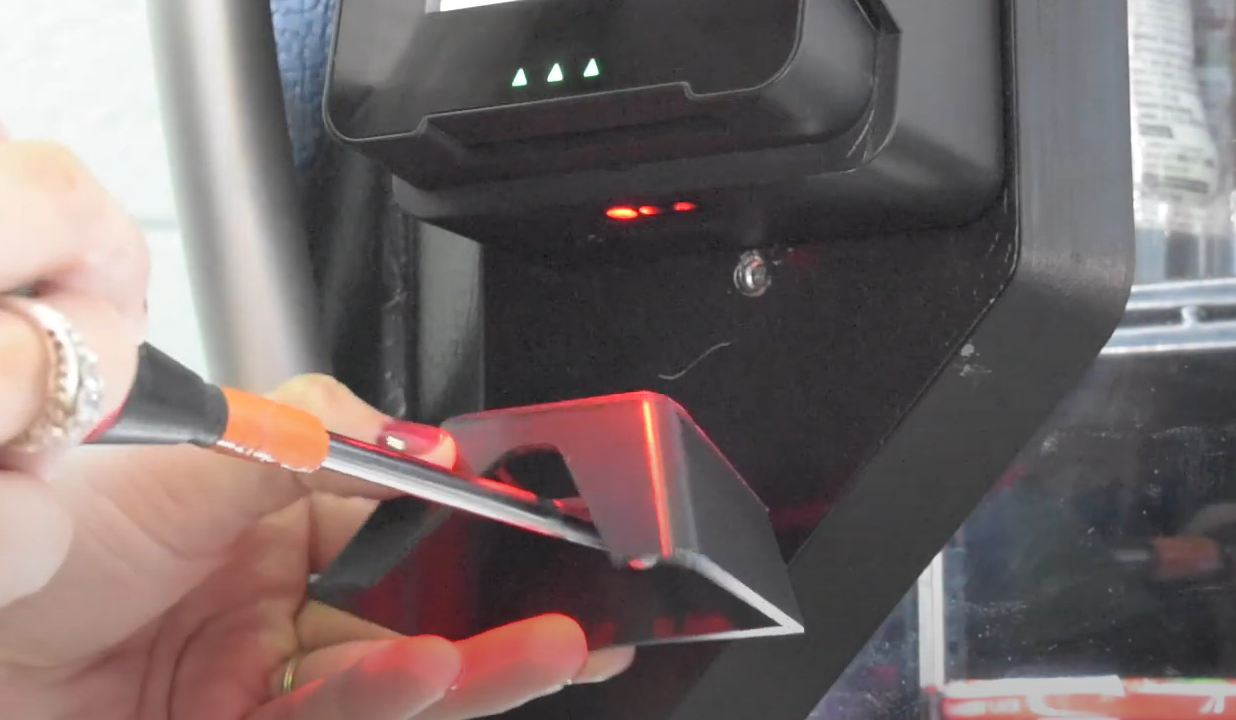

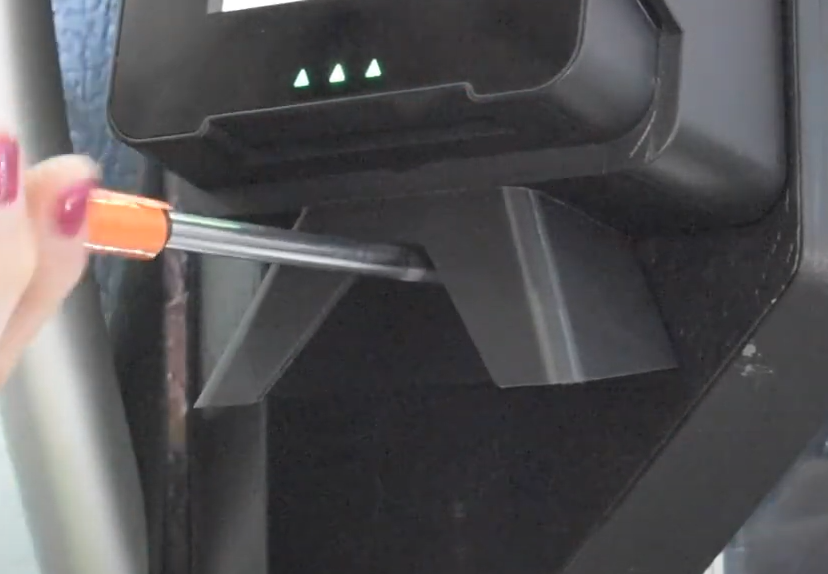

- With another provided screw, attach the scanner hood via the hole at the bottom of the unit. This will also help to secure the Pico to the cooler.

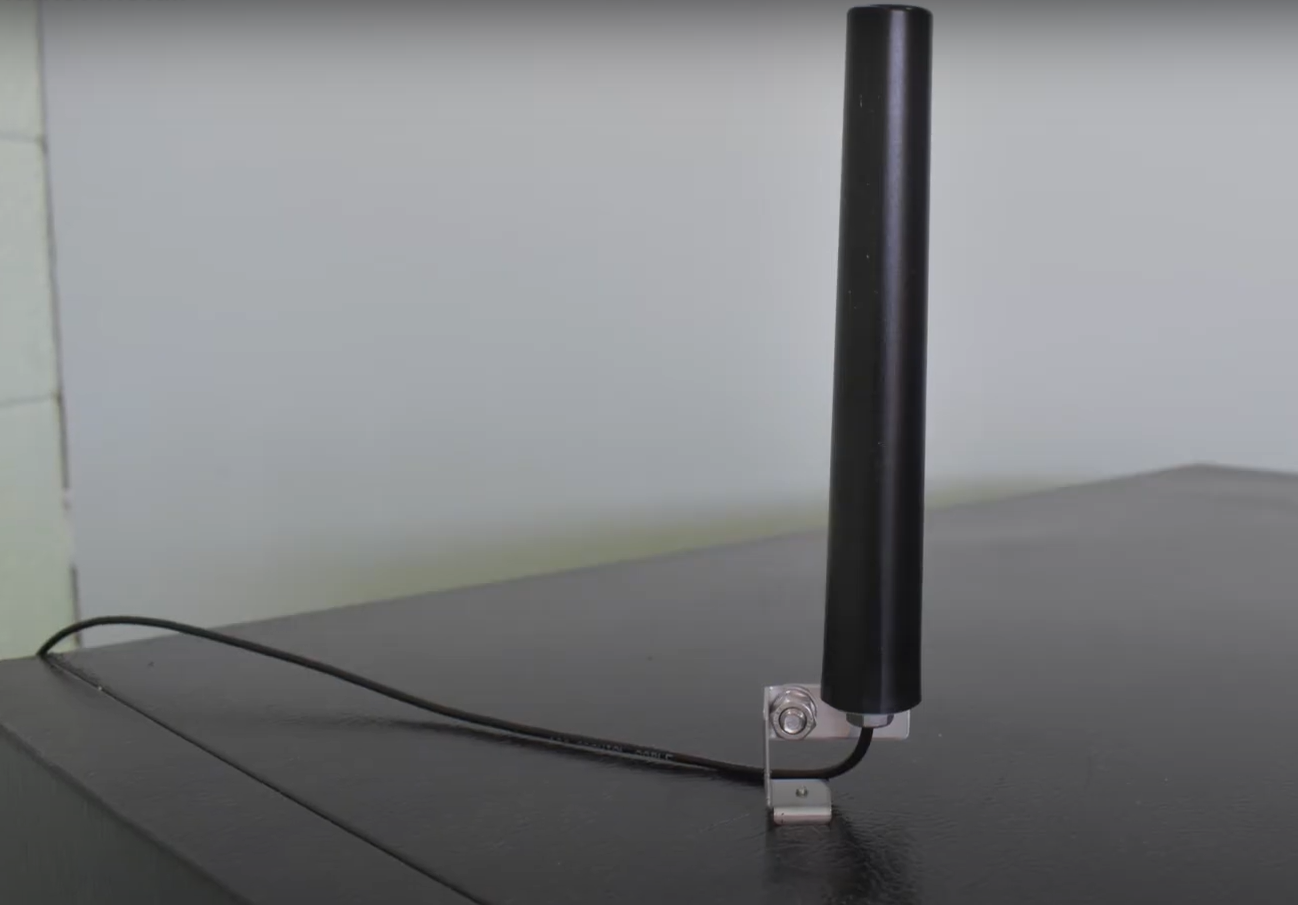

- Place the Antenna on top of the cooler in the center. Then screw in the Antenna connector on the labeled connector located on the back of the cooler (orange port cover should be removed).
- Plug in the power cable from the rear of the cooler to supply power to the entire unit.
Connecting the PicoCooler to the Network
Your PicoCooler will come cellular enabled. There is an ATT SIM card in your unit, and it is activated for immediate use. If you want to use a WiFi connection, follow the steps below.
- Launch the Setup app from the PicoCooler app by tapping five times on the 365 logo.
- Enter the driver’s credentials/PIN to open the app.
- Tap Setup Network when in the Setup app.
- Tap the WiFi button, which will open the android WiFi settings.
- Turn on the WiFi, if it is not already on, by tapping the toggle switch at the top.
- A list of all available or reachable WiFi access points will display.
- Tap on the one you want to join and enter any credentials.
- Tap Back on the Android navigation bar at the bottom to return to the Setup App.
- Tap Start Kiosk to launch the Pico app again.
Driver Sign-In

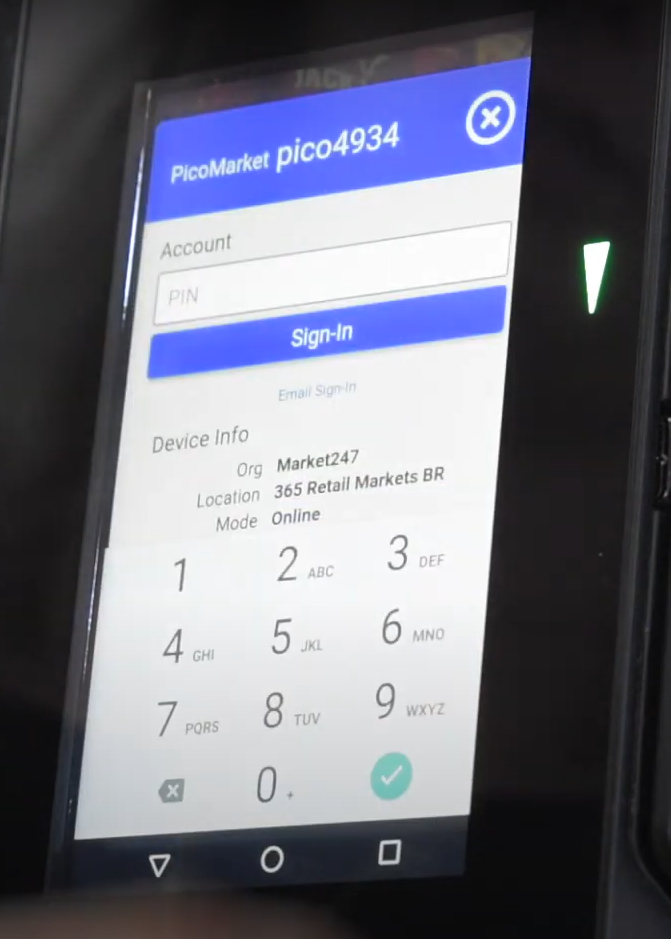

Tap on the 365 logo five times. The first time a driver logs in, they must use their ADM credentials, email and password. For every login after that, they can use their Driver PIN to sign in.

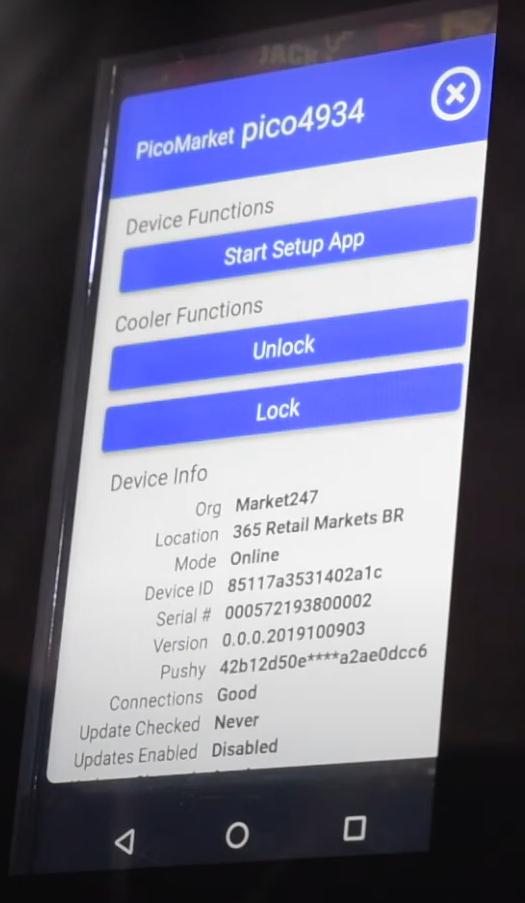

From the next screen, the Drivers have access to Unlock and Lock the cooler and all other Test Tools and device information.

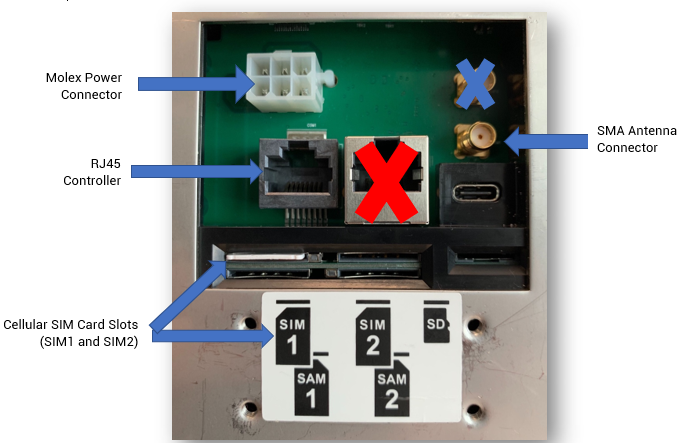

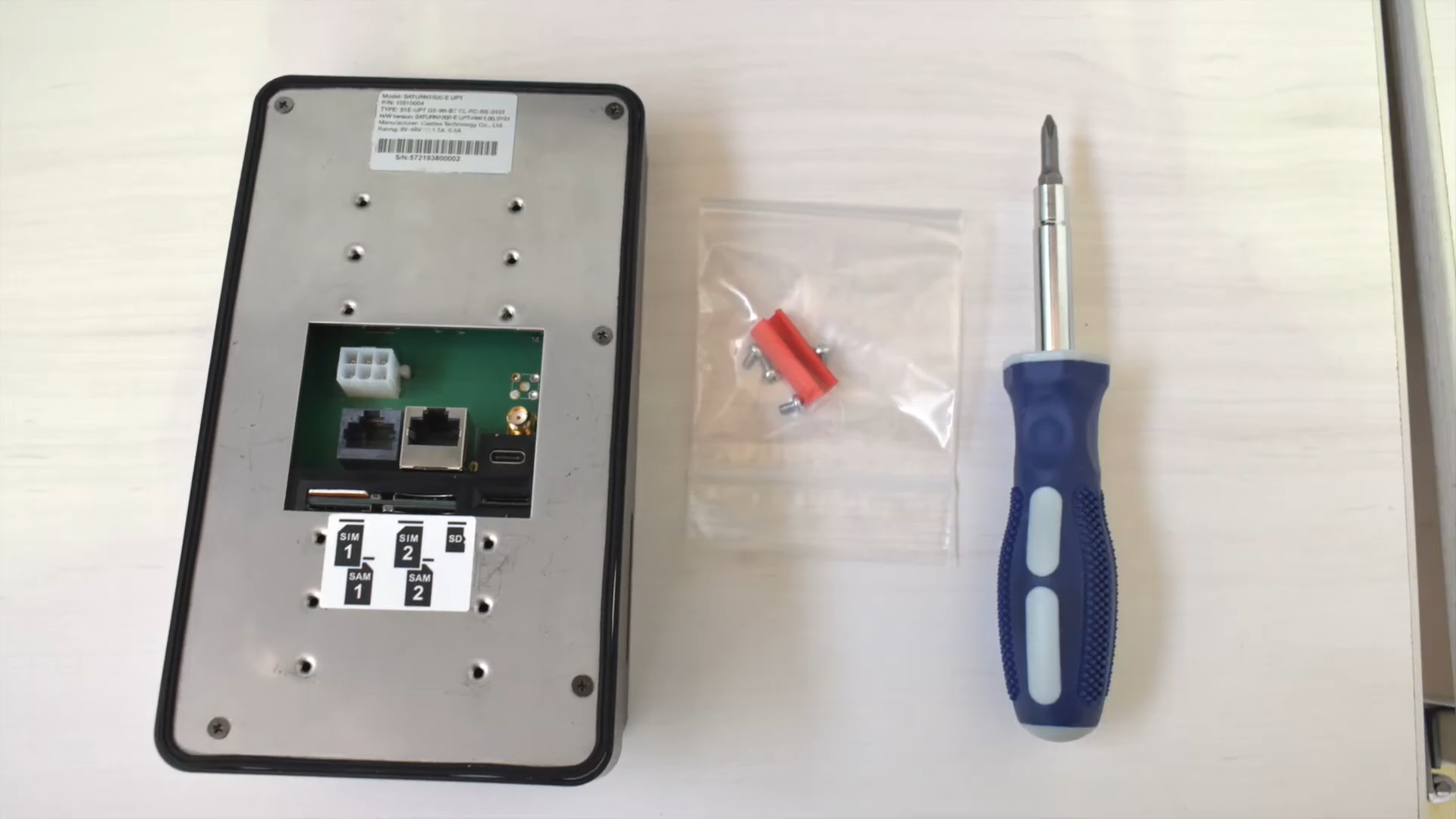

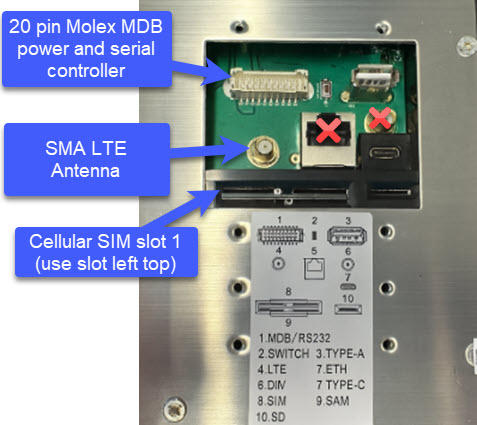

Diagram for Ports
