Purpose

This article provides instructions for installing the Due North cooler for the PicoCooler Vision.

Process

The Due North company was formerly known as MinusForty.

For troubleshooting steps for this device, please see the article PicoCooler Vision - Due North Cooler Troubleshooting. For tips on unlocking the Cooler post-installation please refer to the article Due North (MinusForty) - Unlocking Coolers using the Temperature Controller.



Other Cooler Installations

If installing a cooler for other 365 Products, please see the following articles:



Tools Needed

  • #1 Phillips Head Screwdriver (Magnetic suggested)



Physical Installation

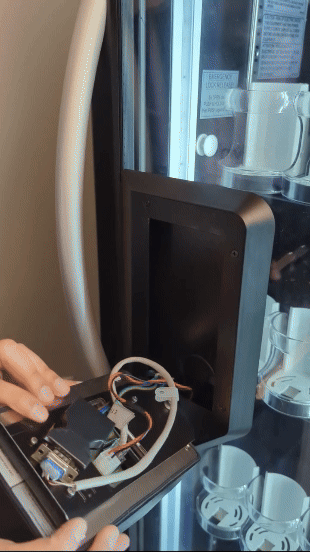

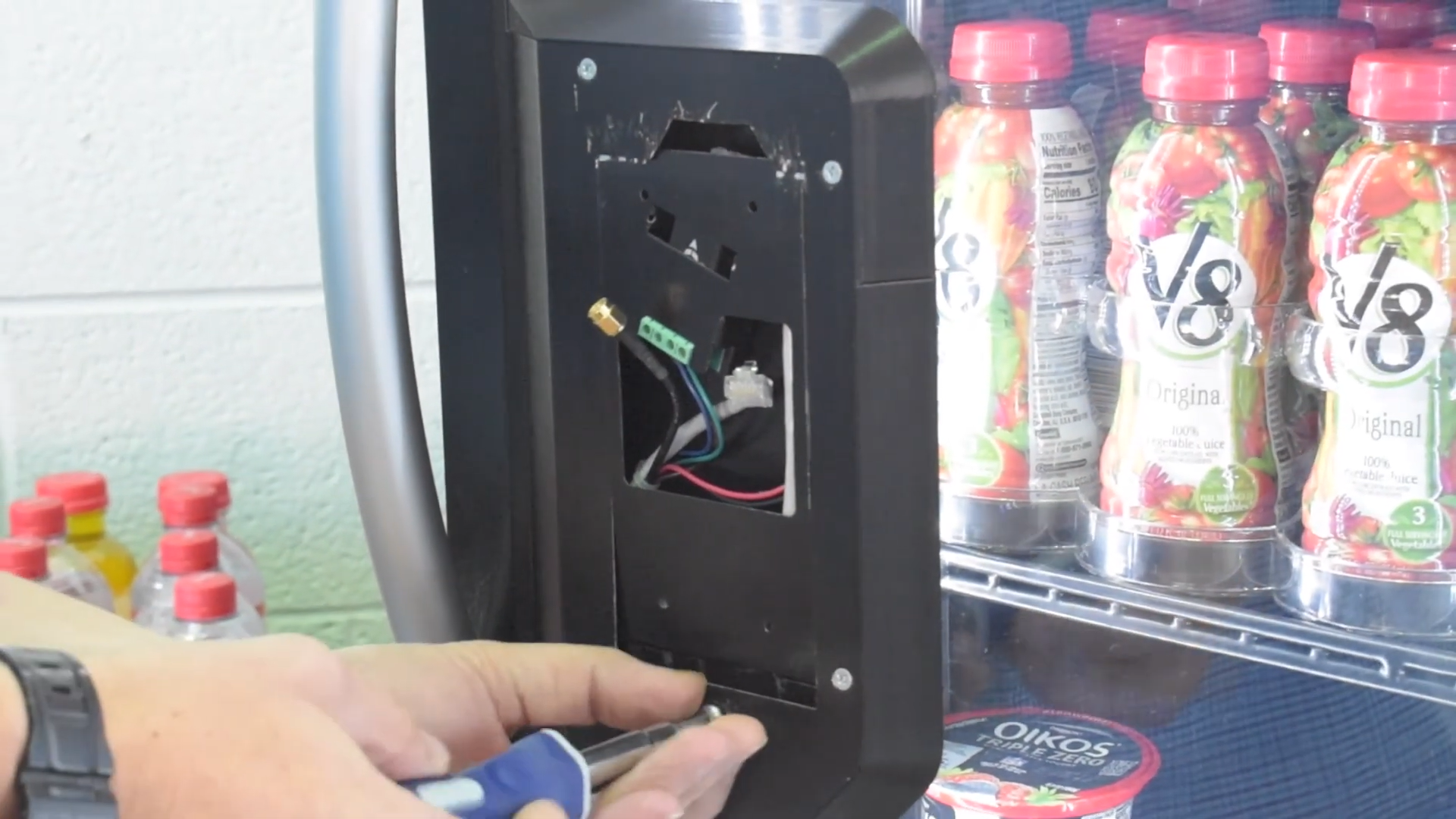

  1. Remove the plate from the cooler.

    PicoCooler Breeze Remove Plate 2.png PicoCooler Vision - Installing Cooler - removing Cooler plate.png

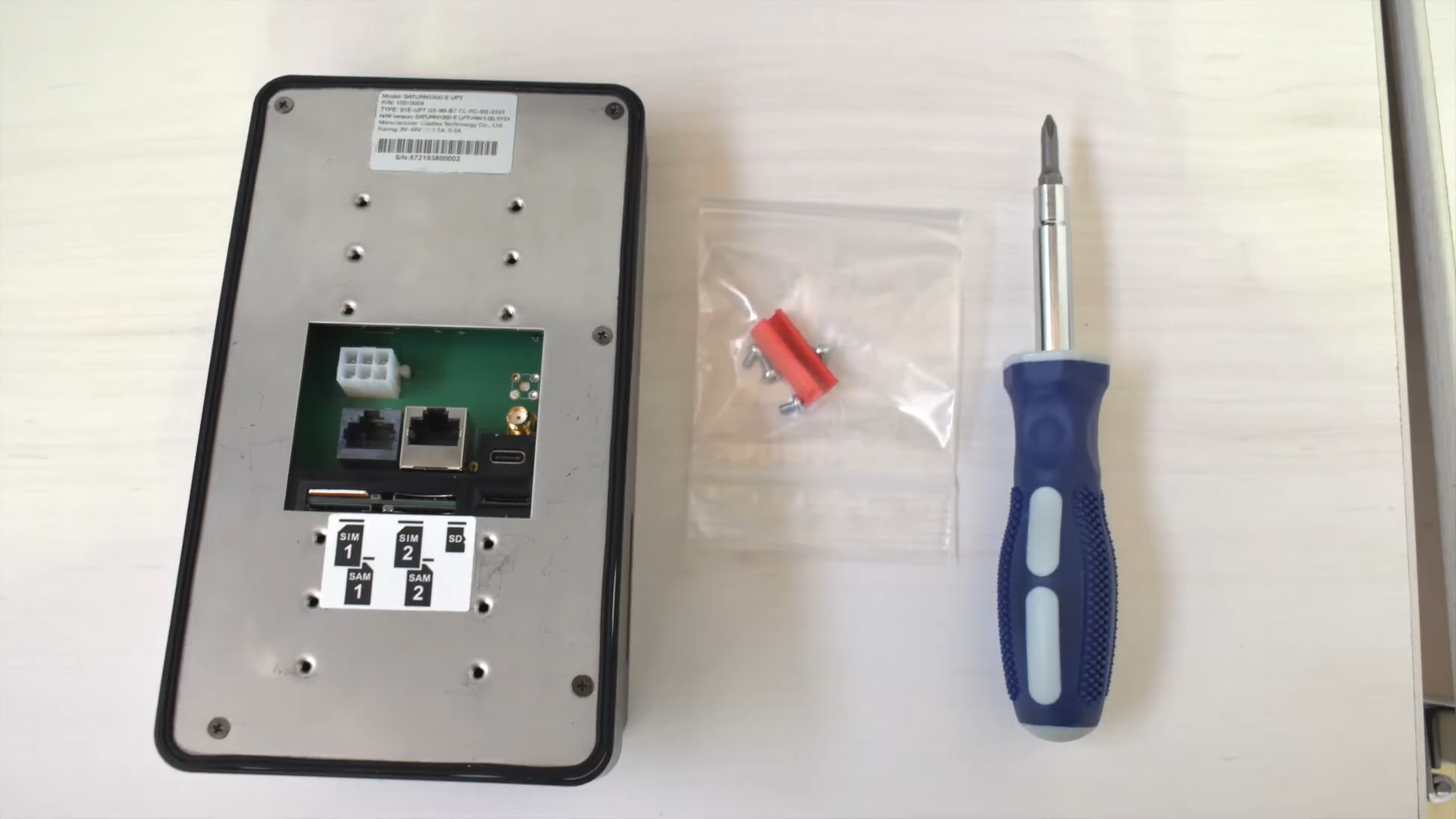

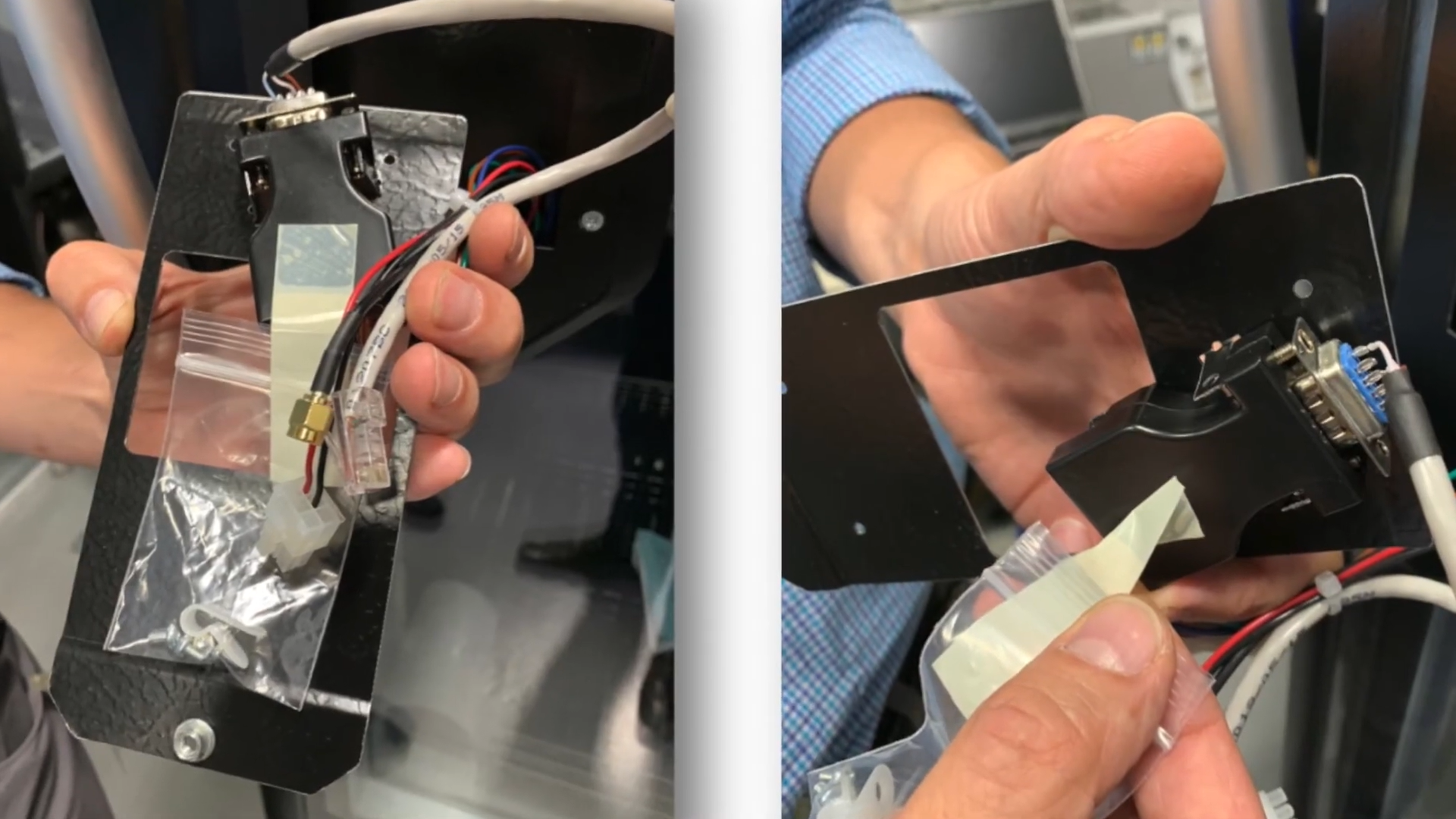

  2. Attached to the plate, you will find a plastic bag containing small screws. Remove this bag: you will use these screws to attach the Pico device to the cooler.

    PicoCooler Breeze Remove ScrewBag 3.png

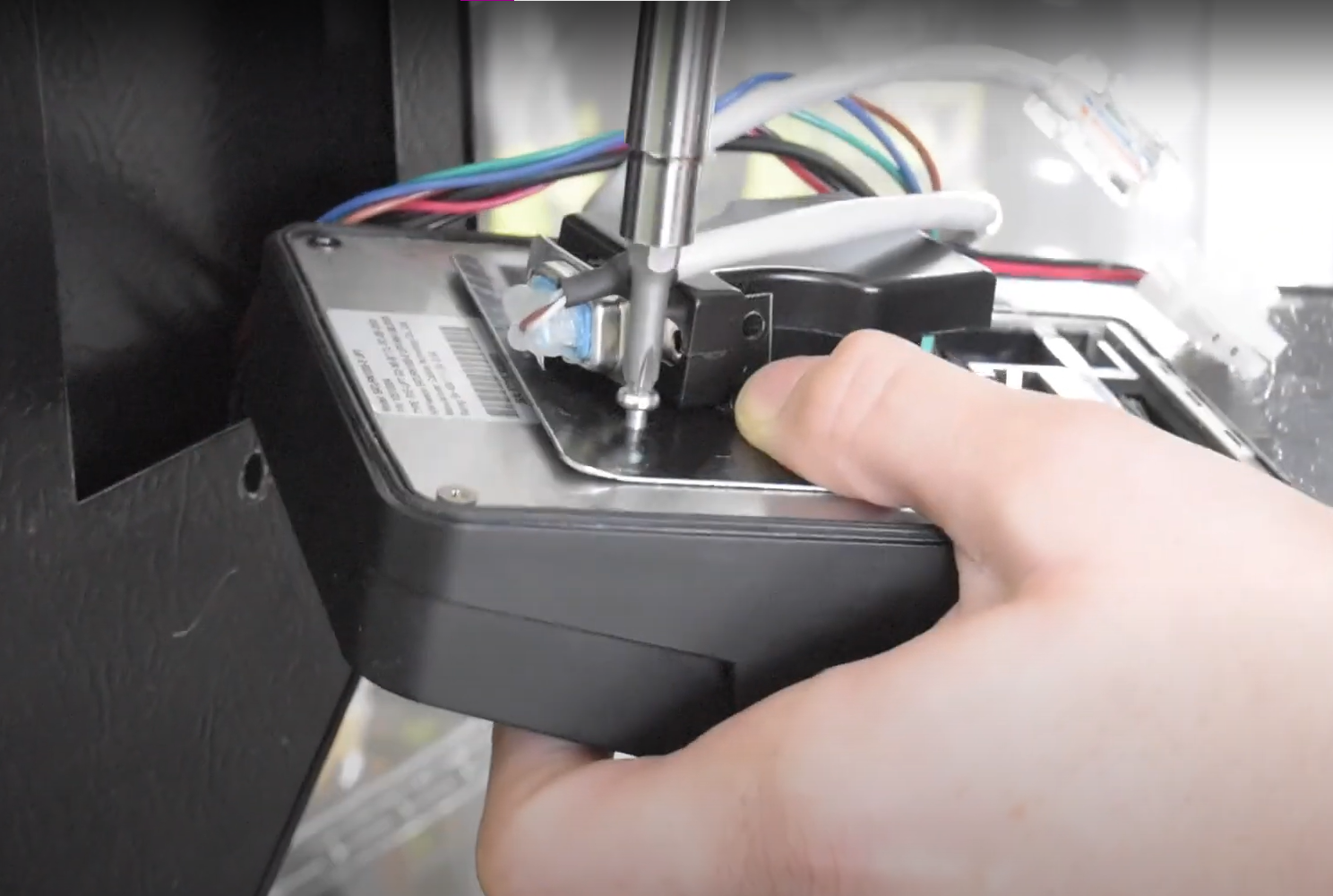

  3. Secure the plate to the PicoCooler unit using the screws provided.

    PicoCooler Breeze Mounting Bracket 1.png

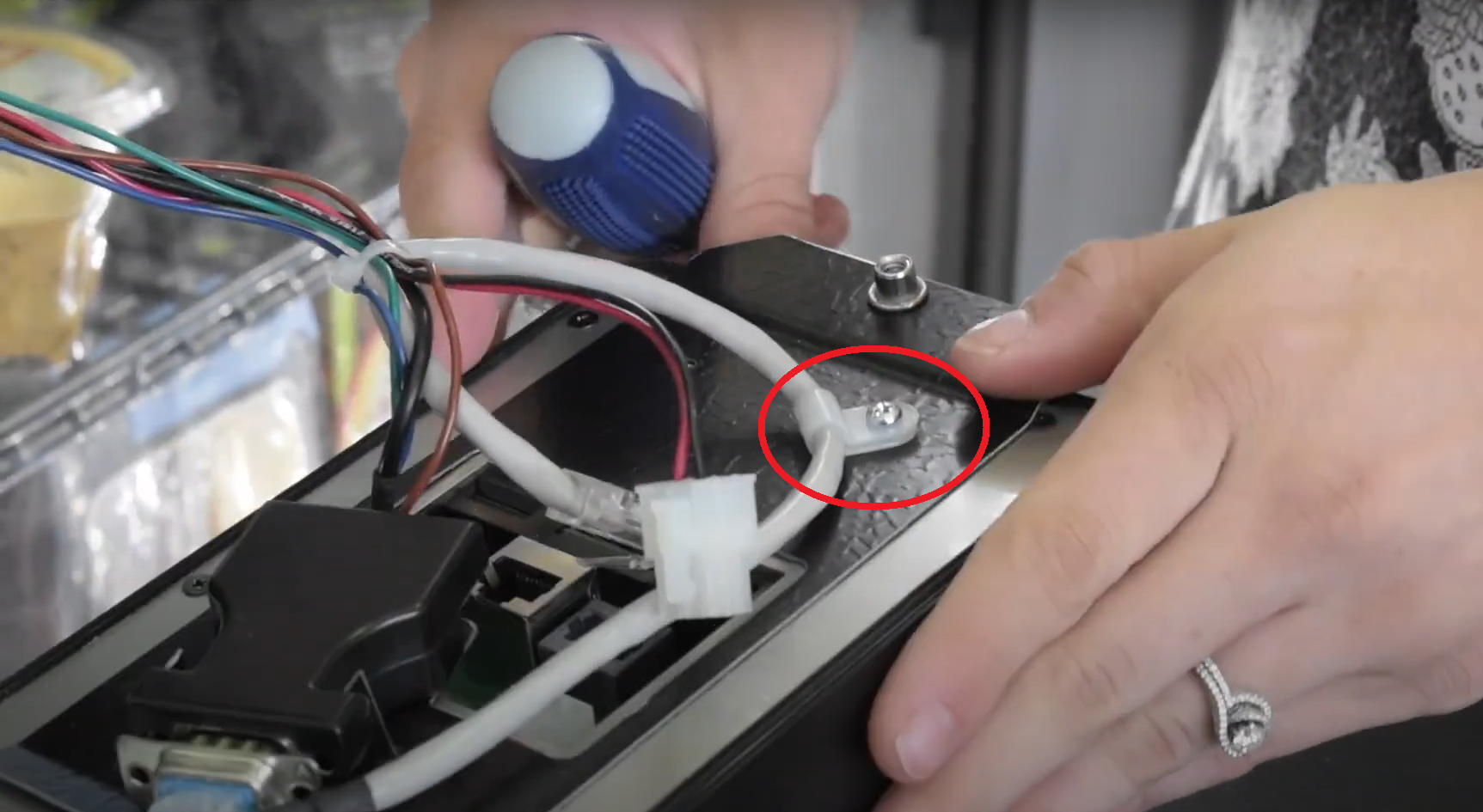

  4. Finish securing the plate to the PicoCooler device. The bottom-left screw will go through the cable clip and into the unit, followed by the top and bottom-right screws.

    PicoCooler Vision - Installing Cooler - attaching Cooler plate to Pico.png PicoCooler Vision - Installing Cooler - Cooler plate with cable clip.png

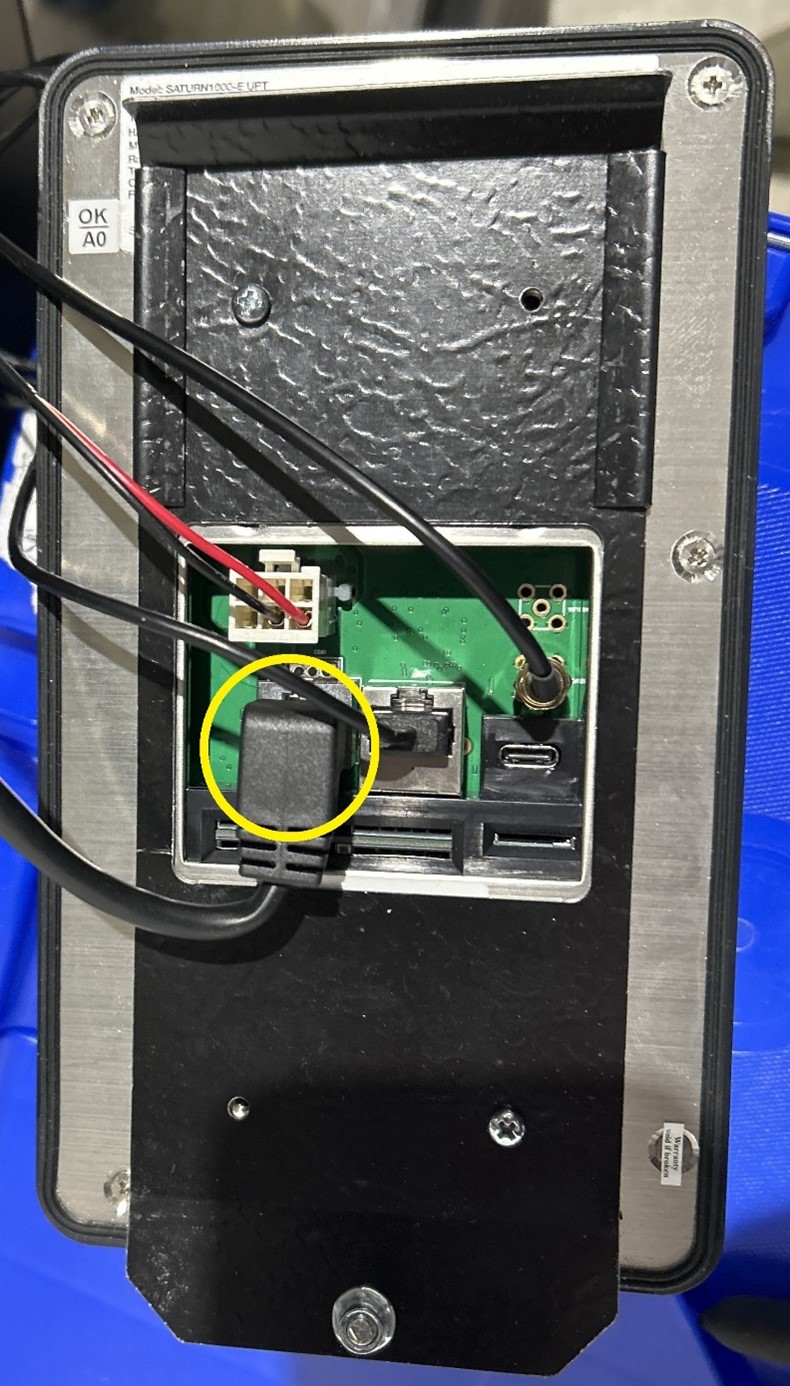

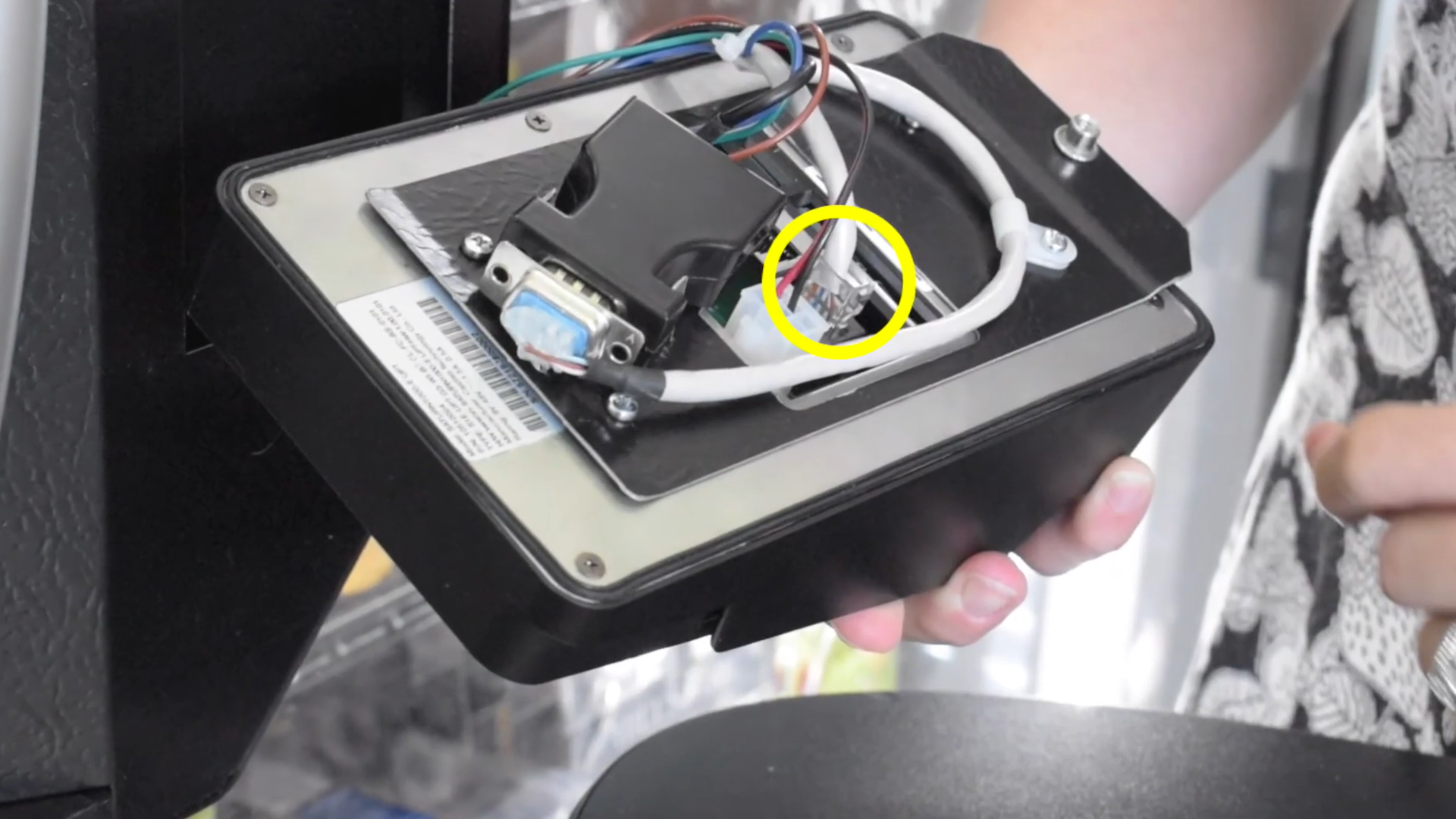

  5. Connect the Molex Power Connector and the RJ45 Controller (Yellow Circle) to their respective ports.

    PicoCooler Breeze Attach Molex and RJ45 6.png On some newer units the RJ45 Controller connection may look different:

    newer unit RJ45 Controller connection.jpg
  6. Connect the Ethernet cable to the PicoCooler Vision. This will be a black cable that is labeled as "Ethernet."

    PicoCooler Vision Rear View.jpeg

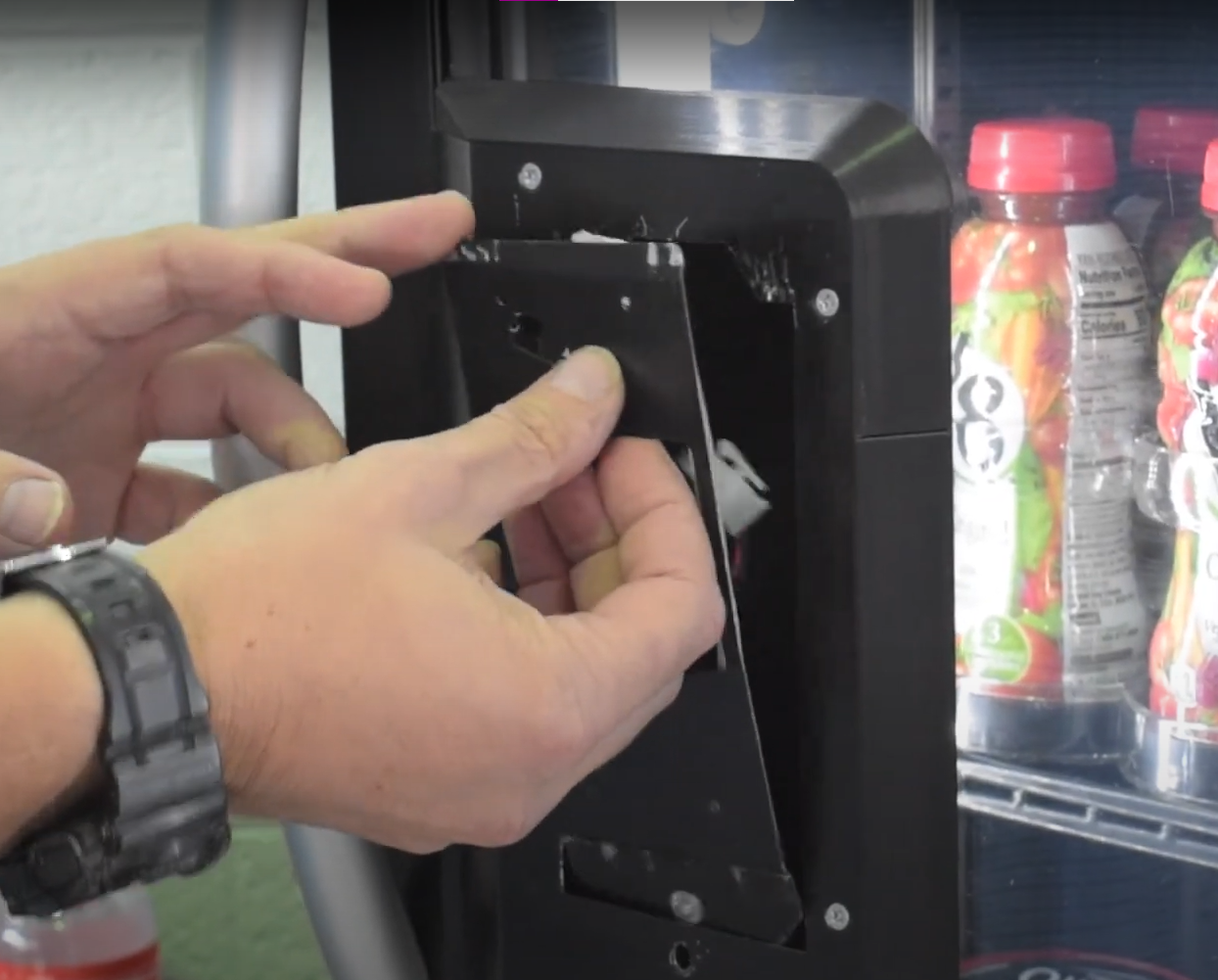

  7. With the back plate now attached and all the cables plugged in, you are ready to attach the Pico to the mount. Hook the bottom edge of the back plate into the mount, then press the device flat against the mount. Press up gently on the bottom of the unit until the top of the mounting plate clicks into place.

    PicoCooler Vision - Mounting Pico via backplate to cooler.gif

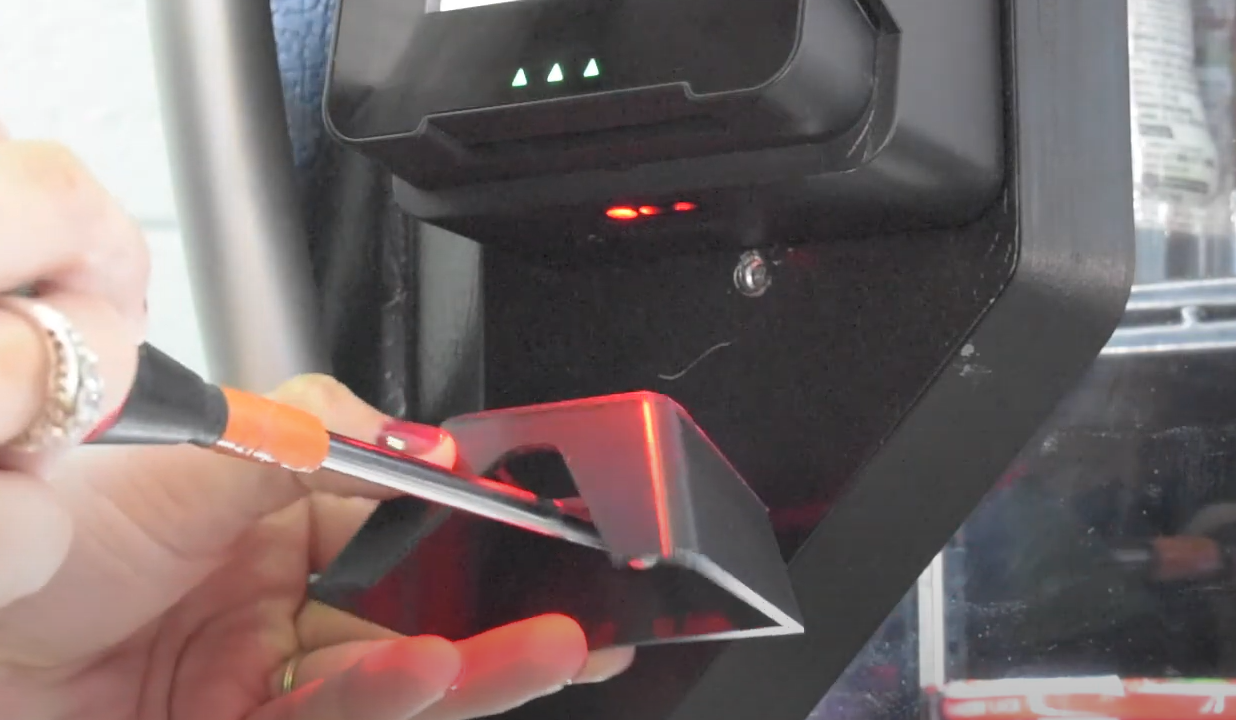

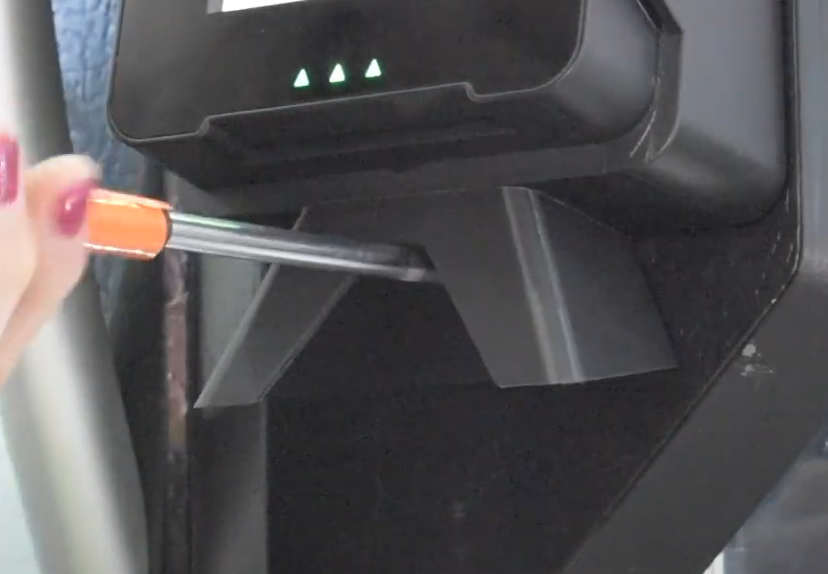

  8. With another provided screw, attach the scanner hood via the hole in the bottom of the unit. This will also help to secure the Pico to the cooler.

    PicoCooler Breeze Scan Hood 9.png PicoCooler Breeze Scan Hood Lined Up 10.png
  9. Plug in the power cable from the rear of the cooler to supply power to the unit.



Driver Sign-In

The first time that drivers access the Driver Menu, they must use their ADM credentials, email, and password. For every login after that, they may use their Driver PIN to sign in.

  1. On the touchscreen of the device, tap the upper-left corner 5 times.

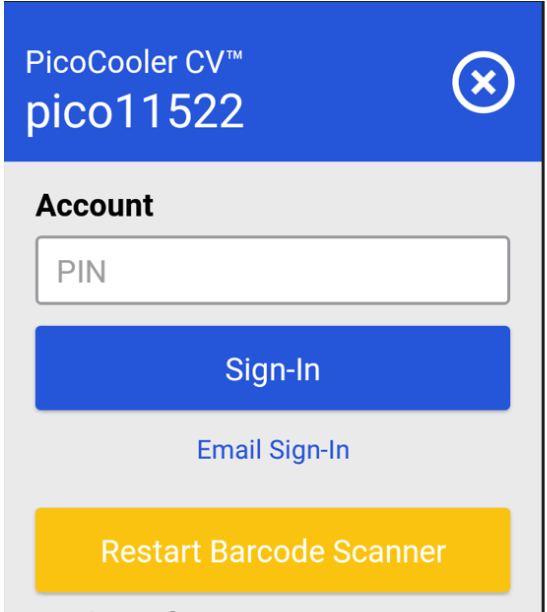

  2. The Driver Menu will now appear. Tap the Email Sign-In option. Enter your ADM email and password. Alternatively, you may log in using your PIN, but please note that your PIN will only work after you have logged into the device with your ADM email and password at least once before.

    PicoCooler CV PIN Sign-In Screen.png

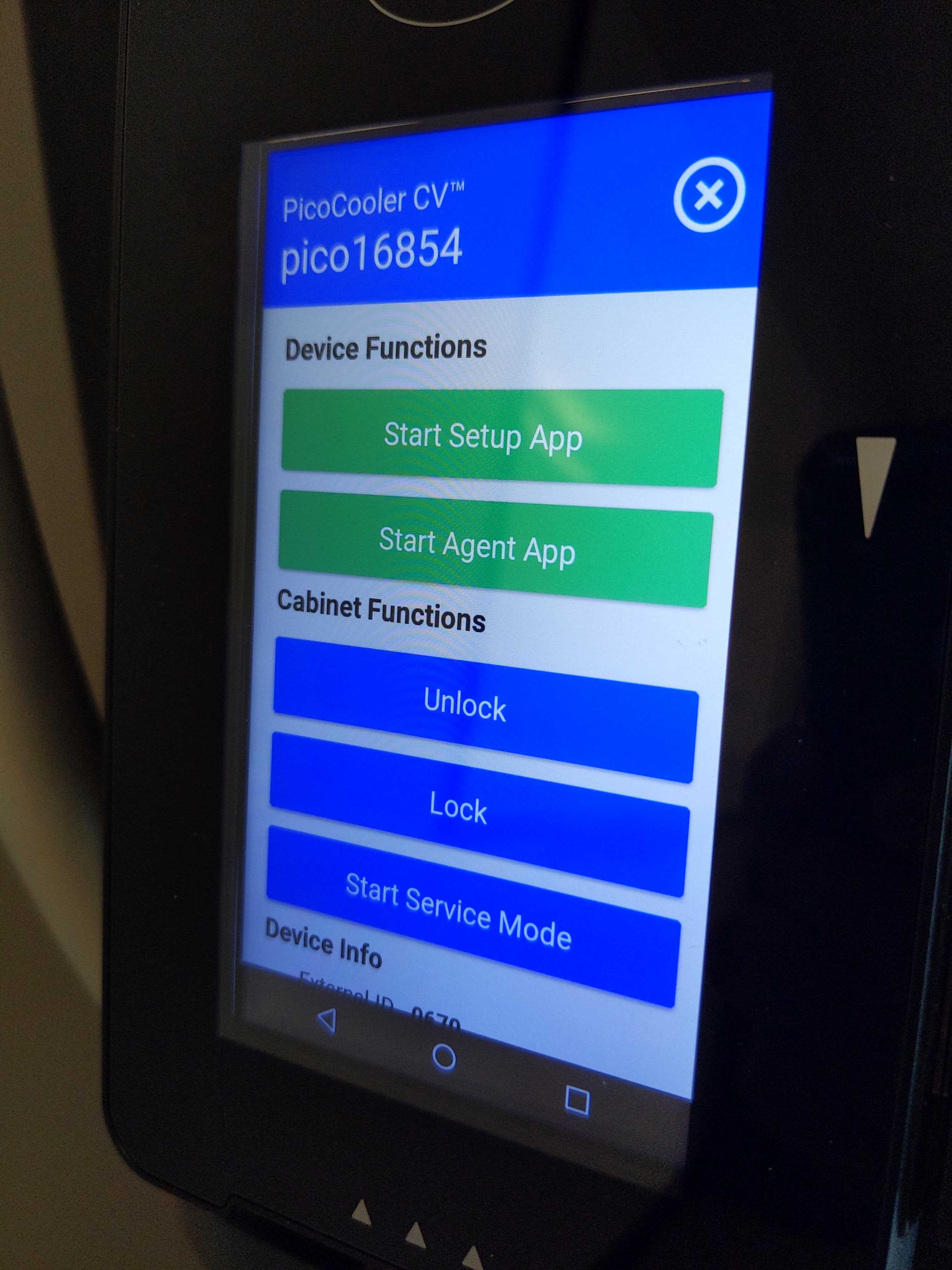

Once logged in, Drivers have access to Unlock and Lock the cooler, as well as all other Test Tools and device information.



PicoCooler Vision - Driver menu.jpg
