ADM - Tablet Service Menu - Operator Guide
Updated

Purpose

This article provides details about Tablet Services Menus, such as which devices they are used on, and what purpose they serve.



Available Products

  • NanoMarket
  • Pico Platform devices:
    • PicoCooler
    • PicoCooler Breeze
    • PicoMarket
    • PicoMarket+



ADM Settings

Accessing the Tablet Service Menu List

  1. Log into ADM.

  2. From the main menu at the top of the page, select the Menu option. Then select Tablet Service from the resulting drop-down menu.

    ADM - Main Menu - Menu - Self Service, Cashier Service, Tablet Service, and Static Menus
  3. You will now be taken to the Tablet Service Menu List, which shows all of the locations where you have created a tablet menu.



Adding a New Tablet Service Menu

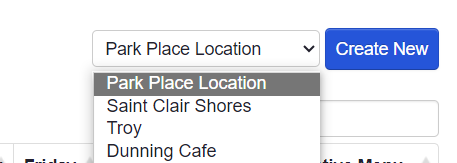

  1. Now that you have navigated to the Tablet Service Menu List using the steps above, select the location where you would like to create this new menu. This is done with the drop-down menu next to the Create New button. Once selected, click on the Create New button.

    ADM - Menu List - Location Selection

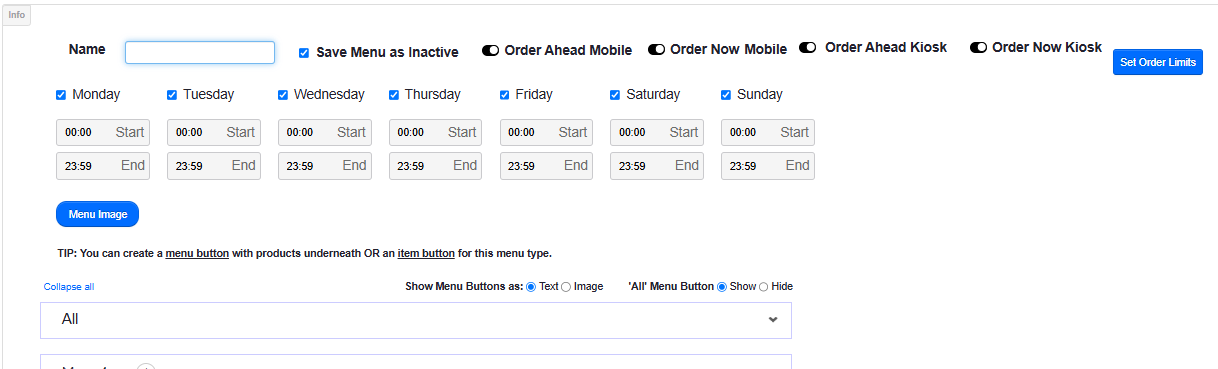

  2. Once the new page loads, you can then name the Menu, as well as select the Days of the week and times of day that the menu will be active.
    ADM - Menu settings - Name and time settings.png



Adding Sub-Menu Sections

Now that you have added a New Tablet Service Menu using the steps above, you can add sub-menu sections to your menu. These sections include item buttonsmenu buttons, and/or a Static Menu, all of which are described below. You may also select the Import Existing Menu Items button at the bottom of the page.
Once you have added subsections to your menu, click Save at the bottom of the page.

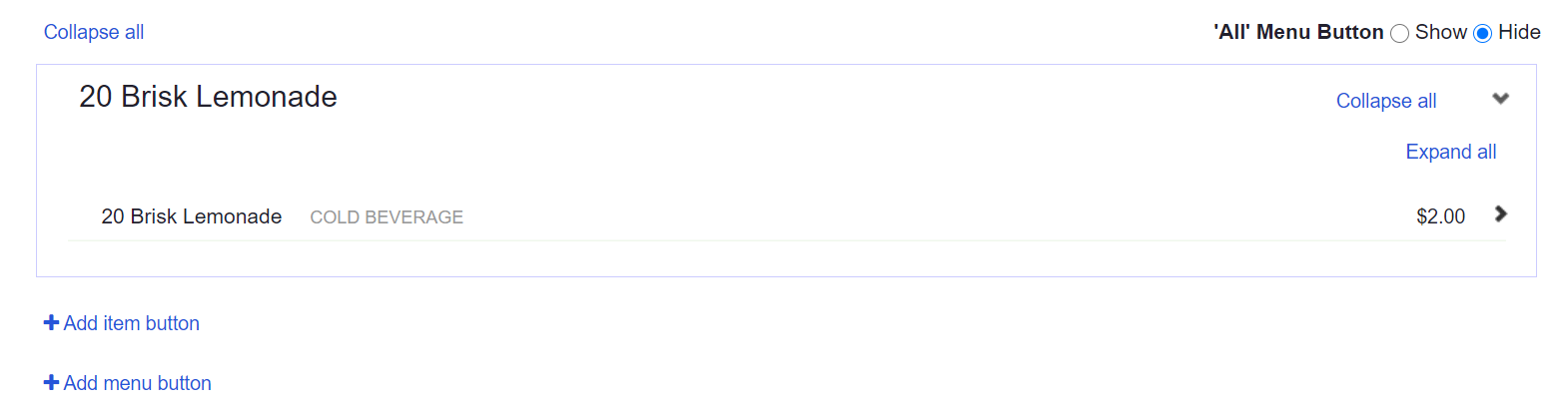

Add an Item Button

The Add Item button is for creating a button that links to ONE individual item.

  1. Click the Add Item button.

  2. The product database for the location will now display. Click on the item that you want to turn into a button, then select Add. You may only choose one item at a time.

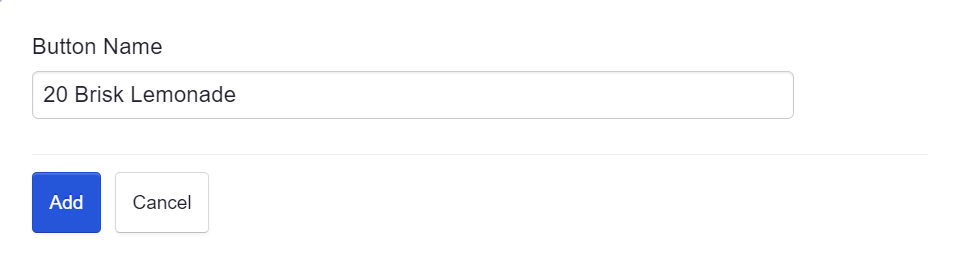

  3. If desired, give the button a name. This name will be visible to the customers on the kiosk screen. If you do not add a name here, it will default to the product name.

  4. Click Add, and your item will now be part of the menu.

  5. Continue to add more Item buttons as needed. Click Save to keep the item(s) as part of the menu.

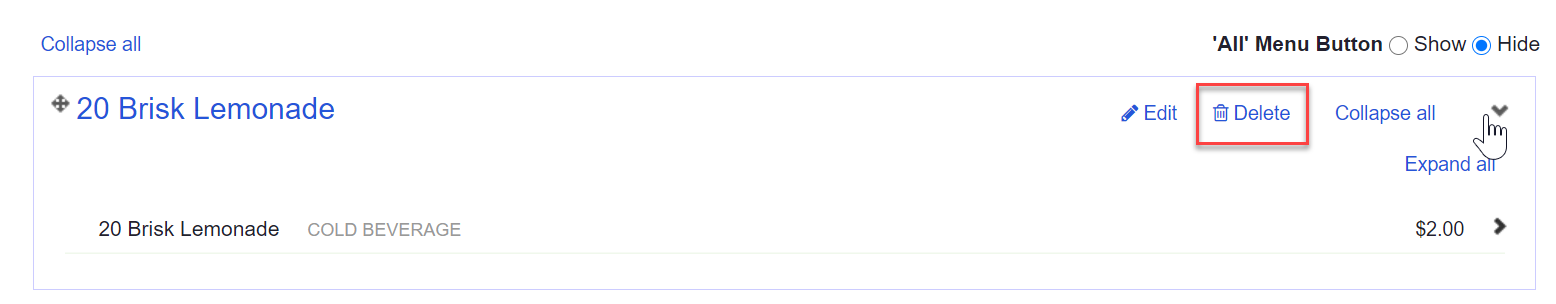

    NOTE: You will have the option to delete an item from the menu only after you save the menu.

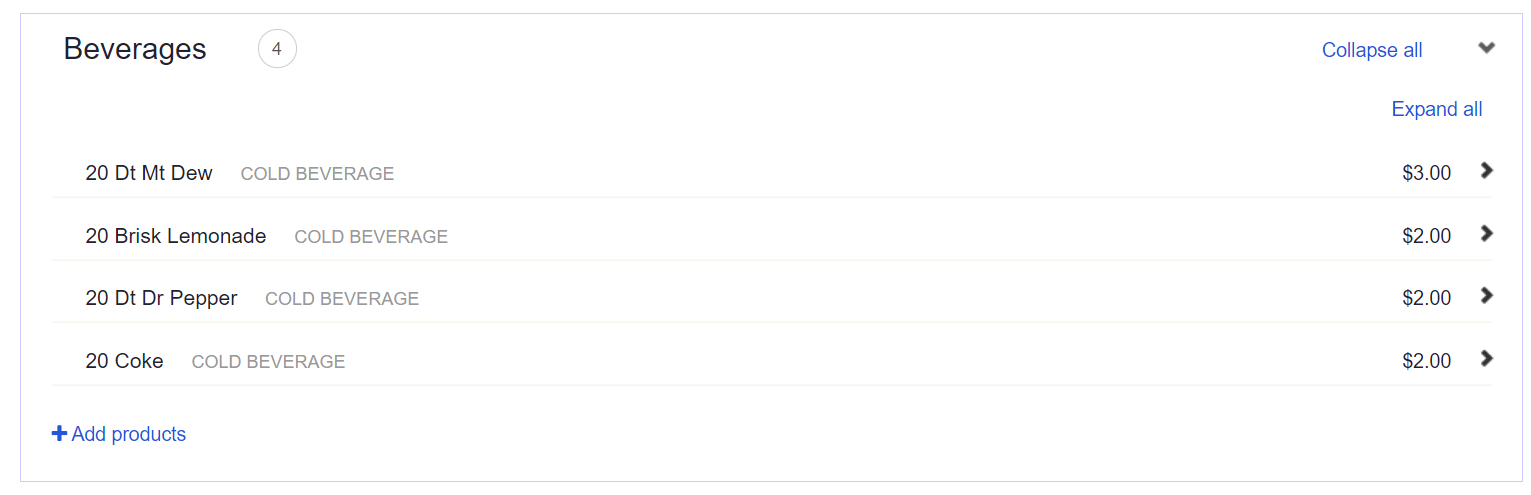

Add a Menu Button

A menu button allows you to have multiple items nested under ONE button. For an example, the button could be called "Fruit", and it would have items like "Banana", "Apple", and "Orange" nested within it.

  1. Click the Add Menu button.

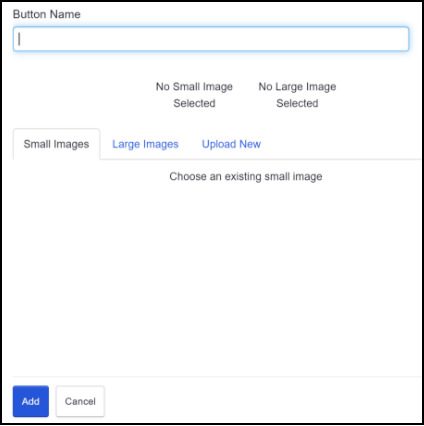

  2. Give the button a name. If your device is a ReadyTouch/ Dining device, you may also add an image.

  3. Click Add.

  4. The Menu button that you just created will display. From here, select Add Products.

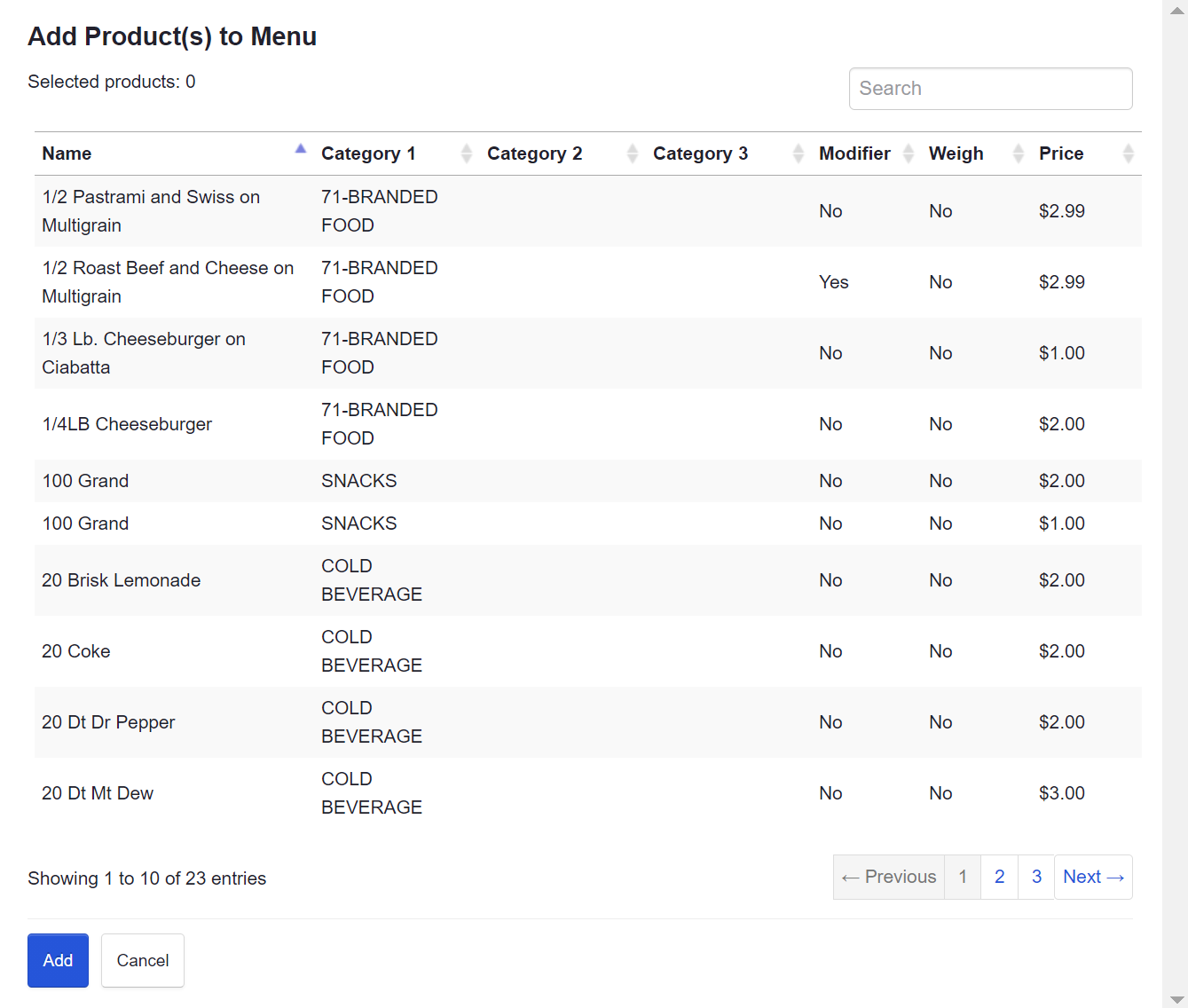

  5. The product database for the location you had chosen will display. Click on all the products that you want to link to this one button. Selected products will be highlighted in blue.

    NOTE: There is a limit of 12 products you can add to one Menu button on the V5 MicroMarket, NanoMarket, PicoCooler, PicoCooler Breeze, PicoMarket, and PicoMarket+ but there is no limit to how many products you can add for a ReadyTouch/Dining kiosk.

  6. Click Add when you have chosen all of your products, then click Save.




Add Static Menu

The Add Static Menu button creates a menu that shows up all day, even outside active hours. Learn more about Static Menus by reading the article ADM - Static Service - Menu Creation



Add Menu Products to Print Groups

Once your menu is saved, you will need to add the products in your menu to their correct print groups. This ensures the item is sent to the correct part of the kitchen.

  1. From the main menu, select the Location button. This will bring you to the Location tab, which is the home page of ADM.

    ADM - Main Menu - Location (Operator View)
  2. Select the name of the location where the menu was created.

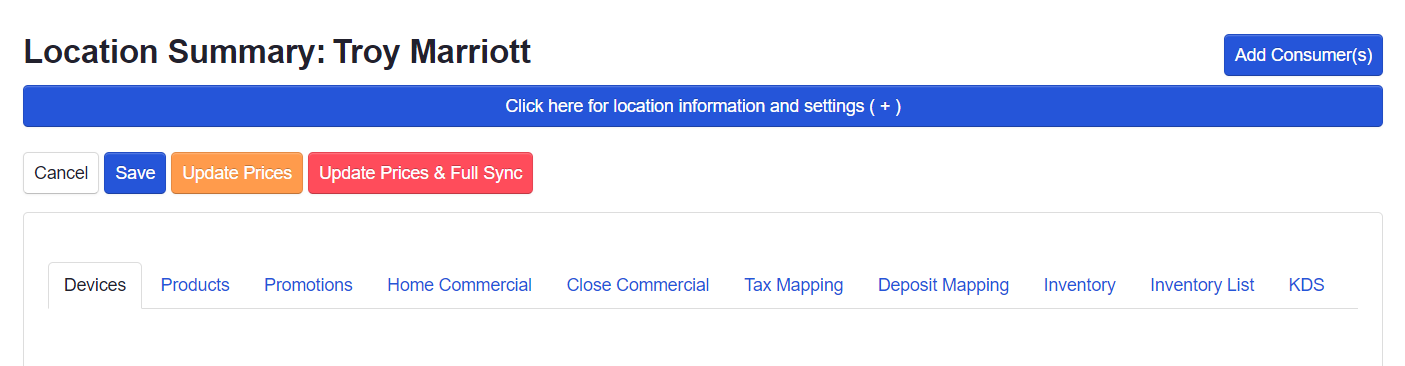

  3. The Location Summary will now appear. From here, select the Products tab.

    ADM - Location Summary - Options and settings.png
  4. Search for the products you wish to add to your menu. Find the column that shows Print Group and assign the appropriate print group to the item. Then, click save.



Complete Menu Setup

  1. From the main menu, select the Location button to go to the Location tab, also known as the home page of ADM.

    ADM - Main Menu - Location (Operator View)
  2. Select the name of the location where the menu was created.

  3. The Location Summary will now appear. Select the Update Prices and Full sync button for the menu to be applied to the kiosk.

    ADM - Buttons - Cancel, Save, Update Prices, Update Prices & Full Sync
