Purpose

This article describes the setup and basic operation of the PicoCooler Vision. This vertical smart cooler is part of the Stockwell product line, and provides the same great services with a smaller footprint.

Features

Hardware

The PicoCooler Vision offers:

• an upright Minus 40 Cooler
• 5 cooler shelves
• 5 cameras
• a 5" touchscreen
• a 4G LTE cellular connection

To learn more about the hardware of this device, please see the PicoCooler Vision - Hardware Guide.

Mounting Pico Device to Cooler

For instructions on installing the Due North (Minus Forty) cooler for the PicoCooler Vision, please see the article PicoCooler Vision - Due North (MinusForty) Cooler Installation.

Apps, Software, and Integrations

The PicoCooler Vision supports the following:

• Scan & Save Shopper Discount
• the Loyalty Global Market Account (GMA) program
• Email, SMS, and Text Receipts
• Card Payments (Insert/ Tap/ Swipe)
• Digital Wallet Payments (Apple Pay, GooglePay)
• The Connect and Pay App
• Connected Campus

The PicoCooler Vision does not offer offline functionality.

Process

Provisioning Process

This device does not currently support Self Provisioning. Please submit a location deployment request via the Stockwell 2.0 & PicoCooler Vision Deployment Request Portal to have your device provisioned.

This request will take 3 to 5 business days to be processed. After it has been processed, you may then continue with the setup steps below.

Hardware Setup

The PicoCooler Vision will be configured for your location before shipment. Follow these steps to complete the rest of the setup process.

1. Plug in the PicoCooler Vision unit. Allow the store 4–6 minutes to boot up

   If your PicoCooler Vision is not already mounted to the Due North (Minus Forty) cooler, please see the article PicoCooler Vision - Due North (MinusForty) Cooler Installation.
2. After the device is booted up, you will see an error saying Cooler Safety checks have failed. This is normal, and is part of the process. To clear this error, hold the downward facing arrow button located below the screen for 5 seconds. You will see three dashes ("---") on the screen when the error has been cleared.




Stocking the PicoCooler Vision

Planogram Access and Creation

1. Log into ADM


2. Select the name of the location you would like to edit.


3. The Location Summary page will now appear. From here, select the name of the device you would like to edit.


4. The Device Summary page will now display. Select the Stockwell Planogram button.


5. You will now be taken to your schema for this device. Select the Staging button on the resulting page.


6. Select the Clone Production Schema button.


7. Now use the search bar to look for items. You may use the product name or product scancode from ADM to find your items. Once you have found an item you would like to have in your smart cooler, click on the name of the item, then drag and drop it to where you want it to be on that shelf.
   If you cannot find the products you are looking for, the items may need to be extended to the device's location in ADM. Learn how to extend a product with the article ADM - Add, Edit, or Extend a Product.


8. Once your Planogram is all set, select the Save button, then select Migrate to Production.

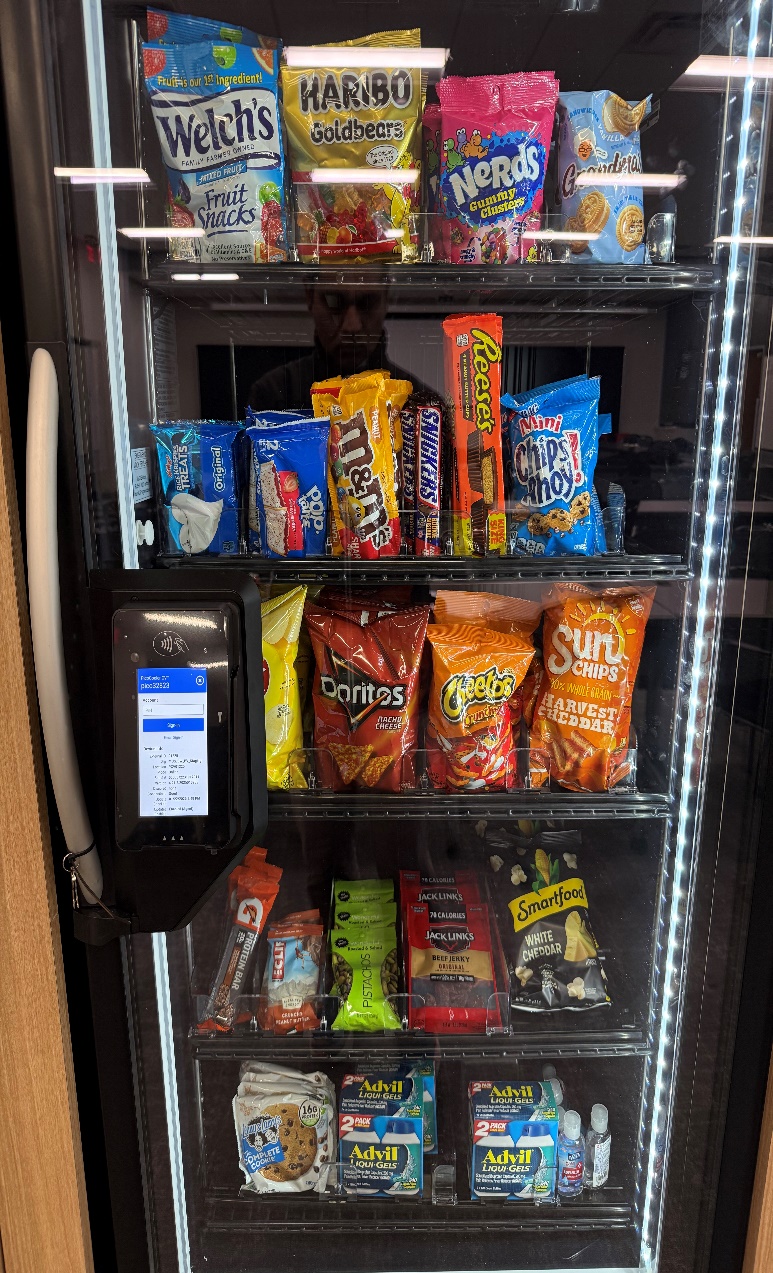

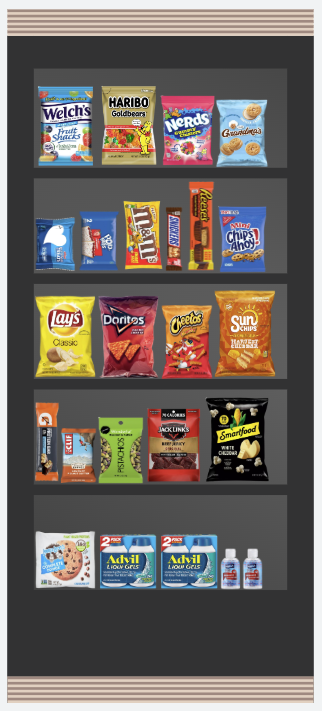

Stockwell units should only have one item type per row. (one brand, flavor, and packaging type). The schema needs to be an accurate representation of the stock of the unit. Different product types should not be stacked on top of or behind one another. The schema should look like the units store front photo. Inaccurate schemas can cause loss and inventory issues.

Adding Images to your Products

Images will need to be linked to any new products the Stockwell website receives from ADM. Below are the steps on how to link images to a product

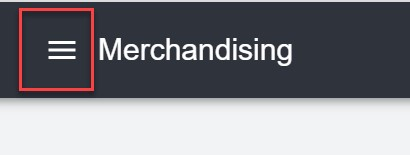

1. Click the 3 line icon in the top left on the Stockwell webapp.

2. Click Items. When a new item is added into ADM, it will automatically appear in the Stockwell Web App.
   • Contact 365Support if you are not seeing your items, or email support@stockwell.ai

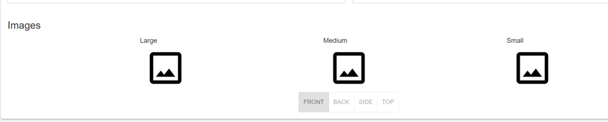

3. Click on an item to see more details. Scroll down to where it says "images".


4. Click on any image option, "small, medium, or large".


5. Upload the image you would like to use for that product. The image can be in .jpeg or .png format. format.
   • The item images and dimensions (including item and image rotation) can be altered in the setting of any individual item. However, images should be cropped to the item packaging prior to uploading.
     • Item dimension and other settings are more easily controlled in the schema section explained below in the Schema Adjustments for Products section.
   • Uploading the large image will auto populate the medium and small images. The image dimensions in the schema will be changed based on item dimension settings of each individual item. Matching the item dimension settings to the product packaging dimensions and the cropped photo will result in an accurate image in the schema.

6. Select Save in the upper right corner.



Schema Adjustments for Products

After adding images to your schema product dimensions and other settings will need to be adjusted for an accurate schema setup.

Dimension Settings:

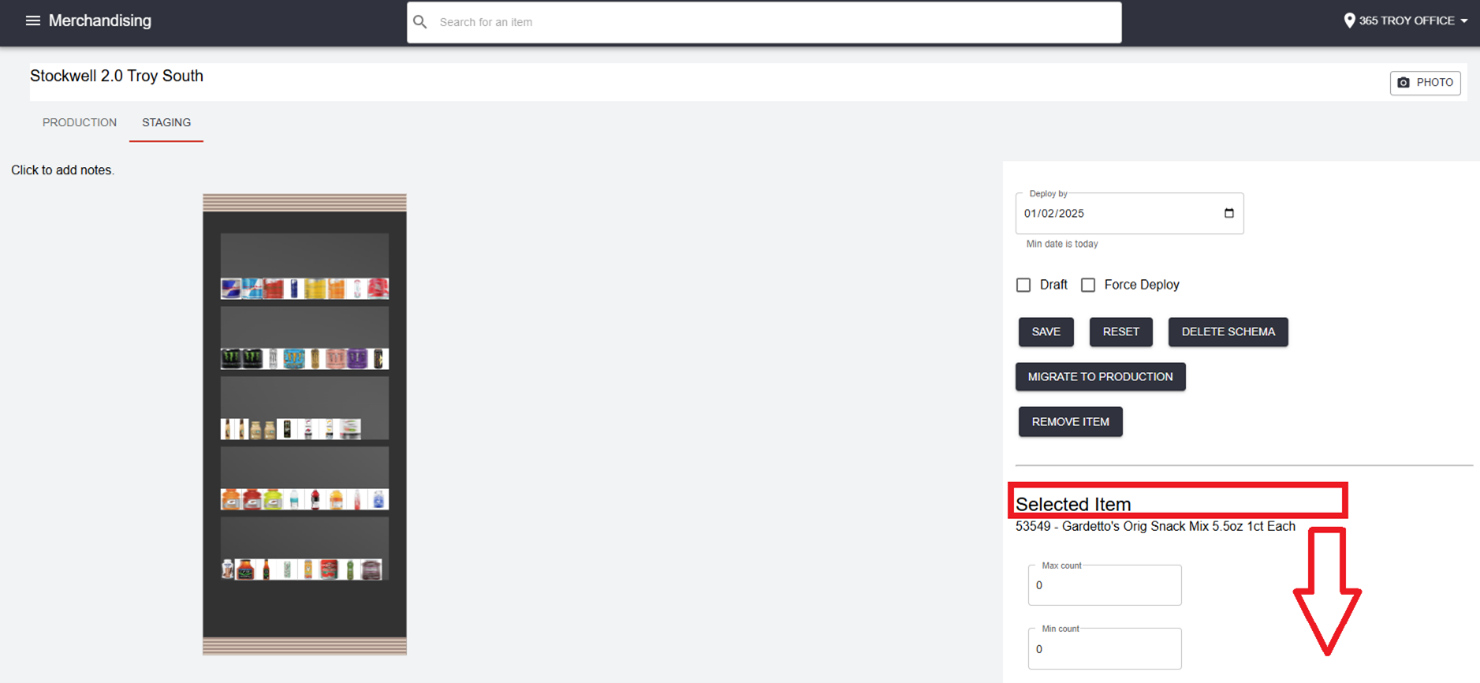

When in the Staging Tab for schema setup you can select an item by clicking on it in the staging schema. This will pull up several settings on the right side of you screen for the “Selected Item.”

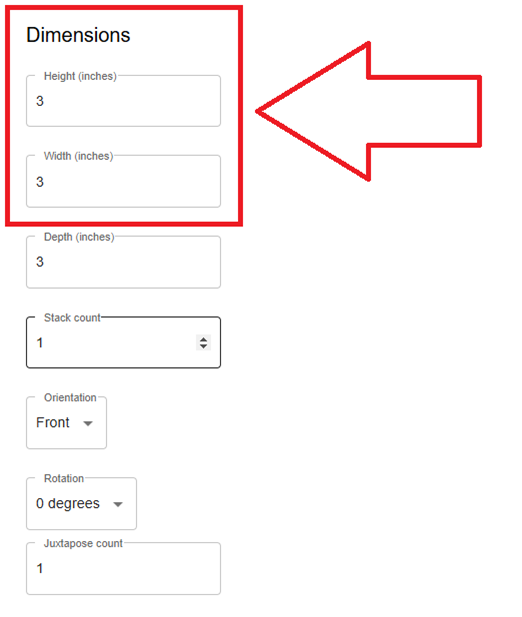

The dimension settings for Hight and Width can be adjusted in this section.

The Height and Width settings ensure that schema shelf spacing is accurate. Item dimensions can be approximated. These settings will stretch and skew the images to match the dimensions, and it will push surrounding products into their correct spacing as dimensions are updated on all shelf products.

Stockwell Systems use both the item images and schema location to identify items. Proper dimensions help ensure that items can be identified by where they are pulled from along with the images.

• The ”Depth” Setting can be bypassed as this setting was only for legacy units.

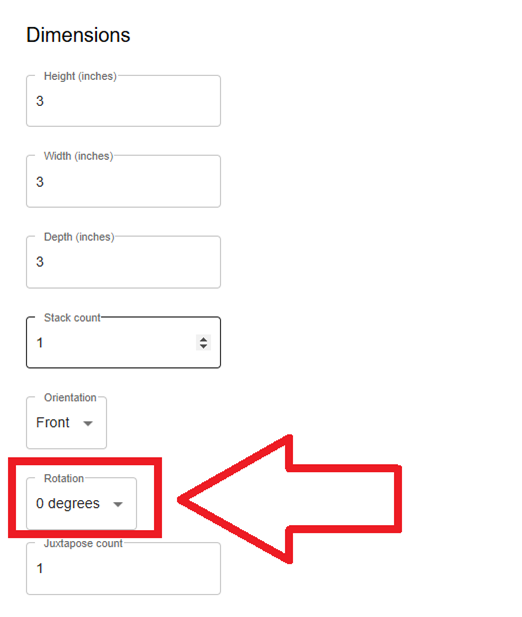

Rotation Settings:
Some products (typically candy bars and other slender items) are placed on their sides in pushers for better use of space. If an item needs to be rotated this setting allows for that adjustment by 90 degrees.

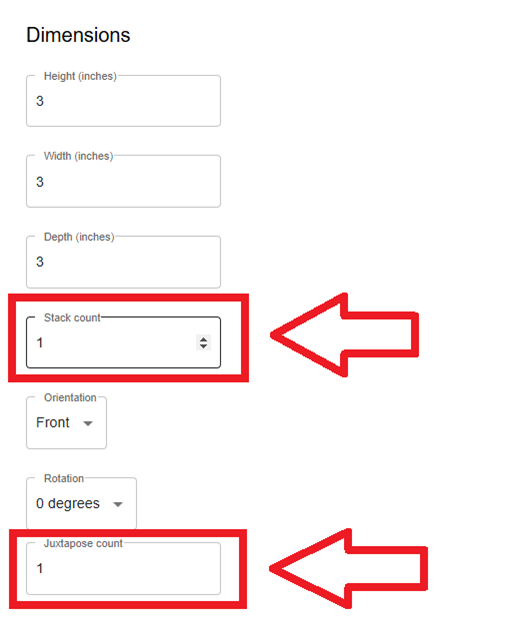

Stack and Juxtapose Settings:

Stack - Stack allows you to set items on top of one another in the schema (usually items on the bottom shelf that are not in pushers).

Items typically in bowls and boxes can be stacked to utilize unit space more effectively. You will want to make sure these items can be clearly distinguished by the labeling on the side as well as the top. The link below covers the considerations that should be made when selecting items for Stockwell units.

For additional information, please see: Stockwell 2.0 - Best Practices for Item Selection

Juxtapose - The juxtapose settings allow you to add multiple rows of an item side by side on a shelf.

Unlocking the Cooler

The Due North (MinusForty) PicoCooler can be unlocked via several methods - physical key, the 365Ops application, or the manufacturer's built in unlocking key combination. For more information regarding these methods please reference the article Due North (MinusForty) - Unlocking Coolers using the Temperature Controller.
