Purpose

This document explains how to set up a Cashier-Service Dining Menu using ADM. It also showcases the cashier's experience of using such a menu at the kiosk.

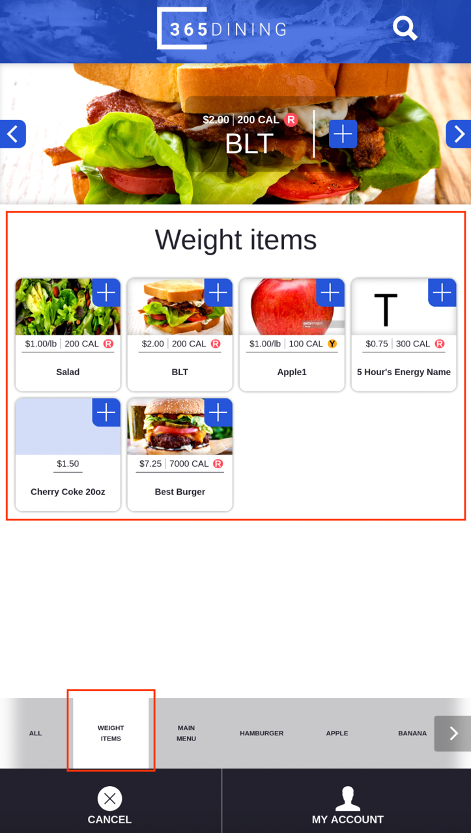

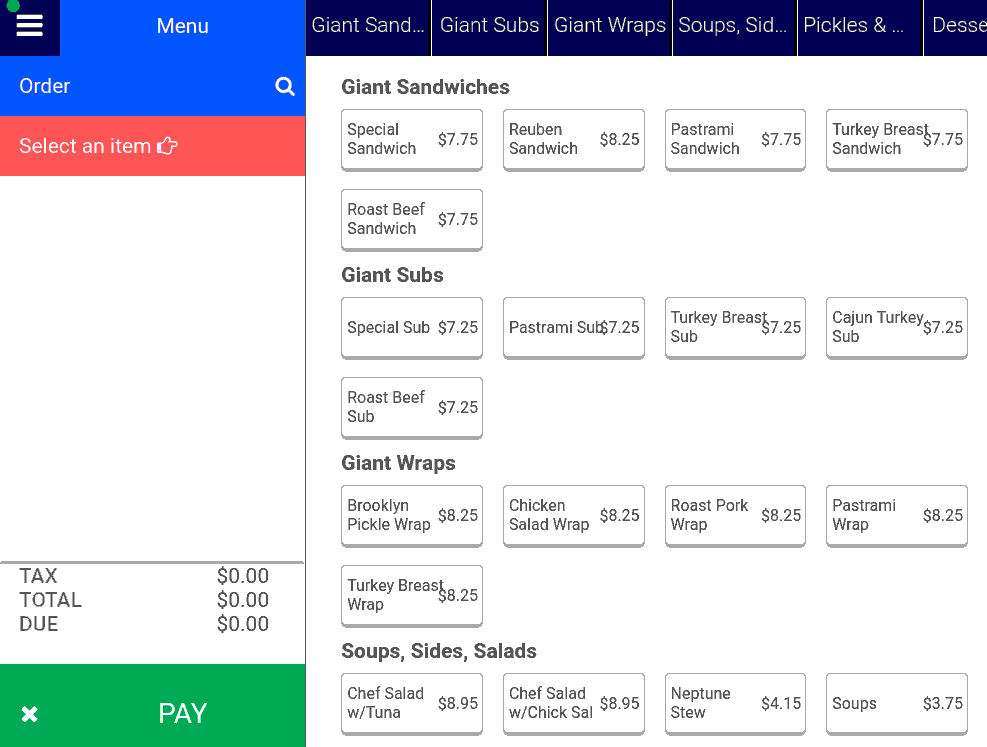

The Cashier Service Dining menu can be used in a 365Dining environment to display menus and sub-menus on a ReadyTouch device when it is in Cashier Service mode. In an environment where this is used, the orders and payments would be taken by a cashier on-site, rather than the consumer placing their own order.

ADM Settings

Accessing the Cashier Service Menu List

1. Log into ADM.


2. From the main menu at the top of the page, select the Menu option. Then select Cashier Service from the resulting drop-down menu.


3. You will now be taken to the Cashier Service Menu List, which shows all of the locations where you have created a cashier menu.



Adding a New Cashier Service Menu

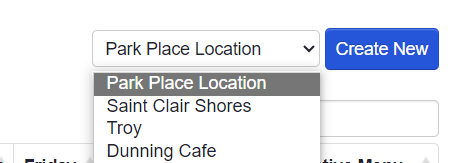

1. From the Cashier Service Menu List, select the location where you would like to create this new menu. This is done with the drop-down menu next to the Create New button. Once selected, click on the Create New button.

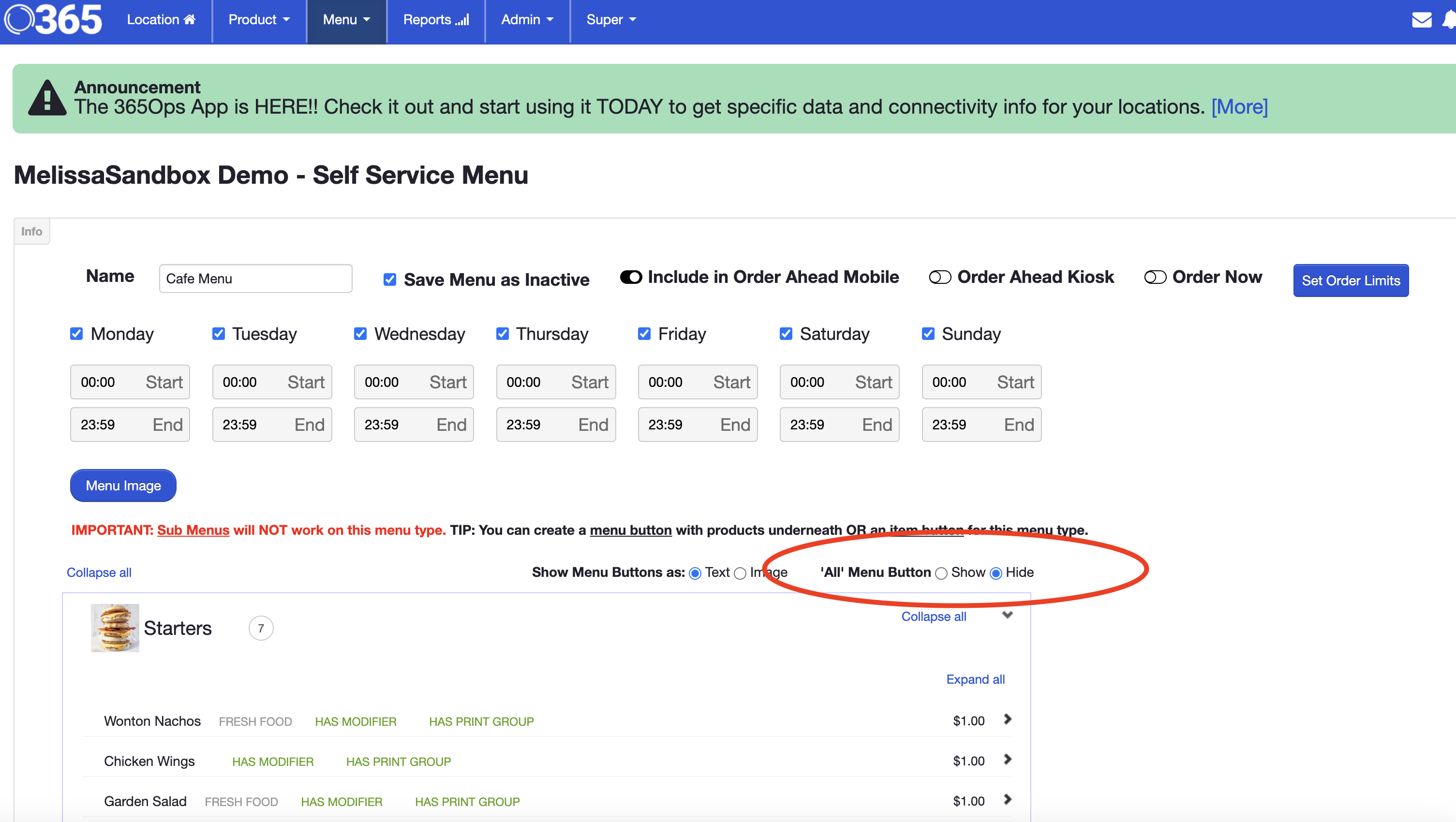

2. Once the new page loads, you can then Name the Menu, as well as select the Days that the menu is active and what time it’s an active menu.


Types of Sub-Menu Sections

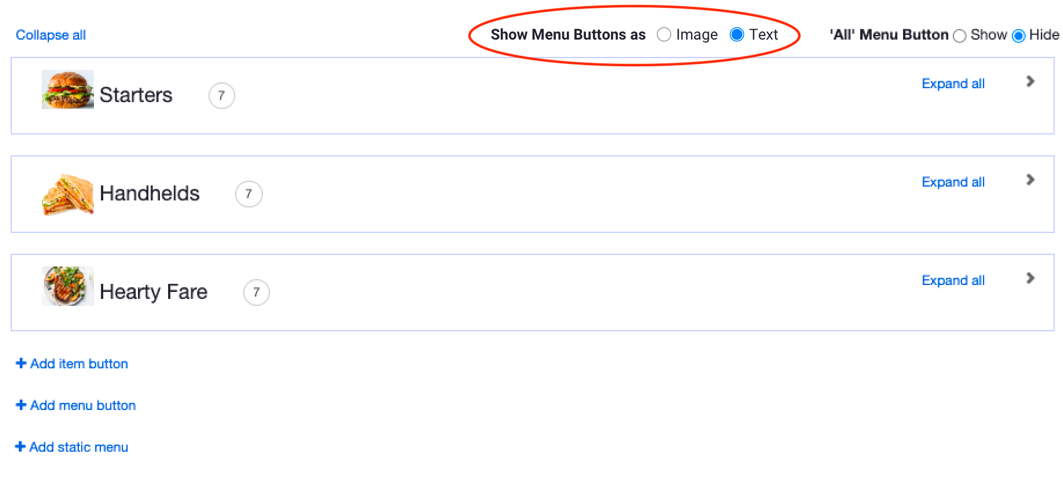

Now that you have added a New Cashier Service Menu using the steps above, you can add sub-menu sections to your menu. These sections include item buttons, menu buttons, an Open Price button, and/or a Static Menu, all of which are described below.
Once you have added subsections to your menu, click Save at the bottom of the page.

Add an Item Button

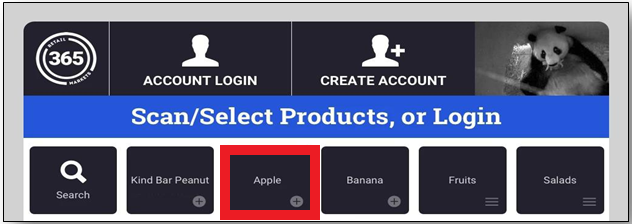

The Add Item button is for creating a button that links to ONE individual item.

1. Click the Add Item button.

2. The product database for the location will now display. Click on the item that you want to turn into a button, then select Add. You may only choose one item at a time.

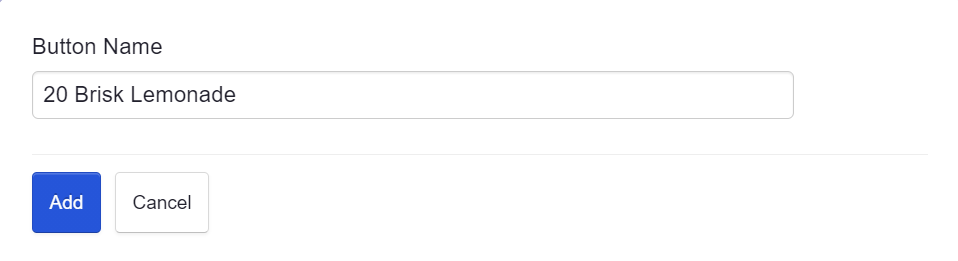

3. If desired, give the button a name. This name will be visible to the customers on the kiosk screen. If you do not add a name here, it will default to the product name.

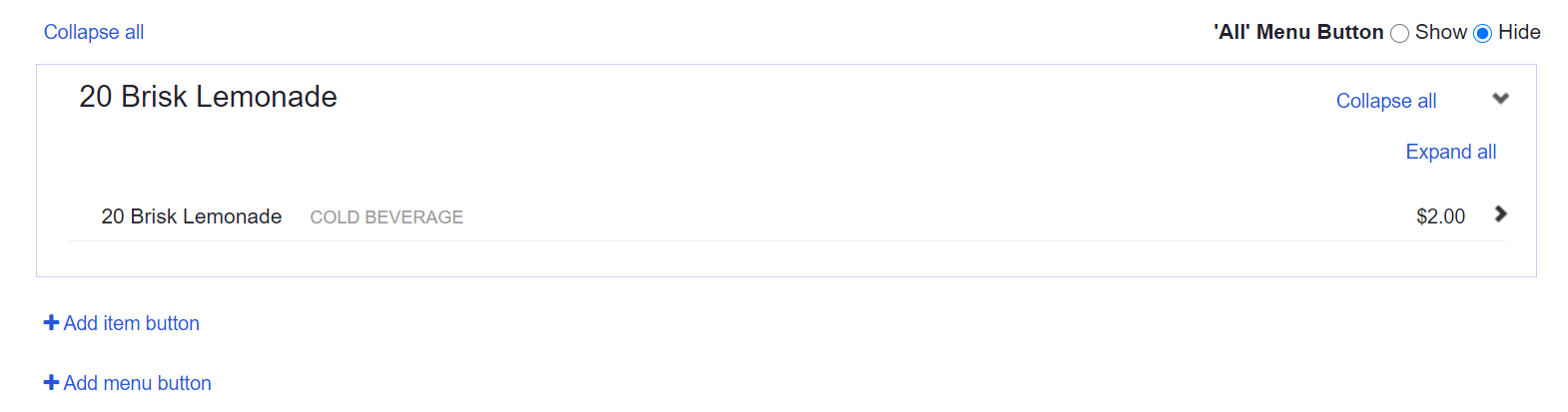

4. Click Add, and your item will now be part of the menu.


5. Continue to add more Item buttons as needed. Click Save to keep the item(s) as part of the menu.

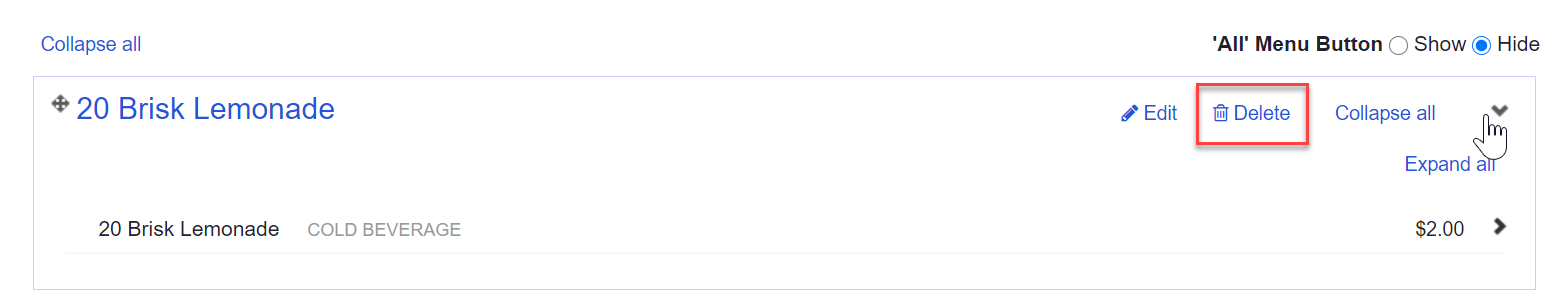

   NOTE: You will have the option to delete an item from the menu only after you save the menu.



Add a Menu Button

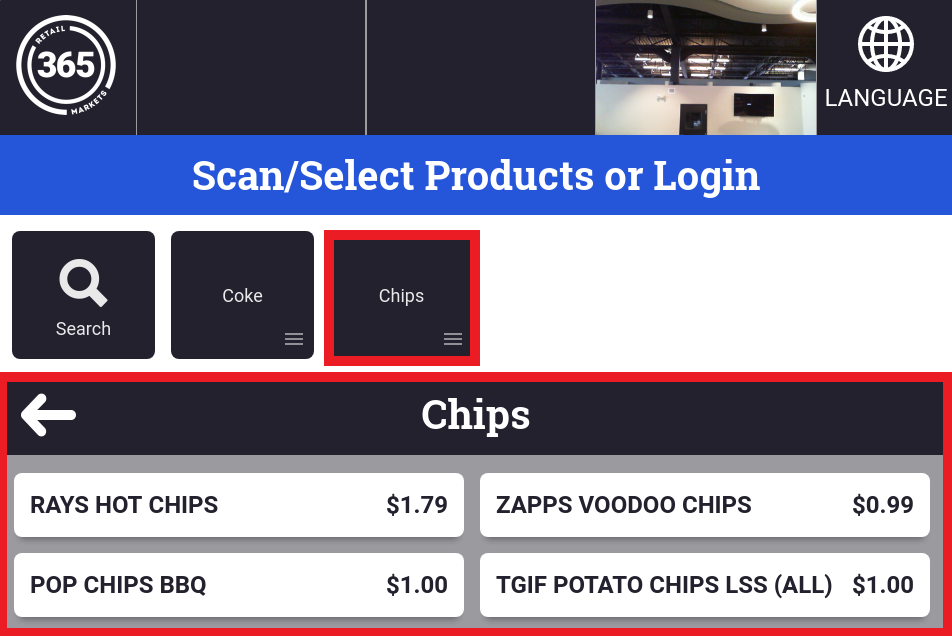

A menu button allows you to have multiple items nested under ONE button. For an example, the button could be called "Fruit", and it would have items like "Banana", "Apple", and "Orange" nested within it.

1. Click the Add Menu button.

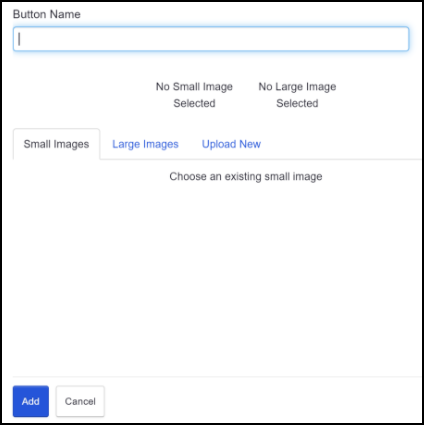

2. Give the button a name. If your device is a ReadyTouch/ Dining device, you may also add an image.


3. Click Add.

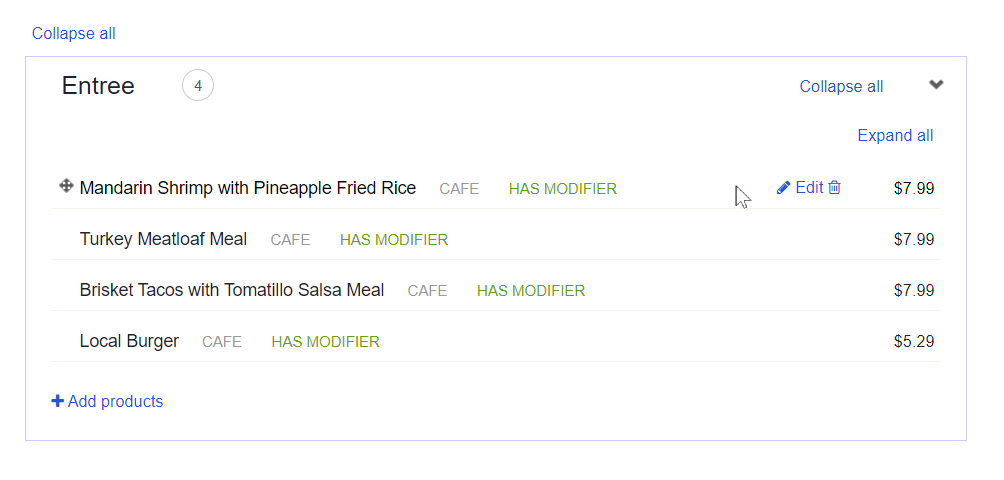

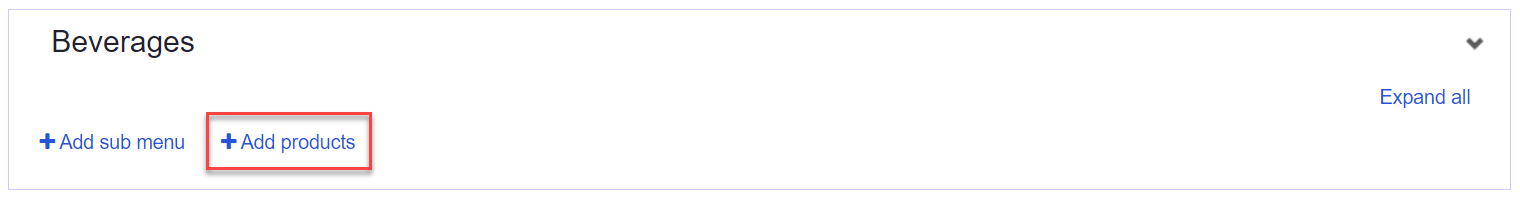

4. The Menu button that you just created will display. From here, select Add Products.

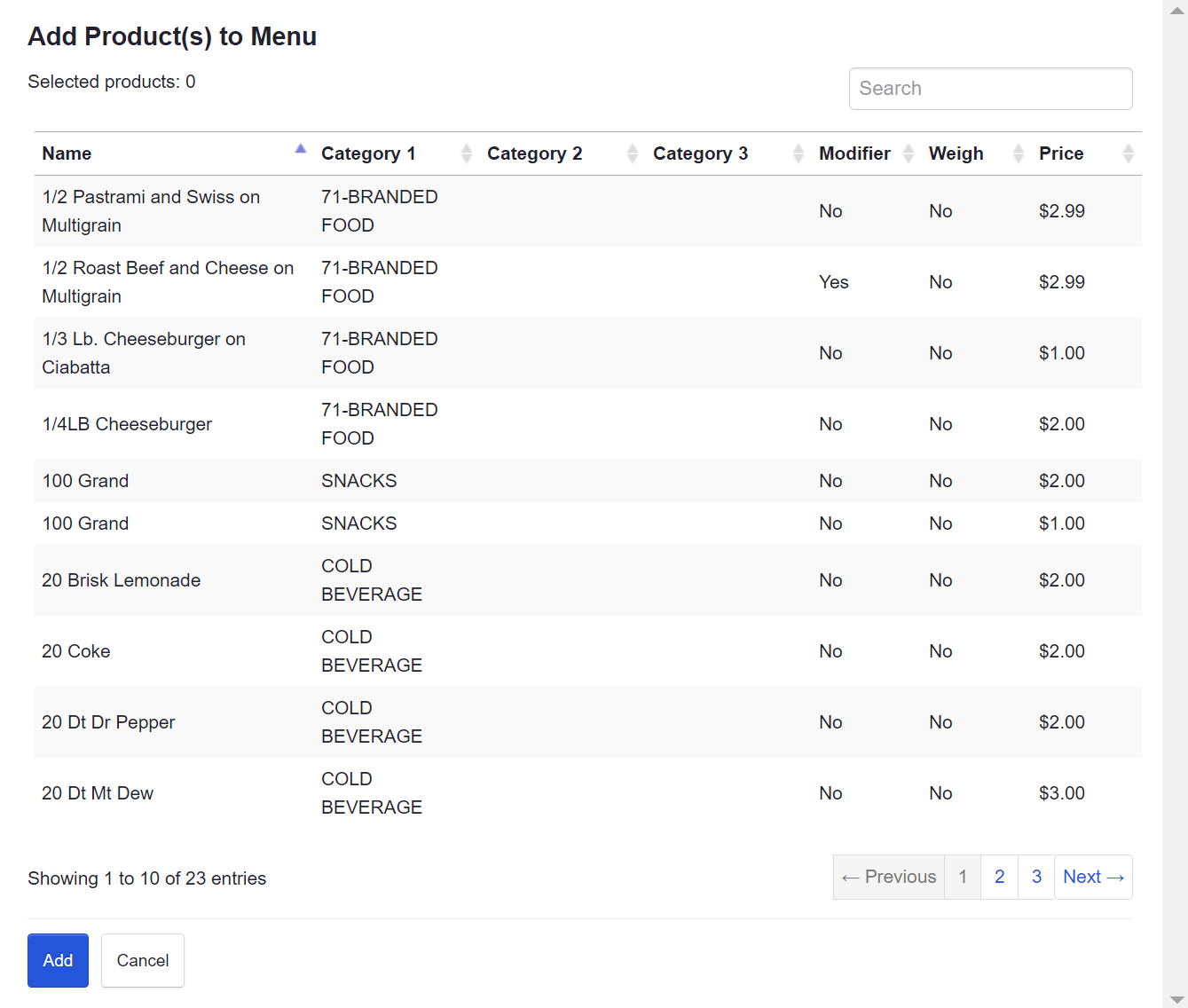

5. The product database for the location you had chosen will display. Click on all the products that you want to link to this one button. Selected products will be highlighted in blue.

   NOTE: There is a limit of 12 products you can add to one Menu button on the V5 MicroMarket, NanoMarket, PicoCooler, PicoCooler Breeze, PicoMarket, and PicoMarket+ but there is no limit to how many products you can add for a ReadyTouch/Dining kiosk.

6. Click Add when you have chosen all of your products, then click Save.



Add Open Price Button

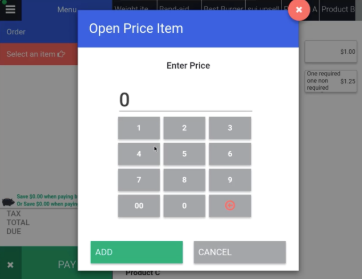

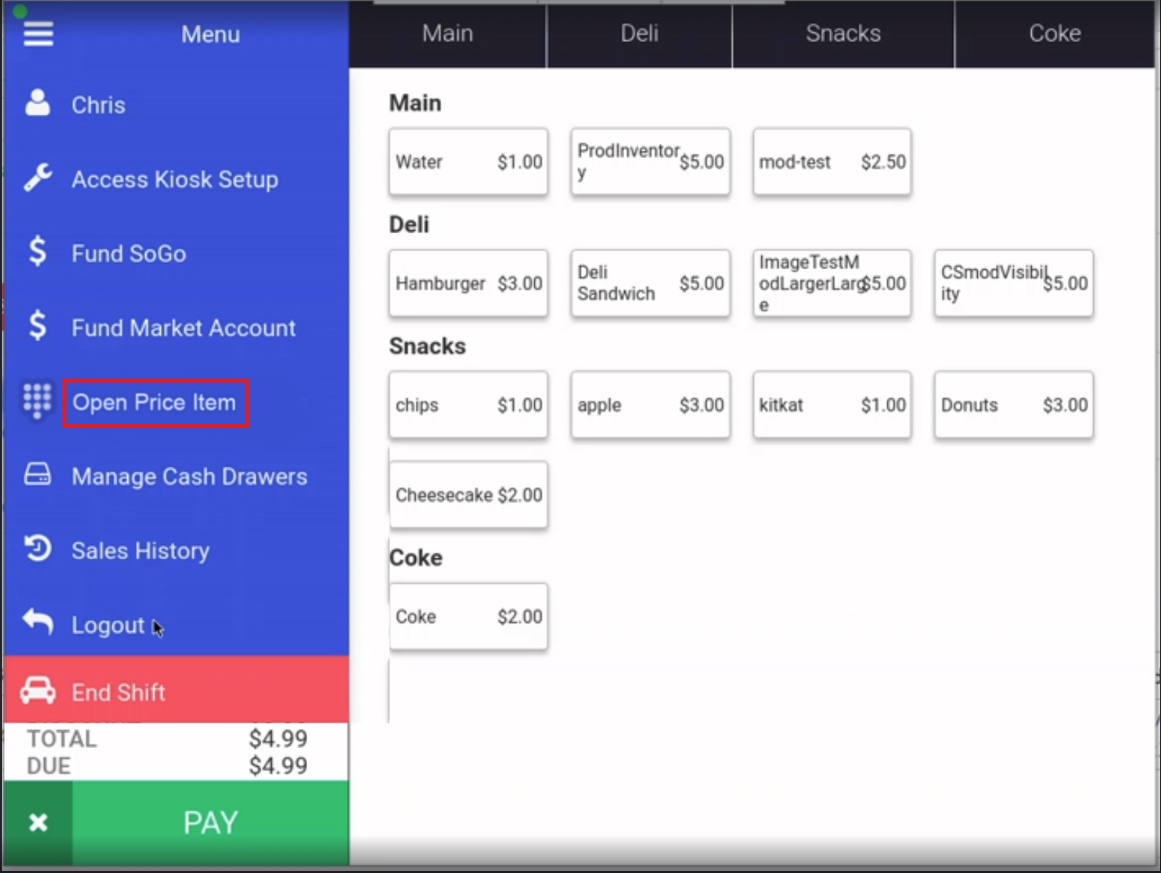

This feature allows a cashier ring up an item and set a price for it while doing so. This is useful for items that are not yet logged into the system, or as a manager override.

1. Select the Add Open Price button

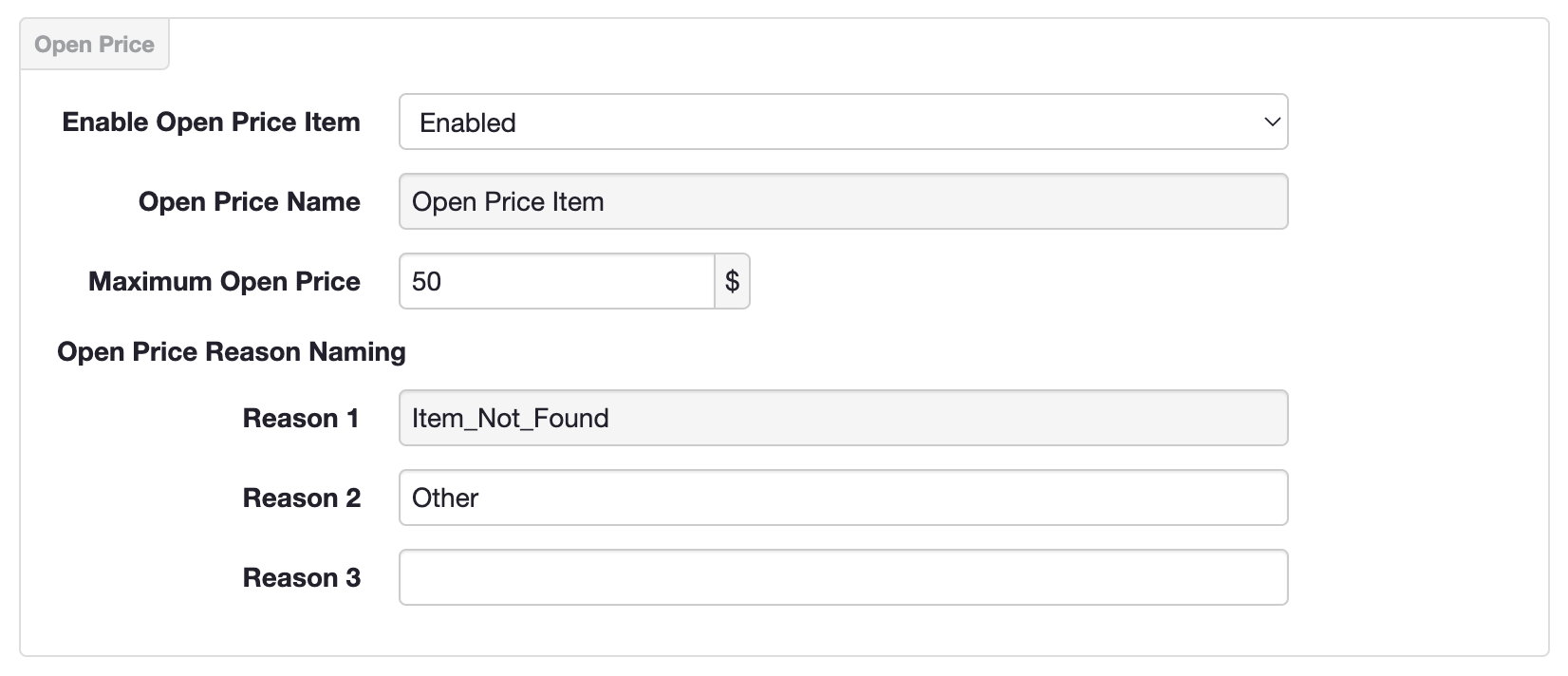

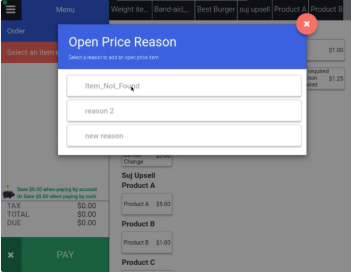

2. You will now be able to change various settings for the Open Price button, such as the maximum price that can be used for the item, as well as the various reasons the item was not available in the system.


3. When you have made your selections, click Add.

Add Static Menu

The Add Static Menu button creates a menu that shows up all day, even outside active hours. Learn more about Static Menus by reading the article ADM - Static Service - Menu Creation.

Add Products to Menu Sections

Then once your menu is saved and set up, you will need to add products to it.

1. Select "Location" in the top left corner, which will display the locations available, and click on the one the menu was created for.


2. You then will need to find the products tab on the page that loaded, should be located next to Sensors and Promotions


3. Let your product list load and search for the products you added to the menu. Find the column that shows Print Group and assign the appropriate print group to the item. This ensures the item is sent to the correct part of the kitchen. Then, click save.

Complete Menu Setup

Go to the Location Summary page and click Update Prices and Full sync for the menu to be applied to the kiosk immediately.
