Avanti - Windows 8.1 to 10 Upgrade for Operators
Updated

Overview

This process may be used to upgrade the kiosk operating system from Windows 8.1 to Windows 10.
If a kiosk has been in service for over 6 years, the PC may the lack compute power to run Windows 10 efficiently and we do NOT recommend this upgrade.

Additionally, some PC models have a higher risk of upgrade failure. If you choose to upgrade these models, we recommend having a spare PC or kiosk on standby should the upgrade fail.
  • Dell Optiplex 780
  • Dell Optiplex 390
  • Dell Optiplex 3010
  • Dell Optiplex 3020
  • Dell Optiplex 3020 micro form factor
  • Dell Optiplex 3040 micro form factor
  • Dell Optiplex 3050 micro form factor
  • Asus (all models)

Preparation

Materials Checklist

  1. Configured BlueLTSC2021 USB drive
  2. USB Keyboard
  3. USB Mouse



Upgrading the PC

Backup Current Data

  1. Connect the USB drive, keyboard, and mouse to the kiosk PC
  2. Use the kiosk app admin menu to go to the desktop, or use alt+F4 to close the kiosk app.

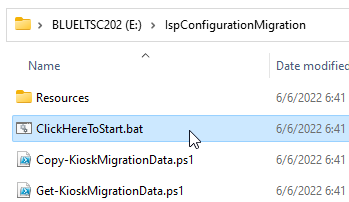

  3. Open the file explorer and navigate to the USB. Open the folder IspConfigurationMigration.
  4. Double-click on the file named ClickHereToStart

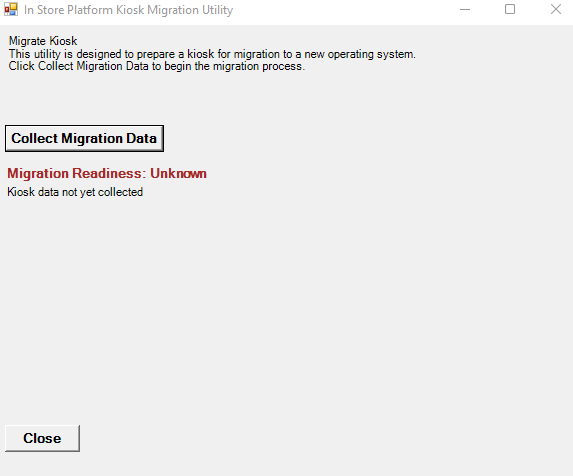

  5. Select Collect Kiosk Data to back up the kiosk data
  6. Some details about the kiosk will be displayed along with a success message. If the details do not match or there is an error, do NOT proceed.
  7. If the details are correct, select Close and proceed to update the PC.

Update the PC

  1. Reboot the PC and tap the F12 key repeatedly as it starts up to access the boot menu. A different key combination could be required for PCs not manufactured by Dell.
  2. Confirm that boot mode is set to UEFI:

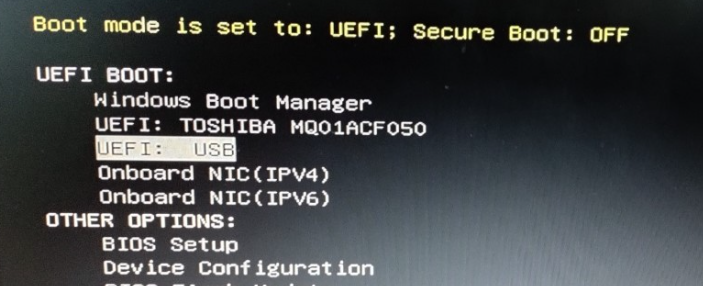

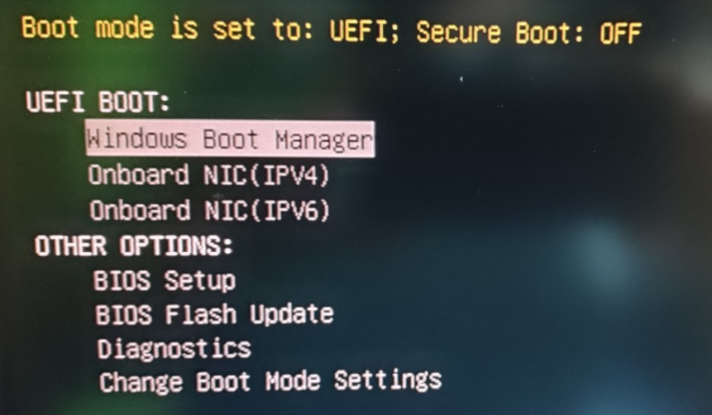

    • Here, the boot mode is set correctly:

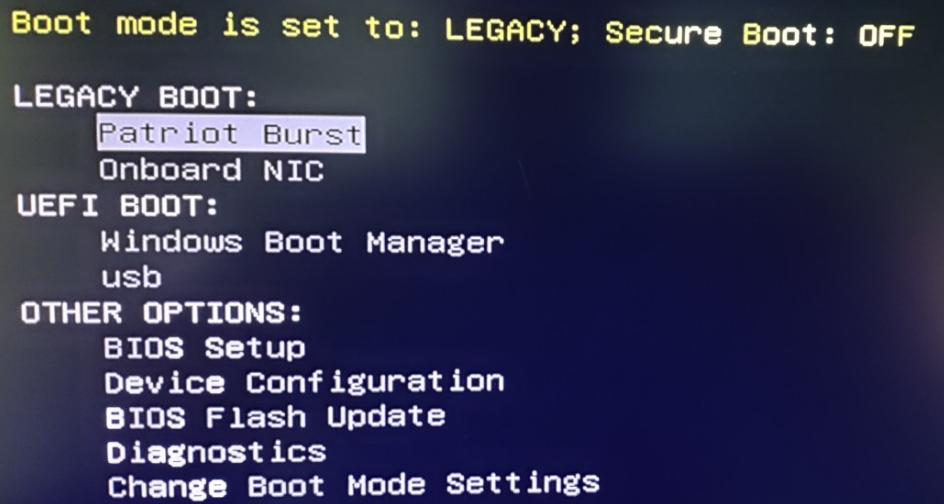

    • In this picture, the boot mode is not set correctly. Choose Bios Setup and set the boot mode to UEFI prior to proceeding. For more information, see the troubleshooting steps for No Boot Device Found below.
  3. Under the UEFI Boot section, there should be a USB drive detected. Use the keyboard to select this option and press enter to continue. If the drive is not detected or is shown under Legacy boot options, the BIOS setting will need to be changed.
  4. The Windows setup process will begin. This will take between 5 and 20 minutes depending on what USB drive, PC specifications, and USB port are being used.
  5. After the initial setup is completed, the desktop will load. An automatic configuration script will run, as shown below.

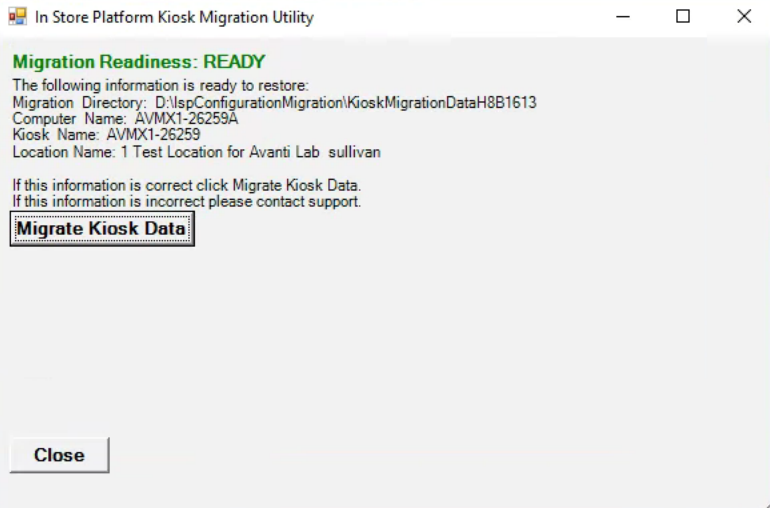

  6. The script will attempt to find the backed-up kiosk data and prompt for confirmation that the data is correct. Select Migrate Kiosk Data if it is accurate.

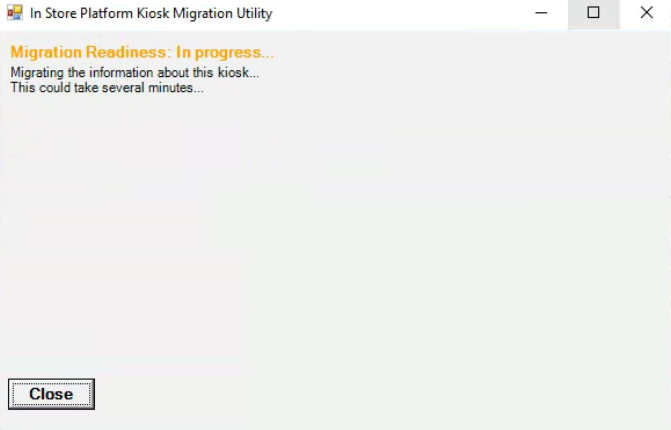

  7. It may take several minutes to completely migrate the data

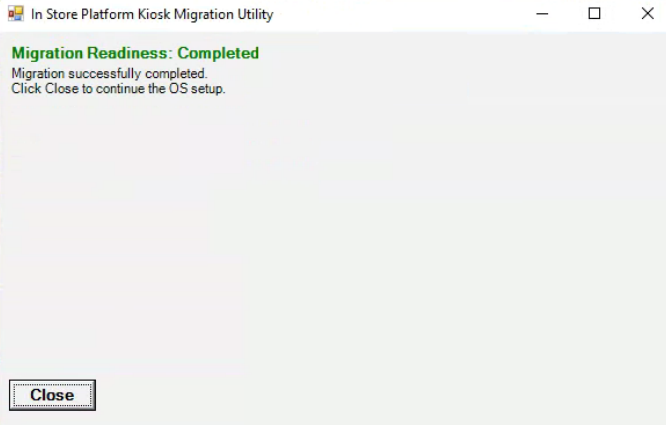

  8. Once the complete message is displayed, select close.

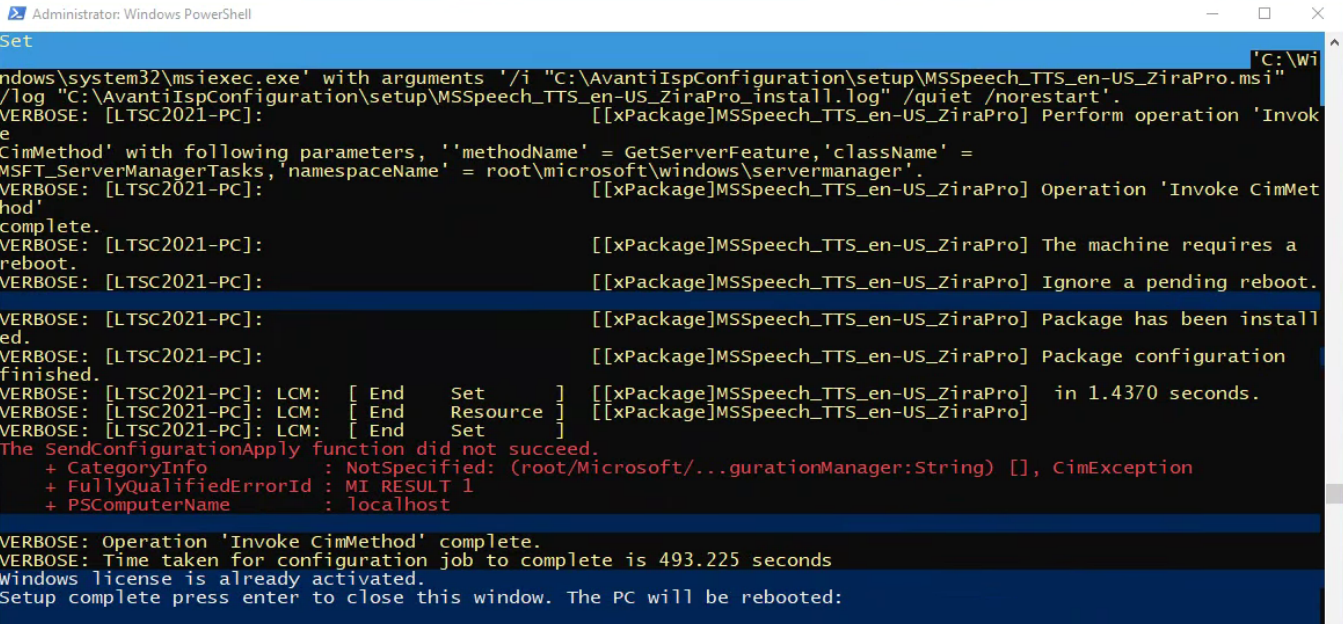

  9. Click in the last remaining window and press enter on the keyboard.
  10. The kiosk will now restart. After the kiosk restarts, it will log in as KioskUser and start the market application.

Quality Assurance Steps

  1. Test the screen calibration. If the pointer does not follow where the screen is touched, it should be recalibrated. Use the appropriate shortcut to launch the calibration app for the touch screen.

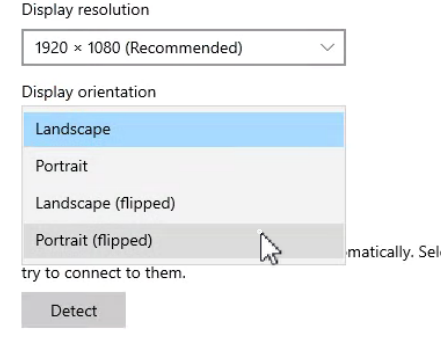

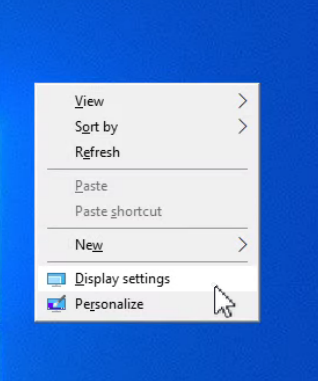

  2. Confirm the screen is oriented correctly. If it is sideways, right-click anywhere on the desktop and choose Display Settings, then set the display orientation to Portrait or Portrait (flipped) as needed

  3. Confirm the Market App starts up after the first reboot. It might take several minutes to launch, but it will open without any interaction. If the app does not open, see the troubleshooting steps for The kiosk app did not launch after the first reboot.
  4. Scan a product, and purchase the product with a credit card.
  5. Reload a market card with cash.



Finalize Update

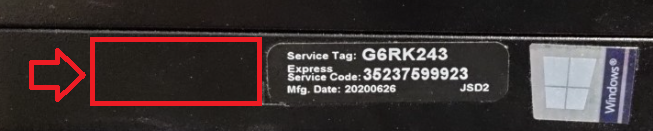

After the OS is updated, the new COA (certificate of authenticity) sticker needs to be affixed to an accessible portion of the PC chassis.  The recommended placement is next to the Dell service tag or another manufacturer serial number if possible




Troubleshooting

BIOS Settings

Older PCs may be set to use Legacy Boot rather than modern UEFI.  It may be necessary to enable UEFI prior to booting off of the USB.



No Boot Device Found

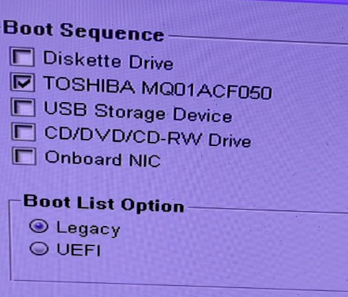

After booting off of the USB drive and installing windows, the second boot gives the following error: No Boot Device Found. Press any key to reboot the machine.

The BIOS settings allowed booting off of the USB, but the boot list options are only set to Legacy. To fix the issue, change the boot list option to UEFI.




Migration Utility Window Doesn’t Open

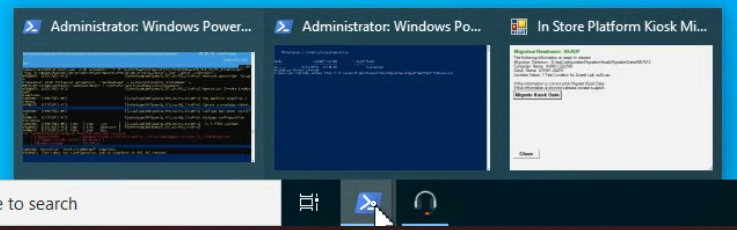

The migration utility window might have lost focus or been hidden behind another window. Click the blue Powershell icon in the taskbar to find it.




The kiosk app did not launch after the first reboot

Manually open the kiosk application by double-clicking on the Avanti icon on the desktop. After confirming that the market app opens, reboot the kiosk. The market app will load on the second login of the KioskUser.



I receive the error: "Windows could not configure the space needed for installation"

This error occurs because the USB drive no longer has enough space to collect and store the migration data for the current kiosk. The most like cause of this is that the USB drive has already been used for other kiosks and the migration files for the previous kiosks must be removed to free up disk space on the USB drive.

To accomplish this, please follow these steps:

  1. In File Explorer, Open the main directory for the USB Drive (Most likely D:\ or E:\)
  2. Navigate to the Migration Data folders for the various kiosks (Each kiosk should have its own folder with the PC Service Tag)
  3. Delete the migration data folders for any kiosks that have already been upgraded
    1. If a kiosk has not had this migration data written back after upgrade, do not delete the folder
  4. Once The additional folders have been removed and free space has been reallocated to the USB drive, Re-run the kiosk migration step for the new kiosk
