Purpose

This article outlines all the networking requirements that are needed to accommodate a March Networks NVR system.

Please contact 365 Support at 888-365-6282 or support@365smartshop.com if you have any questions related to this document.



Network Requirements

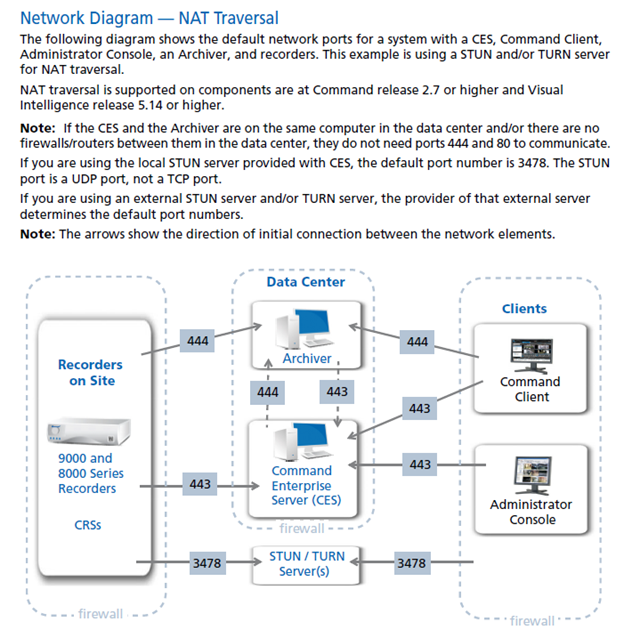

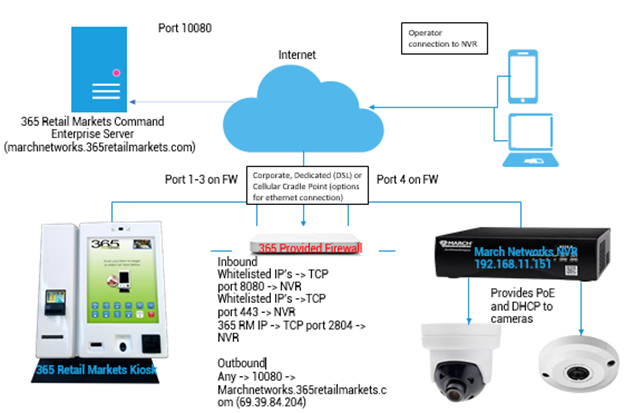

March Networks - Network Diagram




Description Port
PuTTY NVR access for remote support 22
Required for NAT traversal ALL outbound UDP traffic
Traffic Communication between router & CES server Outbound 444, 443



Inbound

  • Command Client (Whitelisted IP’s -> 8080+443 -> IP of 365 Retail Markets Firewall)
  • Admin Console (67.214.113.82, 69.39.84.205 -> 2804 -> IP of 365 Retail Markets Firewall)



Outbound

  • Command Enterprise Server (Any -> 10080 -> 365retailmarkets.com or 69.39.84.204)



365 Retail Markets Inbound Firewall Rules

  • Whitelisted IP’s – 8080 -> 168.11.151
  • Whitelisted IP’s – 443 -> 168.11.151
  • 214.113.82, 69.39.84.205 – 2804 -> 192.168.11.151



Change Log
Date Author Notes
8-26-2021 MS Created article & verified accuracy.
