Purpose

This article outlines all of the networking requirements that are needed to accommodate a REVO DVR system.

Please contact 365 Support at 888-365-6282 or support@365smartshop.com if you have any questions related to this document.

To view more network requirements for our various products, click here.



Network Requirements

REVO DVR systems require port forwarding for remote viewing of the camera system. All communication is routed directly to the REVO camera system from our router. The cameras can be viewed from the revodvr.com website with the network name setup on the DVR system.

For V5 kiosks running a Meraki Z1 or Z3 router, we utilize split-tunneling to force DVR traffic over the internet instead of through our hardware VPN. The REVO DVR should always be plugged into the highest numbered LAN port on the Meraki

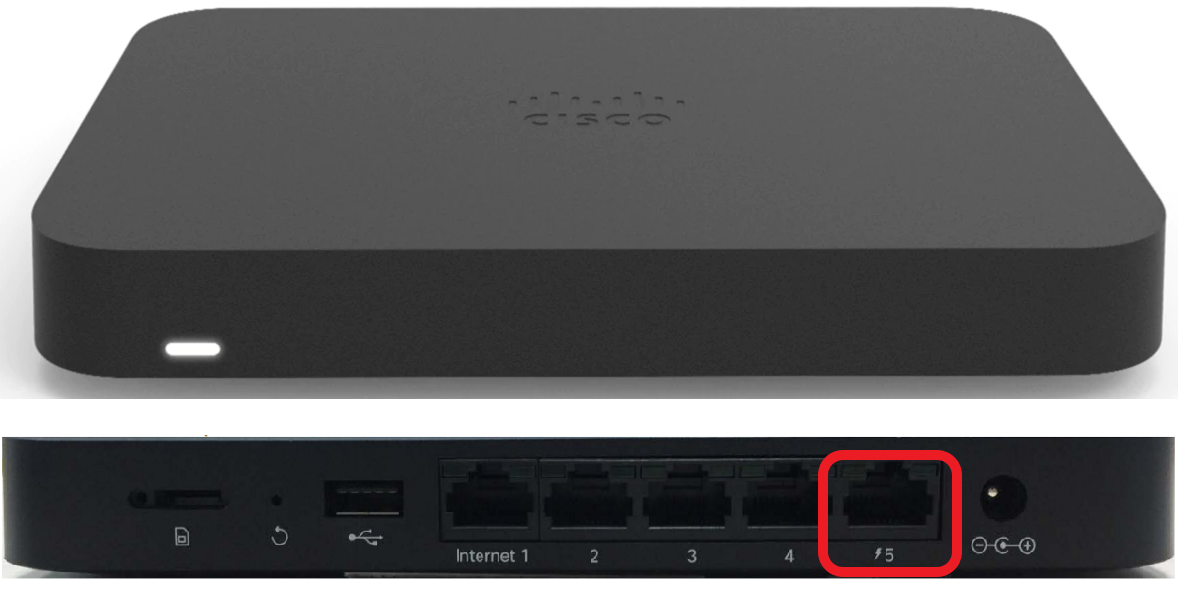

  • On a Meraki Z3 router, the split-tunnel is on LAN port 5
  • On a Meraki Z1 router, the split-tunnel is on LAN port 4:
Service Description FQDN Ports
REVO DVR Remote Viewing (Inbound) Inbound connection mapped to the IP address of the router.

 TCP: 8016, 8116, 8200, 10019, 12088

Outbound: 10088



Change Log

Date Author Notes
8-26-2021 MS Created article & verified accuracy.
