Overview

This article instructs the operator on installing the PicoCooler device on a CoolBlu cooler.

Mounting Kit

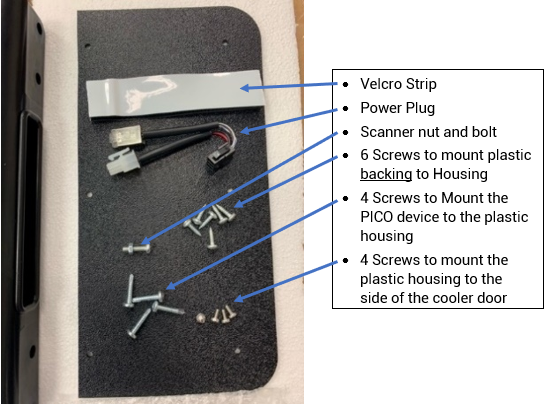

A mounting kit (kit part SAI710) is needed to mount the Pico to the cooler. This kit includes:

• Plastic Housing
• Velcro Strip
• Power Plug
• Scanner nut and bolt
• 6 Screws to mount plastic backing to Housing
• 4 Screws to Mount the PICO device to the plastic housing
• 4 Screws to mount the plastic housing to the side of the cooler door



Process

1. Power down the cooler before installing the hardware.

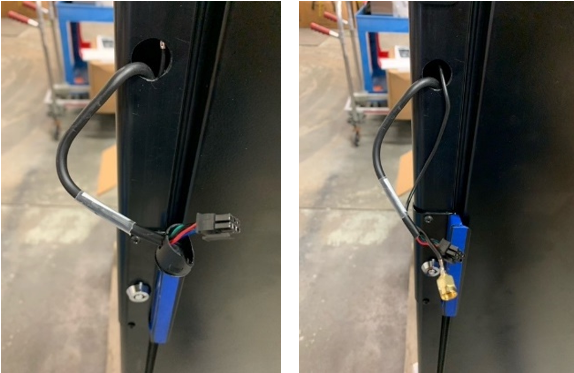

   1. Remove the plug from the right side of the glass door next to the handle.
   2. When the plug is removed, you will see the two wires. The first is for power and the second is for the antenna.

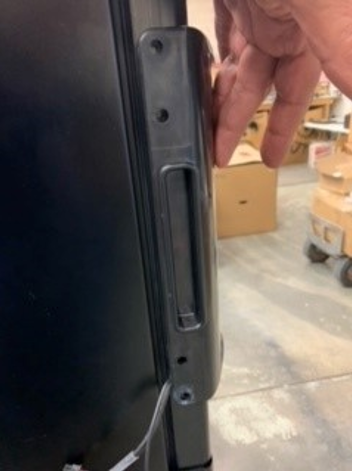

2. Take the plastic housing and lay it over the right side of the door, over the handle - fitting into the existing door handle. Make sure the wiring coming from the door is slotted into the cutout space on the bottom of the plastic housing.


3. Use a 1/8” drill bit to make pilot holes for the four tapping screws provided. Be careful not to drill too deep as to damage the wiring. Using the plastic housing as a template will allow you to match up the holes that need to be drilled.


4. If you are using a cellular (SIM) connection, be sure to install the SIM card before installing the Pico. The SIM should go into SIM slot 1 on the back of the Pico device.

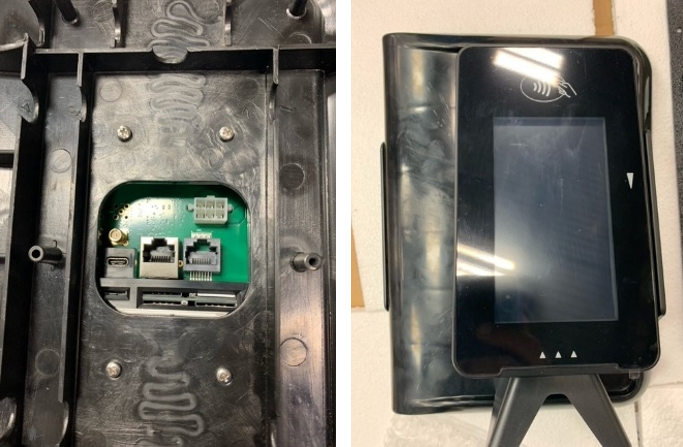

5. Take the plastic housing and mount the Pico device with the four supplied screws and the scanner housing with supplied nut and bolt.

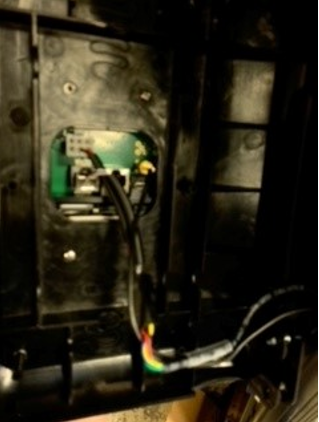

6. Connect the supplied power harness and the antenna to the Pico device.

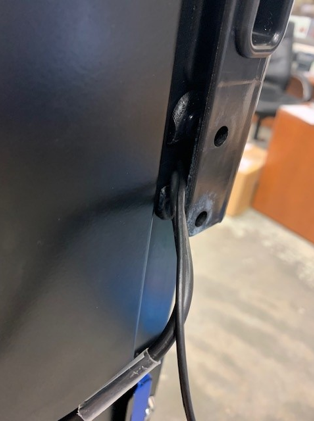

7. Connect the harness to the cooler and route the wires down towards the handle in the cutout channels.


8. Place the cover on the back, making sure not to pinch the wires.

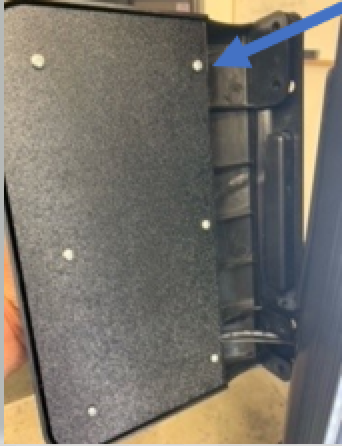

9. Install the six supplied screws. The wires should run between the bottom two mounting holes in the cutout grove of the plastic housing.

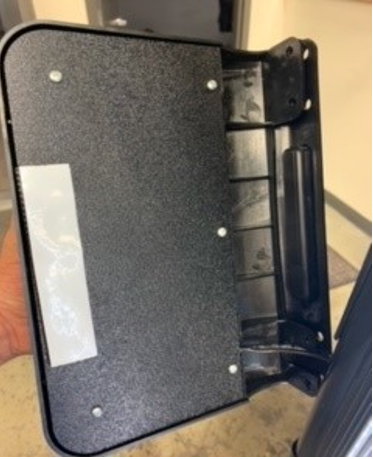

10.  Attach the Velcro to the outer edge on the backside of the plastic housing.


11. Install the Pico housing onto the cooler door using the supplied four self-tapping screws.

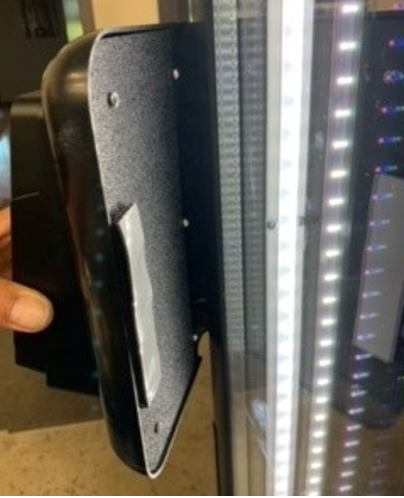

    NOTE: Leave somewhat loose so you can pull the unit away from the glass and remove the tape from the Velcro strip.



12. Peel off the tape and press the housing firmly to the glass.


13. Tighten the four screws on the side of the glass door snugly. Be careful not to overtighten.

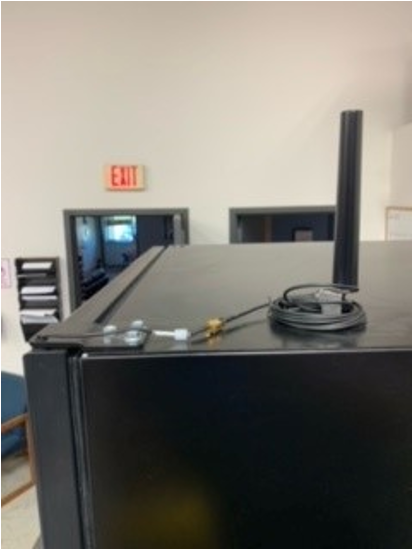

14. Install the antenna connection to the top of the cooler and place the antenna.


15. The installation is complete. Power up the cooler and Pico device.
