Purpose

This article outlines the process for connecting the Pico S1U365 and the included adapter to a PicoCooler Vision or other Vision Smart Store devices. This process applies to both Due North (Minus Forty) and Imbera coolers as well.


Process

  1. Ensure that the Pico on hand to install is the Pico S1U365.

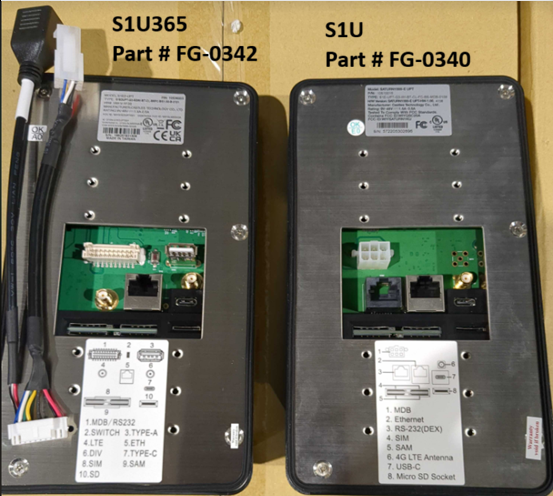

    Pico S1U365 - Comparison to S1U
  2. Connect the power end of the adapter to the MDB port on the Pico S1U365.

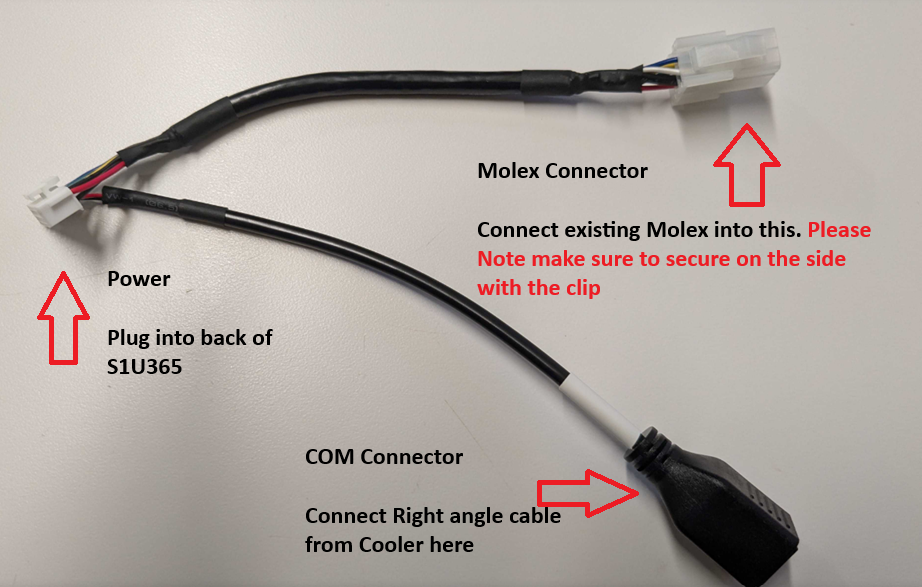

    Pico S1U365 - Cable Adapter for Vision Smart Stores
  3. Connect the white 6 pin Molex from the cooler (with the clip up) to the respective end of the adapter.

    PicoCooler Vision - Molex to Pico S1U365 adapter
  4. Connect the COM/RS232 RJ45 cable into the respective end of the adapter.

    PicoCooler Vision - COM Cable to Pico S1U365 adapter
  5. Connect the remaining RJ45 Ethernet cable into the silver shielded port on the Pico S1U365.

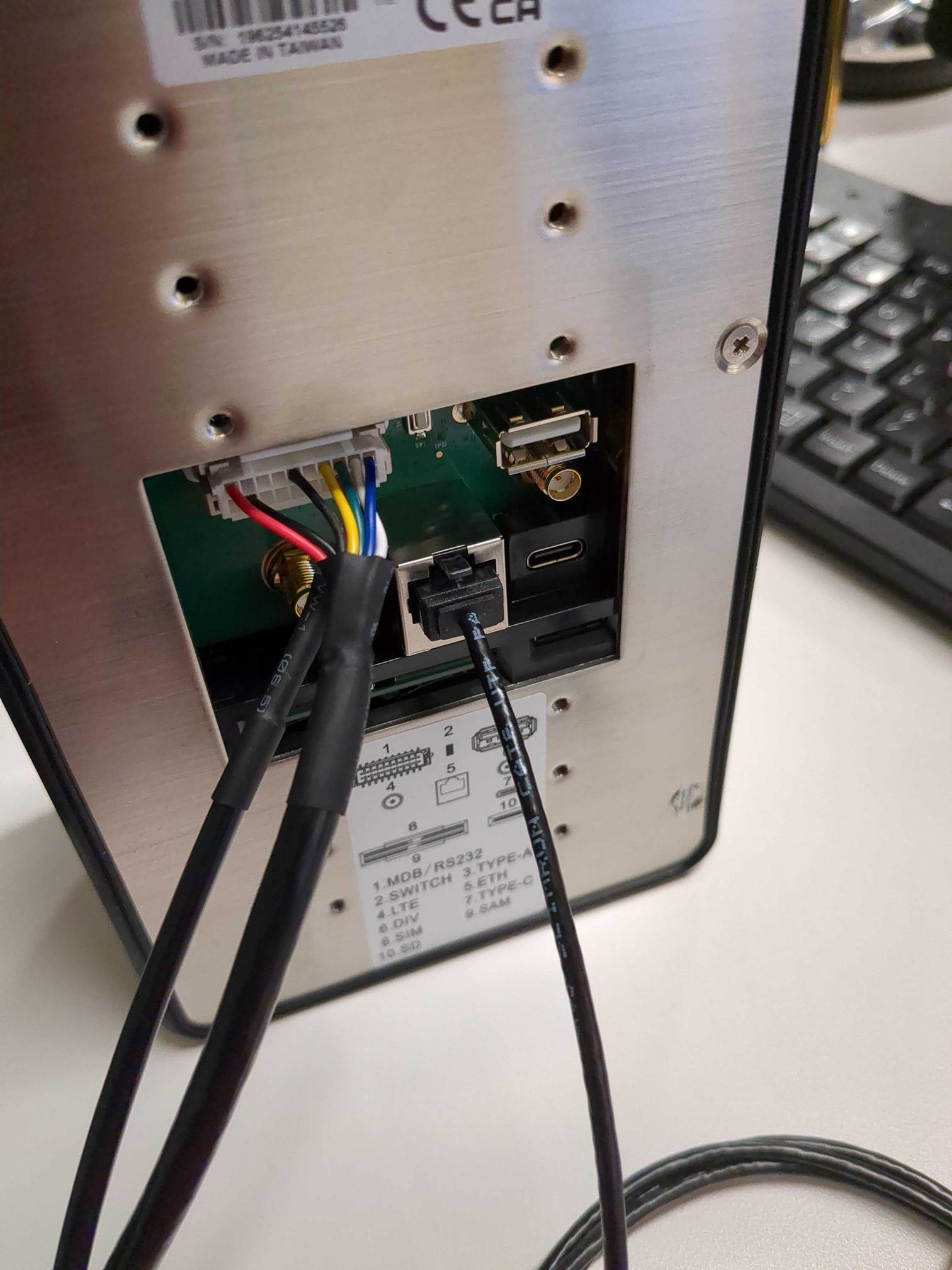

    Pico S1U365 - Adapter and Cables Connected
  6. The PicoS1U365 can now be attached to the PicoCooler Vision or other Vision Smart Store device.
