Purpose

This article outlines the process to follow when replacing the camera or camera cables inside of a 4 camera PicoCooler Vision device.


Process

Replacing the Cameras

  1. Put the Cooler into Restock Mode on the Pico.

  2. Remove the two screws holding the bracket in place.

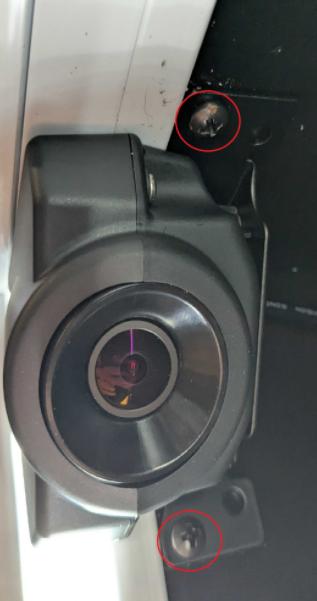

    PicoCooler Vision - Camera Bracket Screw Locations
  3. Remove the the silver screws from the plastic case surrounding the camera. Do not remove the screws from the metal bracket itself.

    PicoCooler Vision - Camera Body Screw Locations
  4. Slide the top cover off but leave it attached to the cable.

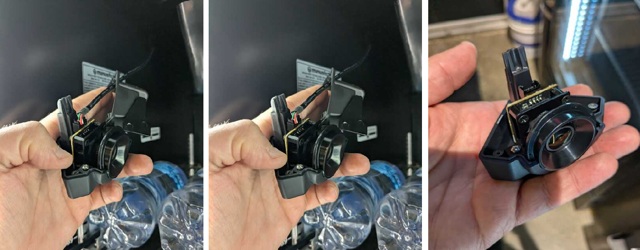

    PicoCooler Vision - Remove Plastic Cover on Camera
  5. Unclip the cable and wiggle it left and right until it comes off.

  6. Remove the two screws holding the camera bracket onto the lower cover. Ensure to check if the current cable is attached properly and retest to see if the original camera will work.

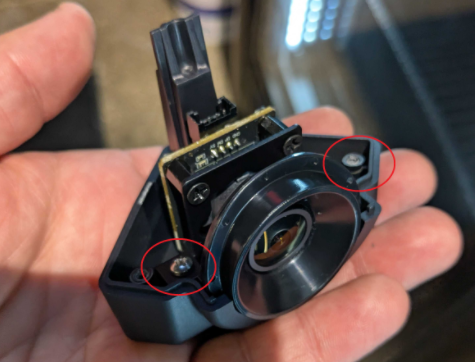

    PicoCooler Vision - Camera Body Bracket Screw Locations
  7. Remove the four screws holding the camera on the metal bracket.

    PicoCooler Vision - Final Screw Locations
  8. Place that bracket on the new camera with connection side up.

  9. Follow instructions in reverse order to reinstall bracket and screws.


Replacing the Cable

If the camera cable needs to be replaced, the DueNorth (Minus Forty) cabinet has the cables clipped to the side of the cabinet. This makes removing the cable from the cooler more efficient.

PicoCooler Vision - Camera Cable Clips

Remove the HVAC putty from the inside and back of the cabinet to remove the cable fully.

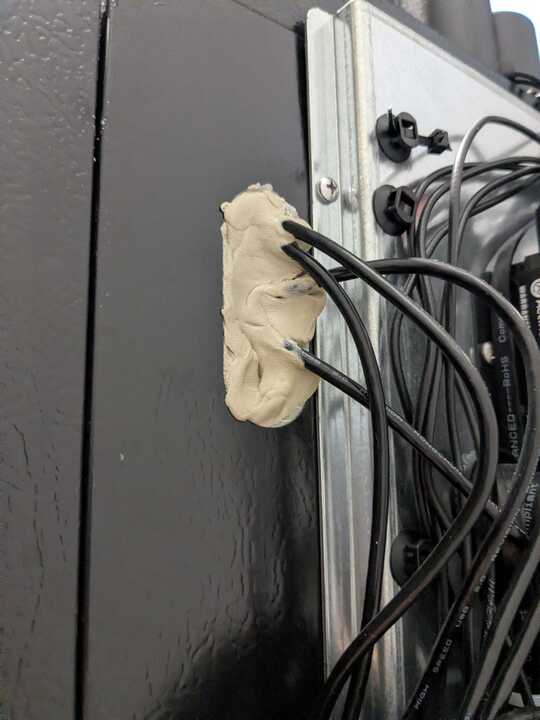

PicoCooler Vision - Camera Cable HVAC Putty

Ensure to use new HVAC putty when replacing the cable.
