Purpose
This article outlines the process for imaging the 365 Dining Handheld Tablet.
- Please note: this process will require a USB Hub, a USB Keyboard, and a USB Stick Drive with the 365 Dining Handheld Imaging File.
Hardware Overview

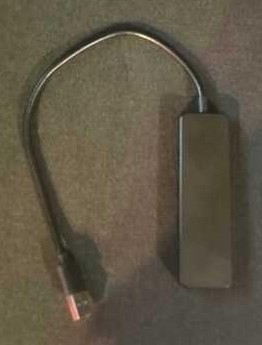

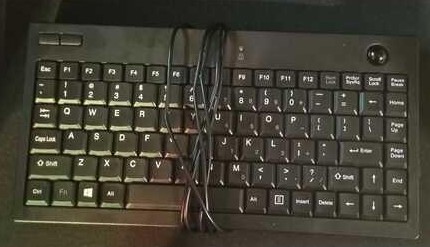

Confirm access to the pictured hardware needed for this process.
Process
- Locate the port cover (on the side of the Tablet) to plug in the USB Hub and other USB devices.
- Connect the USB Keyboard, Mouse, and Stick Drive. Hold the Power Button on the Tablet until you feel a vibration (the Tablet powering on).
- On the Keyboard, press the del or F11 button when the 'Partner Tech' logo screen loads to boot the Tablet into BIOS.
- On the Keyboard, press the del or F11 button when the 'Partner Tech' logo screen loads to boot the Tablet into BIOS.

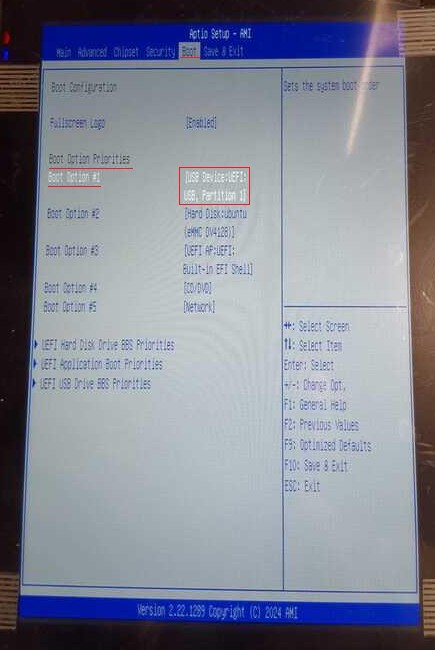

- Once the BIOS menu loads, use the Tab key on your keyboard to navigate over to the 'Boot' menu section. Under 'Boot Option Priorities' make sure 'Boot Option #1' is set to the USB Device UEFI USB, Partition 1.
- If not, click and change this to the USB Device UEFI USB, Partition 1.
- Once you have confirmed the correct Boot Option, use the Tab button on the keyboard to navigate to 'Save and Exit'. Alternatively, press F10 to save and exit.
- If not, click and change this to the USB Device UEFI USB, Partition 1.

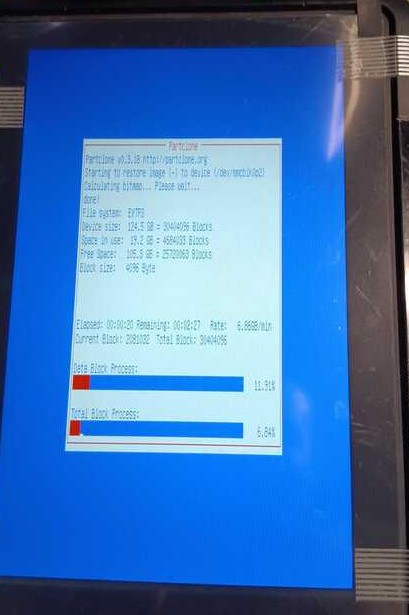

- The Tablet will boot to the install process and you may press enter or wait for the process to auto start.
- The install process is created with no need for user interaction (past this point) and will auto power off once finished so you can image multiple tablets or other devices.
- The install process is created with no need for user interaction (past this point) and will auto power off once finished so you can image multiple tablets or other devices.
- Once done remove the USB Hub and power the Tablet back up to confirm successful imaging.
