Purpose

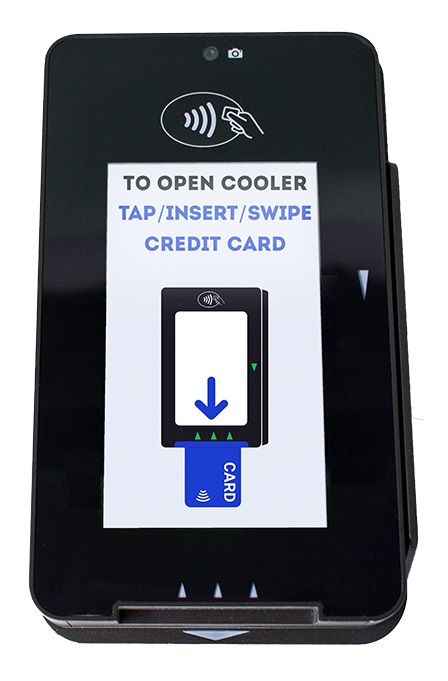

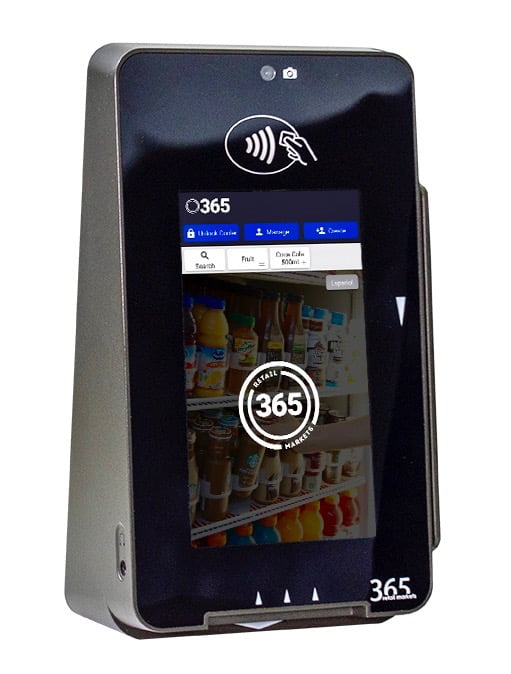

This article provides the dimensions and specifications for the PicoCooler as well as supported cooler models.
This article also contains spec sheets for the supported Due North (Minus Forty) models.

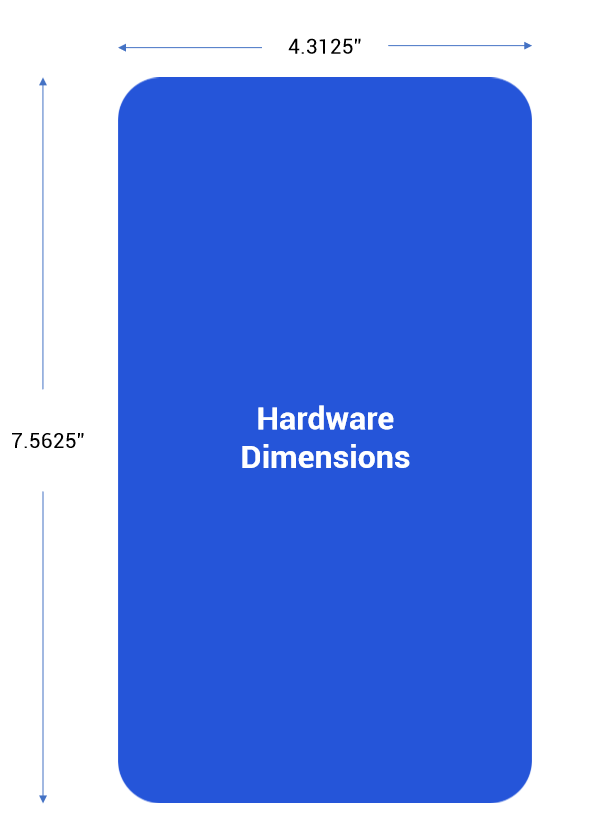

Dimensions
Length: 195mm
Width: 109mm
Height: 65mm
Specifications
Standards
PIN Pad: PCI PTS v5.x certified (SRED included)
Chip Card: EMV Contact L1 v4.3 certified
Contactless Card: EMV Contactless L1 v2.6 certified
MCU/Memory
MCU: ARM A7 Quad-Core 1.1GHz Processor 32-bit 133MHz Secure Processor
Memory: 8GB Flash / 1GB RAM
MicroSD Socket: 1
OS: Android v6.x
Display: 5” TFT Color Display (1280x720 Pixels), Capacitive Touch screen, 450 Nits Minimum Brightness
Keypad: Virtual Keypad (Support PIN on Touch)
Wire
Ethernet: RJ45 Connector
USB OTG x 1: USB-C Connector
RS232 x 1: RJ45 Connector for DEX cable (Audio Jack Connector)
Wireless
4G LTE: Band 1,3,8,18,19,26 (Meet AT&T standard)
Wi-Fi: 802.11 a/b/g/n
Bluetooth: Bluetooth 3.0
Audio: Speaker, 4-pole audio jack, and Microphone
Camera: 5 Megapixel (Front)
Professional Barcode Reader: 300K pixel FF camera lens. Supports a red light beam and projects a red aiming spot
Power: NAMA Compliance 9~60V wider range power input
Environmental Specifications
Operating: 0 to 50 ℃
Storage: -20 to 70 ℃
Humidity: 5 to 90% (Non-Condensing)
Supported Cooler Models
Due North (Minus Forty) Cooler Models
22-USGR-F2-BL (Refrigerator)
22-USGF-F2-BL (Freezer)
22-USGR-F2-BL-FS (Refrigerator with upgraded faux stainless steel grill)
22-USGF-F2-BL-FS (Freezer with upgraded faux stainless steel grill)
CoolBlu Cooler Models
ACB305HDRP (Refrigerator)
ACB305FDP (Refrigerator)
ACB305FDBP (Refrigerator)
ACB305HDRBP (Refrigerator)
True Cooler Models
TGO-30-POP01~TSL01 (Refrigerator)
HABCO Cooler Models
ESM28HCTD-HL-BK (Refrigerator)
