Pico Driver Menu
Updated
Print

Table of Contents



Purpose

The purpose of this article is to show all functionality of the Exit/Driver Menu on the PicoCooler device.



Functionality

Restart Barcode Scanner

The barcode scanner may need to be restarted on-site if no red light is emitting from it. The button is available PRIOR to entering a Driver PIN so anyone on-site can do this.

  1. Tap on the upper left-hand corner (where the logo is) of the screen five times.

  2. You will then be presented with a field requesting a PIN. Below that, click the Restart Barcode Scanner button. (Shining a flashlight into the scanner will NOT wake it up.)

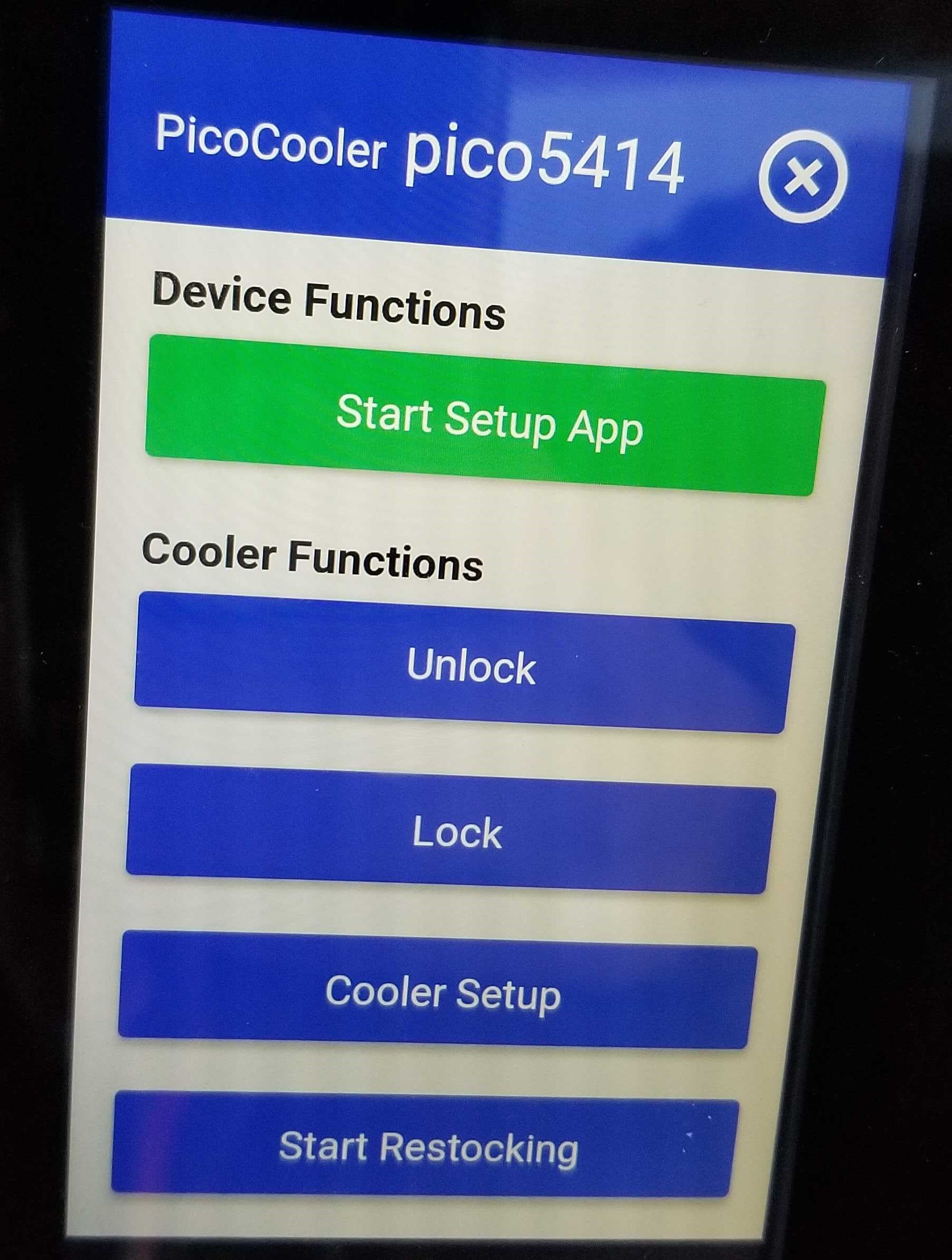

    Image_from_iOS.jpg     20200221_130837.jpg



Testing & Tools

  1. Tap on the upper left-hand corner of the screen five times.

  2. You will then be presented with a field requesting a PIN. Enter your Driver PIN.

  3. Click Start Setup App button.

  4. Click Testing & Tools button at the top of the screen.

  5. This will function the same as it does on the Nano.

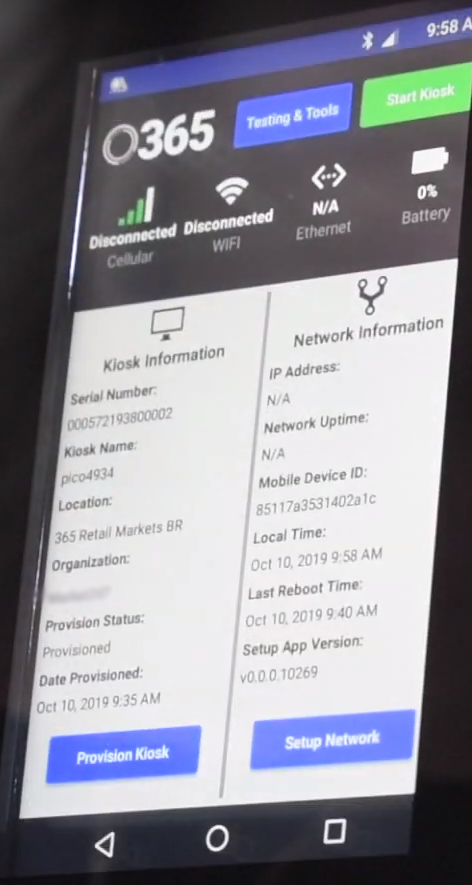

    20200221_130117.jpg      testingtools.PNG



Lock and Unlock the Cooler

LOCKED PICO

The Exit/Driver Menu gives you the ability to lock or unlock the cooler. However, these will not work when the cooler is over the designated temperature. Please see the PicoCooler Health Safety Timer Lockout & Override article if the lockout is caused by the cooler being over temp.



UNLOCKED PICO

The unlocked Pico will NOT have lock/unlock buttons. It will remain unlocked unless it goes out of its designated temp range. In the case that it is out of its temp range, refer to the PicoCooler Health Safety Timer Lockout & Override article.
