Gen3 and Gen3c V5 Spec Sheets

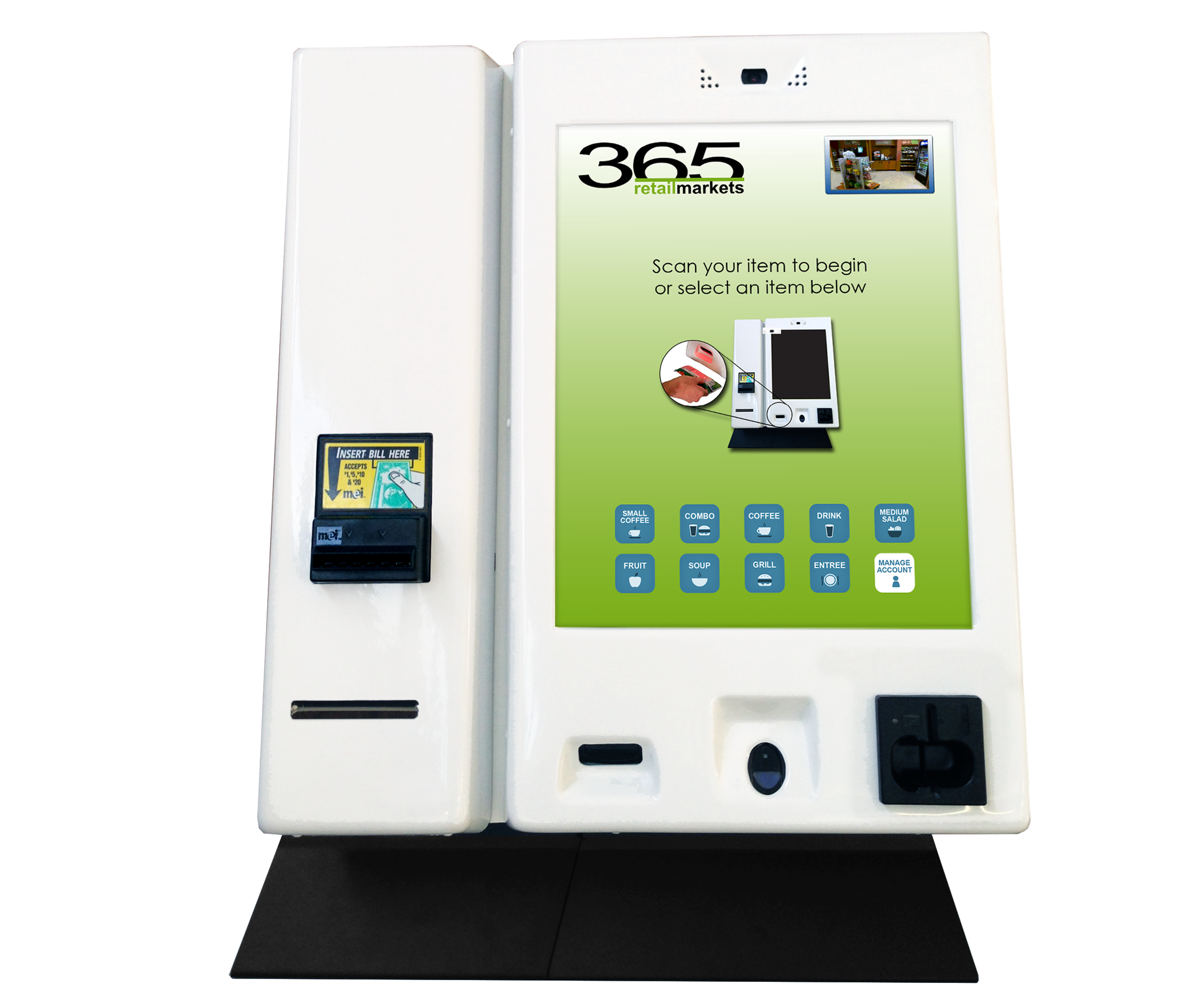

Gen3c Kiosk
The Gen3c kiosk was designed to offer unprecedented functionality to help optimize both new and existing MicroMarket locations. A recessed biometric fingerprint reader and our latest 2D barcode scanner for use with the all new 365Pay app make paying with a stored value account easier than ever. A dual sided commercial grade credit card reader ensures that even consumers without an account can quickly and securely make a purchase. The Gen3c kiosk also features a MEI bill validator and a thermal receipt printer, ideal for locations requiring that added functionality. Accessing and servicing all of these components within the purpose-built hardware is quick and easy with the front loading and clam shell designs.
Mounting Options
|
Mounts to an existing countertop |
Specifications
|
Item |
Description |
|
Housing |
Scratch resistant ABS with UV cap. Printer and bill acceptor inside secure full metal enclosure. |
|
Dimensions (HxWxD) |
27” x 23” x 14” |
|
Electrical |
Max current draw: 2.5 A; Max power consumption: 300 W; Input Voltage 100-240V AC |
|
Weight |
69 lbs |
Features
|
Item |
Description |
|
Biometric Reader |
Users can access their stored value account using their fingerprint |
|
Audio Speakers |
Users are guided by audio prompts throughout the transaction |
|
Serviceability |
Easily change printer paper and service bill acceptor |
|
Modular Design |
Detachable printer and bill acceptor module |
Key Components
|
Item |
Description |
|
Data Processing |
High speed, lightweight, ultra-quiet industrial PC |
|
Touch Screen |
19” ELO-Touch with IntelliTouch technologies mounted in portrait format. Aspect Ratio 5:4, Contrast Ratio 1000:1 |
|
Credit Card Reader |
(E2EE) 365Secure device, Supports contactless & Apple/Android Pay |
|
Bill Acceptor |
500 note cassette; accepts $1, $2, $5, $10 and $20 bills |
|
Barcode Scanner |
High-volume scanner capable of reading most barcodes, including: 1D, 2D, QR, and direct part marks; reads barcodes presented on any surface, whether it’s printed on paper, etched into a product or displayed on a mobile phone screen |
|
Receipt Printer |
Epson TM-T70-II (High Quality POS Printer) |

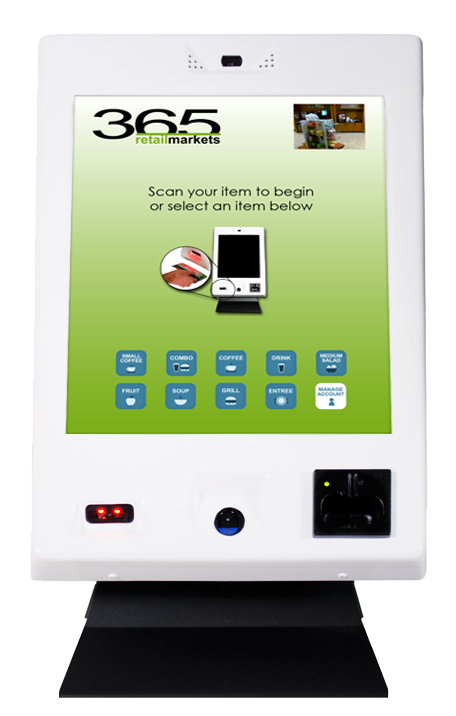

Gen3 Kiosk
The Gen3 kiosk is our industry leading solution that was designed to offer unprecedented functionality for both operators and end-users alike. This unit is ideal for white collar locations that prefer a cashless environment, as well as for larger locations that need an additional payment center. The Gen3 comes equipped with an all-new compact form factor, zero maintenance design, a dual sided secure credit card reader, a recessed biometric fingerprint scanner, and the latest in 2D barcode scanning technology. This unit takes full advantage of the updated kiosk interface and backend management platform.
Mounting Options
|
Mounts to an existing countertop |
Specifications
|
Item |
Description |
|
Housing |
Scratch resistant ABS with UV cap |
|
Dimensions (HxWxD) |
27” x 14.5” x 14” |
|
Electrical |
Max current draw: 1.5 A; Max power consumption: 180 W |
|
Weight |
38 lbs |
Features
|
Item |
Description |
|
Biometric Reader |
Users can access their stored value account using their fingerprint |
|
Audio Speakers |
Users are guided by audio prompts throughout the transaction |
Key Components
|
Item |
Description |
|
Data Processing |
High speed, lightweight, ultra quiet industrial PC |
|
Touch Screen |
19” ELO-Touch with IntelliTouch technologies mounted in portrait format. Aspect Ratio 5:4, Contrast Ratio 1000:1 |
|
Credit Card Reader |
(E2EE) 365Secure device, Supports contactless & Apple/Android Pay |
|
Barcode Scanner |
High-volume scanner capable of reading most barcodes, including: 1D, 2D, QR, and direct part marks; reads barcodes presented on any surface, whether it’s printed on paper, etched into a product or displayed on a mobile phone screen |
