AV5 & AV7 Specification Sheet
Updated
Print

AV7 Specifications

Item

Description

Housing

Injection molded commercial-grade plastic casing

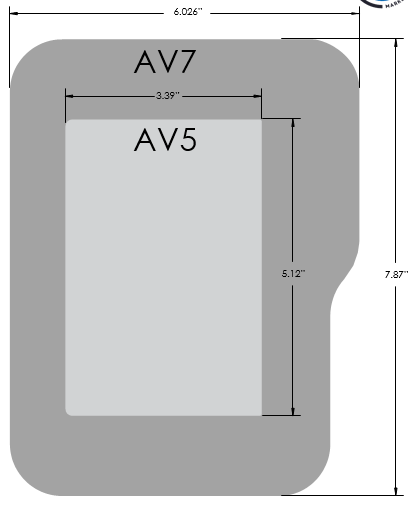

Dimensions (HxWxD)

7 7/8” x 6” x 1 5/8”

Touchscreen

7” interactive display


AV5 Specifications

Item

Description

Housing

Injection molded commercial-grade plastic casing

Dimensions (HxWxD)

5 1/8” x 3 3/8” x 1 7/8”

Touchscreen

4.3” interactive display



Features

Item

Description

Interactive, Dynamic Touchscreen Display

Displays nutritional info for all products, allows customers to submit feedback/report issues and pay with coupon codes, all easily updated via live, cloud-based system

Wireless Connectivity

Wireless account activation provides over-the-air software updates, live sales and inventory updates, and machine alerts

DEX & MDB

Compatibility

Allows full compatibility with all major vending manufacturers

Credit Card Payment

Credit card swipe, merchant account and terminal ID setup, compliant with current processing regulations, pre-negotiated dis- counted rates on small ticket purchases, and EFTs to bank accounts for all settled card transactions



Key Components

Item

Description

Data Encryption

SSL, 128 bit secure data encryption

Mag Stripe Reader

Provides secure, encrypted credit card swipe payment

NFC Reader

Optional NFC (Near Field Communication) enables payment from Google Wallet, and Apple Pay

Integrated 3G Cellular Modem

Provides secure, reliable connection with extensive geographic coverage

Camera

Allows for future functionality such as account lookup, branded market cards, and more






1743 Maplelawn | Troy, MI 48084 | www.365retailmarkets.com | 888.365.7382 Secure. Scalable. Reliable.
