Purpose

This article outlines all of the networking requirements that are needed to accommodate a PicoCooler, PicoMarket, or NanoMarket kiosk.

Please note that there are no network requirements for PicoCooler Breeze, as the PicoCooler Breeze has to use a cellular connection.
A PicoCooler may use either a wireless or cellular connection.

Please contact 365 Support at 888-365-6282 or support@365rm.com if you have any questions related to this document.

To view more network requirements for our various products, see the Network Requirements tagged articles.

Network Requirements

All of the following Fully Qualified Domain Names (FQDN) listed below are required for the PicoCooler and NanoMarket kiosk to function correctly.
All connections are initiated from the PicoCooler or NanoMarket kiosk. The FQDN and ports below need to be open for outgoing bidirectional communication.

Sensor Swarm Temperature Sensors (NanoMarket only)

Sensor Swarm temperature sensors are for NanoMarkets only. They are used to remotely monitor the temperatures in coolers & freezers within the market.

Meraki Router Requirements

Should the Pico/NanoMarket device utilize a Meraki Router, Meraki Cloud and Registry addresses will have to be whitelisted, as well as any above sections/requirements.

Pronto Router Network Requirements

The Pronto router is optimized for a direct cellular connection using the onboard SIM.
The following are the network requirements for using the wired uplink, or wired uplink with onboard cellular failover.

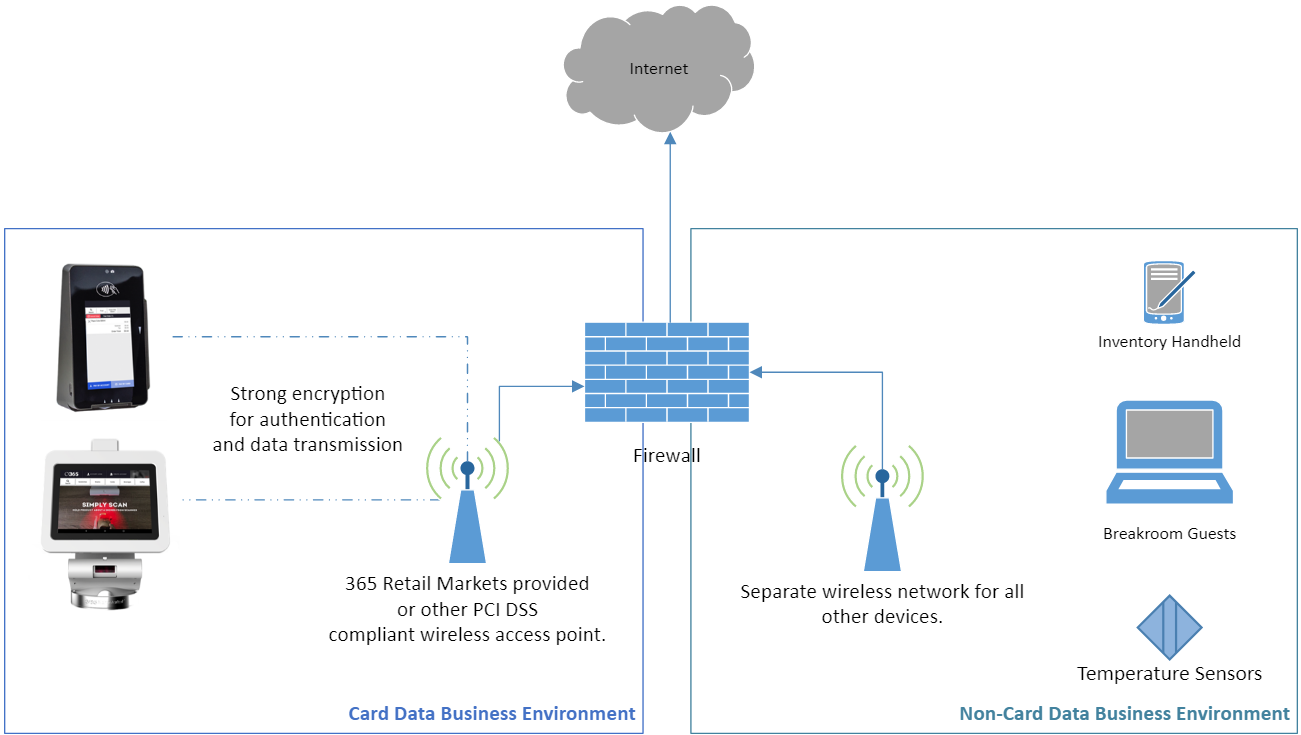

Wireless Network

If you are creating your own wireless network or connecting to a client’s network, you must follow the latest PCI DSS guidelines for wireless network security. Consult your QSA or https://www.pcisecuritystandards.org/ for more information.

Our PicoCooler/Market or NanoMarket kiosks require a passphrase-secured, non-Guest WiFi SSID. In addition to this, they cannot operate on a WiFi network with a captive portal or login page.

NOTE: If you are not comfortable creating a WiFi network with PCI DSS or cannot validate that the client’s WiFi network follows PCI DSS, 365 Retail Markets offers several solutions to assist with network connectivity. Contact your account manager for more information.

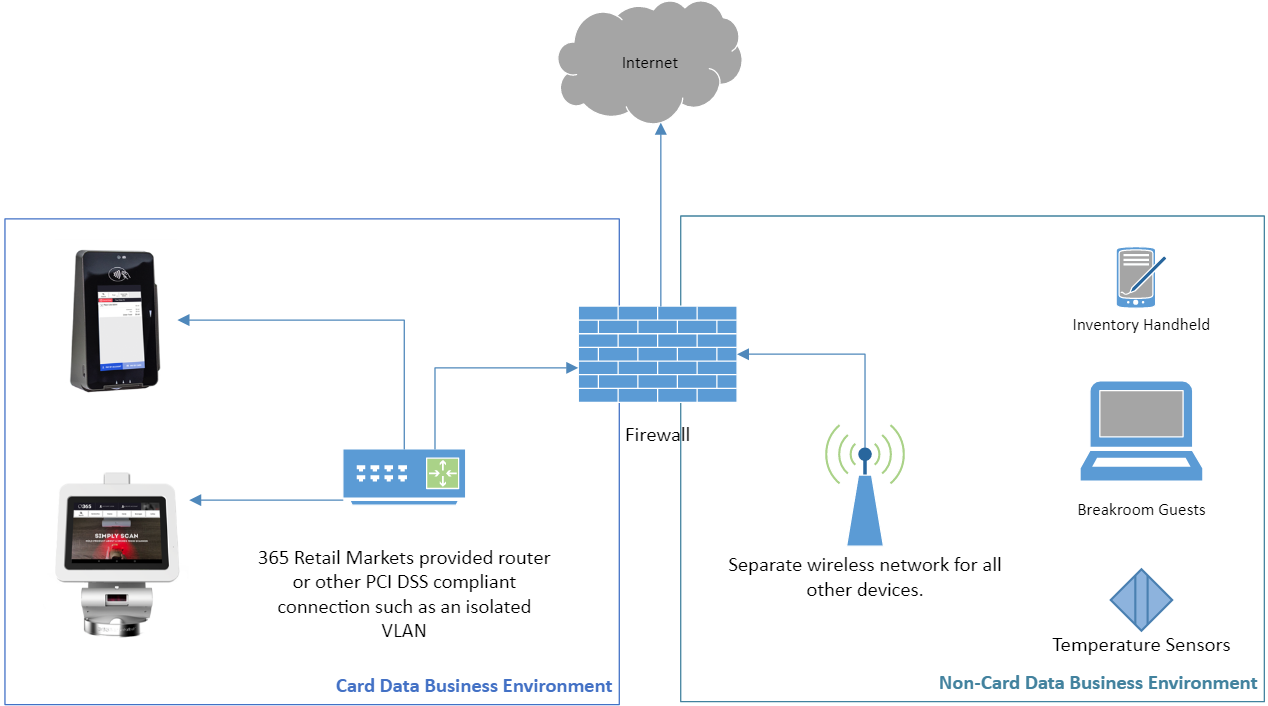

Wired Network

If you are creating your own wired network or connecting to a client’s network, you still must follow the latest PCI DSS guidelines for network security. Consult your QSA or https://www.pcisecuritystandards.org/ for more information.

NOTE: If you are not comfortable creating a network with PCI DSS, or cannot validate that the client’s network follows PCI DSS, 365 Retail Markets offers several solutions to assist with network connectivity for your PicoMarket or NanoMarket. Contact your account manager for more information.

Cellular Network

If you plan to utilize SIM cards to access the internet via a cellular network, the above Network Requirements do NOT need to be whitelisted. Cellular Network providers include Optconnect and Max Aware devices.

365 currently offers SIM cards with AT&T or Verizon as carriers.

OptConnect Max vs Meraki Router

The following is a table of feature and components that will function with a Cellular Max Aware device vs. a Meraki Router.
