Purpose
This article describes the process to follow for installing an MSR (Magnetic Strip Reader) to a ReadyTouch kiosk.
Process
To add or replace the credit card reader (or MSR for Magnetic Strip Reader), a Phillips head screwdriver is required.
The side of the kiosk that is used will be determined by which type of payment is going to be accepted by the reader.
- Left side of ELO - Non encrypted Premium Payments Card (e.g., SoGo cards)
- Right side of ELO - Encrypted Credit Card
Installation
- Pry off the two plastic stickers hiding the screw holes. It is recommended to use a sharp tool.
- Remove the screws.

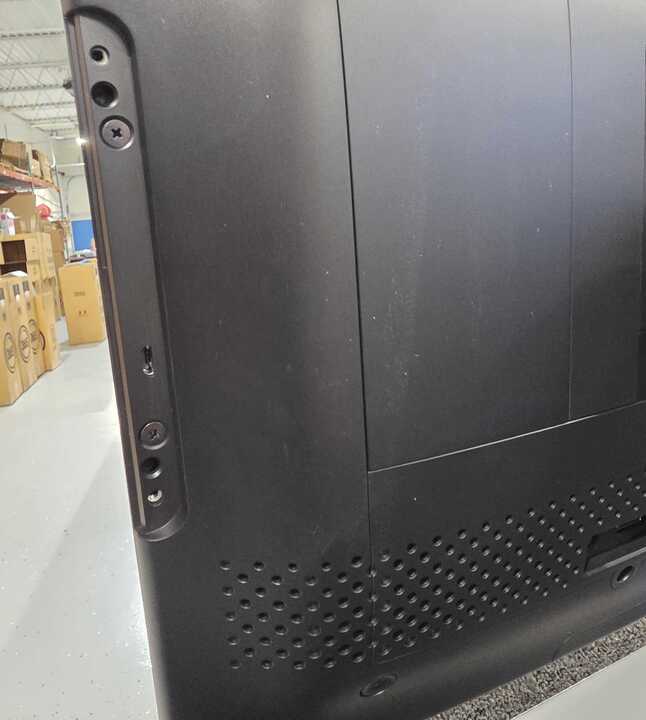

- Push directly back, away from the screen to remove the existing MSR.

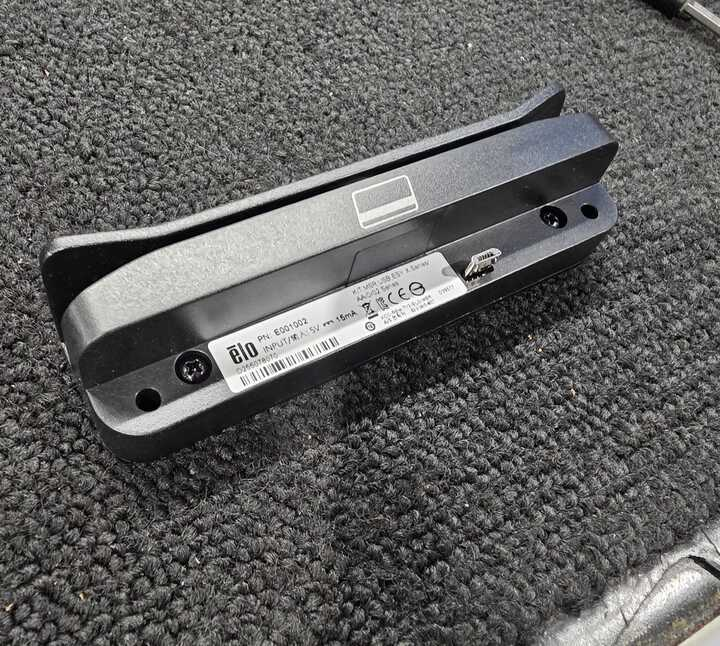

- Line up the new MSR and push in to connect it back onto the ELO. (The connector pins in the ELO port are placed off center so just match the MSR connector with pins in the ELO.)

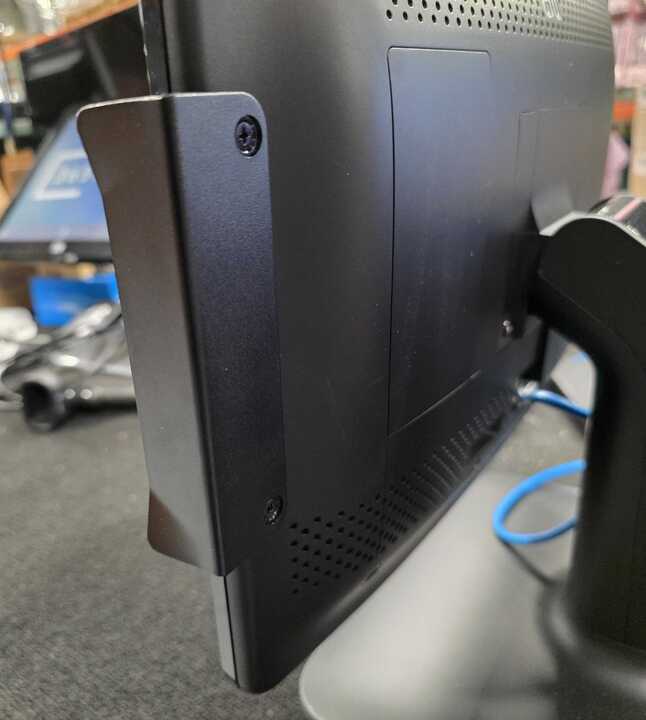

- Screw in the new screws.
- Replace stickers over the screw holes.
