365Inside Spec Sheet
Updated
Print

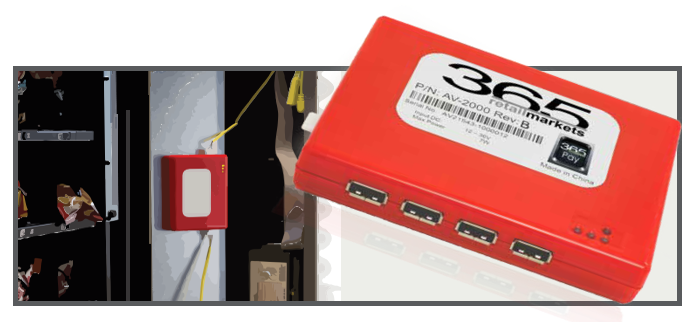

The 365Inside is an affordable plug and play vending device with real-time telemetry. This device offers a Bluetooth connection from the 365Pay app, allowing consumers to make purchases from their Global Market Account using 365Pay.  Download the product overview to learn more.



Hardware Specifications

Item

Specification

CPU

Freescale IMX233

Storage

4GB SD Card

Memory

512 MB

WIFI

802.11 b/g/n

Bluetooth

4.0

Power Input Source

Input power provided by Vending Machine and range from 12V to 36V

External IO Ports

1.      USB 2.0 Host (4x)

2.      Five Pin Connector (MDB)

3.      Six Pin Connector DEX

Button Keys

Power ON/OFF Reset (Pin access)

Software Versions

Linux Kernel – 3.0.35



Dimensions:

Length – 5”

Width – 3.75”

Depth – .75”


Attachments
365 Inside_OnePager.jpg
- 2 MB
365 Inside - Information.pdf
- 300 KB
