Purpose

The purpose of this article is to outline the steps to convert a Parlevel device from 'Fetch (Imported With No Layout)' to ' Fetch-Online' format.



Process

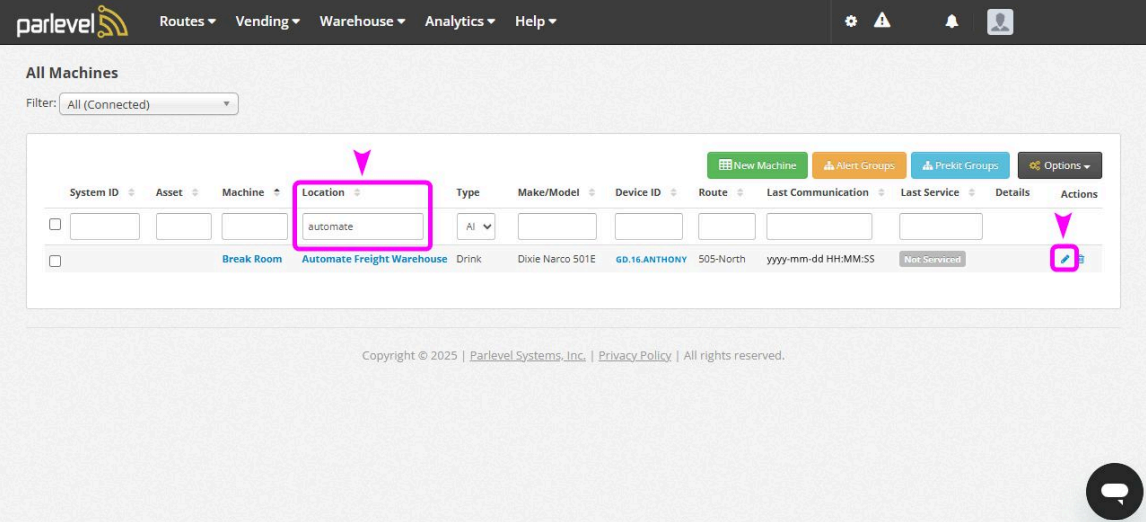

  1. Navigate to Vending > All Machines, then filter to the machine.
  2. Click the Edit pencil, under Actions, to go to the Edit Machine screen.
    Parlevel - Edit Machine.png

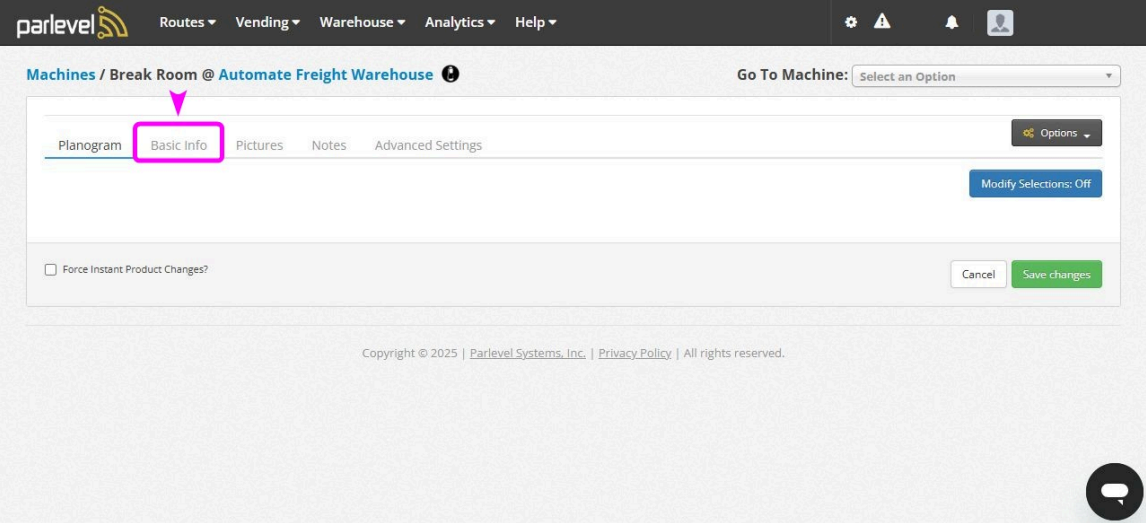

  3. On the Edit Machine screen, click the Basic Info tab.
    Parlevel - Basic Info Machine.png

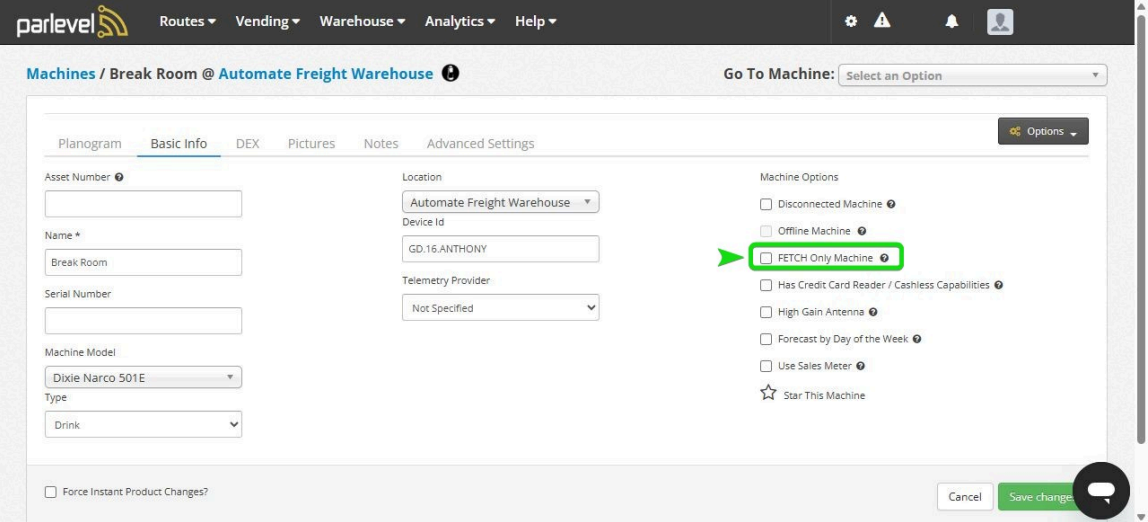

  4. Under the Machine Options, uncheck FETCH Only Machine.
    Parlevel - Basic Info FETCH Only MAchine.png

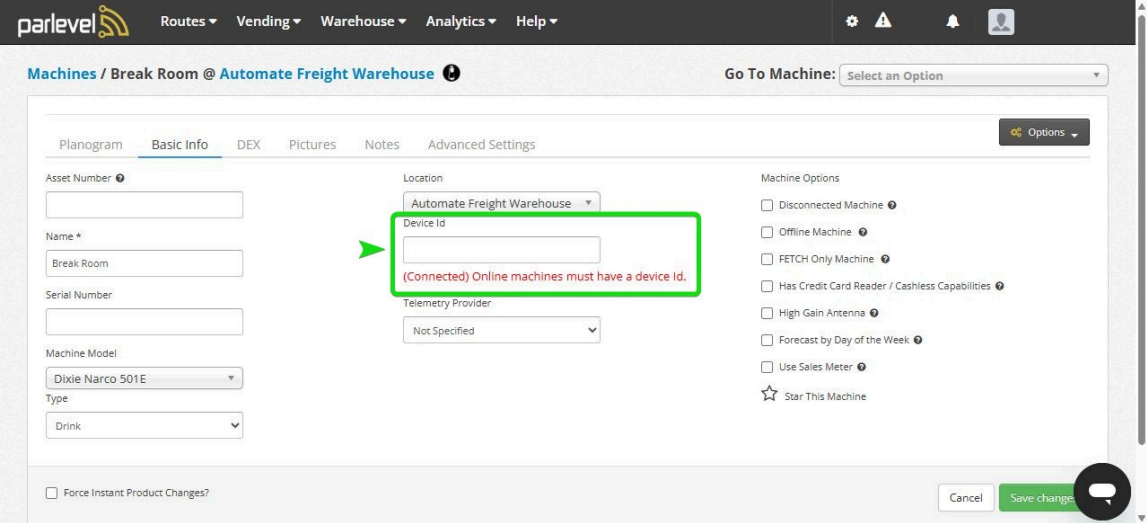

  5. Delete the Device ID.
    Parlevel - Basic Info Delete Dev ID.png

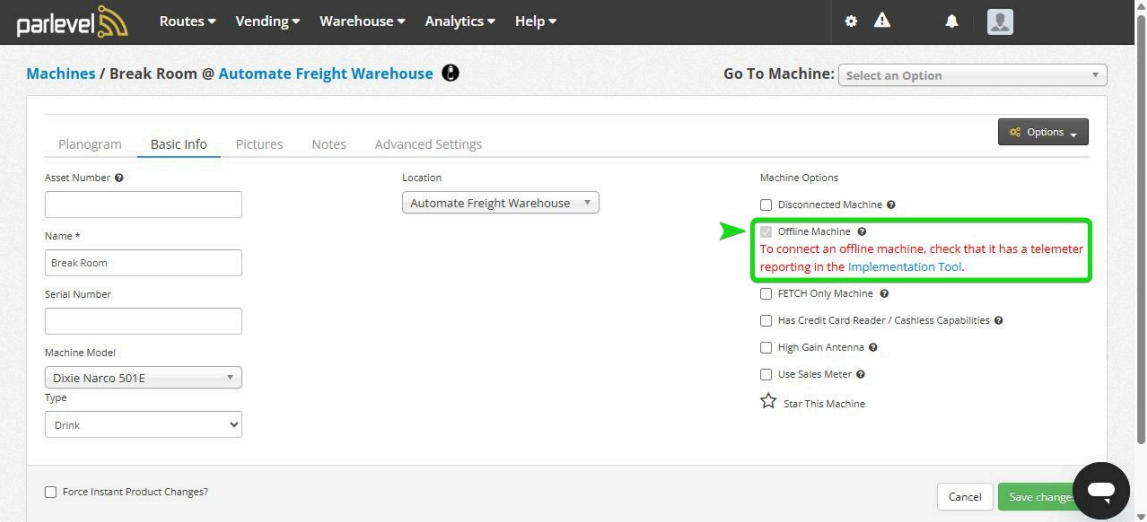

  6. Under Machine Options, check Offline Machine. Save the changes.
    Parlevel - Check Offline Machine.png

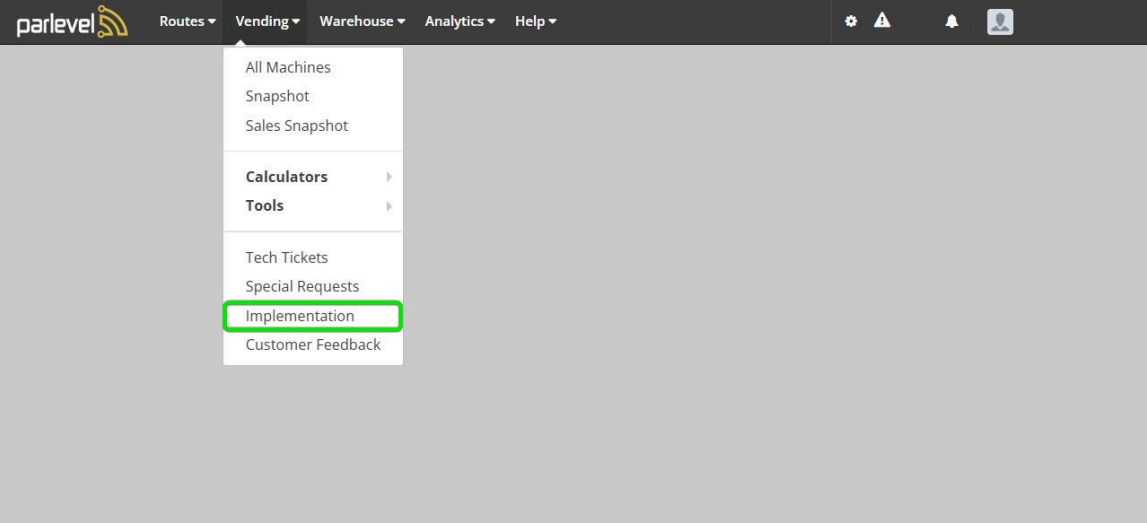

  7. Go to the Implementation screen.
    Parlevel - Implimentation.png

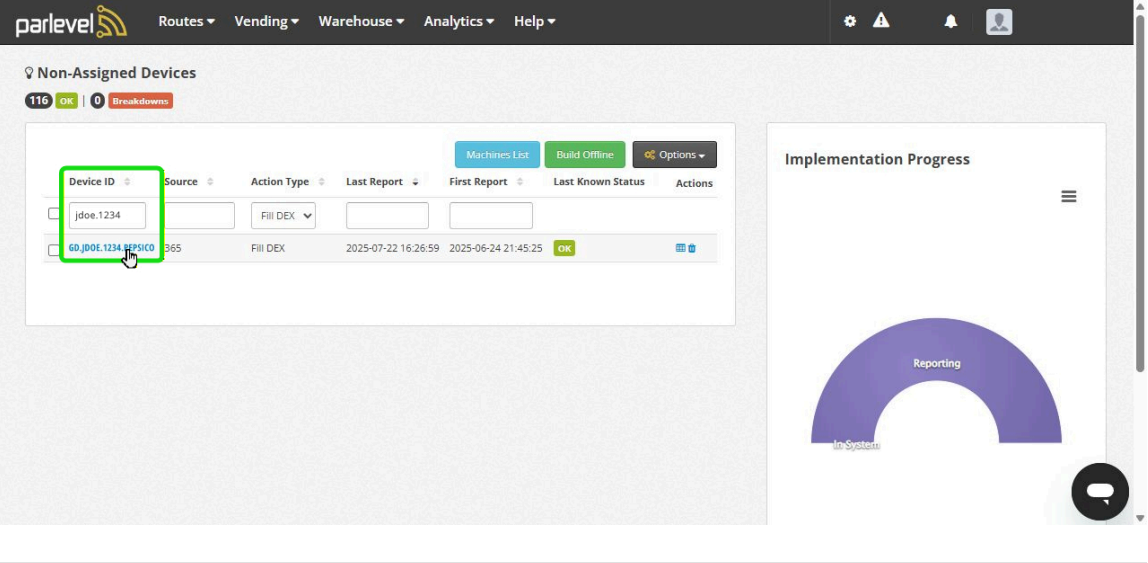

  8. Find the Fetch Device ID and click it.
    Parlevel - Implimentation Fetch Device ID.png

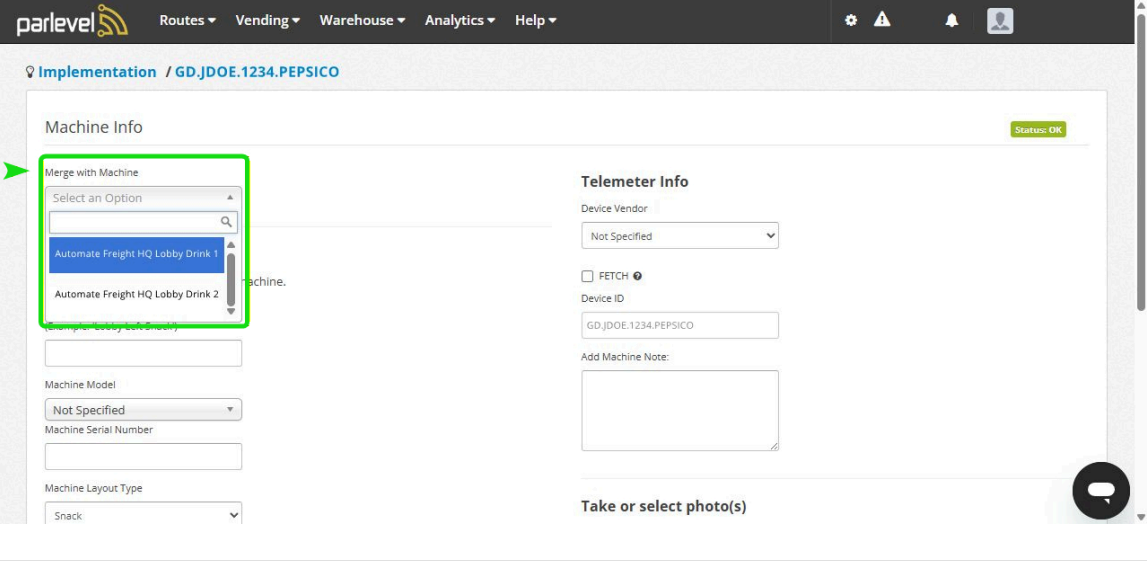

  9. Click the Merge With Machine dropdown menu then search for the offline machine by name.
    Parlevel - Implimentation Merge with Machine.png

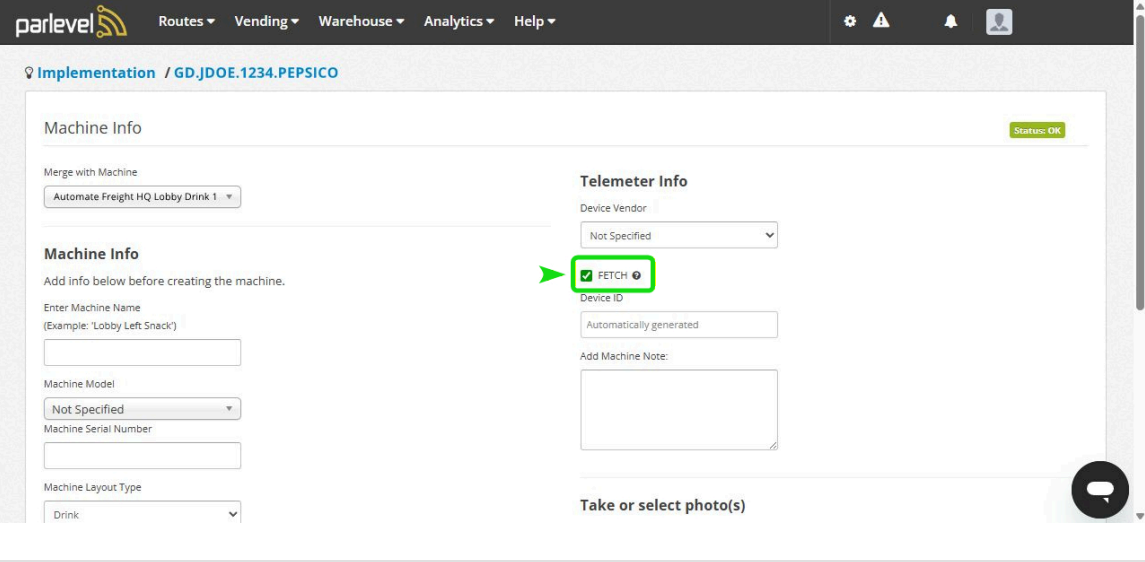

  10. Enable FETCH under Telemeter Info.
    Parlevel - Implimentation FETCH.png

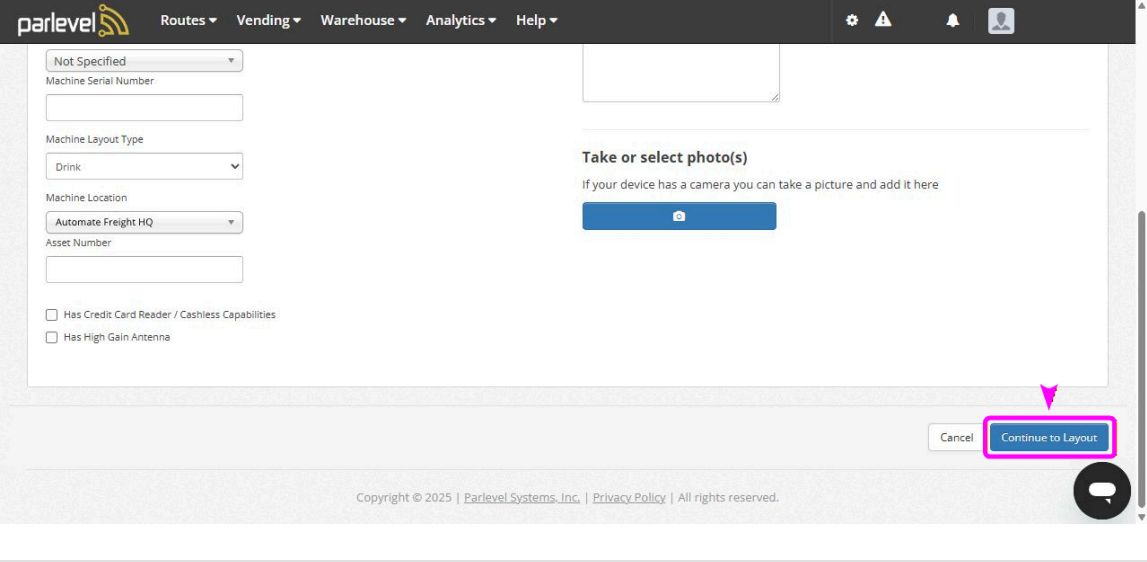

  11. Click Continue to Layout.
    Parlevel - Continue FETCH.png

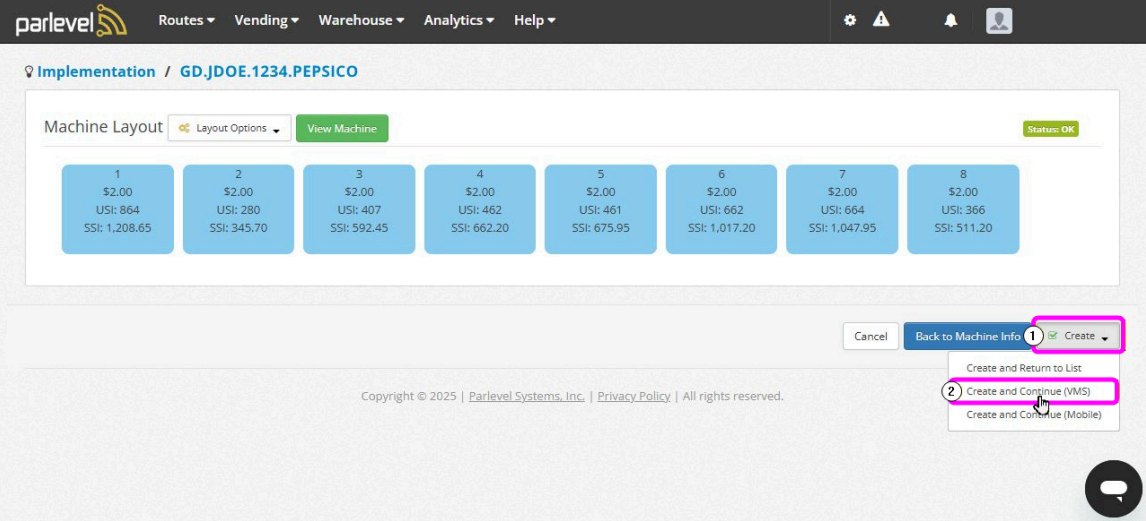

  12. On the Machine Layout Page, click Create [1], then click Create and Continue (VMS) [2], to view the new FETCH-Online Machine.
    Parlevel - FETCH Create.png

Please Note: Once complete, the machine automatically inherits the Planogram slot layout and slot prices from the actual machine. The planogram is then ready to edit.
