Purpose
This article outlines all of the networking requirements that are needed to accommodate a Stockwell 2.0 or a PicoCooler Vision.
Please contact 365 Support at 888-365-6282 or support@365smartshop.com if you have any questions related to this document.
To view more network requirements for our various products, see the Network Requirements tagged articles.
Network Requirements
| Description | FQDN | Ports |
|---|---|---|
| Images, style JSON | https://static.readytouchpos.com | TCP: 443 |
| Android/Google Services |
commondatastorage.googleapis.com google.com |
TCP: 443, 80 |
| Android/Google Services | gcm.googleapis.com | TCP/UDP: 5228-5230 |
| Auth0 Login Security | https://prod-365.us.auth0.com/ | TCP: 443 |
| Pushy Service |
*.pushy.me *.pushy.io |
TCP: 1883, 443 |
| Tally/Security | https://tally.prod.365rm.us/ | TCP: 443 |
| Logging, Artifact Storage, Update Delivery |
api.mobile.azure.com https://nanomarketblobs.blob.core.windows.net/ |
TCP: 443 |
| HTTPS API Server | fleet.stockwell.ai | TCP: 443 |
| OpenVPN Server | 34.123.71.182 | UDP: 1194 |
| HTTPS Video Server | storage.googleapis.com | TCP: 443 |
| GitHub | TCP: 443 | |
| Python Pip /PyPI | TCP: 443 | |
| AWS IOT | ahrycxg7ids8f-ats.iot.us-east-2.amazonaws.com/ | TCP: 8883 |
| INTERNATIONAL LOCATIONS ONLY: International credit card processing | prodamq.vct.vibbek.com | TCP: 61613, 61617 |
Max Aware Router Requirements
Should the Pico/Stockwell device utilize an OptConnect Max Aware Router, the below will have to be whitelisted in addition to the Network Requirements section above.
| Description | FQDN | Ports |
| Connectivity Checks ICMP |
|
|
| NTP |
|
UDP: 123 |
| OptConnect Management |
a3u41gsp6su9cx-ats.iot.us-west-2.amazonaws.com |
TCP: 8883 |
| OptConnect Management | playgeniot.s3.us-west-2.amazonaws.com | TCP: 443 |
Meraki Router Requirements
Should the Pico/NanoMarket device utilize a Meraki Router, Meraki Cloud and Registry addresses will have to be whitelisted, as well as any above sections/requirements.
| Service | FQDN/IP | Ports |
| Meraki Cloud Communication |
|
UDP: 7351 |
| Meraki VPN Registry |
|
UDP: 9350 |
| IPsec VPN |
|
UDP: 32768 through 61000 |
| Continuous Router Uplink Status Checks |
|
|
| Cisco Umbrella DNS for Meraki Router DHCP assignments |
|

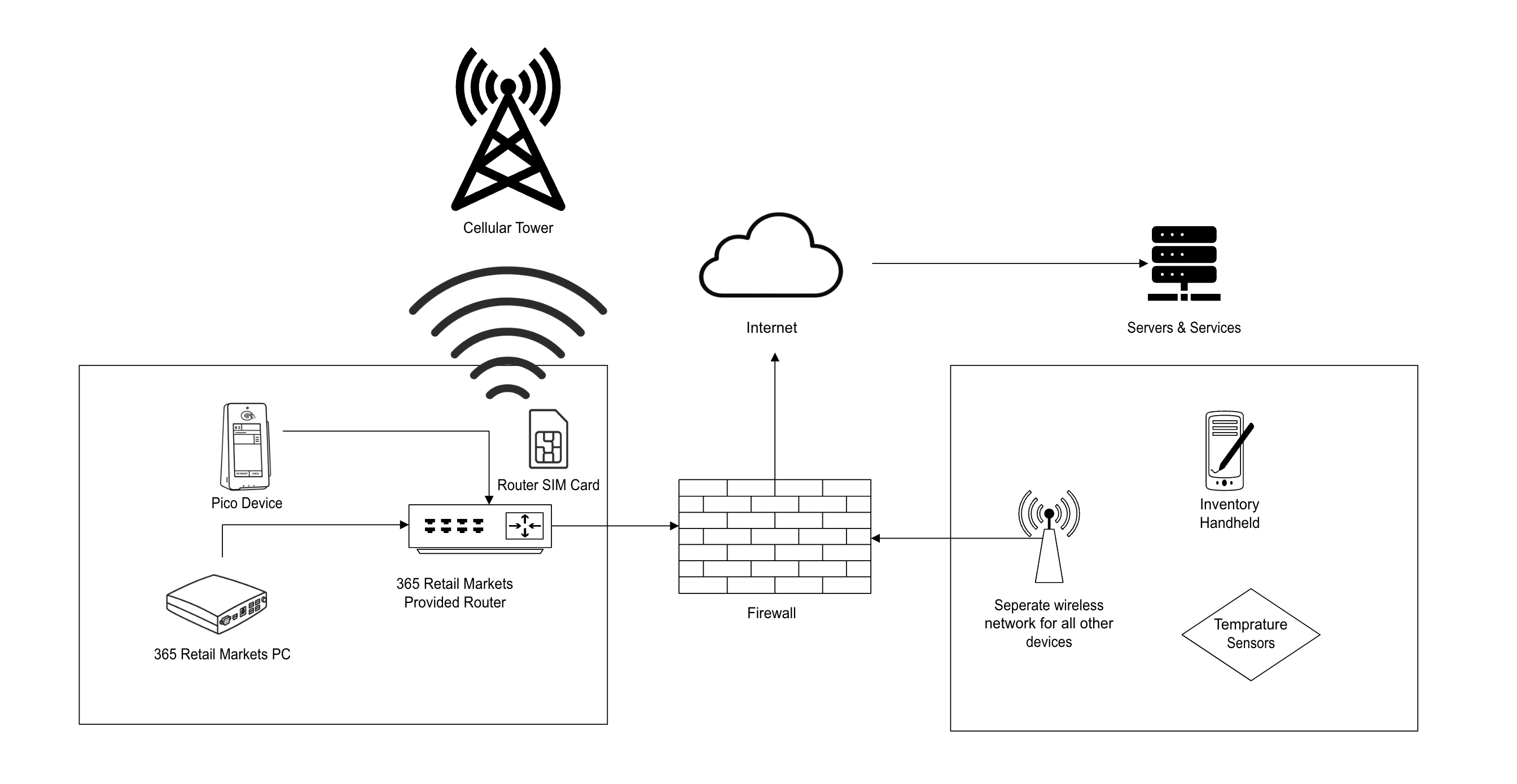

Wired Network
If you are creating your own wired network or connecting to a client’s network, you still must follow the latest PCI DSS guidelines for network security. Consult your QSA or https://www.pcisecuritystandards.org/ for more information.
NOTE: If you are not comfortable creating a network with PCI DSS, or cannot validate that the client’s network follows PCI DSS, 365 Retail Markets offers several solutions to assist with network connectivity for Stockwell or PicoCooler Vision. Contact your account manager for more information.

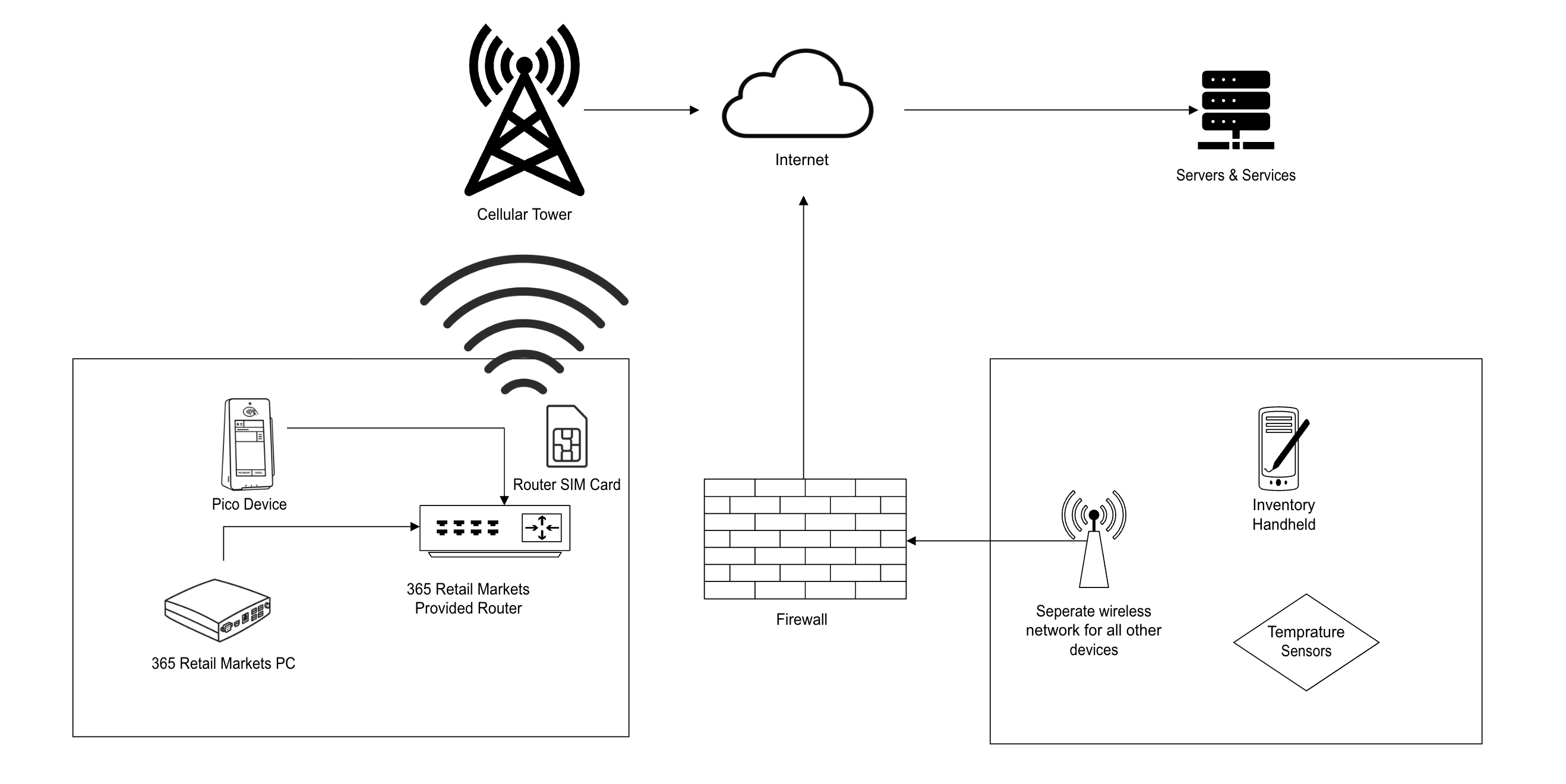

Cellular Network
If you plan to utilize SIM cards to access the internet via a cellular network, the above Network Requirements do NOT need to be whitelisted. Cellular Network providers include Optconnect and Max Aware devices.
365 currently offers SIM cards with AT&T or Verizon as carriers.
