Purpose

This article will cover the product specifications for the Kitchen Display System (KDS), a 365 Micro Market solution for high-traffic Dining locations. The KDS utilizes a touch screen and other optional peripherals, which are also listed below.



KDS

Current Model - MicroTouch M1-156IC-W3-A2

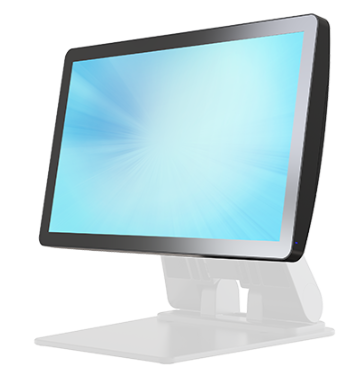

KDS - Touch screen - MicroTouch M1-156IC-W3-A2



General Information

  • Housing: Plastic, Glass, & SECC Metal, in black
  • Communication: 1 x RJ45 GB LAN
  • Dimensions: 369.1 x 223.7 x 35.2 mm (Monitor Only); 369.1 mm x 291.6 mm x 169.4 mm (With Stand)
  • Screen: 15.6" TFT LCD
  • Maximum Resolution: 1920 x 1080
  • Power: 180W 24V DC in
  • Weight: 2.38 kg unboxed (without stand)
  • System Memory: 16GB
  • Storage Device: 256GB
  • USB I/O Ports: 2 x USB-C (PD in/out), 4 x USB-C (peripheral connection), 4 x USB 3.0 Gen 1 Type A
  • Video Ports: 1 x HDMI (up to 1920 x 1080 @60Hz), 1 x USB-C (Alt mode + PD out 12V@3A+USB 2.0), Audio Port 1 x Audio-Output (3.5 mm Mini-Jack)



Key Components

Purpose Component Description
Data Processing i3-1215UE 3.3GHz 6 core Gen 12 Mobile CPU for thin & light laptops
Input Touch LCD Display Projected Capacitive, capable of portrait, landscape, or tabletop orientation
Sound 2 x 2W Stereo Fully integrated speaker
Scanner MA-SCAN-A1 Optional peripheral
Expansion Hub MA-HUB-A1 Optional peripheral
MSR MA-MSR-A1 Optional peripheral
Camera MA-CAM-A1 Optional peripheral
Light Bar MA-LBAR-A1 Optional peripheral



Past Model: MicroTouch IC-156P-AW3-W10

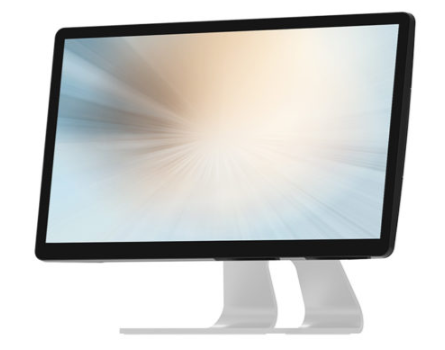

KDS - Touch screen - MicroTouch IC-156P-AW3-W10



General Information

  • Housing: Plastic, Glass, & SECC Metal, in dark grey
  • Communication: 1 x RJ45 GB LAN
  • Dimensions: 369.1 x 223.7 x 35.2 mm (Monitor Only), 369.1 mm x 291.6 mm x 169.4 mm (With Stand)
  • Screen: 15.6" TFT LCD
  • Maximum Resolution: 1920 x 1080
  • Power: 1 x DC-in via 24V 120W External Power Adapter
  • Weight: 4.01 kg net, 6.01 kg gross
  • System Memory: 8GB So-DIMM DDR4 2133 MHz
  • Storage Device: 128GB SSD
  • USB I/O Ports: 2 x USB 2.0 Type A, 2 x USB 3.0 Type A, 1 x USB 3.1 Type C (Support Display ALT Mode and PD2.0, support 5V/3A , 12V/2.5A output, maximum 30W)
  • Video Ports: 1 x Mini DP



Key Components

Purpose Component Description
Data Processing Core i3 7100U (2.40 GHz, 3M Cache) Dual-core processor
Input Touch LCD Display Projected Capacitive
Sound 2 x 2W Stereo Fully integrated speaker
Stand SS-156-A1 Optional peripheral, sold separately
MSR MSR-156-A1 Optional peripheral, sold separately
Camera CAM-000-A1 Optional peripheral, sold separately
