Purpose

This article outlines the steps for using ADM to customize the settings for the Now Serving screen for a kiosk, such as display rotation, dark or light mode display, font size, and section type. Following the steps is an interactive demonstration of the process in ADM.

Process

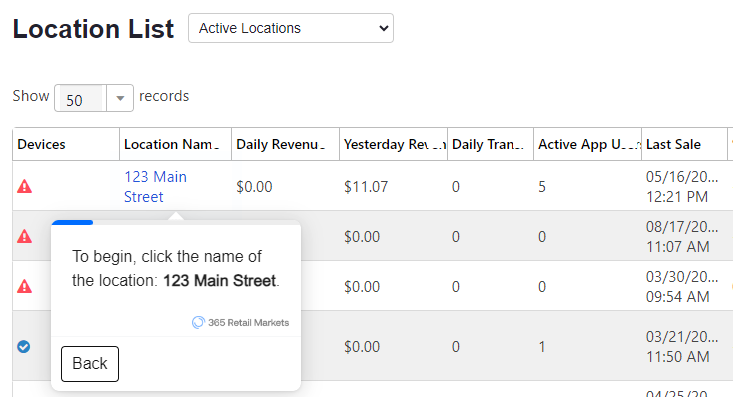

1. While logged into ADM, access your Location list by clicking theLocation tab.

2. Click the name of the location.

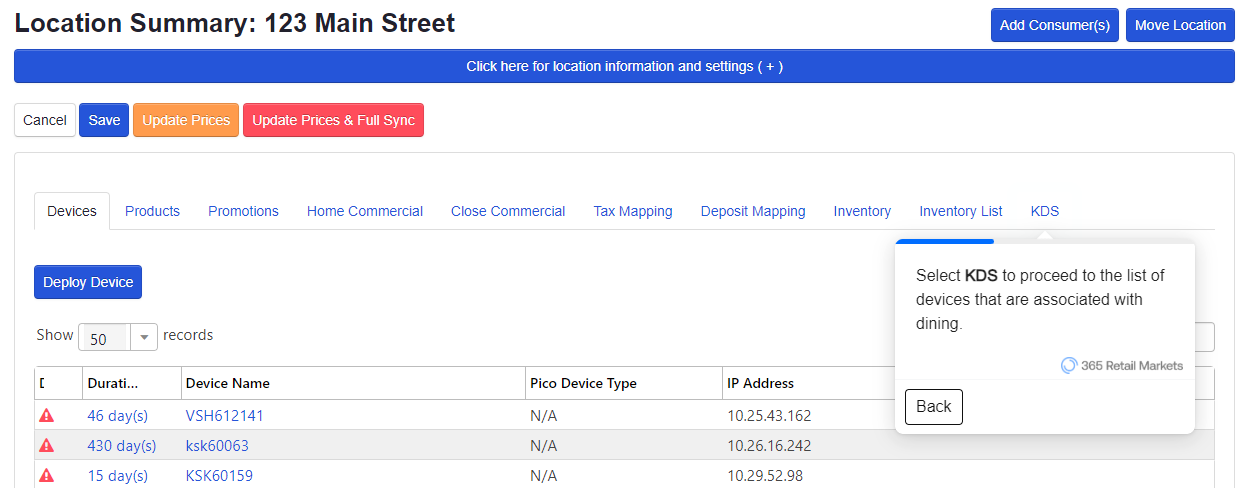

3. On theLocation Summary page, click theKDS tab to proceed to the list of devices that are associated with dining.

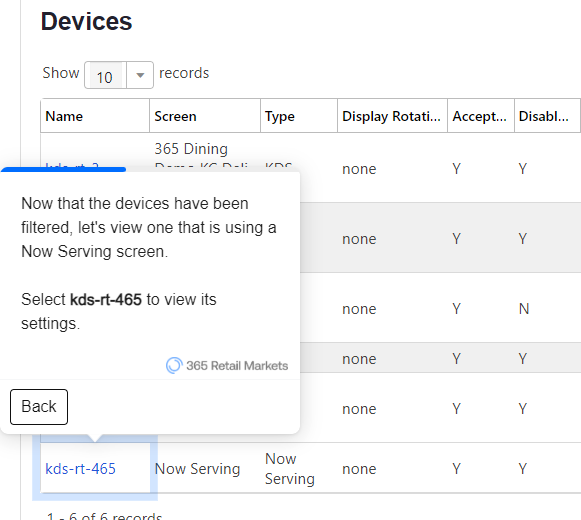

4. With the devices filtered, select one of the device names to view its Now Serving screen settings.

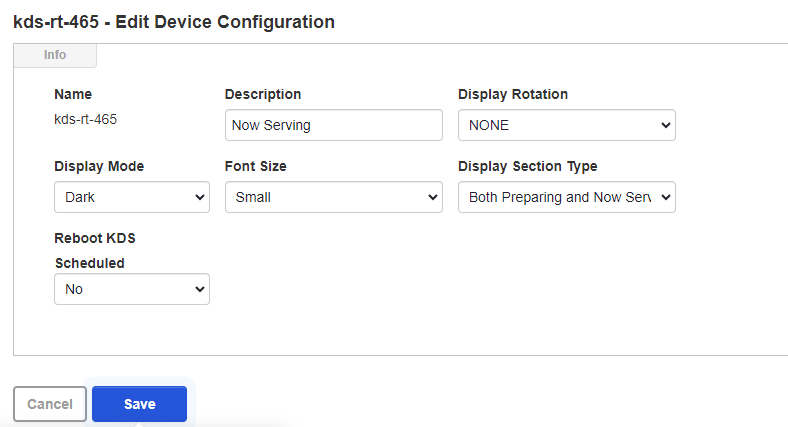

5. The following settings can be configured for the Now Serving Screen:
   • Display Rotation: The default option for this setting isNone, but the options Left, Right, and Inverted are also available.

   • Display Mode: The default option for this setting isDark, but it can also be set to Light.

   • Font Size: The default option for setting isSmall (48px), but the options Medium (60px) and Large (75px) are also available.

   • Display Section Type: The default option for this setting isNow Serving Only, but the optionsNow Serving Only, Preparing Only, and Both Preparing and Now Serving are available.


   • Overflow: When the screen has too many orders to display on the screen, the screen should scroll down to display the orders that are not visible:
     • The scroll should move 1 row at a time, pausing 10 seconds between movements until it gets to the bottom of the page.
     • When it gets to the bottom of the page, it should wait 20 seconds instead of 10s before displaying the first orders again.
     • When it restarts from the top, the page should wait 20 seconds instead of 10s before scrolling through the orders once more.
       • Please note: This is not a configurable setting, but instead a feature that will activate once there are too many orders to display on the screen.

6. Once you have configured the settings as desired, click Save.

Guided Walkthrough

Find our Now Serving Screen tutorial at ADM - Now Serving Screen Settings, or click the image below to begin the demo.
