Purpose

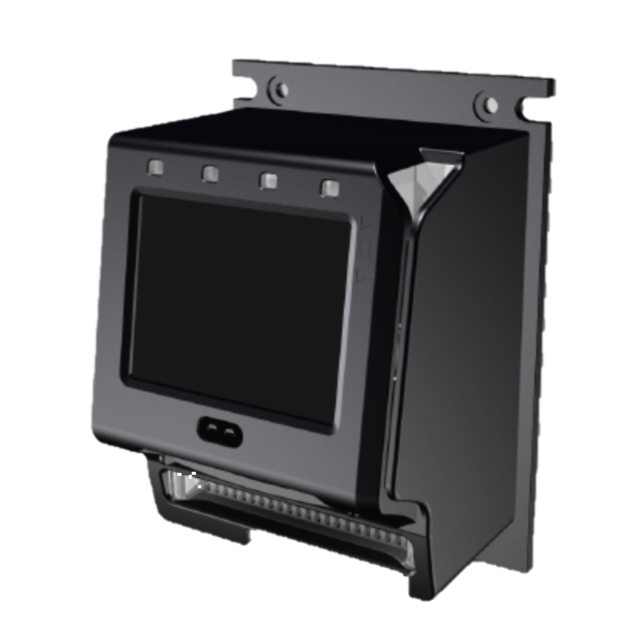

This article describes the specifications and components of the PayPlus Omni card reader.
Specifications
Dimensions
- Length - 132mm
- Width - 85mm
- Height - 74mm
- Weight - 307 grams
Environment
- Operating Temperature - -20°C to 65°C
- Storage Temperature - -40°C to 70°C
- Operating Humidity - 5% to 90% non-condensing
- Storage Humidity - 5% to 90% non-condensing
- IP Ingress Protection - IP 54
- IK Shock Protection - IK 08
Certifications
- PCI PTS 5.X
- EMV L1/L2
- payWave
- PayPass
- ExpressPay
- D-PAS
- Interac Flash J-Speedy
- FeliCa
- UnionPay UICS
- TQM
- PBOC L1/L2
Key Components
| Component | Type | Notes |
| Processor | 32-bit Secure Microprocessor | running powerful Linux based OS |
| Memory | Flash/RAM | 256MB/128MB |
| Display | 2.8" Color TFT LCD Touchscreen | 320 x 480 Pixels |
| Card Reader | Magnetic Stripe | ISO 7810, 7811, 7813 Triple Track, Bi-Directional |
|
Contact Card |
User Card: ISO 7816 ID-1 1.8V/3V/5V T=0, T=1 | |
| SIM Card: 1 | ||
| SAM Card: 2 | ||
|
Contactless (Optional) |
ISO 14443 Type A, B| ISO 18092 NFC Mifare | FeliCa| Calypso (electronic ticketing system) | |
| Communications Interface Options | Wired | RS-232*2 | USB OTG*1| USB Host*1 |
| Wireless | 4G LTE | Bluetooth iBeacon | Proximity Sensor | |
|
Indicators |
LED - Contactless | Yes |
| Speaker | Yes | |
| Keypad | Standard Keys | Virtual Keypad (Support PIN on touch) |
| Software | SDK | KMS | TMS | GDB | CTOS library | ISO 8583 library | Crypto library | |
| Crypto | TRNG | DES | T’DES | AES | RSA | MK/SK | DUKPT | T’DES DUKPT | |
|
Bill Validator Model List |
Crane Payment Innovations (CPI) / MEI Technology: VN2700 Series Coinco: Vantage ICT: XBA mini | |
| Power Supply | Power Adaptor | 9V-45V@3A |
