PicoCoffee/ PicoCoffee+ Spec Sheet
Updated

Purpose

This article acts as the spec sheet for the PicoCoffee.

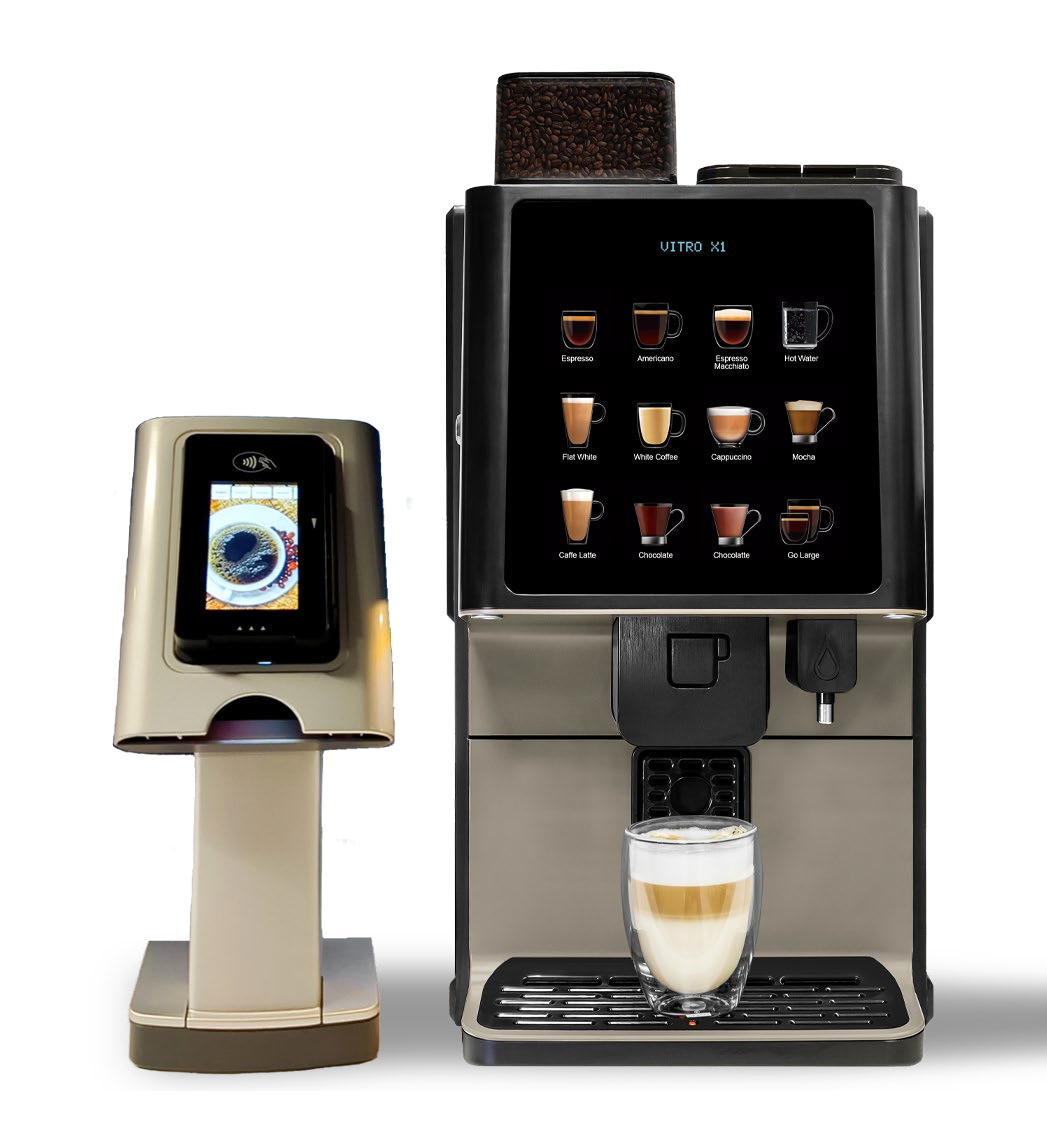

PicoCoffee - device image.png

Key Components

  • CPU / OS - High performance MCU / Android 7.x and later
  • Display / Touch - 5" TFT Color Display (1280 x 720) Capacitive Touch
  • Contactless Reader -
    • IS014443 tpe A/B, ISO 18092
    • Mifare, FeliCA
    • VISA PayWave, MasterCard PayPass, Discover D-PAS, Inerac Flash, CUP QuickPass, JCBJ J-speedy
  • MSR Reader - Vertical Swipe
  • ICC at bottom - Card inserted upward
  • Front Camera - 5 Megapixel
  • Communication
    • 4G LTE Band
    • Wi-Fi 802.11 a/b/g/n
    • Bluetooth 3.0
    • Ethernet RJ45
  • Antenna - 4G: External / Wi-Fi and Bluetooth internal integrated
  • Audio - Speaker / Microphone / Audio Jack (4 pole)
  • Barcode Reader - Newland EM2096 300 pixel projects bright red light beam



Specifications

Dimensions

  • Height - 450mm / 17.75 inches
  • Width - 170 mm / 6.625 inches
  • Depth - 260 mm / 10.25 inches
  • Weight -  4.2 kg / 9.72 lbs with stand



Other

  • Power Requirements - 9–48 V DC wide range input (Typical 12V DC - 2A)
  • Housing - IP54 (Terminal Module front side only)
  • Design Type - Recessed design
  • Stand Type - Anti-slip stand
  • Operating temp - 0–40 C (32-104 F)
  • Coffee Machine Compatibility - MDB compatibility for table-top semi-automatic coffee machines
    • MDB minimum requirements - MDB 4.2+, Level 3, Always Idle ON
