Purpose

This article explains the process of installing both types of MM6 Mini device: the MM6 Mini for Markets and the MM6 Mini for Dining. Additionally, you may use this guide to install the optional XP unit for your device.

If you find any damage sustained during the shipping process, please stop the installation and contact 365Support at (888) 365-6282 or support@365smartshop.com.

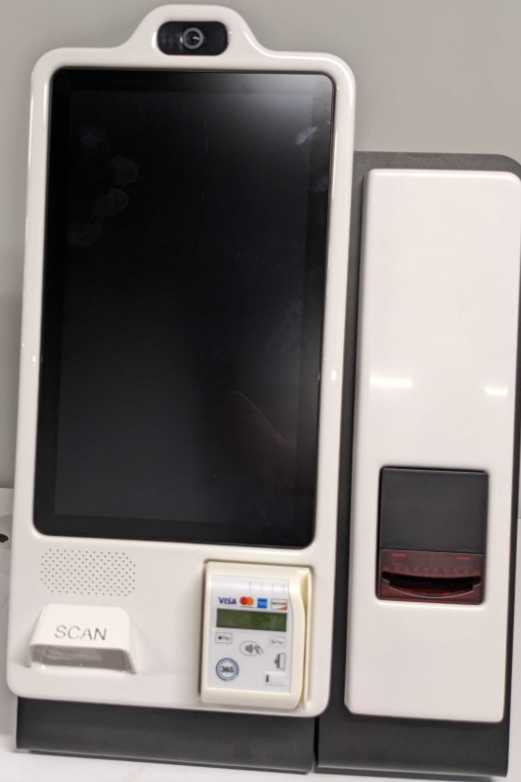

MM6 Mini Specs

• Weight: 35 lbs
• 16.5” wide, 25.5” high, 16.5” deep
• Software:

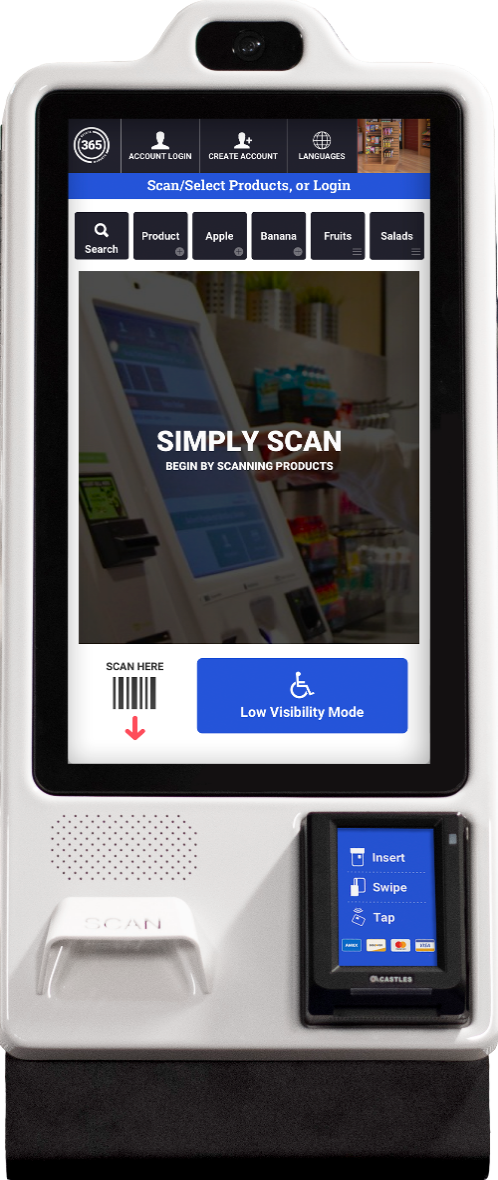

  • MM6 Mini for Markets - V5

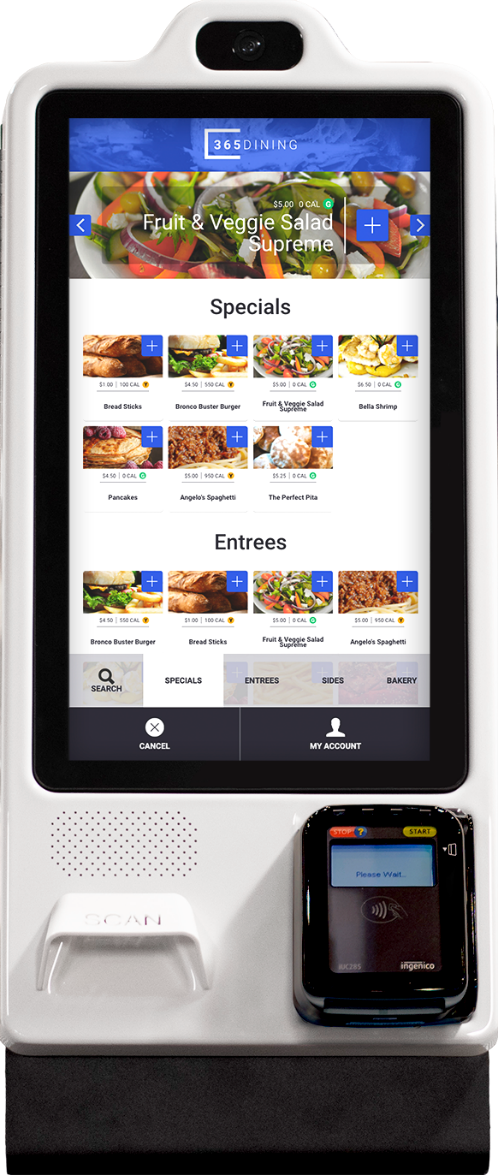

  • MM6 Mini for Dining - CK

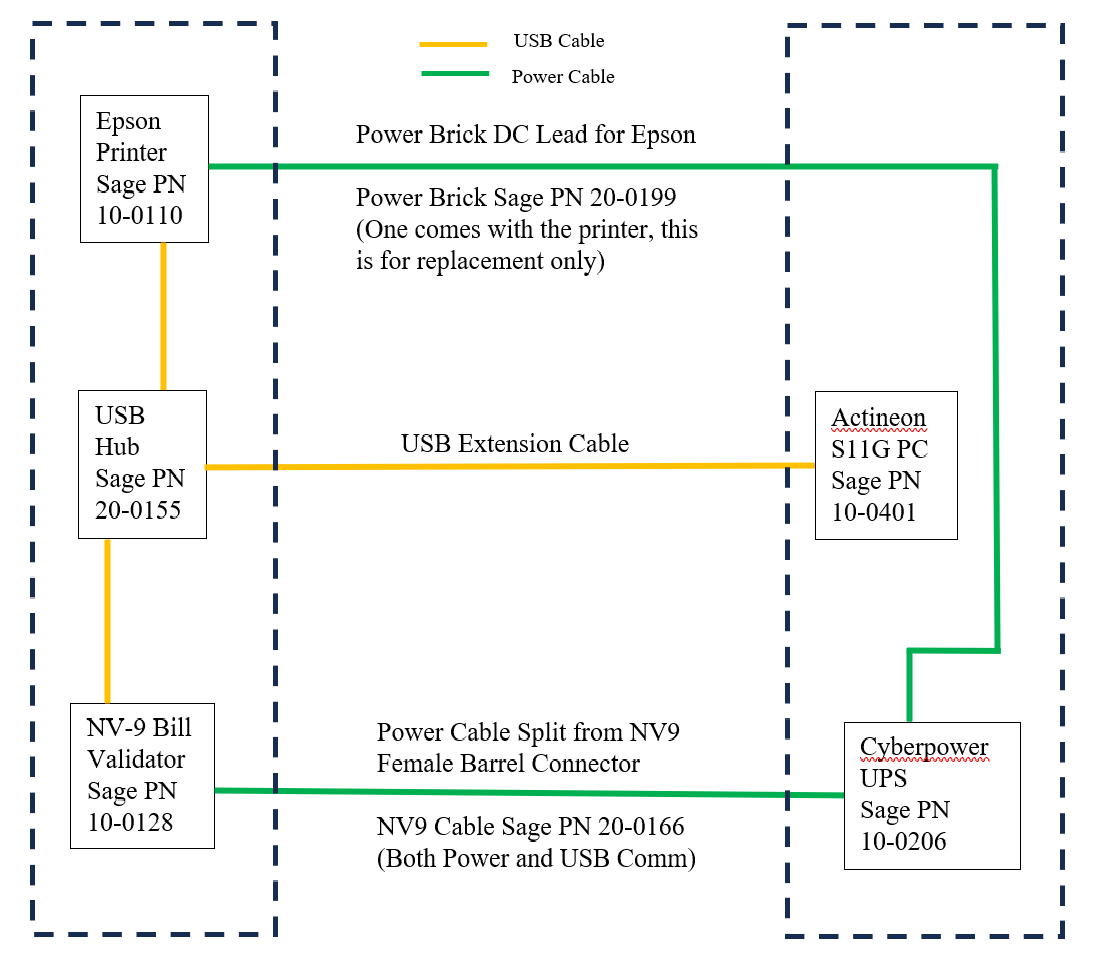

Detailed Hardware Descriptions

Setting Up the MM6 Mini

MM6 Mini Setup Requirements

An MM6 mini setup will require:

• One outlet - 120VAC 3-prong grounded outlet (15-amp service)


• One RJ45 wired Ethernet jack

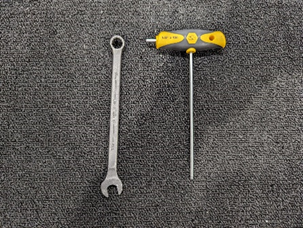

Tools Required

• 8th-inch hex wrench


• 7/16th inch combination wrench


• 3/8” drill bit and drill (not pictured)


Installation Kit

In the provided installation kit, you will find:

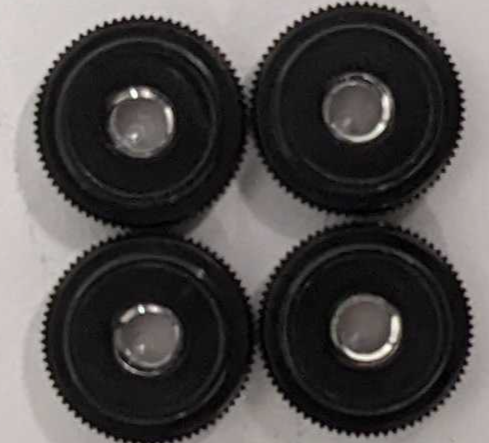

• Thumb Nut Screws (4)


• Screws (3)

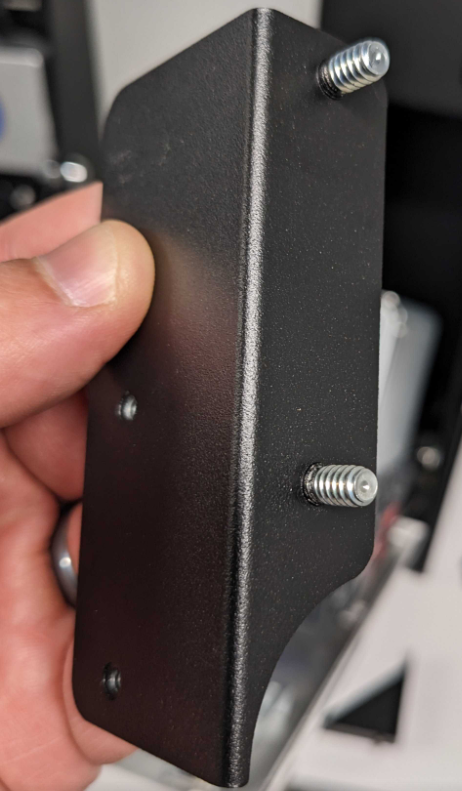

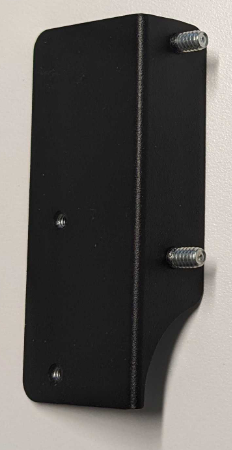

• Rear Brace (1) - Installed on the back of the MM6 Mini Kiosk

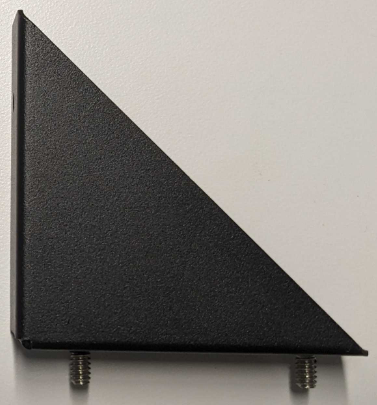

• Lower Brace (1) - Installed on the XP unit



Connect the XP Unit to the MM6 Mini

Please note: the XP unit of the MM6 Mini attaches to the right-hand side of the kiosk.

1. Unlock both the MM6 Mini kiosk and the XP unit.

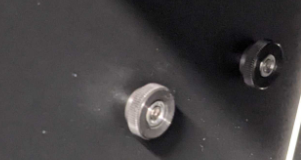

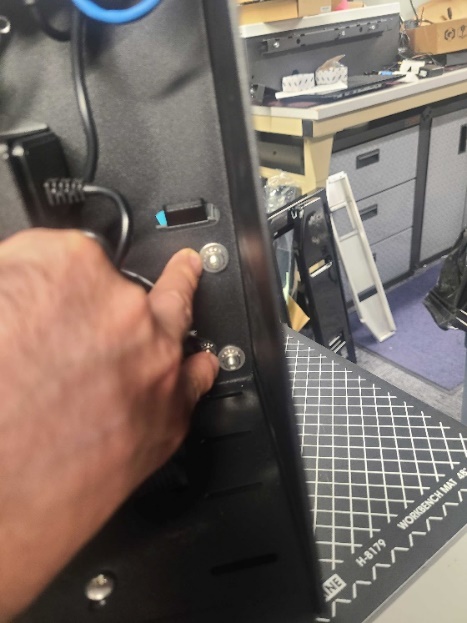

2. Install the Lower Brace and secure the plate from inside the XP unit with 2 Thumb Screw Nuts. Don’t fully tighten the screw nuts at this point

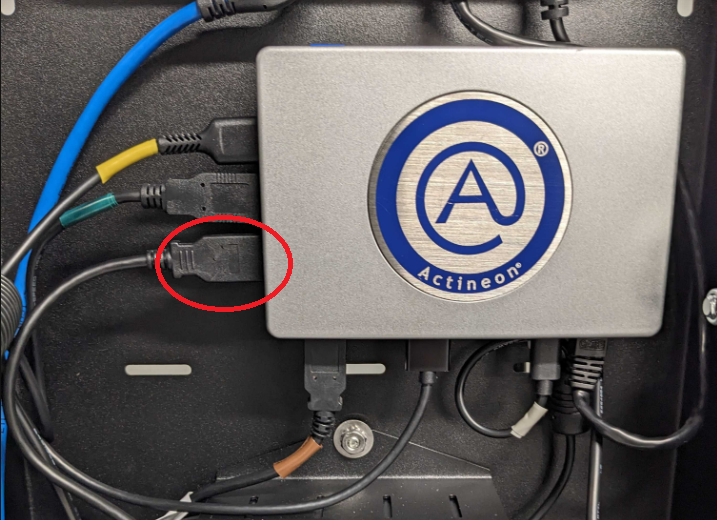

3. Open the MM6 Mini Kiosk door and unplug the USB-C cable from the PC. This will make installing the rear brace easier.

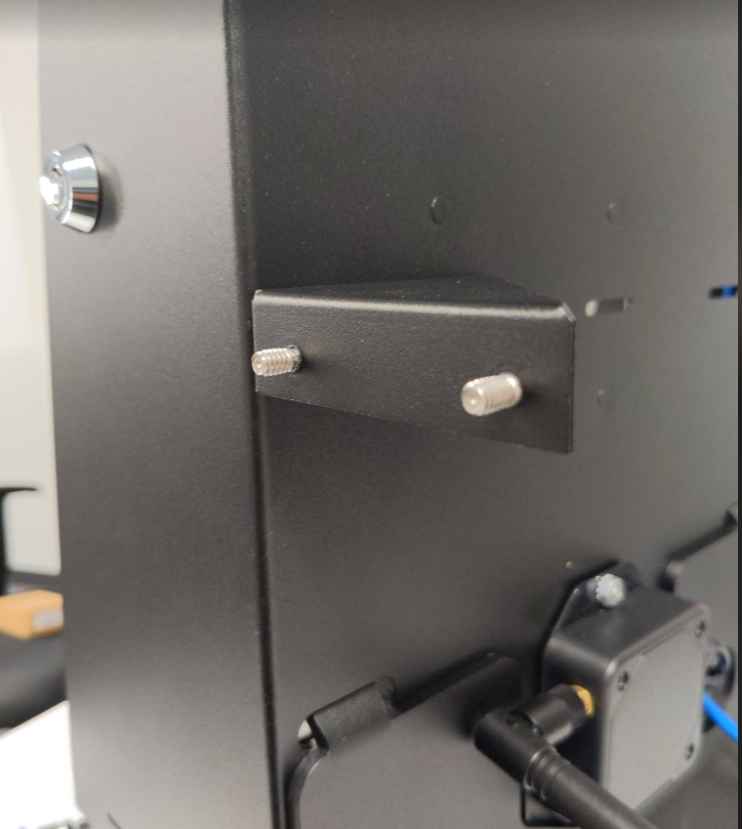

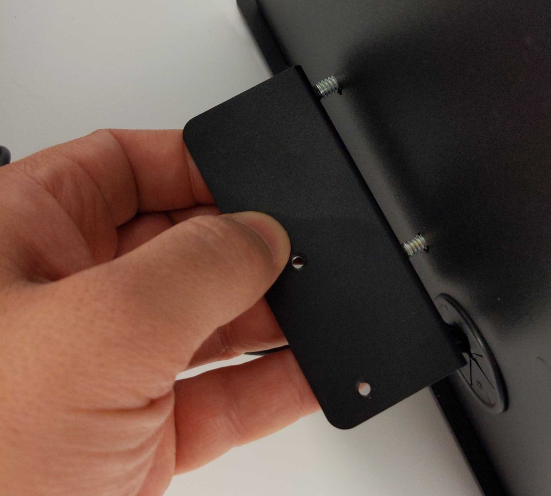

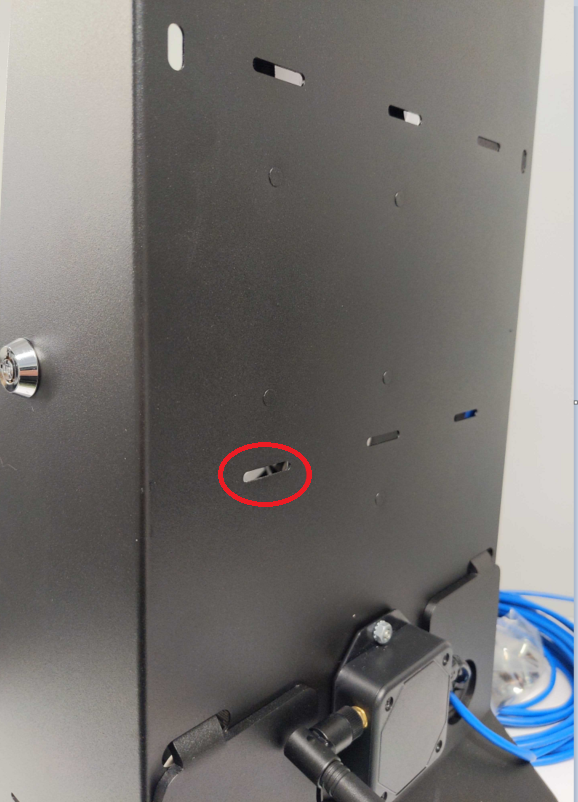

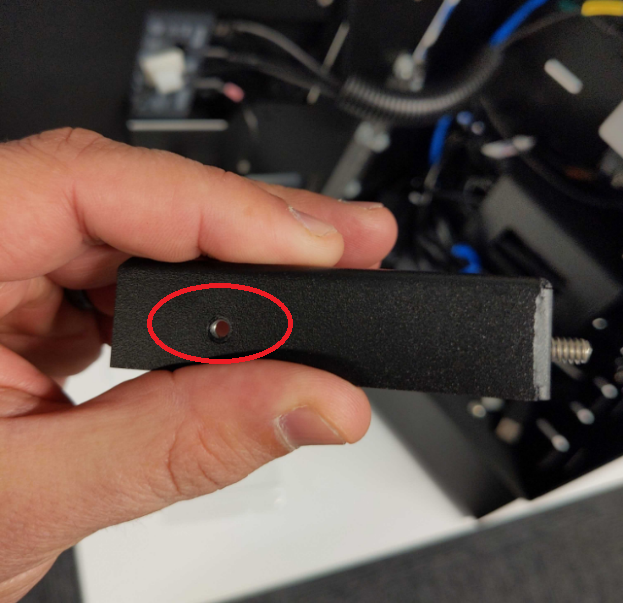

4. Turn the Kiosk around to view the back. Line up the rear brace with the lower-left slot on the back of the device so that the screw hole of the rear brace is lined up with the slot. Be sure to orient the rear brace so that the two bolts are pointing towards the right-hand side of the unit.

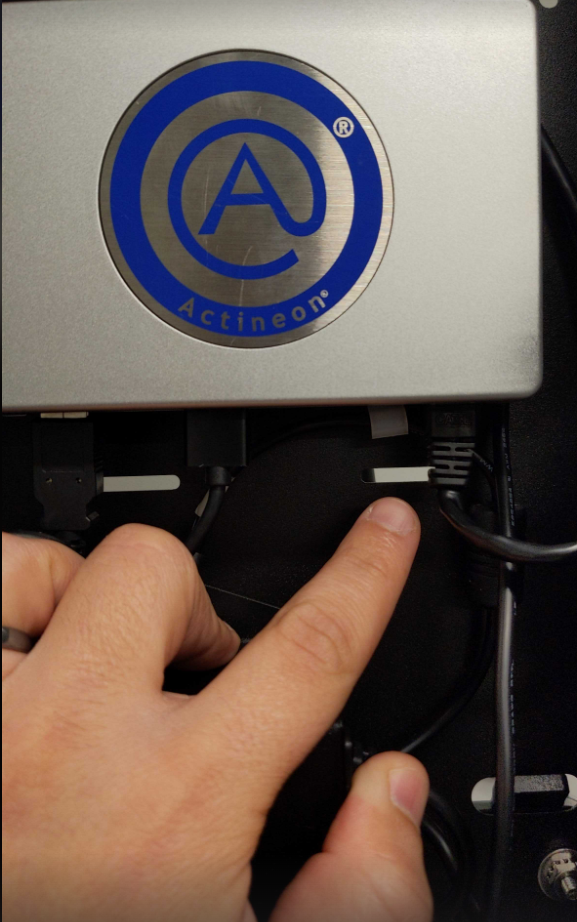

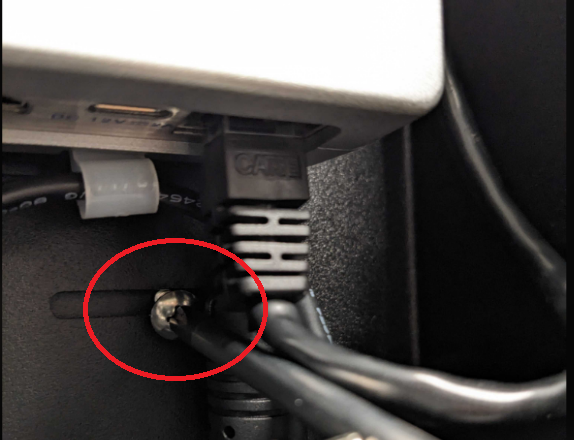

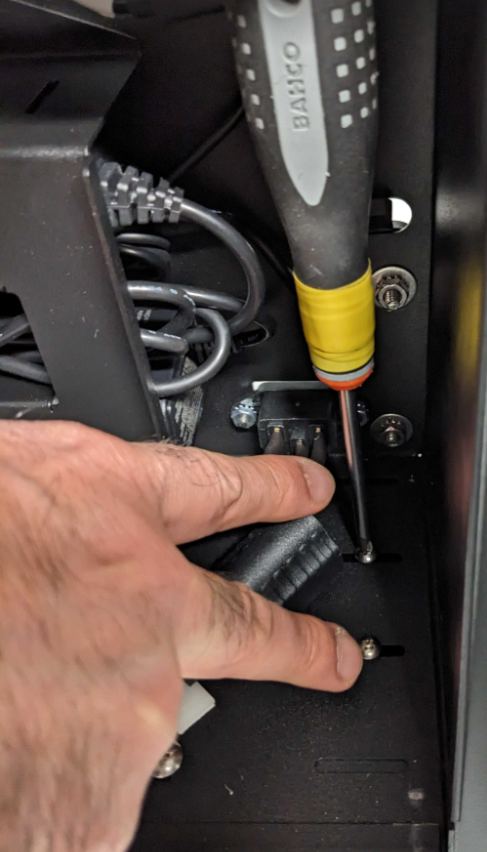

5. Inside the device, below the PC unit, place one of the provided screws into the slot so that it lines up with the screw hole of the rear brace. Attach the rear brace from the inside of the MM6 Kiosk with this screw. Once the rear brace has been attached, plug in the USB-C cable back into the PC.

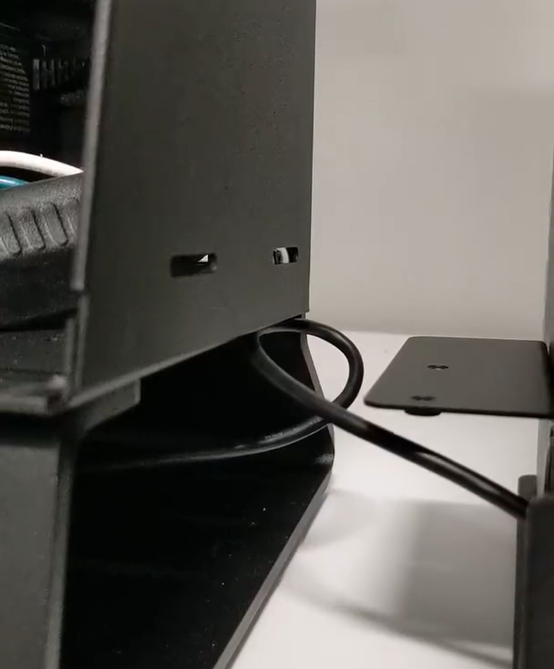

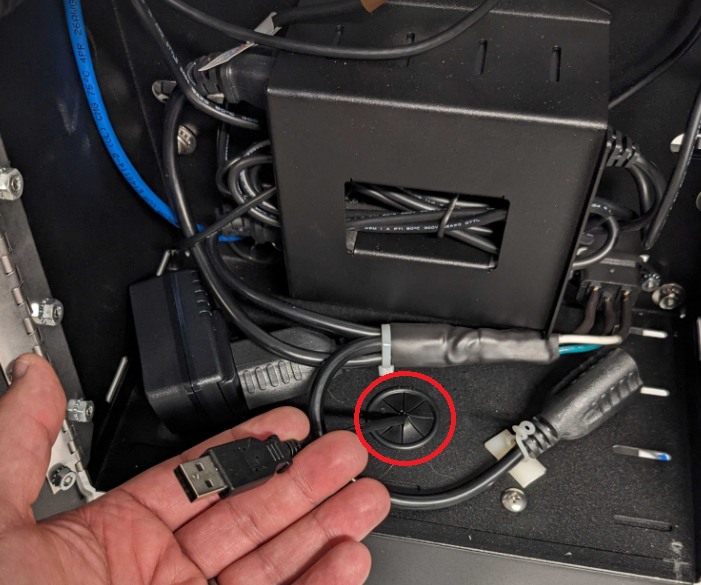

6. Run the USB cable under the MM6 Mini stand. Pull the cable through the kiosk opening and plug it into an open PC port

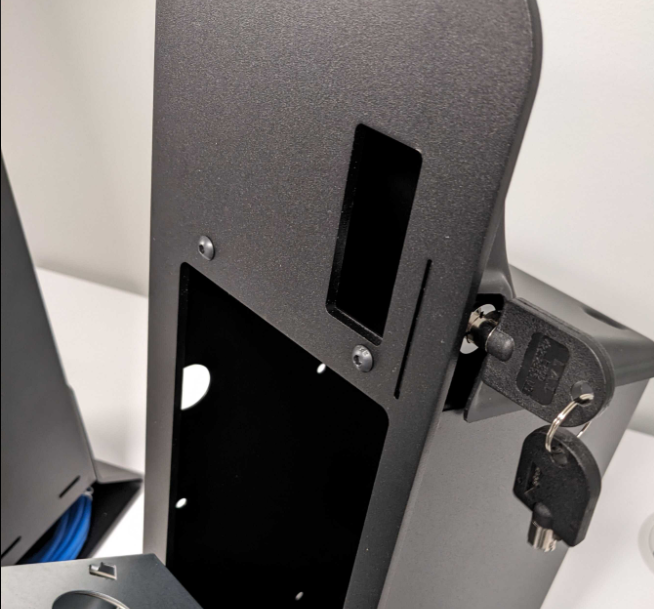

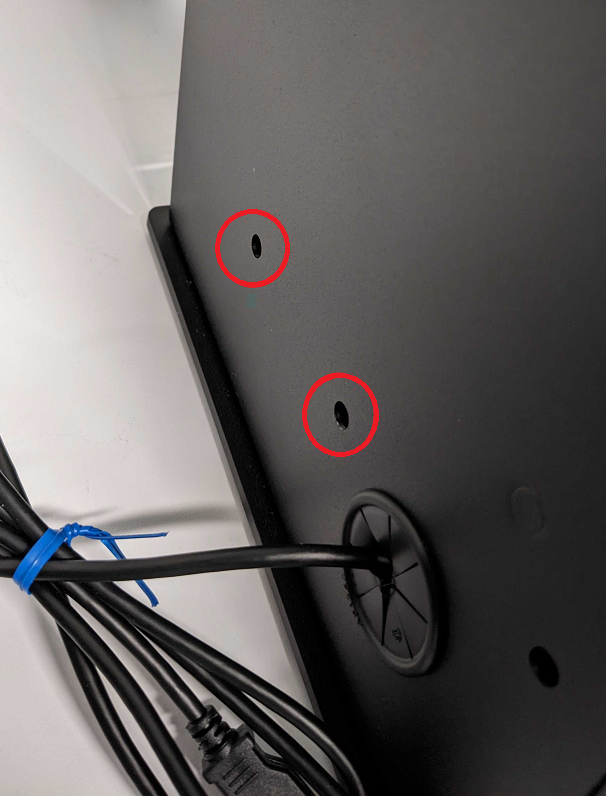

7. Line up the bolts of the rear brace with the appropriate holes in the XP unit, and insert them into the device.

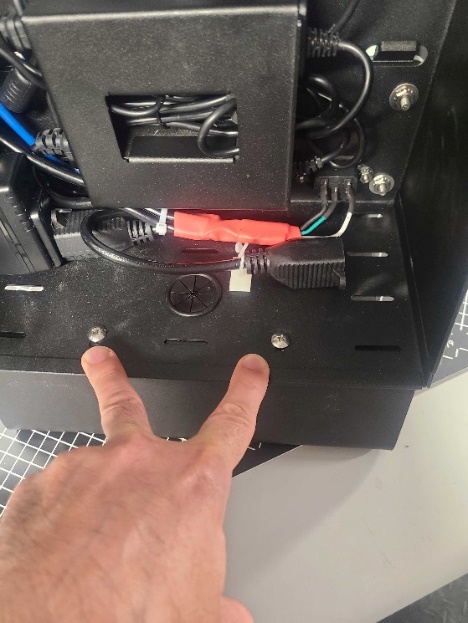

8. Inside MM6 Mini Kiosk, line up the screw holes to the slots and secure XP unit to Kiosk. You may need to shift the XP unit somewhat to get everything to line up. Keep both thumb nut screws loosened until everything is in place.


9. Tighten all the Thumb Nut Screws in the XP unit


10. Lock both Kiosk and XP unit


11. Plug Kiosk and XP unit into 120VAC 3-prong grounded outlets



Installing the MM6 Mini

Countertop Installation Method

The countertop mounting method can be used if your setup uses both the MM6 Mini and the XP, or when using the MM6 Mini as a stand-alone device.

1. Remove the four rubber feet from the underside of the stand. This will allow it to sit flush against the countertop.


2. Place the Countertop Installation Template guide on the counter of the desired location and secure it with tape. This installation guide is included in the paperwork that comes with the MM6 Mini, and is also available for download in the attachments to this article.


3. Use your 3/8” drill bit to drill 4 holes in the marked locations. If you have installed the XP unit, drill the additional 2 holes in the marked locations.


4. Attach the device to the countertop using one of the following methods:


   • Bolted Connection (suggested method): place the unit in its desired location and insert the supplied carriage bolts through the square holes. Secure the bolt from the underside of the countertop with washers and nuts.


   • Wood Screws: place the unit in the desired location and drive the screws through the base holes using a drill driver.


5. Power on the MM6 Mini unit by connecting it to a 120VAC 3-prong grounded outlet. If you have installed the XP Unit, this will also need to be plugged into a 120VAC 3-prong grounded outlet. Plug in the provided ethernet cable to an access point.

The MM6 Mini unit will then boot up and automatically start the Point of Sale (POS) software. The Meraki will also power up when you start the kiosk.

Wall Mount Installation Method

1. Remove the countertop stand by placing the device on its side, then remove the six nuts that secure the base to the device.



2. Place the Wall Mount Drill Template on the wall in your desired location, and secure it in place with tape. This installation guide is included in the paperwork that comes with the MM6 Mini, and is also available for download in the attachments to this article.


   When choosing your location, keep in mind that it is highly recommended that you anchor at least 2 of the 4 fasteners into a stud or other securing framing member to prevent damage to the kiosk.
3. Drill the appropriate holes, then remove the drill guide. Secure the mount to the wall using wall anchors suitable for your wall type (not included).


4. Power on the MM6 Mini unit by connecting it to a 120VAC 3-prong grounded outlet. If you have installed the XP Unit, this will also need to be plugged into a 120VAC 3-prong grounded outlet. Plug in the provided ethernet cable to an access point.

The MM6 Mini unit will then boot up and automatically start the Point of Sale (POS) software. The Meraki will also power up when you start the kiosk.
