MM6 and MM6 Mini - Castles to OTI Swap Process
  1. 365 Retail Markets
  2. 365 Retail Markets
  3. MM6 Platform
  4. Troubleshooting and Maintenance
MM6 and MM6 Mini - Castles to OTI Swap Process
Updated
Print
Scroll to Top
Table of Contents

Purpose

The purpose of this article is to describe switching from a Castle card reader to OTI card reader on MM6 and MM6 Mini Kiosk replacement process.





Process

Castles to OTI Replace Kit

The Castles to OTI replacement kit contains the following. Please note: an appropriate screwdriver will also be required.

  • 4 screws - 60-0109
  • Mounting bracket

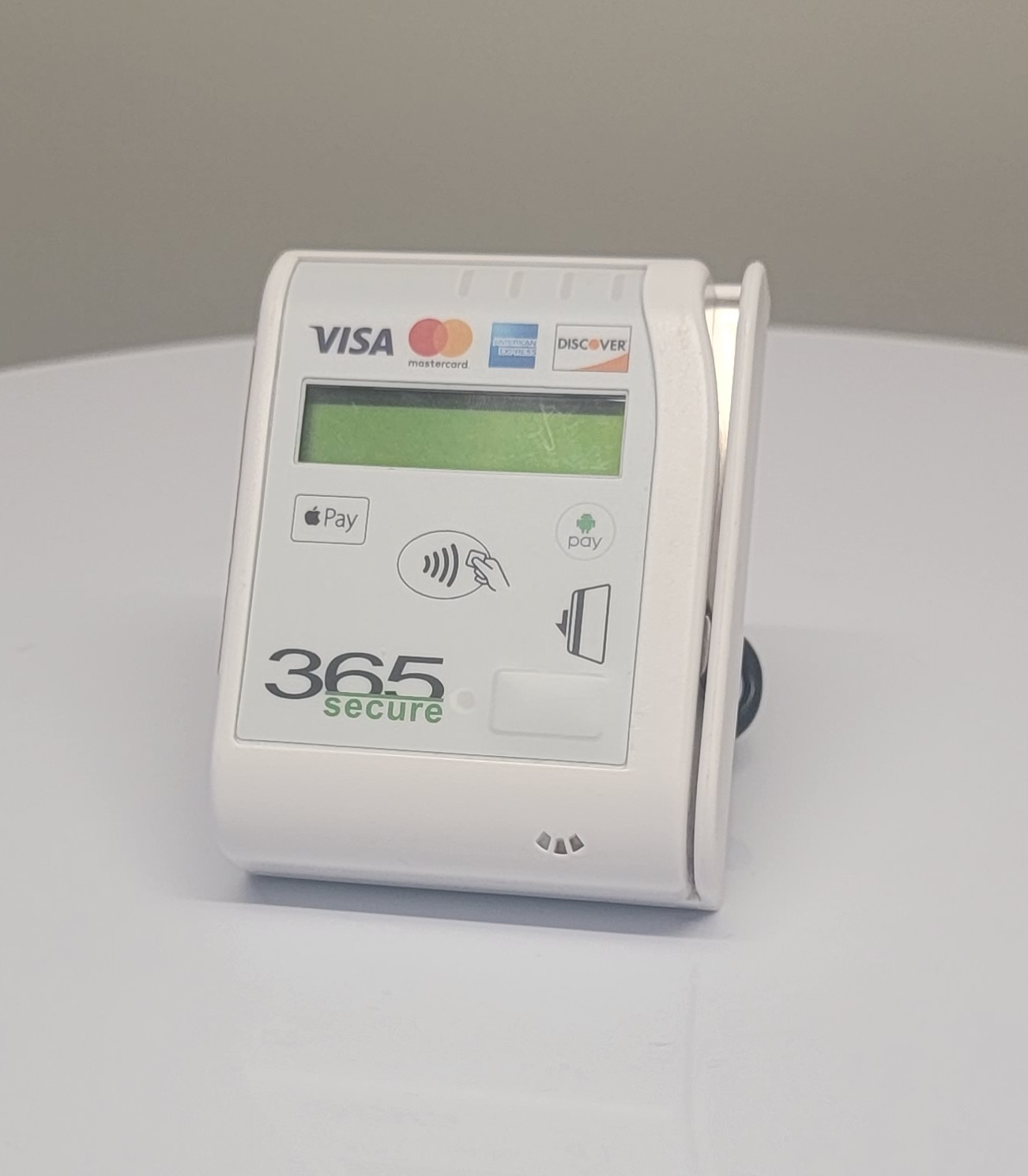

  • OTI Reader - 10-0116
    Castles to OTI replace kit.png

How To Replace Castles for OTI Reader

  1. Unlock and open MM6 Mini Kiosk.

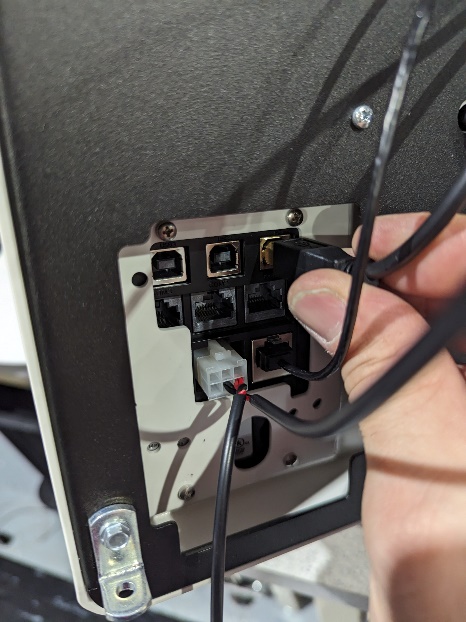

  2. Remove the Molex, Ethernet, and USB-A cables from the back of the Castles Reader

    MM6 Mini - removing credit card reader cables.jpg
  3. Tuck the Molex, Ethernet, and USB-A cables into the side of the kiosk frame.

    MM6 Version:

    MM6 Mini - Castle cables tucked into kiosk frame.png
    MM6 Mini Version:

    MM6 mini- Castle cables tucked into kiosk frame.png

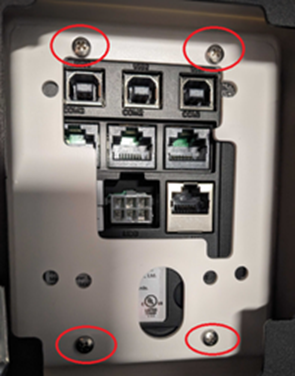

  4. Remove the 4 screws from the back of the Castles reader and remove the reader from the kiosk bezel.

    Castles to OTI remove screws.png

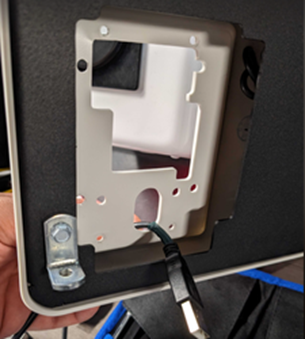

  5. Take your OTI reader and feed all the USB cable through the opening shown

    Castles to OTI cable feed through.png

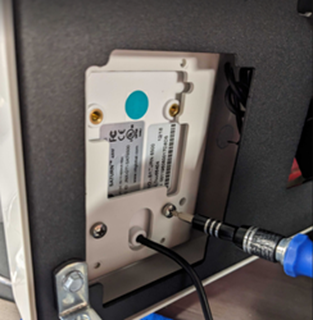

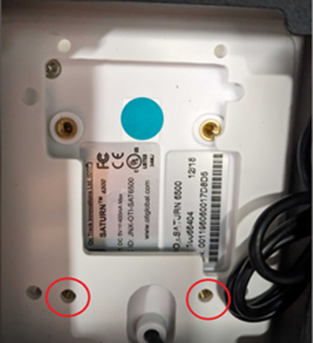

  6. Line up the OTI reader as shown in the picture below and attach the reader starting from the bottom set of screws.

    Castles to OTI gallery screws out.png Castles to OTI gallery screws in.png

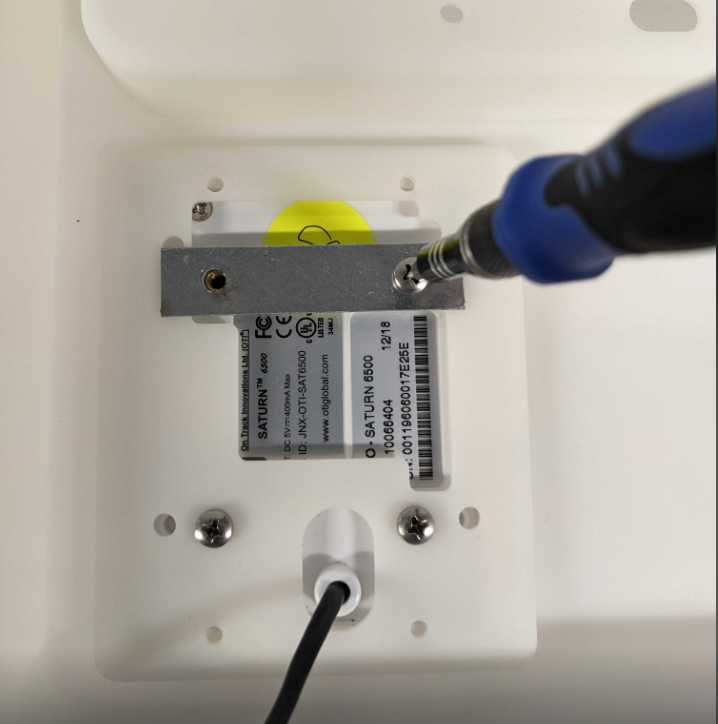

  7. Now place the bracket over the top screw opens and tighten screws back in

    Castles to OTI screws washers.png

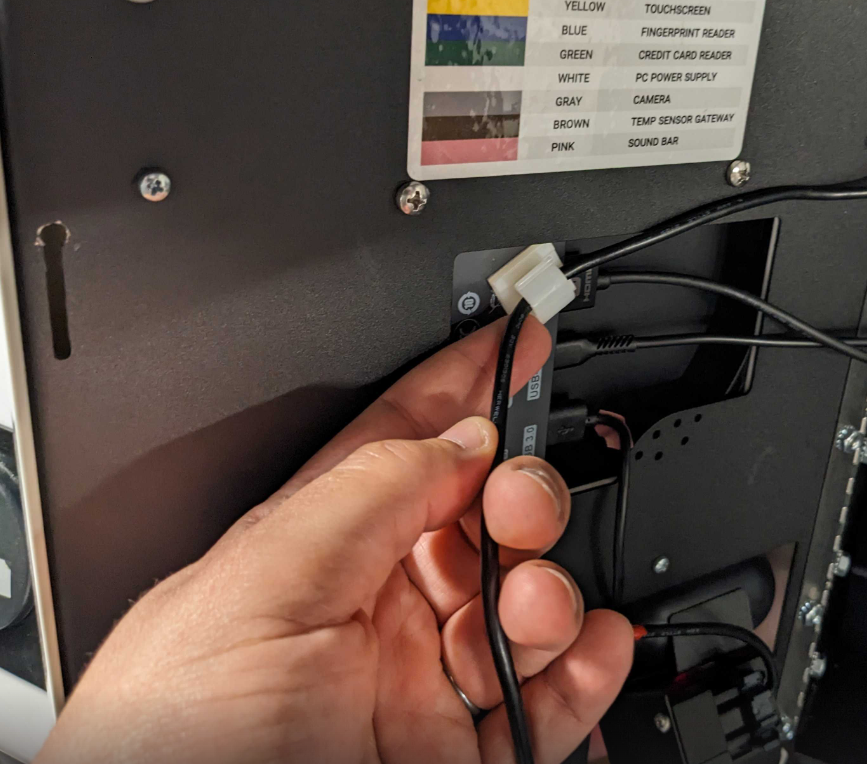

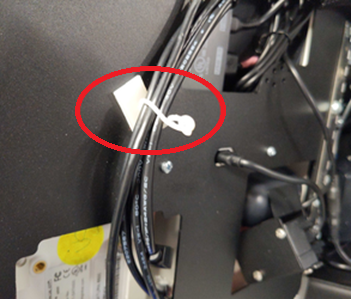

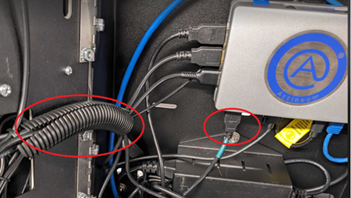

  8. Run the OTI USB cable through the clamp

    MM6 Version:

    Castles to OTI cable with clamp.png

    MM6 Mini Version:

    MM6 Mini - OTI Cable clamp.png

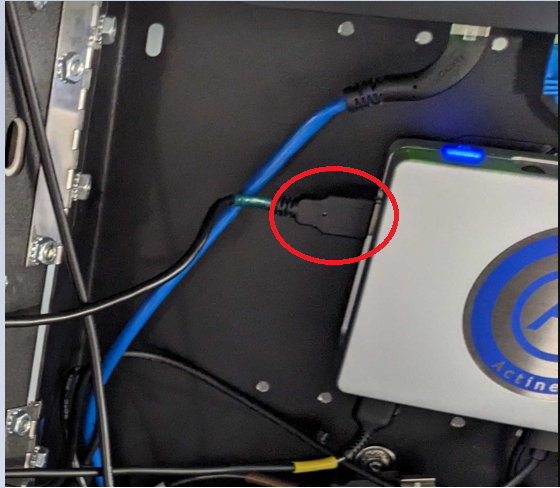

  9. Secure with in the loom tubing, then plug the OTI USB cable into an open USB port on the PC.

    MM6 Version:

    Castles to OTI PC cable connect.png
    MM6 Mini Version:

    MM6 Mini - OTI Cable into PC.png

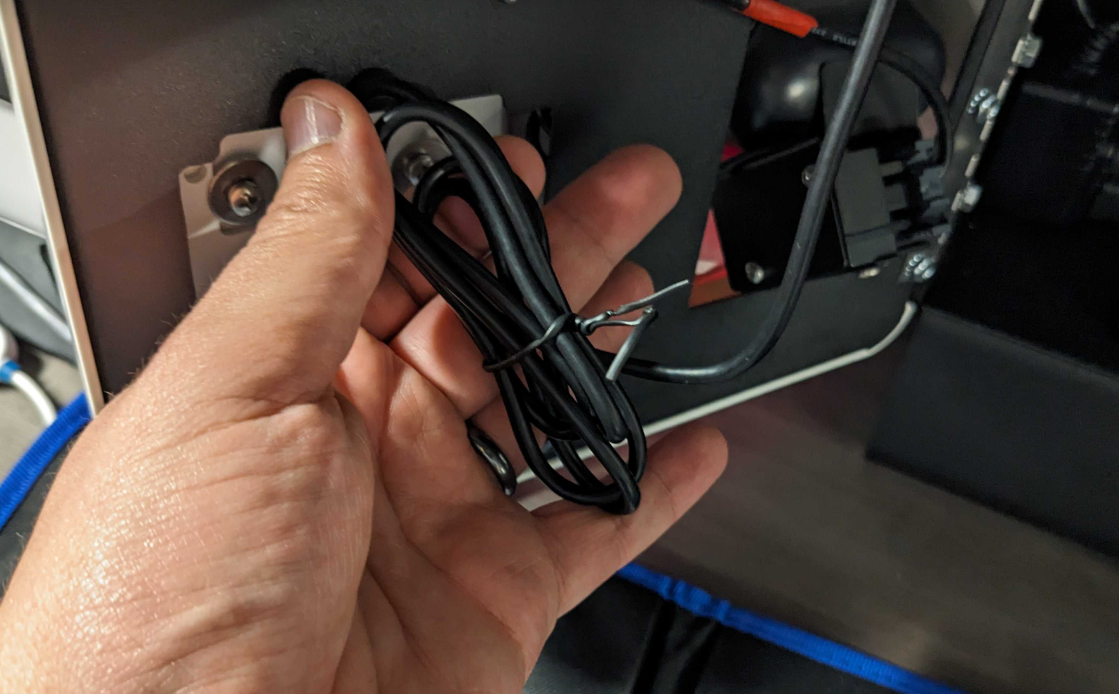

  10. Bundle the USB cord slack and secure with a zip or twist tie

    MM6 Mini Version:

    MM6 Mini - Castles USB cord secured with twist tie.png

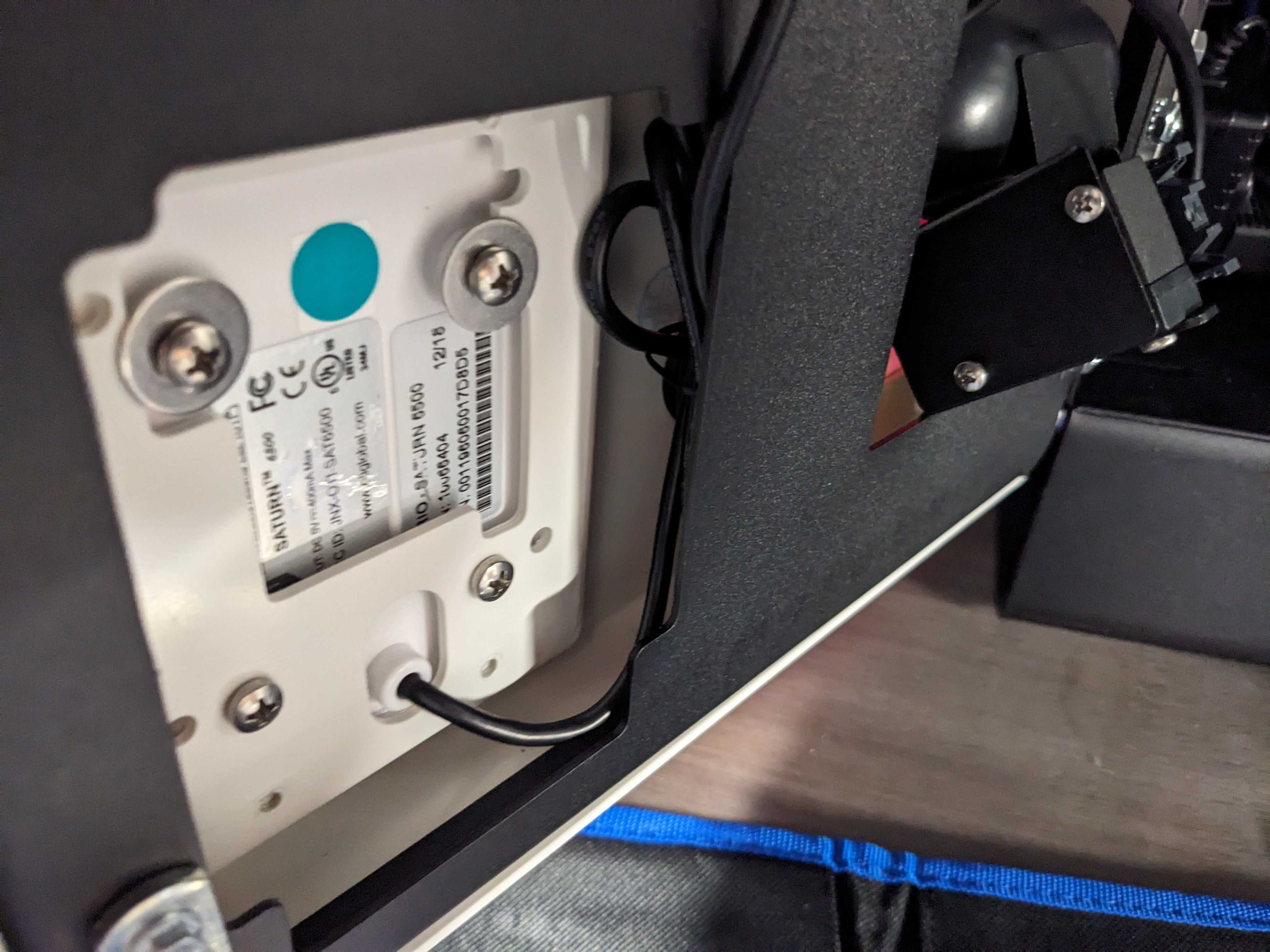

  11. Tuck the bundled cable behind the Kiosk bezel next to the OTI reader

    MM6 Mini version:

    MM6 Mini - cables behind bezel next to the OTI reader.png
