Purpose

Fetch, also known as Suelware, is a device that can be connected physically to a vending machine and uses Bluetooth to connect to the Stock app on your phone or tablet. It can then be used to service the machine on a VMS route using cellular signal. This article covers how to setup and service a machine using the Fetch/Suelware device.

Process

Situation

Fetch and Suelware devices are useful in cases such as the following:

  • Machines in areas with little or no consistent cell coverage.
  • Non-telemetry machines that are in the VMS for predictive routing and prekitting, cash accountability, and analytics.
  • Faster DEXing in cases where Fill DEX processing time by the installed telemeter is longer than desired, since any online machine can be Fetch Dex'd at any time without modifying any settings in the VMS.
  • Assistance in creation of offline machines in the VMS.

To begin using this feature, you must ask Support or Customer Success to activate the Fetch functionality.

Setting Up a Machine

Use the following instructions to set up a machine with Fetch.

    1. Create your offline machines in the VMS. Instructions can be found in the article Parlevel - Creating and using Offline Machines.

    2. Go to Vending > All Machines and use the left-hand checkboxes to select the machines you created.

    3. On the right-hand side, click Options > Print QR-Codes to print the codes that will be used at the machines when setting up and servicing.

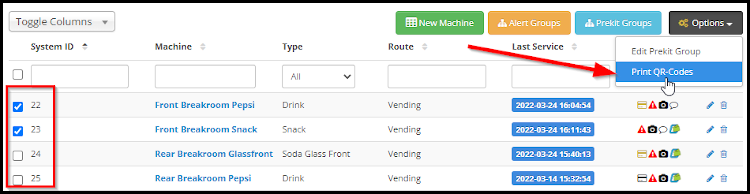

      Parlevel - VMS - Fetch - Print QR Codes
    4. Once at the machine, start by plugging the Suelware device into the DEX port at the machine board and then turning it on. The Status light will begin flashing blue, indicating that it's ready to pair.

    5. Open the Stock application on your mobile device and tap Fetch on the lower right of the navigation bar.

    6. Select the Bluetooth logo button on the right side. Select the appropriate device from the following list. The Suelware devices will be shown in bold as a visual indicator to select the correct device, if a Suelware device is not shown in bold, please try again.

    7. Tap the blue Implement new device button, seen below.

      Parlevel - Fetch - Implement new device
    8. When prompted, enter the asset number for the machine as the Machine Identifier.

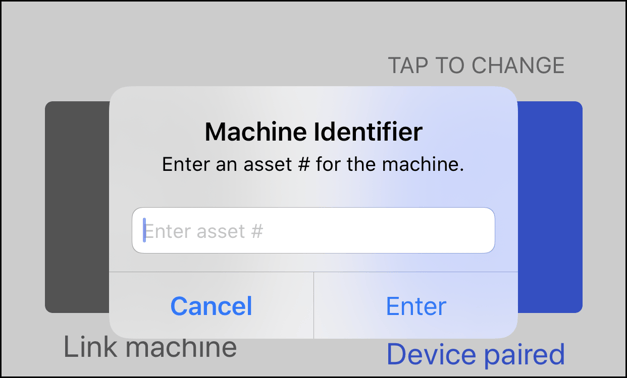

      Parlevel - Fetch - Machine Identifier
    9. Press the green Start dexing button to send a DEX to the VMS. If it is successful, you will be notified. If there is no cell signal at your location, then the DEX will send once signal is available.
      When the machine is next serviced, the printed QR code should be placed somewhere safe but accessible inside the machine.  If you had already created your machines in the VMS ahead of time, then you can store the appropriate QR code now.

    10. The Suelware device will now be available in your VMS Implementation page, which can be merged with the offline machine.
      For instructions on how to merge a device with an offline machine, please see this brief article. If the machine layout seems incorrect or you have any questions about the machine's layout or mapping, please contact Parlevel Support.

    11. If you have an online machine in the VMS that you would like to update to Fetch from telemeter, you can go to Vending > All Machines, and click the pencil icon for the online machine that is intended to be used with Fetch. Go to the Basic Info tab, and check the FETCH Only Machine box.

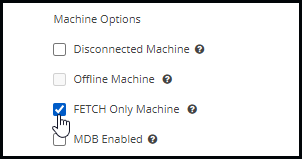

      Parlevel - Fetch - Fetch Only
      Checking this box will automatically update the online machine's Device ID to a Suelware device ID.



Servicing Machines Using the Suelware Device

  1. While at the machine, start by plugging the Suelware device into the DEX port and then turning it on. Its status light will begin flashing blue, indicating that it's ready to pair.

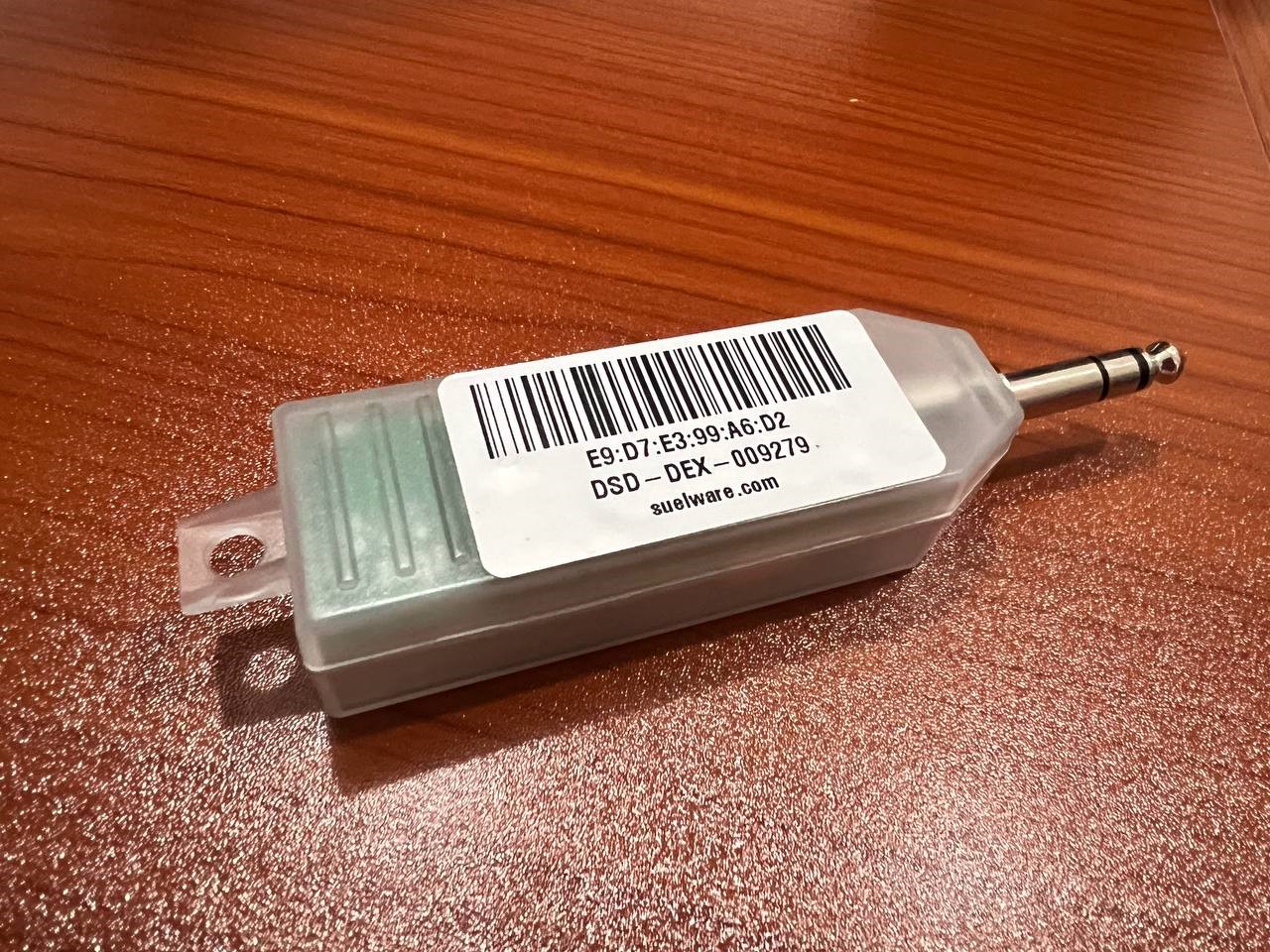

    Parlevel - Fetch - Dex/Suelware Adapter
  2. Open the Stock application on your mobile device and tap Fetch in the lower right corner.

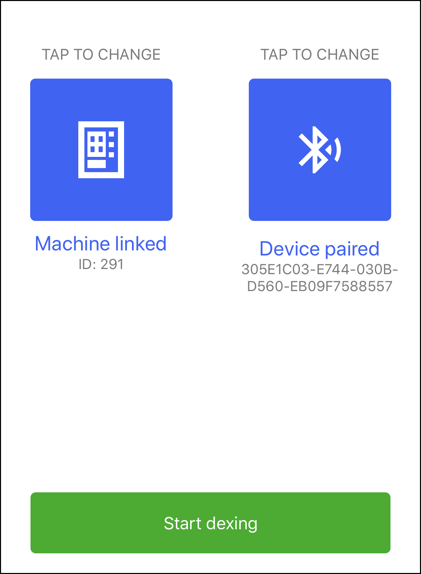

    Parlevel - Fetch - Servicing Device
  3. Select the Bluetooth logo on the right, and pair with the device. Your phone only needs to be paired with the Suelware device the first time.

  4. To use the QR code specific to the machine, select the QR code button and scan the code using your phone. Store the QR code inside the machine in a safe but accessible place for future servicing.

  5. Press the green button to start a DEX. If it is successful, you will be notified. If there is no cell signal at your location, then you will be notified that the Dex failed, and it will send once signal is available.

  6. If the DEX was confirmed as successful, go back to Routes to ensure the machine was marked as serviced. You can continue servicing the machine as normal and proceed with your route.
