Purpose

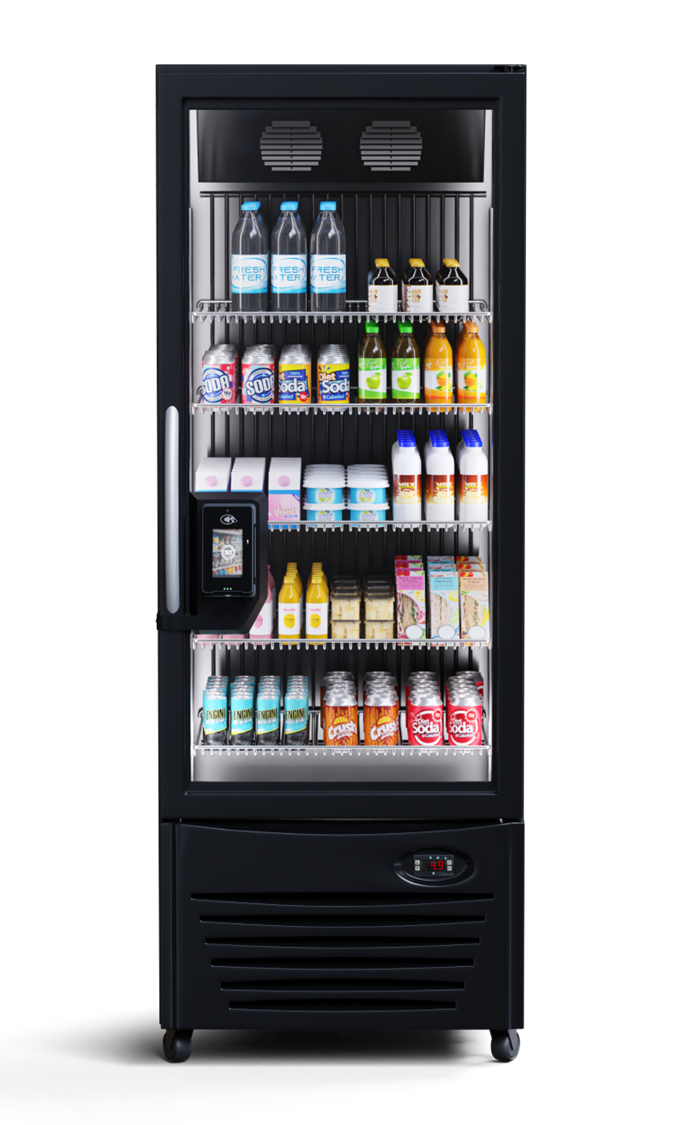

This article details the specifications and key components of the PicoCooler Vision.
Specifications
Dimensions
- Height - 78.75 inches / 200 cm
- Width - 30 inches / 76.2 cm
- Depth - 32.62 inches / 82.9 cm
-
Weight - 340 lbs/ 154.4 kg
Power Requirements
- Volts / Hz / Phase - 120 / 60 / 1
- Amps - 1.0
-
H.P. (kW) - 1/4 (0.19)
Other Specifications
- Cooler type - upright floor cabinet
- Display type - touch screen
- Capacity - 23.41 cubic feet/ 663.0 liters
- Lighting - 2 Interior LED Light Strips
- Shelves - 4 adjustable, 1 fixed (bottom)
- Casters - Yes
Key Components
| Purpose | Component | Part Number | Notes |
| PC | Actineon PC, Linux Img 12Port | 10-0501 | Handles communications on unit. Pre-staged to external ID of unit |
| Cameras | USB Stockwell Camera (Qty - 5) | 10-0150 | 5 Internal cameras used for product recognition |
| Cooler | 22-USGR-F2-BL Due North Refrigerator | FG-0340 | Pre-staged to the same External ID as its associated PC. |
| Connectivity | Optconnect Neo 2.0 | 10-0314 | External modem that's configured to work with towers in the US and Canada. |
| Cat6 Ethernet Cable (10ft) | 20-0146 | Connects to Optconnect unit |
